Stamos Germany Spawarka inwertorowa MIG/MAG MMA FLUX IGBT TIG Liftarc 250 A
209.00 €
Monthly payment from 6,28 €
3363421 10021501
4062859232045
Shipping 9-13 b.d.
You are interested in this product?
All about the product
Manufacturer code: 10021501The Stamos MAGITEX 250 MIG/MAG welder uses the latest IGBT inverter technology and offers the highest level of versatility and quality. Smooth adjustment of the welding current up to 250 A ensures optimal welds for many different tasks. When welding with wire, you can choose solid wire, which requires shielding gas, or cored wire without additional gas. The Migomat is complemented by the MMA welding option, which allows it to be used outdoors in windy conditions without any problems. It is also possible to work with the TIG Liftarc method. All operating values are always visible on the clearly arranged control panel. It is just as easy to choose the welding method between MIG/MAG, with self-shielded wire (FLUX), TIG Liftarc and MMA , as well as switching between 2T and 4T modes. At full power, the MIG welder reaches 250A and a 60% duty cycle. It also has a built-in storage space for a coil of wire. Depending on the type and diameter of the welding wire, the corresponding mode is selected on the control panel or the SYNC mode is activated to automatically select the parameters. MIG welding uses inert gases for copper, magnesium and other non-ferrous metals and their alloys. The MAG method, on the other hand, requires an active gas to optimally bond structural steel, steel and most of their alloys. To weld without shielding gas, use cored wire and select FLUX mode. The TIG method on this model uses a Liftarc ignition to activate the arc. For spot welding, select the SPOT function on the screen. Using the panel, you can easily set the amperage up to 200 A. The MMA welding mode is mainly used for welding iron or copper, as well as alloys such as cast iron or steel. Since stick welding does not require gas, the device can also be used in difficult conditions such as wind. The Arc Force function ensures optimal results thanks to a stable arc.
Product features:
- - MIG/MAG welder offers 250 A for MIG and FLUX welding, 200 A for TIG Liftarc and 180 A for MMA,
- - The Migomat IGBT converter reliably processes all values, allows fast switching of modes and affects the compact size of the device,
- - All settings are set intuitively on a clear panel with a large screen,
- - The control panel selects the type of gas (CO2 or mixed), the type and diameter of the welding wire (0.6-1 mm) and the spot welding function TIG Liftarc,
- - The aluminum welder offers a 2T mode for short welding jobs and a 4T mode for longer jobs.
- - When welding in MMA mode, Arc Force is used to obtain high quality welds.
Technical parameters:
- - Catalog number - 10021501
- - Product condition - New
- - Model - MAGITEX 250
- - Material - Carbon steel
- - Color - Black
- - Voltage [V] - 230
- - IP protection level - IP21S
- – Utility [%] – 80
- - Input power [kVA] - 6.2
- - MMA welding current [A] - 20-180
- - TIG welding current [A] - 10-200
- - Insulation class - H
- - Maximum welding current [A] - MIG: 250
- - Minimum welding current [A] - MIG: 30
- - 2/4 bar - Yes
- - Raise the TIG - Yes
- - ARC-Force - Yes
- - MMA function - Yes
- – Duty cycle [%] – 60
- - MIG/MAG cable - 2 m
- - Dimensions (LxWxH) - 45 x 16 x 22 cm
- - Weight - 6.4 kg
- - Shipping dimensions (LxWxH) - 53 x 33 x 39 cm
- - Shipping weight - 13.9 kg

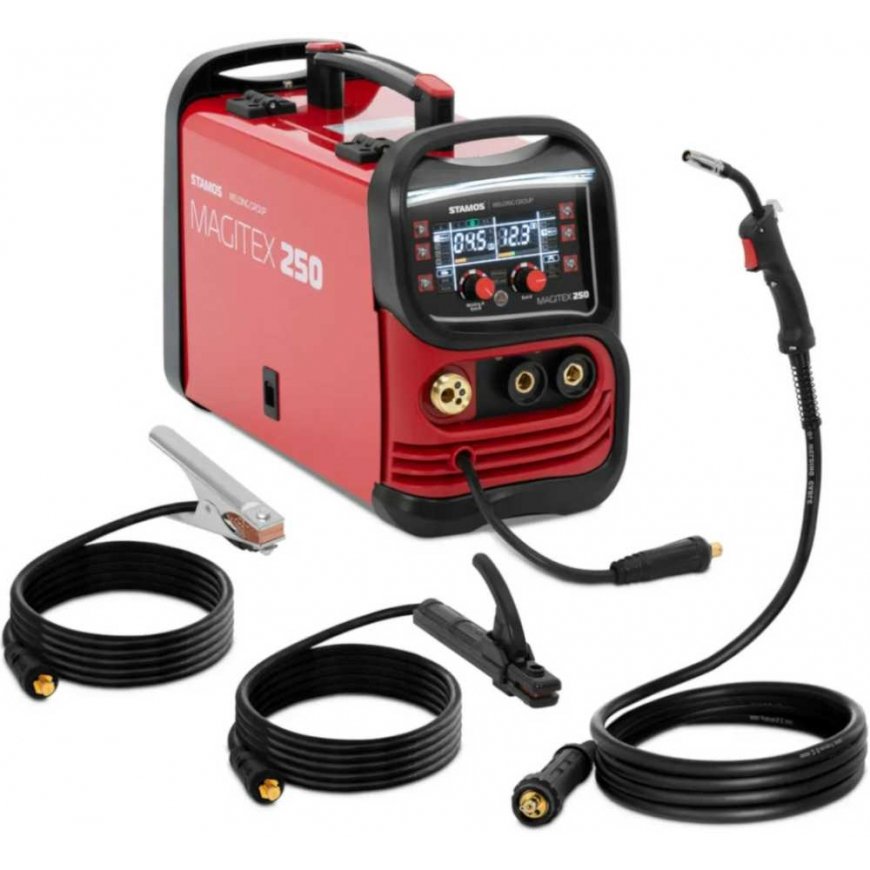

The price includes:
- - MIG/MAG welder
- - MIG/MAG torch with hose set (2 m)
- - Electrode holder with cable (1.8 m)
- - Earth terminal with cable (1.2 m)
- - Power cable (2 m)
