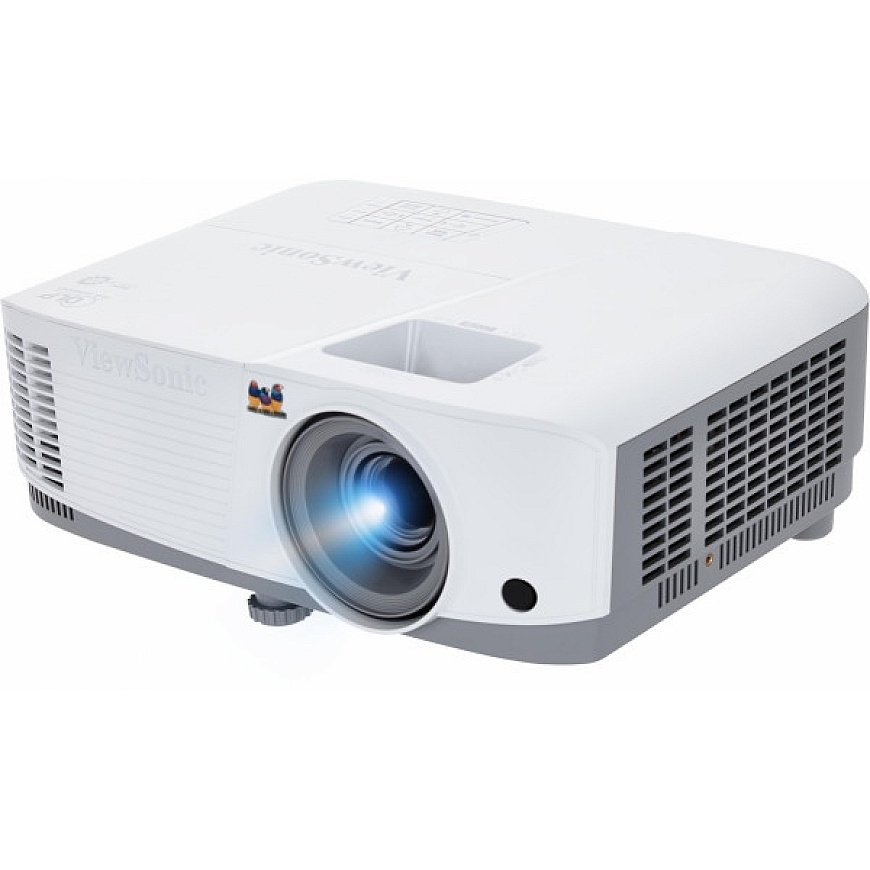

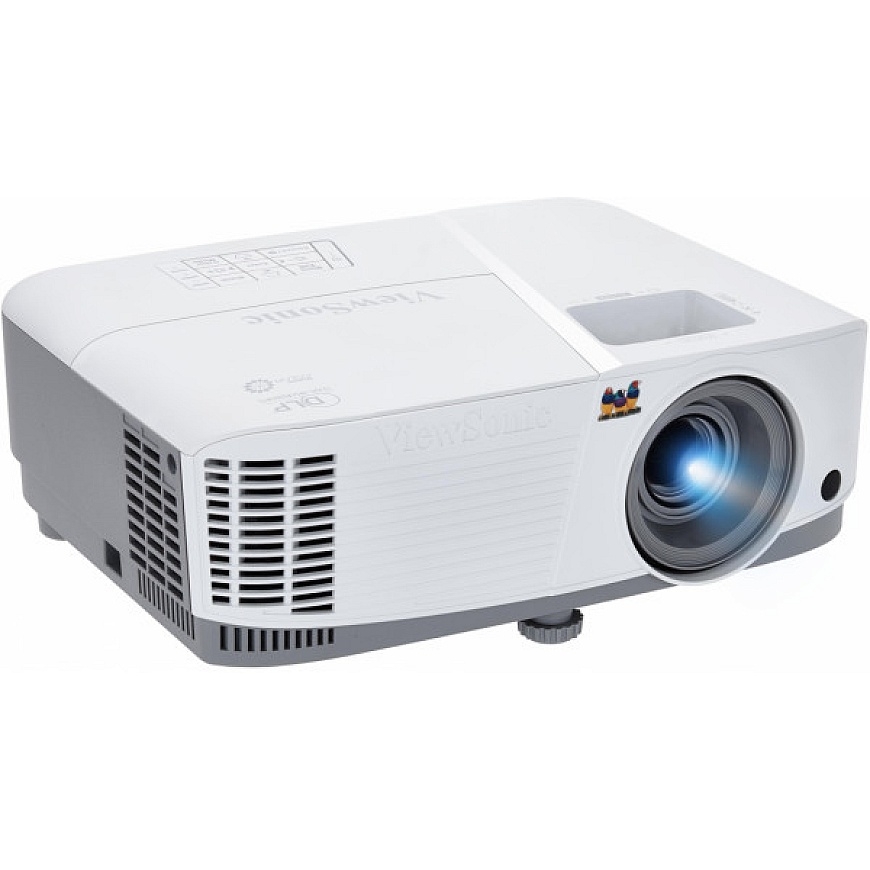

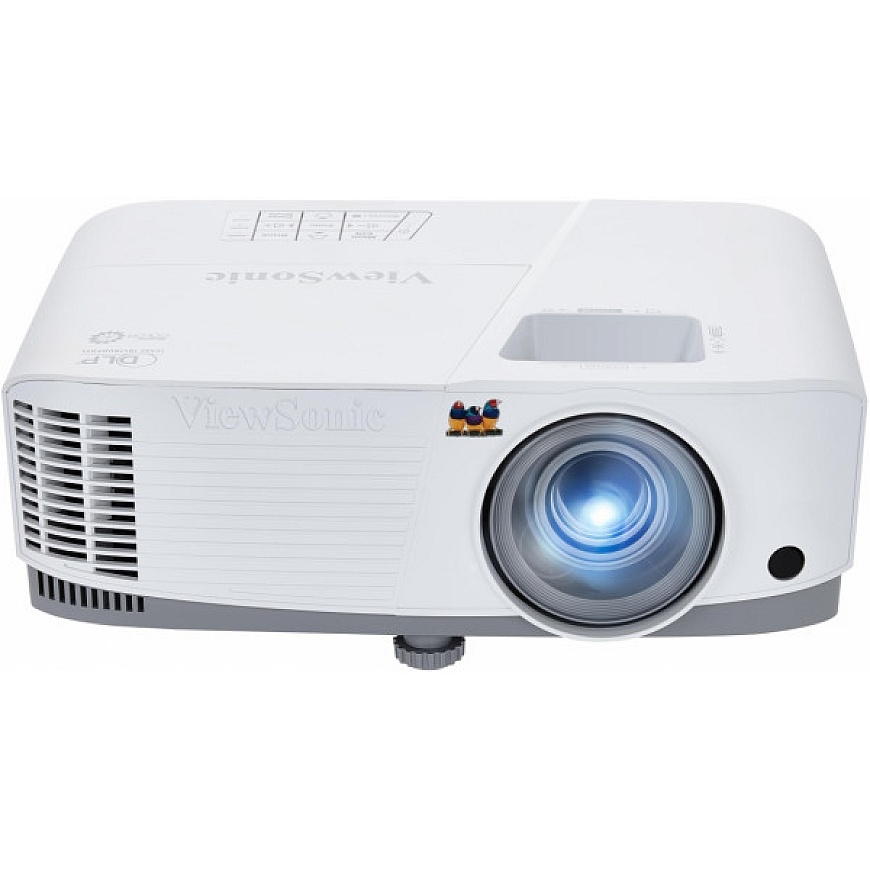

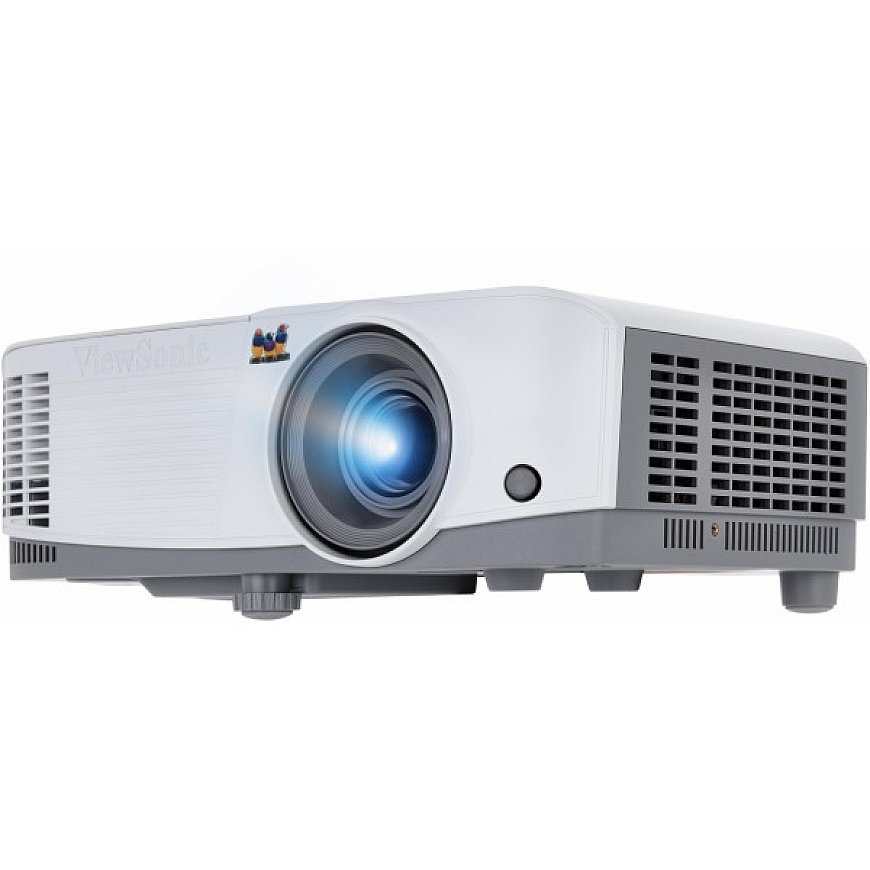

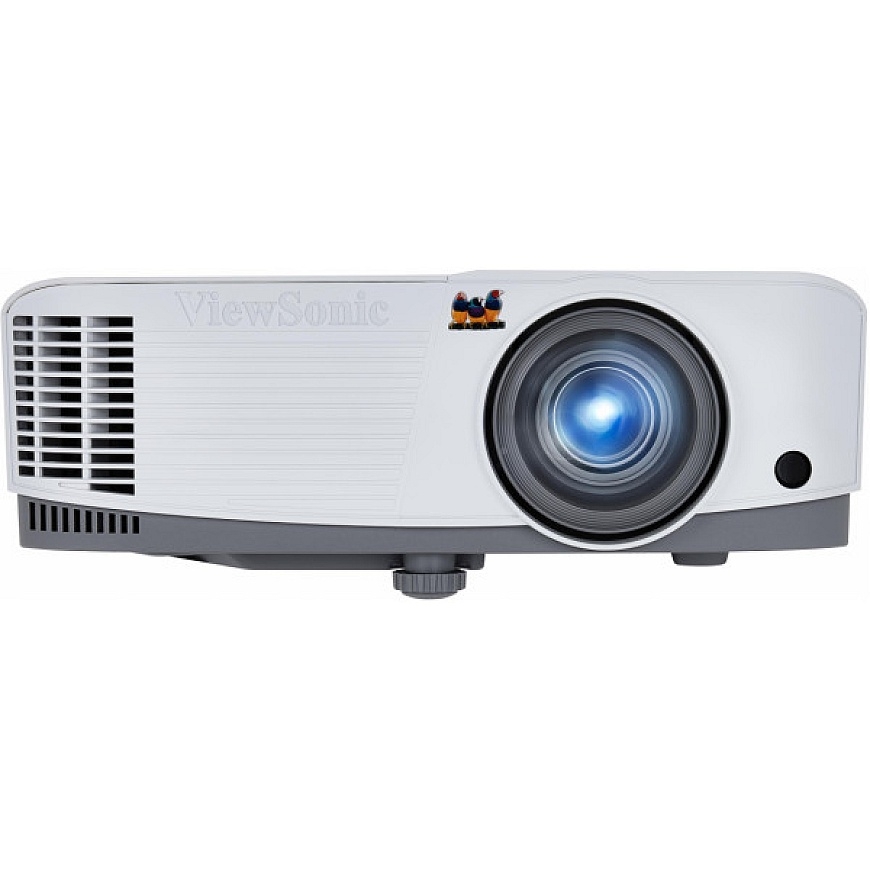

Viewsonic PA503W data projector Standard throw projector 3800 ANSI lumens DMD WXGA (1280x800) White
483,50 €
482.75 €
Monthly payment from 13,33 €
3350460 PA503W
0766907904918
Shipping 11-12 b.d.
You are interested in this product?
All about the product
DescriptionThe ViewSonic PA503W price-performance projector features 3,600 lumens, native WXGA 1280x800 resolution, and an intuitive, user-friendly design. Exclusive SuperColor technology offers a wider color range for lifelike image projection. The PA503w also features extensive connectivity including HDMI, 2 x VGA in, Composite Video, 1 x VGA output, and Audio in/out. An energy-saving SuperEco feature reduces power consumption by up to 70%, and extends the lamp life by up to 10,000 hours. With advanced audiovisual features, flexible connectivity options, and an affordable price, the PA503W is ideal for use in education and small business environments.
Projector | |
| Projection distance | 1 - 10.98 m |
| Projection technology | DMD |
| Projector brightness | 3800 ANSI lumens |
| Contrast ratio (typical) | 22000:1 |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Matrix size | 1.65 cm (0.65") |
| Projector native resolution | WXGA (1280x800) |
| Number of colours | 1.07 billion colours |
| Zoom capability | Yes |
| Focal length range | 22 - 24.1 mm |
Light source | |
| Lamps quantity | 1 lamp(s) |
| Lamp power | 200 W |
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 15000 h |
Lens system | |
| Offset | 100% |
| Throw ratio | 1.55-1.7 |
| Zoom ratio | 2.0:1 |
| Focus | Manual |
| Aperture range (F-F) | 2.56 - 2.68 |
Video | |
| Analog signal format system | PAL, SECAM, NTSC |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 640 x 480 (VGA) |
| Supported video modes | 720p, 1080p, 480i, 480p, 1080i, 576i, 576p |
Technical details | |
| Serial interface type | RS-232 |
Ports & interfaces | |
| S-Video inputs quantity | 0 |
| Composite video in | 1 |
| Component video (YPbPr/YCbCr) in | 0 |
| Audio (L/R) in | 0 |
| USB 2.0 ports quantity | 0 |
| DVI port | No |
| PC Audio in | Yes |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 3 |
| AC (power) in | Yes |
| PC Audio out | Yes |
| HDMI version | 1.4 |
| HDMI connector type | Full-size |
| Mobile High-Definition Link (MHL) | No |
| Mini-USB 2.0 ports quantity | 1 |
Storage | |
| Card reader integrated | No |
Features | |
| Noise level | 31 dB |
| Noise level (economic mode) | 27 dB |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, Dutch, English, Spanish, Finnish, French, Greek, Italian, Polish, Portuguese, Russian, Swedish, Turkish, Arabic, Japanese, Korean, Thai, Czech, Indonesian, Vietnamese |
| HDCP | Yes |
| Number of OSD languages | 22 |
| Interactive | No |
Multimedia | |
| RMS rated power | 2 W |
| Built-in speaker(s) | Yes |
Colour | |
| Product colour | White |
Design | |
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Placement | Desktop, Ceiling |
Operational conditions | |
| Power consumption (typical) | 260 W |
| Operating temperature (T-T) | 0 - 40 °C |
Power | |
| Power source | AC |
| Power consumption (standby) | 0.5 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
Packaging data | |
| Package weight | 3.24 kg |
| Package width | 365 mm |
| Package depth | 300 mm |
| Package height | 188 mm |
Weight & dimensions | |
| Weight | 2.22 kg |
| Height | 110 mm |
| Depth | 218 mm |
| Width | 294 mm |
Packaging content | |
| Remote control included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
Network | |
| Wi-Fi | No |
| Ethernet LAN | No |
| Smart TV | No |
Display | |
| Built-in display | No |
Logistics data | |
| Pallet gross length | 74 cm |
| Pallet gross width | 90 cm |
| Pallet gross height | 2.21 m |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 8528620000 |
