Drilled MSW Magnetic drilling machine, 1680W, blue/black/grey
3323077 HP1009360
4250928684134
Shipping 9-13 b.d.
All about the product

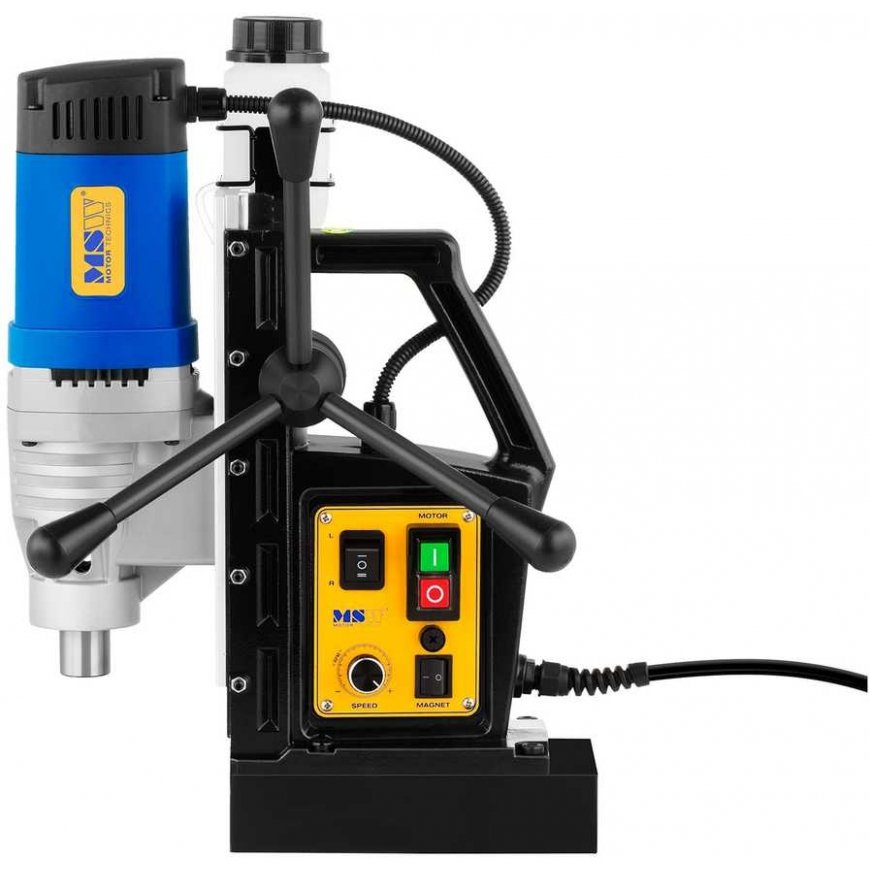

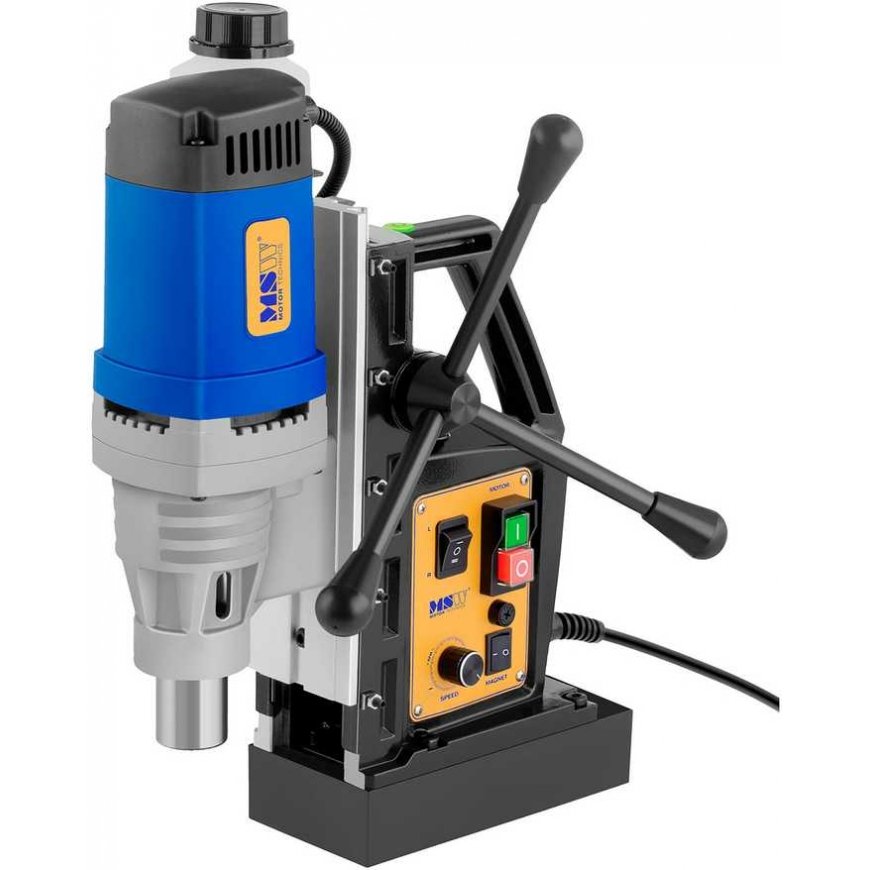

The magnetic drilling machine is designed to work in difficult conditions and in various positions, such as vertically. This is possible due to a strong electromagnet with a pulling force of 13800 N, which ensures a stable position of the device. The compact weight and long power cord (2.2 m) allow the drilling machine to be moved comfortably. The suitcase makes it easier to transport the whole set.

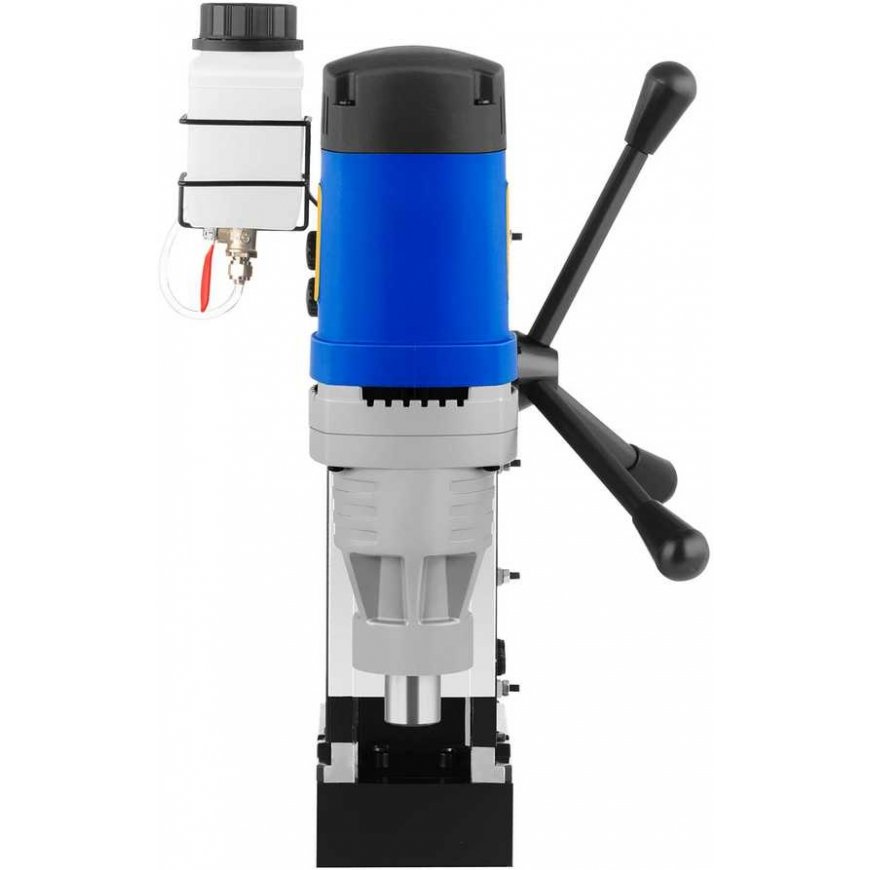

The device has a 1680 W motor that allows drilling up to 370 rpm. The three-part rotary handle adjusts the drilling depth (up to 50 mm) by moving the parts of the device from 0 mm to 165 mm. The built-in cooling system reduces the temperature of the drill during work, consisting of a 300 ml tank and a 50 cm long tube, which increases the efficiency when processing metal elements and extends the service life of the drill.

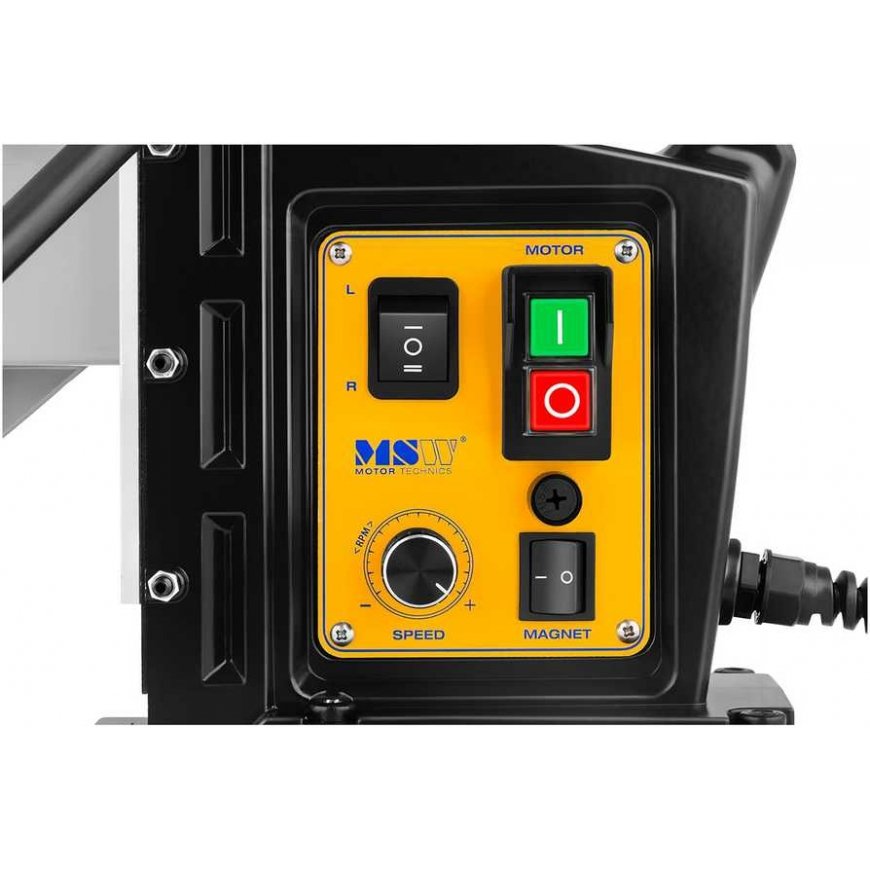

Large buttons on one side of the drill make it easy to control the unit, turn on the motor and electromagnet, and select the direction of the drill. There is also an infinitely variable speed dial. The built-in spirit level ensures the correct setting of the angle of the machine. Safety is guaranteed by the magnetic RCD switch, which protects against electric shock and accidental activation. The included fuses protect the electrical circuit from overload, and the interlock prevents the drilling machine from being turned on when the electromagnet is off.
Product features:
- Efficiency - 1680 W motor, drilling speed up to 370 rpm.
- Simple control - clear control panel, convenient adjustment of drilling depth, stepless speed setting.
- Durability - steel and aluminum construction.
- Safety - strong electromagnet, RCD switch, fastening belt, protection against accidental activation.
- Mobility - small size and weight, long power cord.
Technical parameters:
- Model: MSW-MD60-PRO
- Material: aluminum, steel, plastic
- Power: 1680 W
- Voltage/frequency: 230 V / 50 Hz
- Cooling tank capacity: 300 ml
- Electromagnetic pull: 13800 N
- Max. drill thread size: M25
- Max. drill diameter: 60 mm
- Max. drilling depth: 50 mm
- Drill diameter: 28 mm
- Drill holder included: B18 / 3-16 mm
- Max. rotation speed: 370 rpm
- Drilling range: 0-165 mm
- Seat belt: Yes
- Threading function: Yes
- Power cord length: 2.2 m
- Dimensions: 22.5 x 32 x 57 cm
- Weight: 17.35 kg
- Shipping dimensions: 61.5 x 21 x 51 cm
- Shipping weight: 24.4 kg

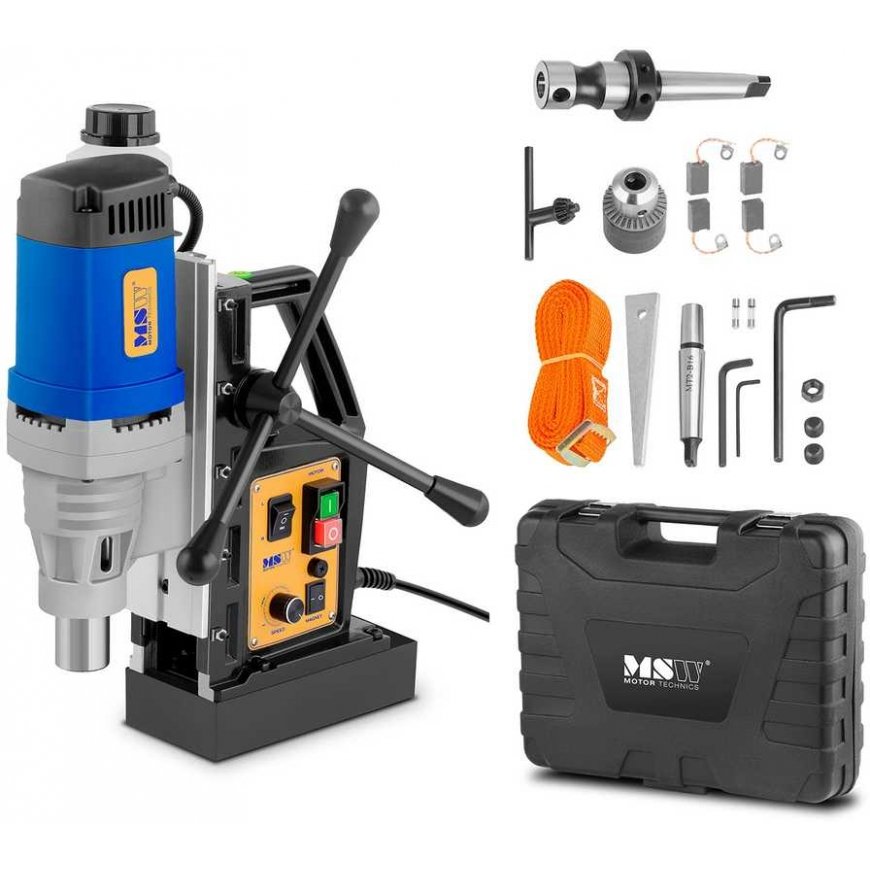

Complete set:
- Magnetic drilling machine
- Seat belt
- Rotating handle - 3 parts
- Allen key - 1 pc.
- Fuse - 2 pcs.
- Clinical bouncer
- Cooling tank
- Drill holder shell
- Drill holder (B18 / 3-16 mm)
- Drilling key
- Charcoal brush - 2 pcs.
- Mounting bracket MK3 / Weldon 19 mm
- A suitcase
- Instruction LT
