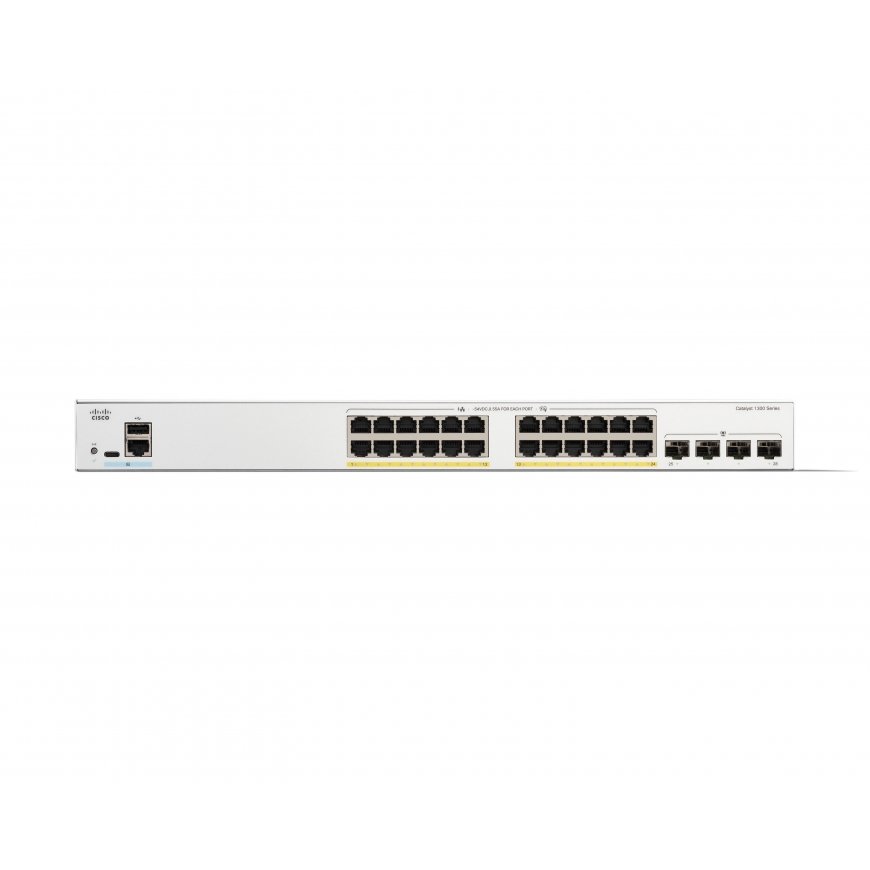

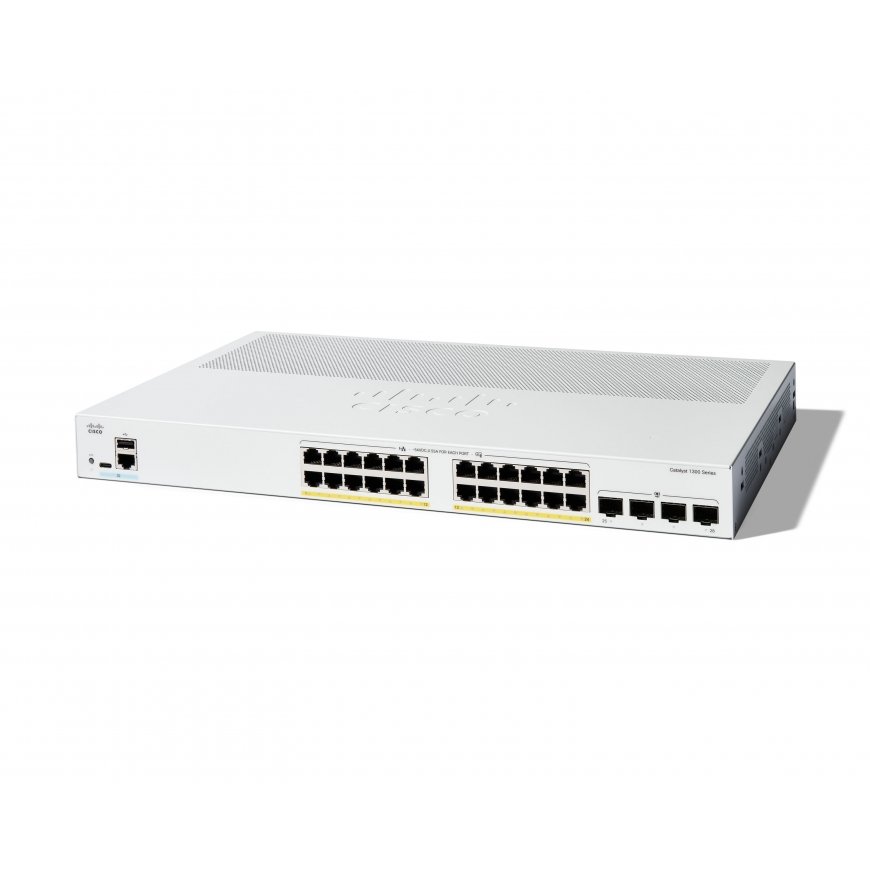

Cisco Catalyst 1300-24P-4G Managed Switch, 24 Port GE, PoE, 4x1GE SFP, Limited Lifetime Protection (C1300-24P-4G)
944.45 €
Monthly payment from 25,22 €
3210434 C1300-24P-4G
0889728521512
Shipping 12-13 b.d.
You are interested in this product?
All about the product
The Cisco Catalyst 1300-24P-4G switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, an intuitive web dashboard, advanced networking features and PoE+ support.Features
| Product colour | Grey |
| Weight | 3.53 kg |
| Width | 298.7 mm |
| Depth | 444.5 mm |
| Height | 43.9 mm |
| Package width | 430 mm |
| Package depth | 575.1 mm |
| Package height | 105.9 mm |
| Plug and Play | Yes |
| Package weight | 5.77 kg |
| Country of origin | China |
| Certification | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Networking standards | IEEE 802.3; IEEE 802.3ab; IEEE 802.3u; IEEE 802.1x; IEEE 802.3af; IEEE 802.3at; IEEE 802.1D; IEEE 802.1Q; IEEE 802.3ad; IEEE 802.3az; IEEE 802.3x; IEEE 802.1ab; IEEE 802.1s; IEEE 802.1w; IEEE 802.3z; IEEE 802.3an; IEEE 802.3ae |
| AC input voltage | 100 - 220 V |
| Power consumption (typical) | 27.5 W |
| Power plug type | Type C |
| Power source | AC |
| AC input frequency | 50/60 Hz |
| Mean time between failures (MTBF) | 698220 h |
| Security algorithms | SSH; HTTPS; SNMP; SNMPv3; SSH-2; SNMPv2 |
| Storage relative humidity (H-H) | 10 - 90% |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 195 W |
| Packaging content | Switch, power cable, USB Type C cable and mounting hardware |
| Flash memory | 512 MB |
| Memory type | DDR4-SDRAM |
| Built-in processor | Yes |
| Reset button | Yes |
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Configuring Location Settings (CLI) | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| VLAN support | Yes |
| Virtual LAN features | Voice VLAN; Private VLAN |
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Static route | Yes |
| Number of static routes | 990 |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| DHCP features | DHCP relay; DHCP snooping; DHCP client; DHCP server; DHCP auto-config |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication | Web-based authentication; MAC-based authentication |
| Authentication type | RADIUS; TACACS+ |
| Multicast support | Yes |
| Rack mounting | Yes |
| Internal memory | 1000 MB |
| Processor frequency | 1.4 MHz |
| DoS attack prevention | Yes |
| Console port | RJ-45/USB Type-C |
| Port mirroring | Yes |
| IGMP proxy | Yes |
| SSH/SSL support | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Rate limiting | Yes |
| SFP module slots quantity | 4 |
| Number of queues | 8 |
| Packet buffer memory | 1.5 MB |
| Heat dissipation | 795.2 BTU/h |
| Cable types supported | Cat5e |
| MIB support | Y |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Head-of-line (HOL) blocking | Yes |
| Access Control List (ACL) rules | 1024 |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| IPv4 & IPv6 features | IPv6 Telnet; ICMPv6; IPv6 SNMP; IPv6 TFTP; IPv6 SSH |
| Policy-based routing | Yes |
| QinQ implementation | Selective QinQ |
