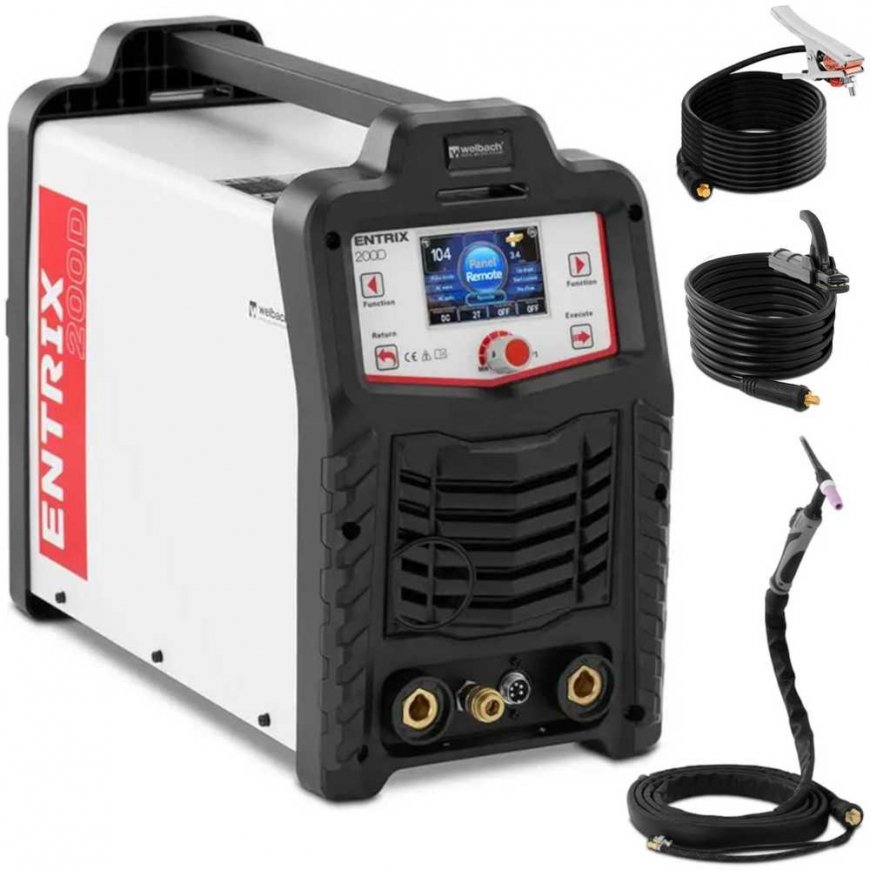

Welbach ENTRIX TIG MMA HF AC/DC Puls 200A digital aluminum welding machine
739.00 €
Monthly payment from 19,93 €
3142446 10021428
4062859120014
Shipping 9-13 b.d.
You are interested in this product?
All about the product
Manufacturer code: 10021428A universal alternating current (AC) or direct current (DC) aluminum welding machine with a weld thickness of 0.5-5 mm will allow you to weld aluminum, steel, stainless steel or copper. It is very easy to select all welding parameters and welding current up to 200 A on the clear control panel . You can check all values on the LCD screen with pre-installed English, German, French and Swedish languages. In this way, precise welding results can be achieved. The modern IGBT converter allows you to quickly switch between TIG DC, TIG AC and MMA welding methods. With a current of up to 200 A, you can easily weld most metals, regardless of the conditions. The pulse function will allow you to get optimal welding results. Adjusting the pulse frequency up to 200 Hz will stabilize the arc even in difficult conditions. The welder has many parameters for the pulse function, such as initial, main or final current. They are optimally adjusted to the workpiece using the control panel. The ergonomic shape of the welding handle allows you to work in various positions, both vertically and horizontally, as well as overhead. An aluminum welding machine allows you to get high quality welds with less sparks or spatter. A modern IGBT converter allows you to easily change all parameters. Whether it's AC to DC switching or 2 or 4 step control. The MMA method will allow you to weld outdoors even in strong winds. With constant current, very good welding results can be achieved on various metals such as steel, iron, cast iron, nickel and copper. Use the Hot Start and Arc Force functions for best results. The "Hot Start" function ensures a short-term increase in welding current when the welding process starts, so you can work reliably and cleanly from the first moment. The Arc Force function adjusts the arc to suit the material being welded and the desired weld density. For welding, use the included electrode holder for electrodes with a diameter of 1.6-4 mm.
Product features:
- - Digital control panel with large LCD display and pre-installed English, German, French and Swedish languages for accurate welding results,
- - Perfect for steel, stainless steel, copper and aluminum due to TIG AC and pulsation function,
- - IGBT converter with 2T/4T function and high frequency ignition,
- - Stable arc and optimal welding parameters due to the pulsation function,
- - MMA welding with Hot Start and Arc Force.
Technical parameters:
- - Catalog number - 10021428
- - Product condition - New
- - Model - ENTRIX 200D
- - TIG - HF ignition
- - Voltage [V] - 220
- - IP protection level - IP21S
- - Input power [kVA] - 6.06
- - Power factor - 0.73
- - MMA welding current [A] - 30-200
- - Impulse current [A] - 10-200
- - Gas flow time [s] - 1-10
- - Maximum input current [A] - 9.6
- - Compliance with the standard - EN60974-1
- - Maximum input current [A] - TIG: 28 MMA: 43.6
- - AC balance [%] - 10-90%
- - Rated input current [A] - TIG: 17.7 MMA: 27.6
- - Pulse frequency (AC) [Hz] - 0.5-200
- - Pulse frequency (DC) [Hz] - 0.5-200
- - AC output current frequency [Hz] - 0.5-200
- - 2/4 bar - Yes
- - ARC-Force - Yes
- - Hot Start - Yes
- – Duty cycle [%] – 80
- - TIG cable - 4 m
- - MMA cable - 3 m
- - Descent time - 25 s
- - Earthing cable - 3 m
- - Dimensions (LxWxH) - 46 x 21.5 x 37.5 cm
- - Weight - 19.46 kg
- - Shipping dimensions (LxWxH) - 58 x 50 x 33 cm
- - Shipping weight - 21.3 kg
The price includes:
- - Aluminum welding machine
- - TIG WP26 welding torch with cable pack (4 m)
- - Ground terminal with cable (3 m)
- - Electrode holder with cable (3 m)
