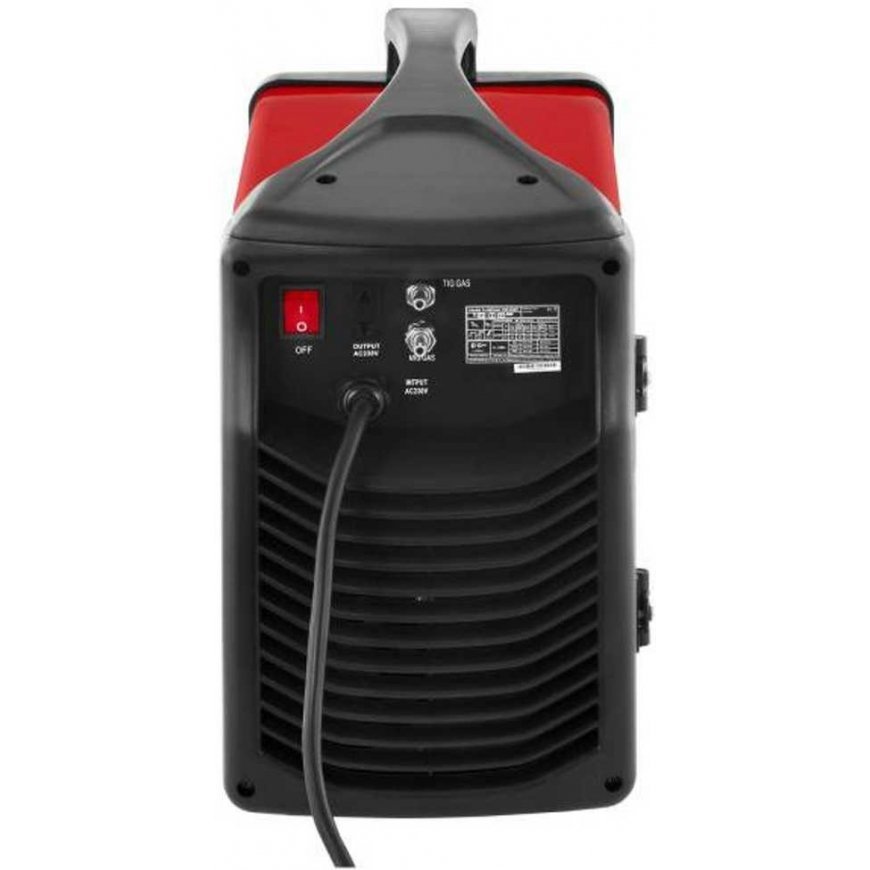

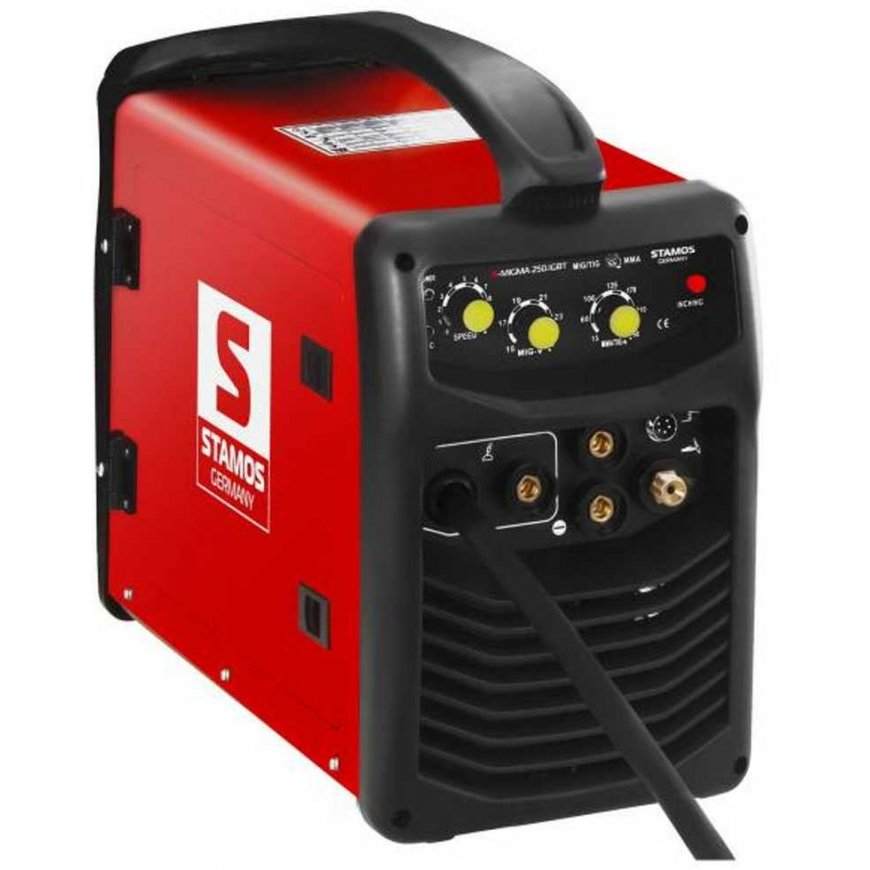

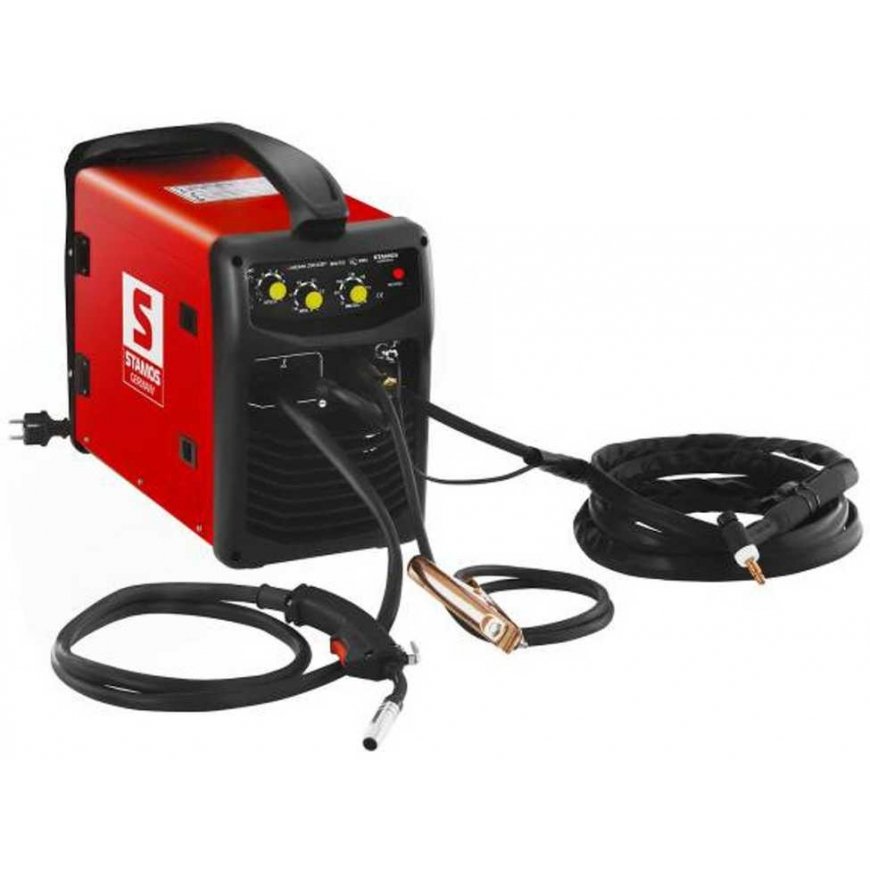

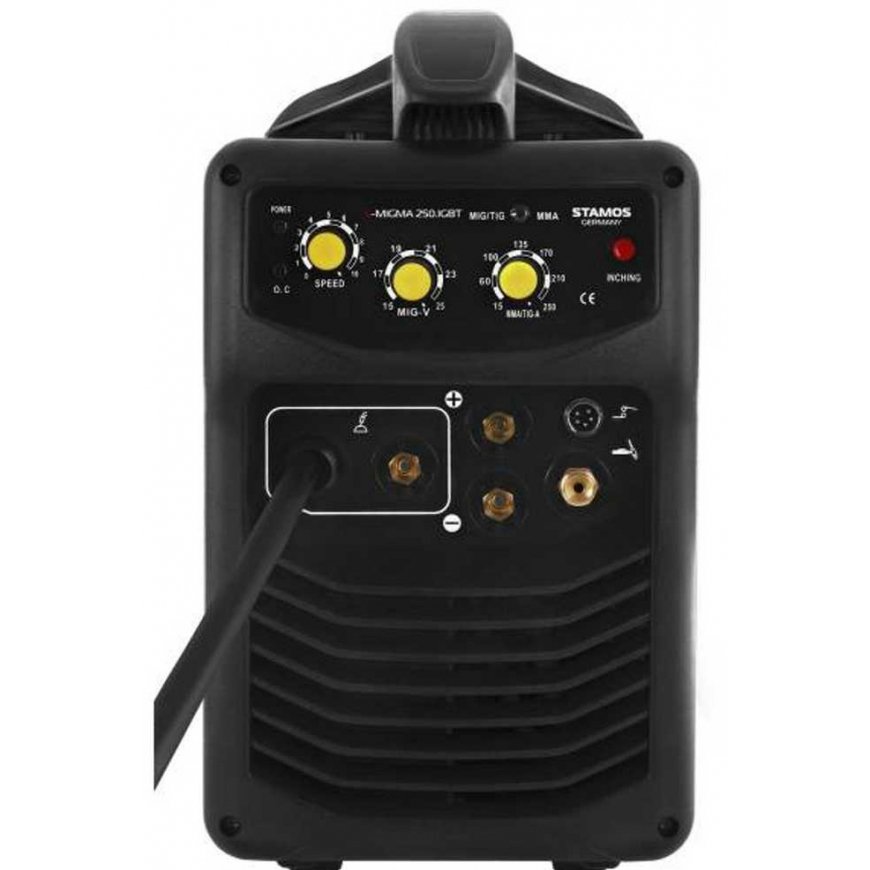

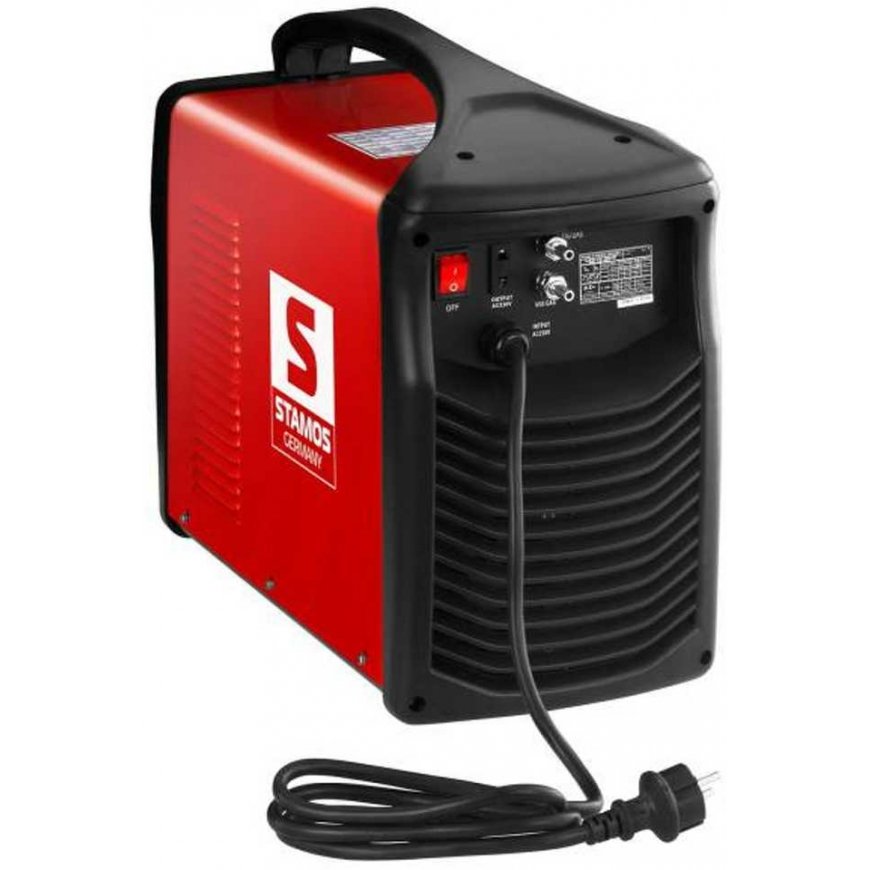

Stamos Germany Semi-automatic welding machine migomat TIG MIG/MAG MMA 250A IGBT Stamos Germany + 5kg wire
3106155 10020208
4250928641168
Shipping 9-13 b.d.
All about the product
Manufacturer Name: S-MIGMA 250. IGBTThe multifunctional semi-automatic welding machine from Stamos Germany will allow you to process metal elements thanks to the ability to work in MIG, MAG, FCAW, TIG and MMA modes. S-MIGMA 250.IGBT thanks to stepless adjustment of welding current (max. 250 A) allows you to accurately set the required value, which increases work comfort.
The welding machine uses modern IGBT inverter technology . This guarantees a high degree of fault-free operation , as well as efficient operation and quick function switching . This is due to the three-pin semiconductor element, which is resistant to short circuits .
Product features:
- - Versatility - the ability to weld in MIG, MAG, FCAW, TIG and MMA modes,
- - Practicality - suitable for processing elements made of various weldable metals,
- - Efficiency - the use of modern IGBT technology guarantees accurate operation and safety against short circuit,
- - Convenience - stepless knobs allow precise setting of inductance, welding current and wire feed speed,
- - Mobility - comfortable handle and small size make it easy to carry the welding machine,
STAMOS devices are manufactured to strict European standards and have been tested for CE and RoHS compliance. This guarantees a long service life of the device and high quality.
Technical parameters:
- - Model - S-MIGMA 250.IGBT
- - Catalog number - 2208
- - Product condition - New
- - Power supply - 230 V / 50 Hz
- - Rated input current - MIG 29.5 A / MMA 33 A / TIG 22.5 A
- - Maximum input current - MIG 38 A / MMA 43 A / TIG 29 A
- - Open circuit voltage - 62 V
- - MIG current - 50 - 250 A
- - MMA current - 10 – 250 A
- - TIG current - 10 – 250 A
- - Welding current in duty cycle 60% - 250 A (MIG/MMA/TIG)
- - Welding current in duty cycle 100% - 193 A (MIG/MMA/TIG)
- - Duty cycle - 60 percent.
- - Welding thickness - 0.5 - 10 mm
- - TIG electrode diameter - 0.5 - 4 mm
- - Diameter of MMA electrodes - 1.6 - 5 mm
- - Cooler
- - Handle cooling - Gas
- - Hot Start - Yes
- - Wire feeder - 2.5 - 13 m/min
- - Cable with MMA handle - 1.4 m
- - Earthing cable - 1.3 m
- - Cable with MIG gun - 1.75 m
- - Cable with TIG handle - 3.7 m
- - Security class - IP21
- - Insulation class - F
- - Dimensions (LxWxH) - 54.00 x 24.00 x 41.00 cm
- - Weight - 15.00 kg
- - Shipping dimensions (LxWxH) - 64.00 x 34.50 x 44.50 cm
- - Shipping weight - 27.05 kg
Working methods :
MIG/MAG – You can comfortably weld stainless steel, tin, copper and other non-ferrous metals with the MIG method, while the MAG mode is perfect for welding low-alloy, high-alloy or non-alloy structural steel.
MMA (coated electrode) - suitable for indoor and outdoor use. It does not require shielding gas and is suitable for thin materials (from 1.5 mm thick) such as copper, iron, nickel, aluminum or alloys, etc. steel and cast iron. Welds produced by this method have good operational and mechanical values.
TIG - Good at joining metals and their alloys such as copper, aluminum, magnesium, nickel, titanium, steel and many others. It is especially suitable for processing very thin materials (thickness from 0.5 mm). This method can be used in any position – horizontal, vertical, flat and overhead – resulting in a clean and precise weld that resists corrosion.
FCAW (cored arc welding) is a method that does not require the use of shielding gas. This makes it suitable for outdoor work in windy areas. This mode is characterized by high penetration depth.
Functions:
- - Hot start involves a temporary increase in welding current when the arc ignites,
- - Due to spatter, the device automatically determines the inductance, which ensures stable welding.
Including:
- - S-MIGMA 250.IGBT welding machine
- - MIG gun
- - TIG torch
- - MMA show
- - Earthing cable with earthing clip
- - 0.8 mm wire - 5 kg coil
- - Polarity change cable
- - Long hood
- - 2 2.4 and 3.4 mm bushings
- - Clamping sleeve in the body
- - Ceramic nozzle - 3 pcs
- - MIG electrodes - 2 pcs
- - Collar
- - PL manager
