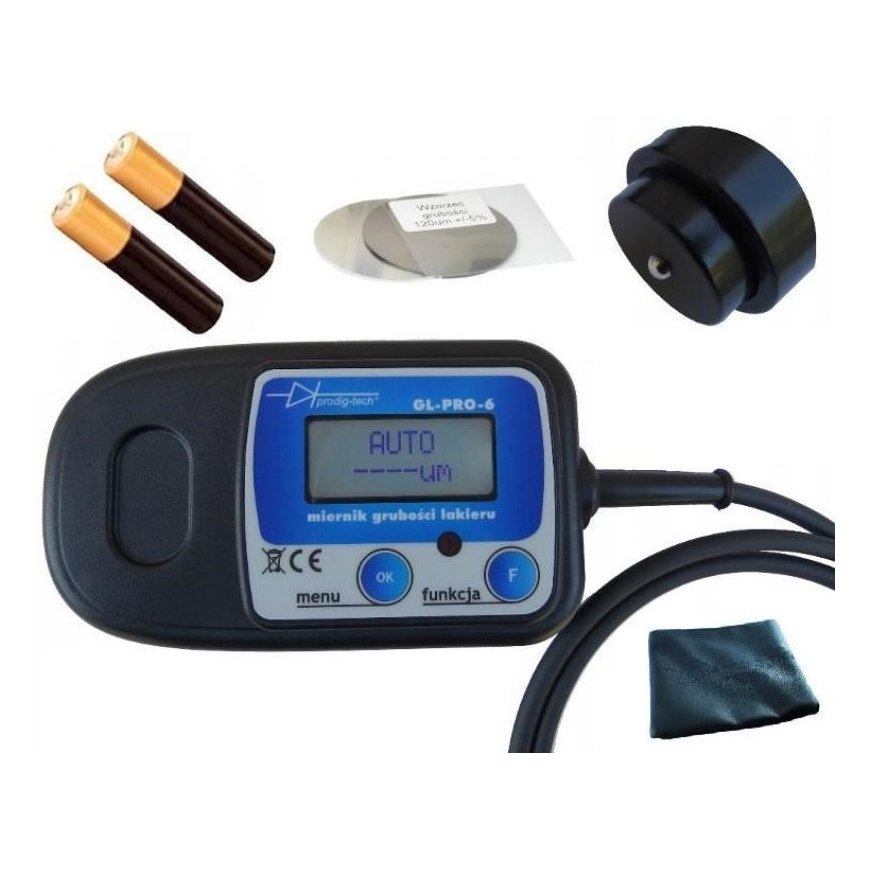

PAINT THICKNESS GAUGE GL-PRO-6-PHASE Fe-AL-Zn probe on the wire.

All about the product

Currently, the GL-PRO-6 varnish gauge is available in three versions:
– GL-PRO-6-F, probe on cable with ball, measurement only on steel sheets;
– GL-PRO-6-FA, probe on cable with ball, measurement on steel and aluminum sheets (automatic recognition of materials);
– GL-PRO-6-FAZ, probe on cable with ball, measurement on steel and aluminum sheets (automatic material identification with zinc coating detection function on steel sheet).

GL-PRO-6 meters use a measuring probe on the cable. The survey is finished with a ball, which facilitates the measurement of curves. The meter has a measuring assistant ® function , which is useful for measuring in cars.

GL-PRO-6 series meters are solutions based on modern 32-bit processors . As a result, a fast and accurate measurement was obtained using a 12-bit converter.

The counters use an innovative design of the measuring probe, which allows you to perform point measurements on ferromagnetic and non-magnetic materials (depending on the version), automatically recognize the material being tested and inform about the type of material on the screen. Survey completed ball.

A distinguishing feature of the GL-PRO-6-FAZ counters is the automatic recognition of whether the ferromagnetic sheet is covered with a zinc layer or not . This is very important when measuring on the car - it will tell us which body parts have been replaced with cheaper non-galvanized ones. The probe was completely developed by us.

The gauge has a calibration function according to thickness standards (included).

Main features of the device:

· probe on a cable, spring-loaded, ending with a spherical measuring point;

· measurement on leaves (automatic detection):
– steel, Fe (models GL-PRO-6-F, GL-PRO-6-FA, GL-PRO-6-FAZ);
– aluminum, Al (GL-PRO-6-FA, GL-PRO-6-FAZ models);

· automatic detection of zinc (Zn) on steel sheet (only for GL-PRO-6-FAZ model);

· automatic ground detection (does not apply to model GL-PRO-6-F, only for steel sheets);

· measuring range 0-2000μm;

· step 1μm Fe, 5μm nFe;

· minimum measurement area nFe 15x15mm, Fe 5x5mm;

· 3 working modes: continuous measurement, measurement hold (HOLD 1), measurement stop (HOLD 2);

· possibility to manually set the measurement mode, Fe or Al;

· measurement memory 960 units;

· measuring assistant ® for the automotive industry (LED);

· calibration (using tiles and thickness standard);

· sound alarm;

power supply : two AAA (R3) alkaline batteries;

· 24-month warranty.
