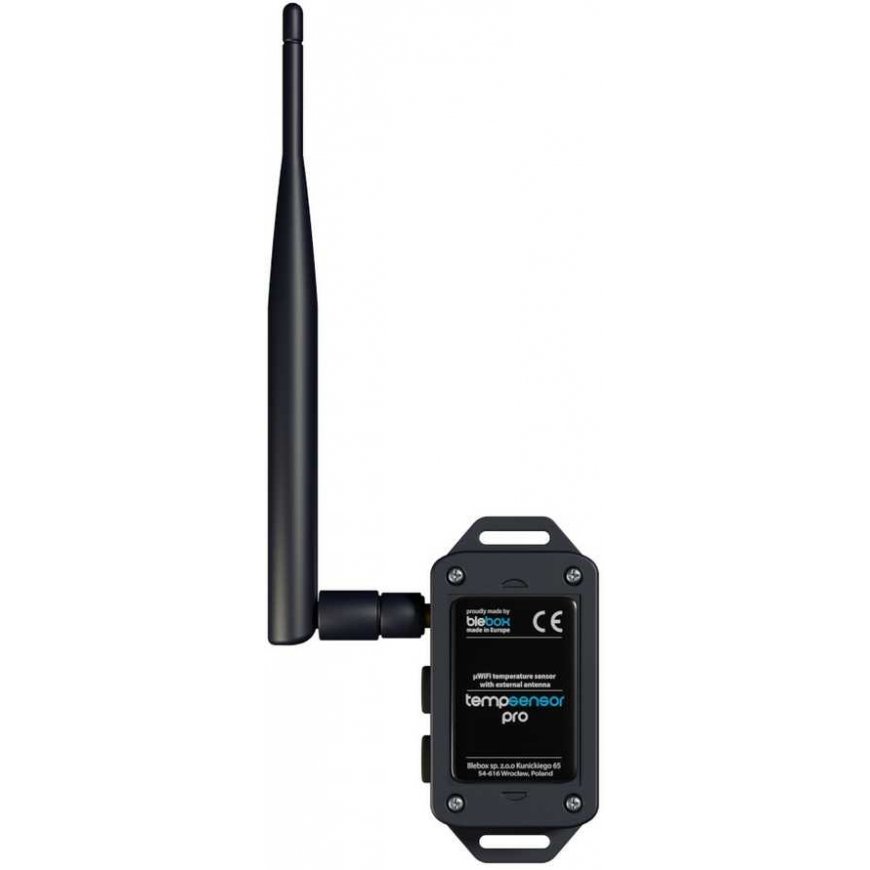

BleBox TempSensor Pro Wifi temperature sensor

BleBox TempSensor Pro

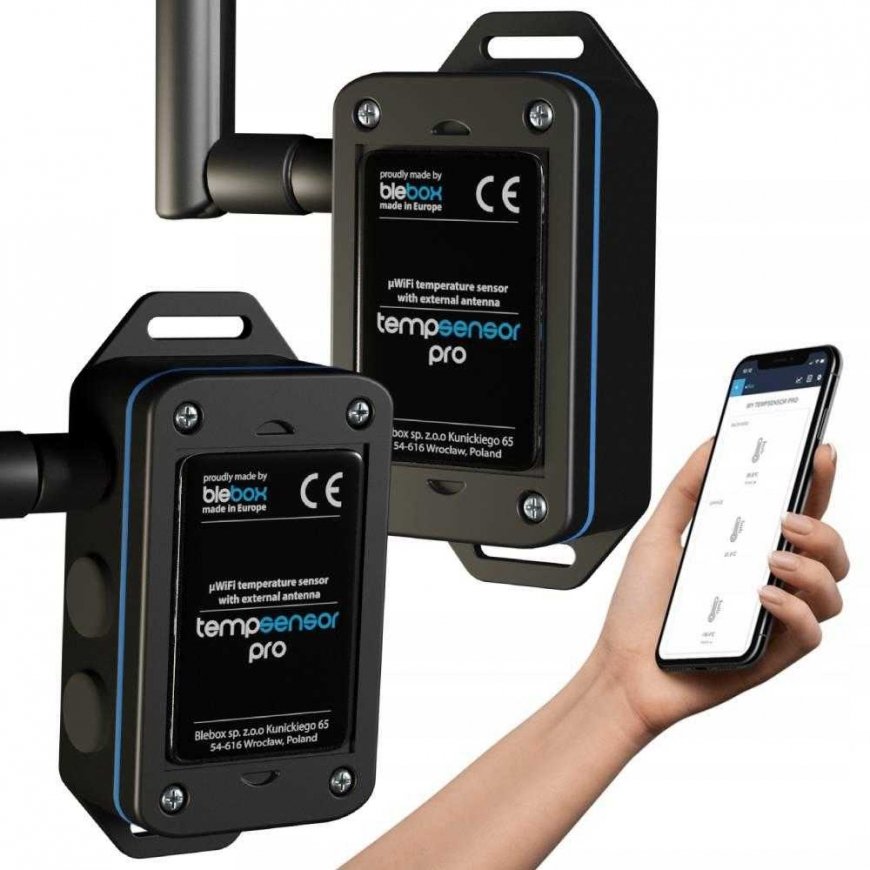

The BleBox tempSensor Pro module is ready, allowing you to measure the temperature via a WiFi network using a smartphone app from anywhere in the world. The sensor allows you to be alerted when the temperature exceeds a certain range and control other devices depending on the ambient temperature. The Pro version can be powered from 12V to 24V. The included waterproof 2m long probe allows for temperature measurements from -55°C to 125°C. The device housing is weatherproof (IP54) and the external antenna allows it to be placed anywhere, even further away from the router.

Main features of BleBox tempSensor Pro

• Remote temperature monitoring via WiFi from anywhere in the world thanks to the free wBox app for Android and iOS mobile devices.
• Control other devices depending on temperature changes.
• Receive notifications from the app when the temperature range is exceeded.
• The included 2-meter waterproof probe allows measurements from -55 °C to 125 °C.
• The possibility of connecting 4 probes with a length of no more than 30 m to one sensor.
• The module is powered from 12 V to 24 V.

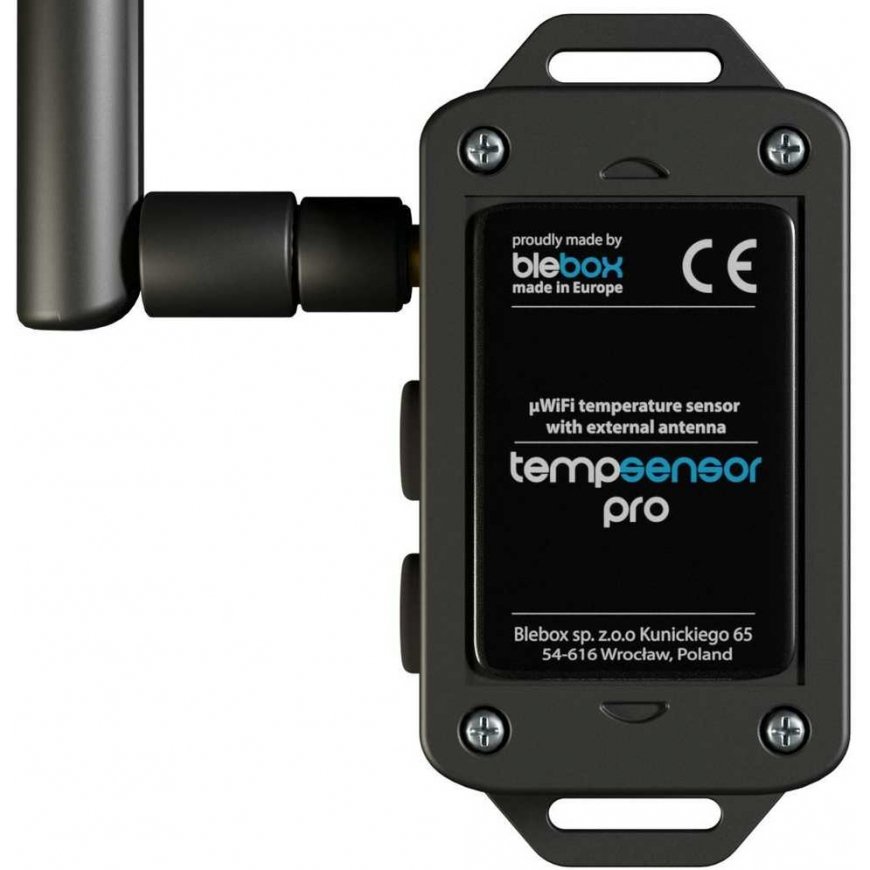

• Enclosed in a housing with increased resistance to weather conditions - IP54.

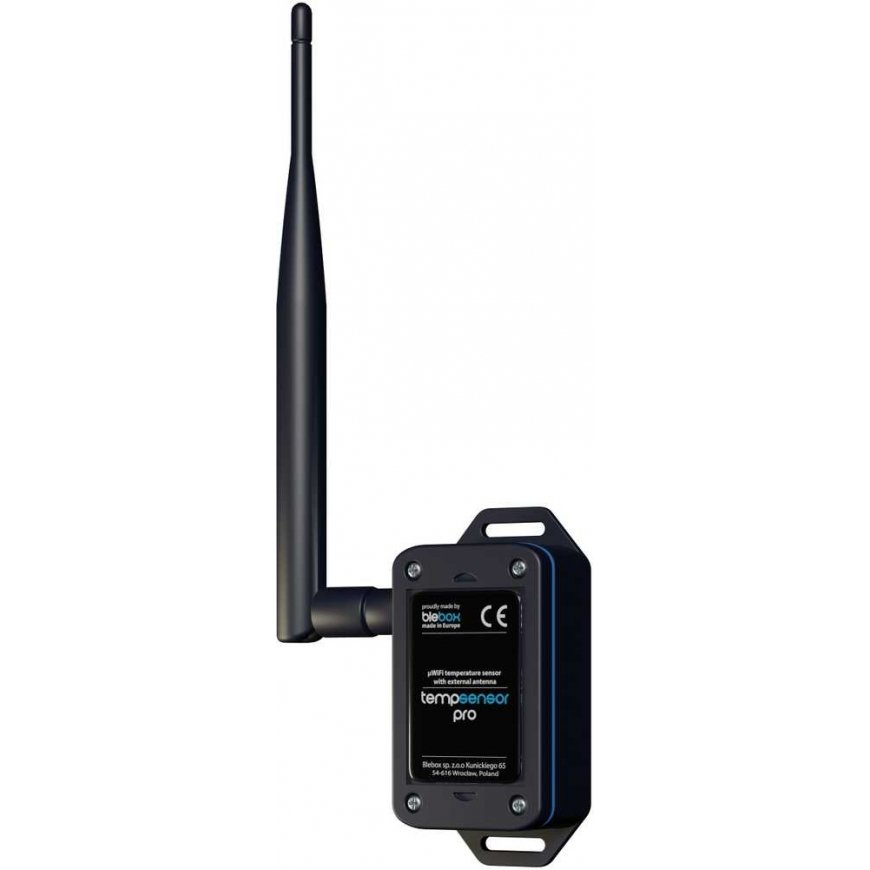

• An additional antenna that allows you to increase the WiFi range of the device.

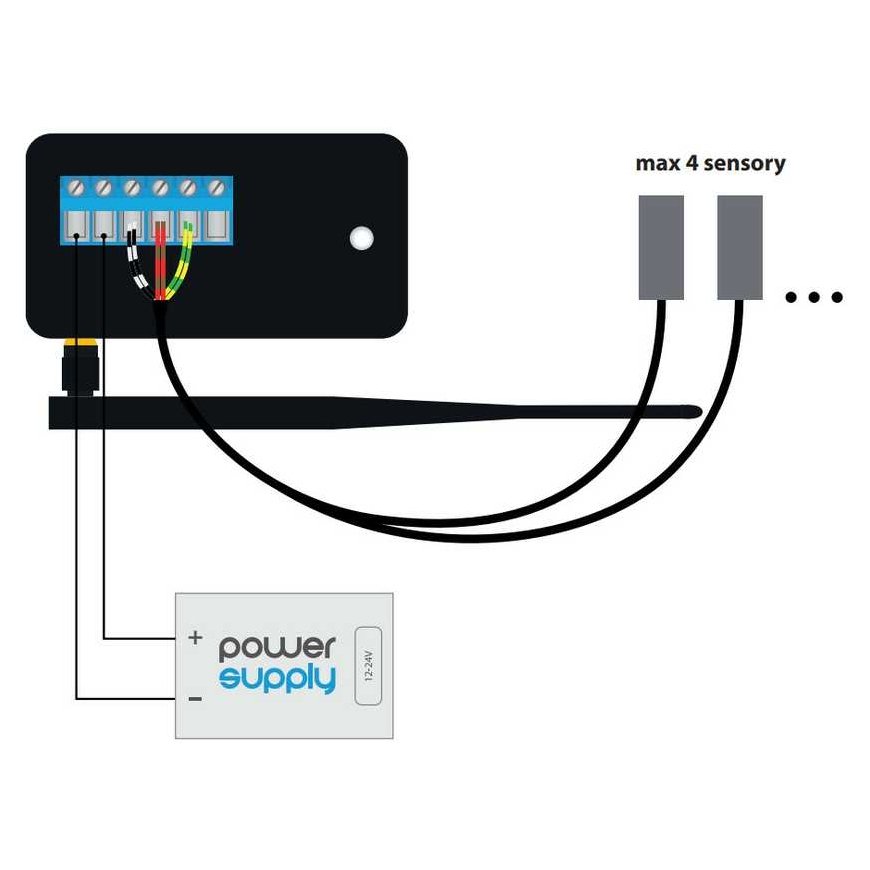

WiFi tempSensor Pro wiring diagram
Before connecting the sensor, disconnect the power to the circuit by turning off the appropriate fuse in the power circuit or by pulling the power plug from the outlet.

The BleBox tempSensor Pro module has a 6-pin screw connector to which you need to connect the 12 V to 24 V power supply and connect the temperature probe, according to the wire colors (from left):

Pin 1 - Supply Voltage, Ground (GND)
Connector 2 - 12V to 24V power supply
black or white temperature probe ground
red or brown - temperature probe supply voltage
green or yellow - temperature probe signal
connector 6- not connected, designed to expand the possibilities of product application
