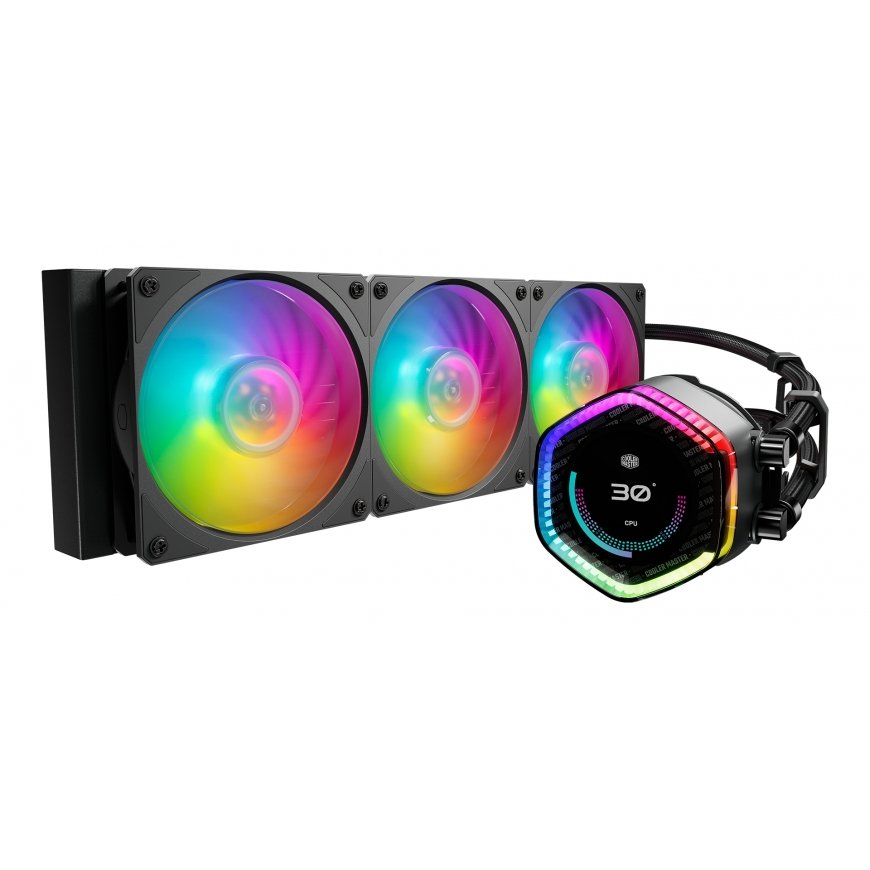

Cooler Master MasterLiquid 360 ION Processor All-in-one liquid cooler 12 cm Black 1 pc(s)
187.43 €
Monthly payment from 5,73 €
2992946 MLY-D36M-A24PZ-R1
4719512146507, 0884102118821
Shipping 10-14 b.d.
You are interested in this product?
All about the product
Experience Cooling in High DefinitionCooler Master's latest flagship performance cooler, the MasterLiquid 360 Ion, is our first liquid cooler to feature an LCD display. The MasterLiquid 360 Ion gives you total display customization with top-tier cooling specs.
Gen X Dual Chamber Design
Our signature dual chamber pump has been refined for enhanced cooling synergy. Our impeller uses a single-piece design with improved structural strength and stability. The graphite ceramic shaft is highly sturdy and temperature resistant.
2.1-inch LCD Screen
The Ion's pump features a 2.1-inch LCD screen, fully customizable with our MasterCtrl software. Meanwhile, Our ARGB halo lighting has been designed with the Cooler Master's signature aesthetic in mind.
Highly Customizable and Compatible
Built-in features such as controllable ARGB lighting and automatic PWM adjustment are compatible with all major motherboards and allow for in-depth customization.
Mobius 120P ARGB fans
Pre-installed with three Mobius 120P ARGB fans for unmatched cooling performance. The interconnecting fan blades have been designed with a balanced P/Q curve suitable for both air and liquid cooling.
IN-HOUSE DESIGNED RADIATOR
A low-profile radiator with superior fin density and high-performance fans rapidly dissipates heat.
TUBE CLIPS INCLUDED
Included tube clips made to fit the AIO tube not only improve and strengthen your cooling setup, but they can also help with cable management.
ECO-FRIENDLY PACKAGING WITH ENHANCED PROTECTION
Building off the modular packaging of our Atmos cooler, the Ion's packaging features 30% reduced volume and an optimized internal cushioning structure.
USING EPDM + IIR COMPOSITE MATERIALS
Our AIO cooler uses ERPDM and IIR composite materials to lower the evapotranspiration rate and water flow resistance, at the same time, improve the air tightness and bendability
Performance | |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), Socket AM4, LGA 1200 (Socket H5), LGA 1700, Socket AM5 |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Airflow | 107.1 m³/h |
| Maximum airflow | 75.2 cfm |
| Maximum air pressure | 3.63 mmH2O |
| Pulse-width modulation (PWM) support | Yes |
| Bearing type | Loop Dynamic Bearing (LDB) |
| Pump connector | 4-pin |
| Quantity per pack | 1 pc(s) |
| Fan speed (min) | 0 RPM |
| Fan speed (max) | 2400 RPM |
| Fan noise level (max) | 30 dB |
| Pump noise level | 20 dB |
| Pump's mean time to failure (MTTF) | 210000 h |
| Fan's mean time to failure (MTTF) | 200000 h |
| Suitable location | Processor |
Design | |
| Product colour | Black |
| Illumination colour | Multi |
| Number of fans | 3 fan(s) |
| Illumination LED | Yes |
| Fan connector | 4-pin |
| Radiator material | Aluminum |
Power | |
| Safety current | 0.35 Ah |
| Rated voltage | 12 V |
| Pump voltage | 12 V |
| Fan voltage | 12 V |
| Fan current | 0.18 A |
| Pump power consumption | 6.75 W |
Weight & dimensions | |
| Weight | 2 kg |
| Package weight | 3.12 kg |
| Package height | 136 mm |
| Package width | 211 mm |
| Package depth | 410 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Radiator width | 12 cm |
| Radiator depth | 39.4 cm |
| Radiator height | 2.72 cm |
| Pump width | 8.36 cm |
| Pump depth | 8.83 cm |
| Pump height | 6.57 cm |
Other features | |
| Country of origin | China |
Logistics data | |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 430 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 300 mm |
