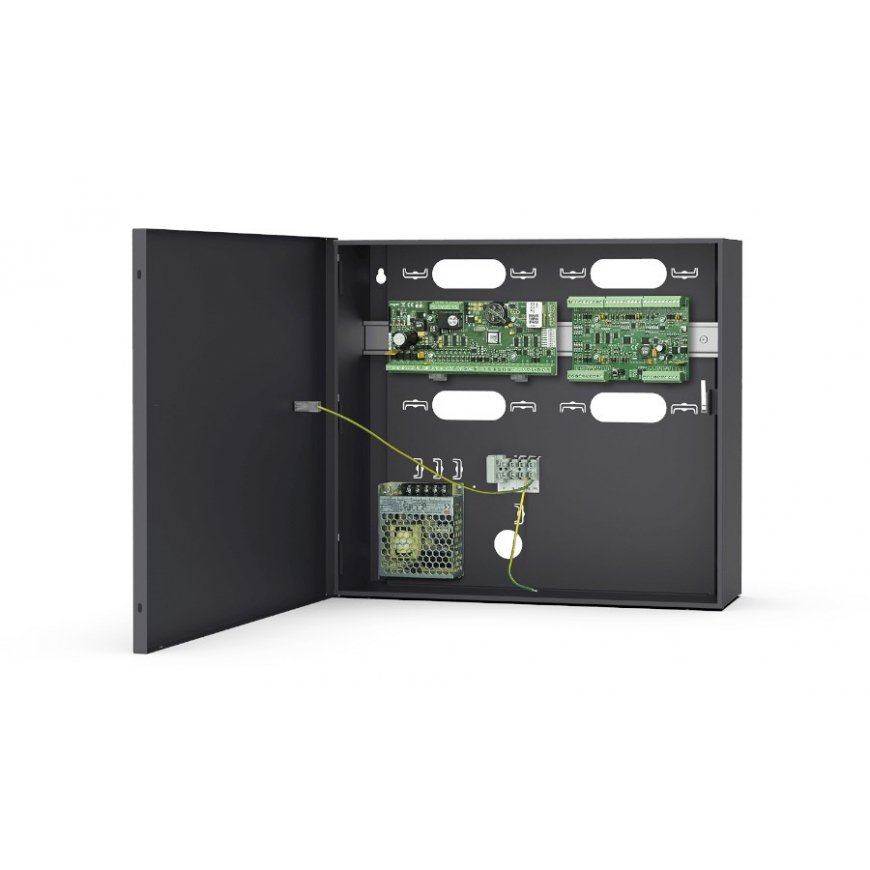

ROGER MC16-PAC-ST-3-KIT controller kit (3 passes)
759.00 €
Monthly payment from 20,44 €
2978140 35778
5907608965555
Shipping 8-12 b.d.
You are interested in this product?
All about the product
The kit includes a metal case with a power supply and a network access controller.
| Number of transitions served : | 3 (bidirectional) |
| Support : | RACS 5 v2 ST (Roger) |
| Number of scanners served : | 12 pcs. |
| Working with the battery : | max. 17 Ah |
| Input lines : | 18 pcs. |
| Output lines : | 12 pcs. |
| Connection : | RS-485 , RACS 5 v2 ST (Roger), Wiegand |
| Meals : | 230 V AC |
| Main features : | Metal housing The MCX4D I/O expander included Power output : 4 x 0.2 A, 4 x 1.0 A Power supply : 12 V DC / 6 A, Battery charging current : 0.3 / 0.6 / 0.9 A Protection against deep battery discharge Tamper detection - case opening Space for the battery - 12 V / 17 Ah |
| Working temperature : | 5 °C ... 40 °C |
| Permissible relative humidity of the environment : | 10% ... 95% (non-condensing) |
| Weight : | 2.84 kg |
| Dimensions : | 325 x 310 x 95 mm |
| Manufacturer / Brand : | ROGER |
| Warranty : | 3 years |
