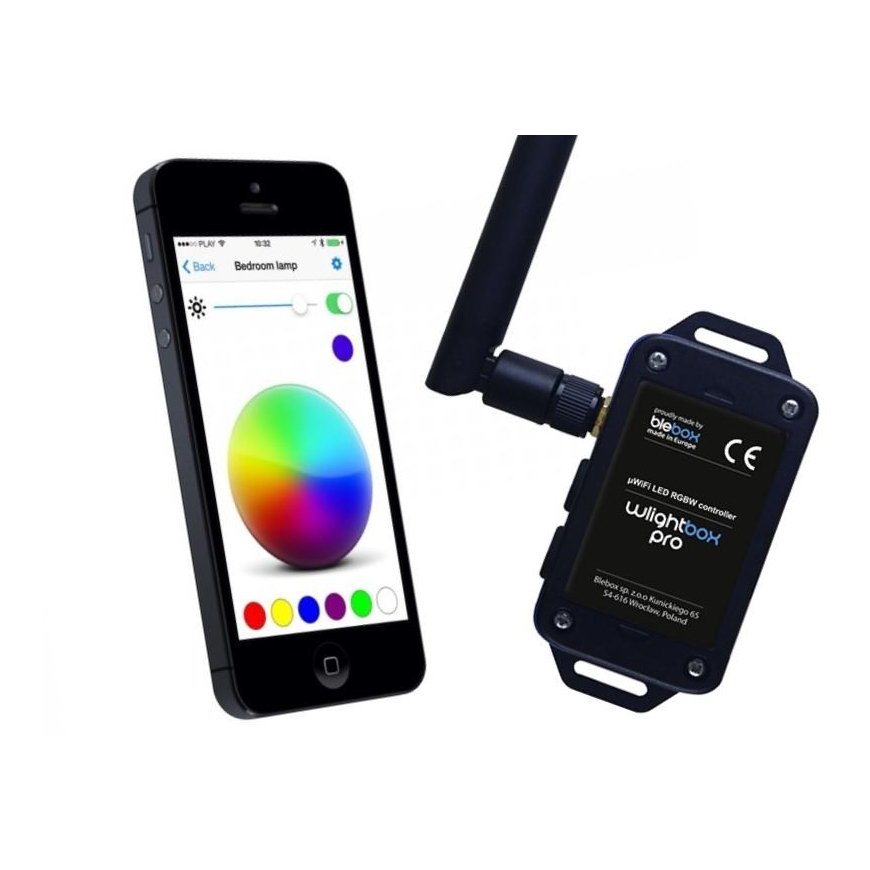

Lighting module wlightbox pro Blebox
51.63 €
Monthly payment from 2,23 €
2977388 32369
5900168580305
Shipping 8-12 b.d.
You are interested in this product?
All about the product
A small WiFi module with an additional long-range antenna allows you to control a 12 V or 24 V RGBW LED strip with a maximum current consumption of 12 A, four single-color strips or two dual-color strips. The entire device is housed in a sealed, waterproof case. The device connects to the home WiFi network and is controlled by mobile applications.Specifications:
- Supply voltage: 12 V or 24 V
- Power consumption: up to 1 W
- Maximum current: 12 A (3 A per channel)
- Number of outputs: 4
- Maximum load: 288 W
- Output type: open-drain, PWM, ground control
- Lighting types: RGB / RGBW / RGB or W / 4x MONO / CT / 2x CT
- Supported buttons: monostable (bell) without backlight
- Degree of protection: IP54
- Body: plastic, filled with polyurethane composition, no self-igniting halogens
- Mounting method: two mounting holes 18 x 3.5 mm or adhesive tape
- Protection: reverse polarity, ESD
- Transmission standard: bidirectional, encrypted
- Connection type: µWiFi, compatible with WiFi, 802.11g
- Transmission frequency: 2.4 GHz
- API: Open
- Encryption: WPA2-PSK and Authenticated Encryption (AEAD)
- Dimensions: 50 x 92 x 28 mm (without antenna), 50 x 230 x 28 (with antenna vertically)
- Antenna length: 197 mm
