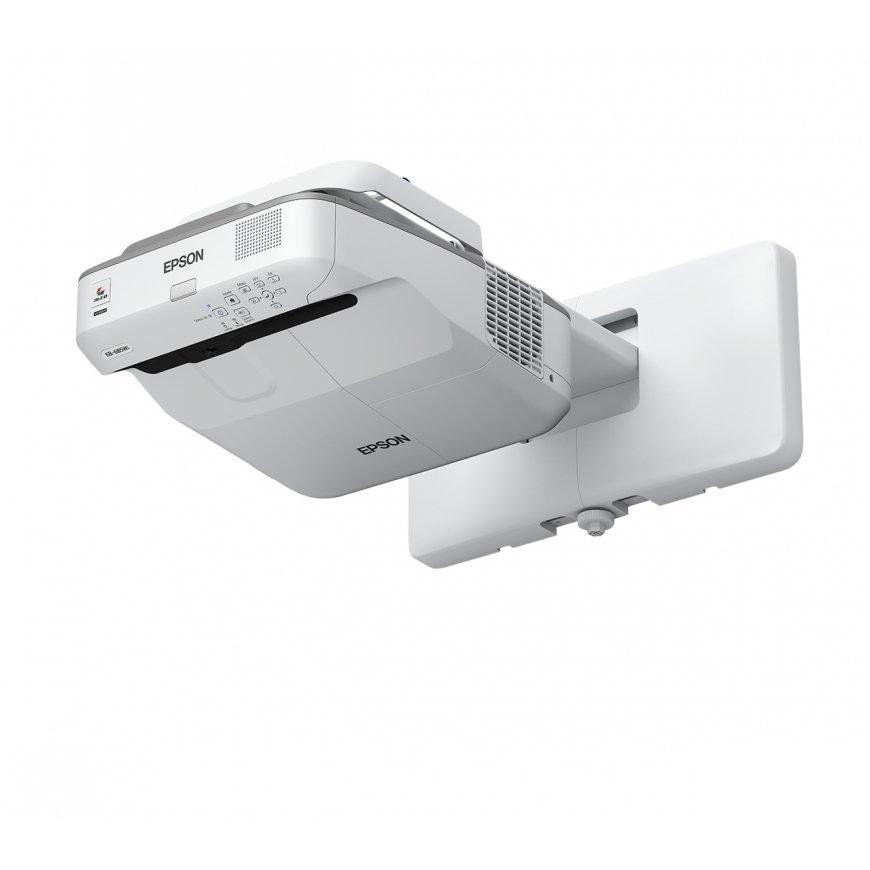

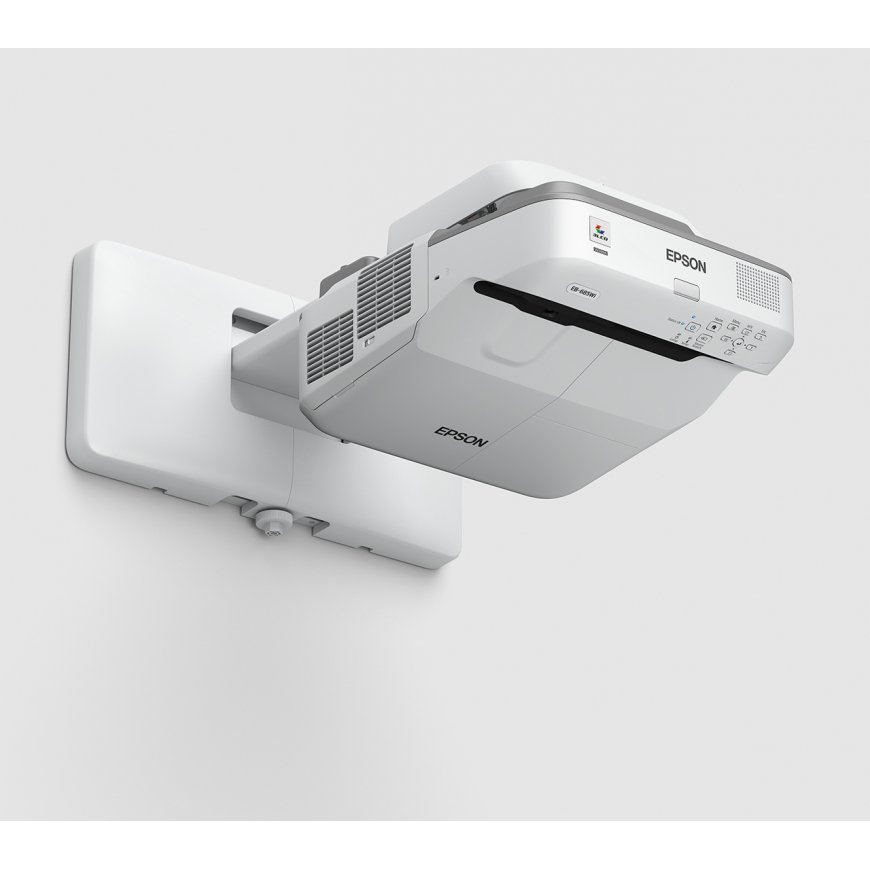

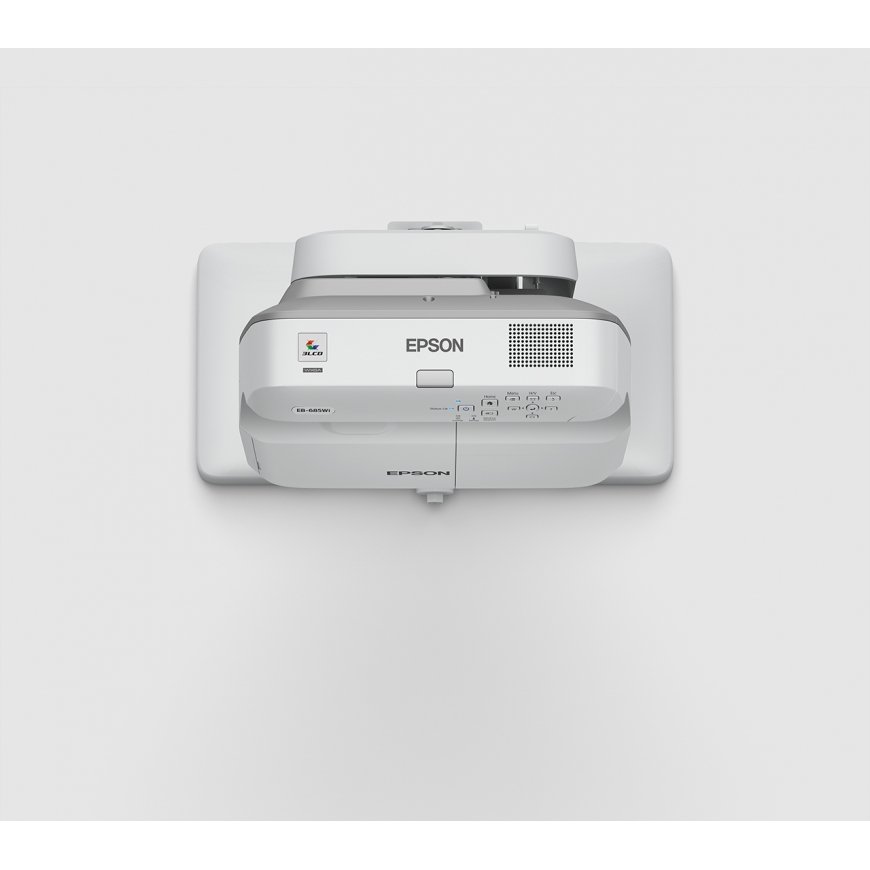

Epson EB-685Wi Ultra short throw projector 3500 ANSI lumens 3LCD WXGA (1280x800) White, Grey
2 080.51 €
Monthly payment from 54,47 €
2942128 V11H741040
8715946605159, 4058154189924
Shipping 10-15 b.d.
You are interested in this product?
All about the product
This projector offers superb interactivity thanks to its dual pen capability. With a brightness of 3,500 lumens and HD-ready WXGA resolution, the EB-685Wi's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. A 14,000:1 contrast ratio and HDMI input mean that students benefit from sharp, clear images.High brightness and image quality
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than competitive projectors1. With a scalable display size of up to 100 inches, two types of content can be displayed using the split-screen without compromising on quality.
Dual pen
Epson's interactive pens are now even more responsive and easy to use when annotating directly on screen. With the new dual pens, teacher and student or two students can work simultaneously using different attributes.
Highly reliable
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.
Interact and enhance learning
Multi-PC projection software allows teachers and students to share content simultaneously. The moderator function allows teachers to remain in control, choosing what content to display. Combine two projectors to create one large interactive display. Split-screen capability allows teachers to display two separate types of content simultaneously, such as a lesson plan from a PC and a still image or video clip from a document camera.
Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App.
Projector | |
| Projection technology | 3LCD |
| Projector brightness | 3500 ANSI lumens |
| Contrast ratio (typical) | 14000:1 |
| Vertical scan range | 100 - 120 Hz |
| Keystone correction, horizontal | -3 - 3° |
| Keystone correction, vertical | -3 - 3° |
| Screen size compatibility | 1524 - 2540 mm (60 - 100") |
| Projector brightness (economic mode) | 2900 ANSI lumens |
| Matrix size | 1.5 cm (0.59") |
| Contrast ratio (dynamic) | 14000:1 |
| Vertical synchronization (min) | 0.1 kHz |
| Vertical synchronization (max) | 0.12 kHz |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 16:10 |
| Projection distance (wide) | 0 - 0.4 m |
| Projection distance (tele) | 0 - 0.6 m |
| Projector native resolution | WXGA (1280x800) |
| White light output | 3500 ANSI lumens |
| Colour light output | 3500 ANSI lumens |
| Number of colours | 1.07 billion colours |
| Focal length range | 3.7 mm |
| Country of origin | Philippines |
Light source | |
| Lamp power | 250 W |
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
Lens system | |
| Throw ratio | 0.28 - 0.37:1 |
| Zoom ratio | 1.35:1 |
| Focus | Manual |
| Fixed focal length | 3.7 mm |
| Zoom type | Auto |
Video | |
| Full HD | No |
| 3D | No |
| Video processing | 10 bit |
| Video colour modes | Cinema, Dynamic, Blackboard, Presentation, sRGB, Whiteboard |
Technical details | |
| Serial interface type | RS-232C |
| Quick start guide | Yes |
| USB display function | 3 in 1: Image / Mouse / Sound |
| Pallet gross weight | 0 g |

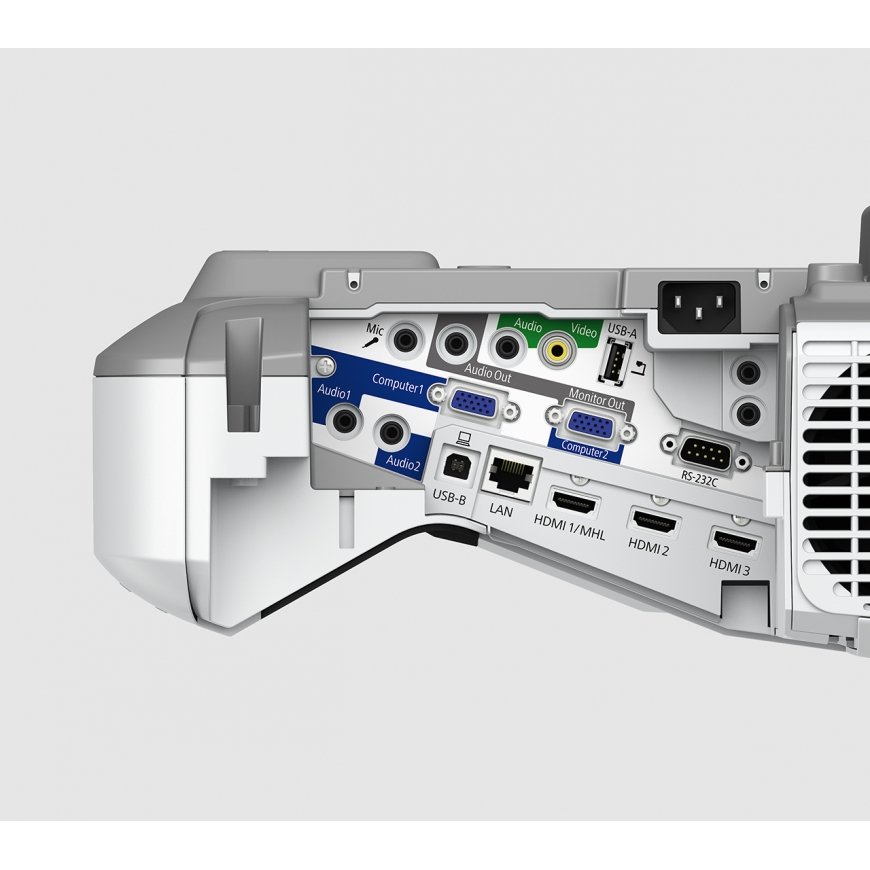

Ports & interfaces | |
| Headphone outputs | 1 |
| S-Video inputs quantity | 1 |
| Composite video in | 1 |
| Component video (YPbPr/YCbCr) in | 0 |
| Audio (L/R) in | 1 |
| USB 2.0 ports quantity | 3 |
| DVI port | No |
| HDMI ports quantity | 3 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 3 |
| AC (power) in | Yes |
Storage | |
| Card reader integrated | No |
Features | |
| Noise level | 35 dB |
| Noise level (economic mode) | 30 dB |
| Password protection | Yes |
| Interactive input supported | Interactive pen |
| Interactive | Yes |
Software | |
| Compatible operating systems | Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Ubuntu 15.10, Ubuntu 16.04 LTS, Windows 10, Windows 8, Windows 8.1 |
| Windows operating systems supported | Windows 8, Windows 10, Windows 8.1 |
| Software support | via: AMX, Crestron (Network), Control4 |
Multimedia | |
| RMS rated power | 16 W |
| Built-in speaker(s) | Yes |
Design | |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Ultra short throw projector |
| Market positioning | Ulta short throw |
| Placement | Wall |
Colour | |
| Product colour | White, Grey |
Operational conditions | |
| Power consumption (typical) | 354 W |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Power | |
| Power source | AC |
| Power consumption (standby) | 0.39 W |
| Power consumption (economy mode) | 310 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
Packaging data | |
| Package weight | 20 kg |
| Package width | 490 mm |
| Package depth | 730 mm |
| Package height | 335 mm |
| Quantity per pack | 1 pc(s) |
Weight & dimensions | |
| Weight | 5.9 kg |
| Height | 149 mm |
| Depth | 400 mm |
| Width | 367 mm |
Packaging content | |
| Remote control included | No |
| Cables included | AC |
| Bundled software | Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projektor Management |
| Manual | Yes |
| WLAN adapter included | Yes |
Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
Display | |
| Built-in display | No |
Other features | |
| RS-232 ports | 1 |
| RS-232C | Yes |
Logistics data | |
| Products per pallet | 12 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet gross height | 15 cm |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 2 pc(s) |
| Products per pallet (UK) | 12 pc(s) |
| Pallet weight (UK) | 0 g |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Pallet height (UK) | 15 cm |
| Harmonized System (HS) code | 85286200 |
