The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

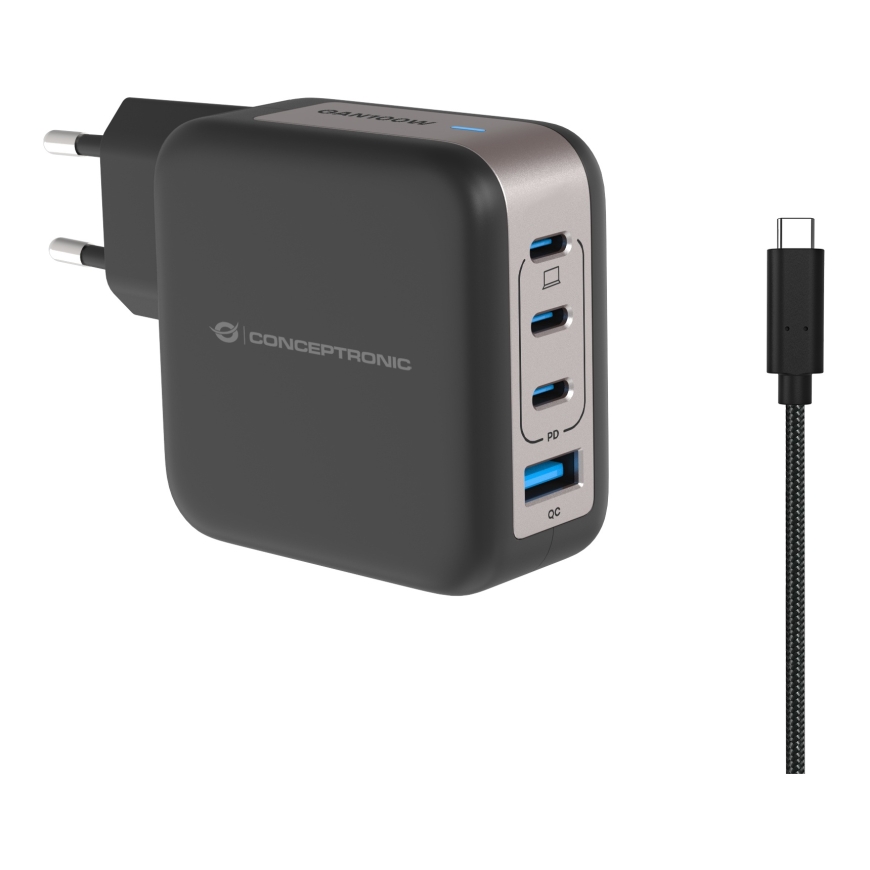

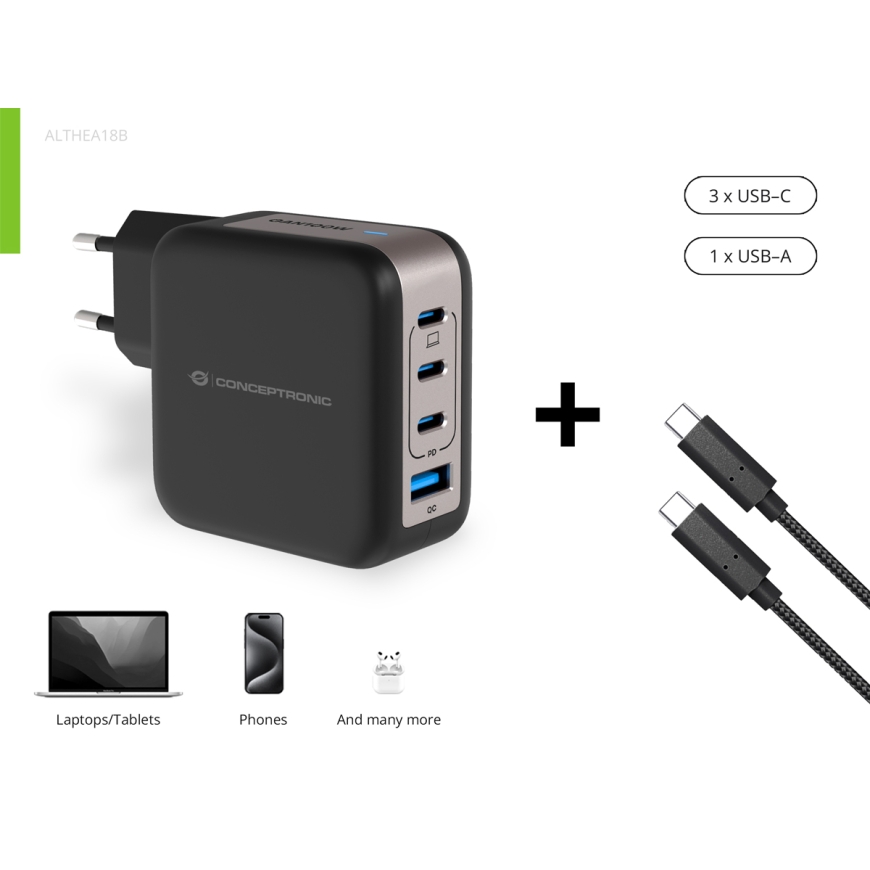

Conceptronic 4-Port 100W GaN USB PD Charger with USB-C Charging Cable, USB-C x 3, USB-A x 1, QC 3.0, PPS
2928990 ALTHEA18B
4015867236536
Shipping 4-6 b.d.
All about the product

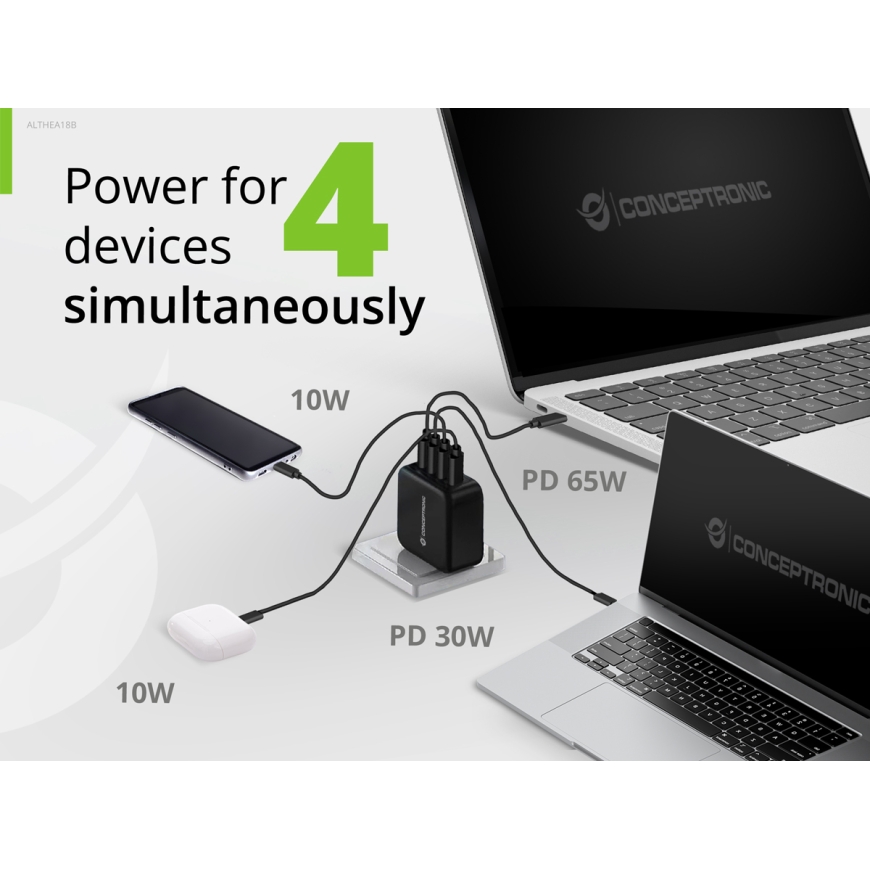

This charger features cutting-edge Gallium Nitride (GaN) technology, delivering up to 100W of power for exceptionally fast and efficient charging. It includes 4 ports: 3 USB-C ports with Power Delivery (PD) 3.0 and 1 USB-A port with Quick Charge (QC) 3.0, enabling simultaneous charging of multiple devices with varying power needs. The charger supports a wide range of output options from 3.3V to 20.0V, making it compatible with a broad spectrum of devices, from smartphones to laptops. Enhanced safety is ensured with built-in protections against overload, short-circuiting, and overheating, safeguarding both the charger and connected devices. It incorporates USB Power Delivery (PD) 3.0 and Quick Charge (QC) 3.0 technologies for rapid charging, and features Programmable Power Supply (PPS) compliance to optimize charging efficiency and reduce heat generation. Additionally, the charger includes a 1.5m 100W USB-C to USB-C cable equipped with an E-mark chip for added convenience and versatility. (Note: A charging cable with an E-mark chip is required for power delivery greater than 3 amps.)
Performance | |
| Charger compatibility | Universal |
| Power source type | AC |
| Charger type | Indoor |
| Power protection features | Overload, Overheating, Short circuit |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Fast charging | Yes |
| Fast charging technology | Quick Charge 3.0, Power Delivery 3.0 |
| USB Type-C ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| Number of simultaneously connected devices (max) | 4 |
Design | |
| Cable length | 1.5 m |
| Product colour | Black |
| Gallium nitride (GaN) transistors | Yes |
Power | |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Maximum power | 100 W |
| Input current | 2.5 A |
| Maximum output voltage | 20 V |
| Minimum output voltage | 3.3 V |
| Output current (5V) | 3 A |
| Output current (9V) | 3 A |
| Output current (12V) | 3 A |
| Output current (15V) | 3 A |
| Output current (20V) | 5 A |
Packaging data | |
| Package weight | 136 g |
| Package depth | 36 mm |
| Package height | 136 mm |
| Package width | 153 mm |
| Package type | Box |
Weight & dimensions | |
| Weight | 204 g |
| Depth | 65 mm |
| Height | 32 mm |
| Width | 65 mm |
Packaging content | |
| Cables included | USB Type-C |
| Manual | Yes |
Logistics data | |
| Country of origin | China |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case width | 385 mm |
| Master (outer) case length | 292 mm |
| Master (outer) case height | 320 mm |
| Master (outer) case gross weight | 12.6 kg |
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet gross height | 148 cm |
| Harmonized System (HS) code | 8504408390 |
Operational conditions | |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 80 °C |
| Storage relative humidity (H-H) | 10 - 90% |
Sustainability | |
| Sustainability compliance | Yes |
