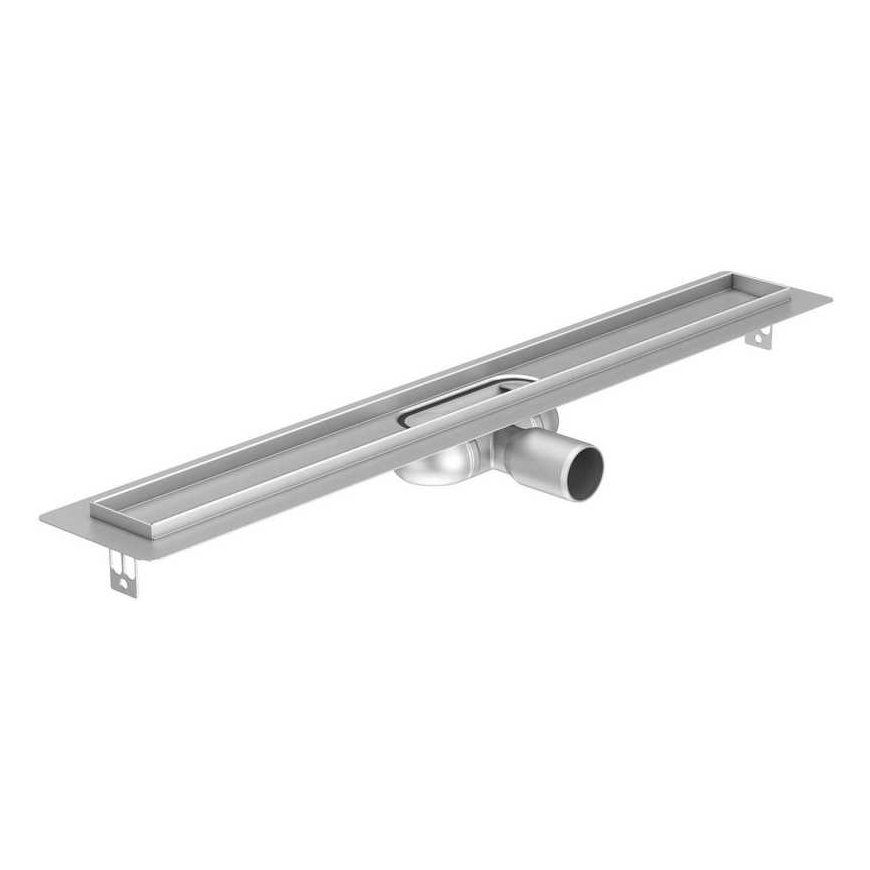

Shower drain body Aco ShowerDrain C, 65 mm with horizontal flange, 685 mm
Shower drain body Aco ShowerDrain C, 65 mm with horizontal flange, 685 mm – 2
Shower drain body Aco ShowerDrain C, 65 mm with horizontal flange, 685 mm – 3

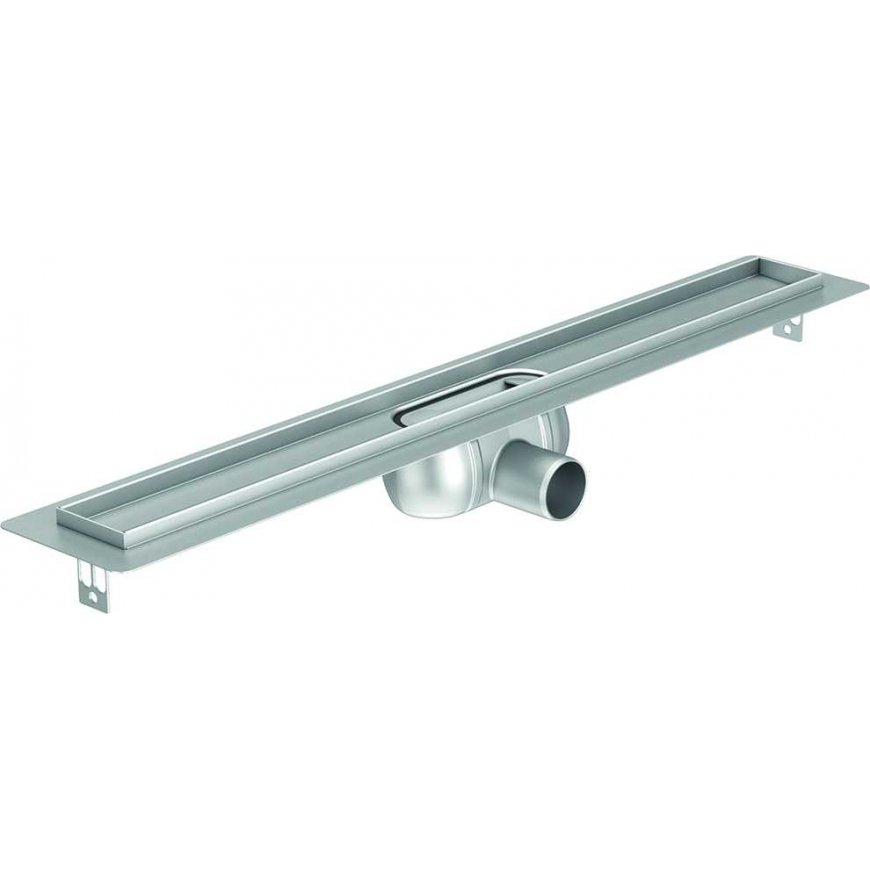

Shower drain body Aco ShowerDrain C, 65 mm with horizontal flange, 685 mm – 4
Shower drain body Aco ShowerDrain C, 65 mm with horizontal flange, 685 mm
Shower drain body Aco ShowerDrain C, 65 mm with horizontal flange, 685 mm
Shower drain body Aco ShowerDrain C, 65 mm with horizontal flange, 685 mm
Shower drain body Aco ShowerDrain C, 65 mm with horizontal flange, 685 mm
Shower drain body Aco ShowerDrain C, 65 mm with horizontal flange, 685 mm
Shower drain body Aco ShowerDrain C, 65 mm with horizontal flange, 685 mm
Shower drain body Aco ShowerDrain C, 65 mm with horizontal flange, 685 mm
Shower drain body Aco ShowerDrain C, 65 mm with horizontal flange, 685 mm
Shower drain body Aco ShowerDrain C, 65 mm with horizontal flange, 685 mm
Shower drain body Aco ShowerDrain C, 65 mm with horizontal flange, 685 mm
Shower drain body Aco ShowerDrain C, 65 mm with horizontal flange, 685 mm
Shower drain body Aco ShowerDrain C, 65 mm with horizontal flange, 685 mm

The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

Shower drain body Aco ShowerDrain C, 65 mm with horizontal flange, 685 mm

219.00 €
Monthly payment from 6,54 €
2911128

4002626880550

Shipping 10-14 b.d.

You are interested in this product?
(Read terms of service)

All about the product

ACO ShowerDrain C - standard shower drain with horizontal or vertical flange. A wide selection of grills and other accessories.
Functional and aesthetic shower drains
The low version of the gutter is suitable for rooms under reconstruction
The siphon is easy to remove and clean, and the drain pipe is easy to reach
The unique profile of the grill reduces the possibility of water spillage
  • Installation height: 65 mm (water height in siphon 30 mm)
  • Material: stainless steel
  • Certified shower channel permeability according to EN 1253: 0.72 l/s
  • Grille frame width: 70 mm
  • Pipe connection: DN 50
  • Gutter body with internal slope
  • Removable polypropylene siphon with rubber gasket
  • Flange to lead the waterproofing around the body of the gutter
  • Additional accessories can be ordered separately: height adjustable legs, EasyStop odor barrier

Shower drain body ACO ShowerDrain C

It is a standard shower channel with a horizontal or vertical flange.

  • A channel with a horizontal flange is used when the channel is installed away from the wall, e.g. in the middle of the shower cabin.
  • A channel with a vertical flange is used when installing the channel right next to the wall.

If you are planning to remodel or install a bathroom at home, but you don't know what solution to choose, instead of conventional drains, we suggest you choose ACO ShowerDrain C series drains.

The gutters are made of stainless EN 1.4301 (AISI 304) brand steel and are extremely hygienic. During production, efforts are made to avoid steep corners where dirt could accumulate.

ACO ShowerDrain channels are not only functional, but also aesthetic. The gutter cover can be covered with a stainless steel grid of various patterns (ordered separately). In order to make the channel more discreet, it is possible to cover its top with a narrow strip of floor tiles (additional Aco Tile is required to be ordered separately). Choose the grill suitable for this gutter HERE ->>>

Product advantages:

  • The low version of the gutter is suitable for rooms under reconstruction
  • The siphon is easy to remove and clean, and the drain pipe is easy to reach
  • The unique profile of the grill reduces the possibility of water overflow
