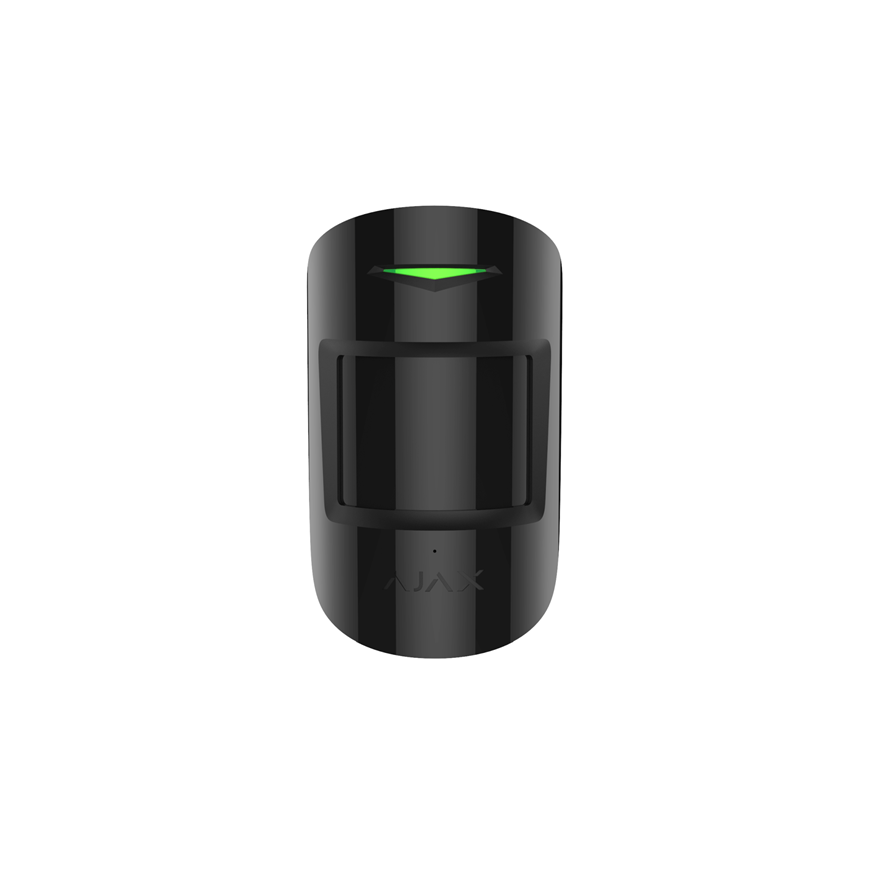

Ajax Combi Protect motion detector (black)

Ajax Combi Protect motion detector (black)

Ajax CombiProtect motion and glass break detector instantly recognizes an intruder, but does not react to sounds and movements made by animals, air conditioners.

Long distance is not an obstacle
The glass break detector "Ajax CombiProtect" can be attached up to 1200 meters away from the smart center "Ajax Hub" - the signal will easily reach it. The detector recognizes the sound of breaking glass at a distance of 9 meters, and movement even at a distance of 12 meters.

100% protection
Ajax CombiProtect has special protection against hacking methods used by criminals - communication signals are not suppressed by a unique system that encrypts the signal. A smart central unit, periodically sending signals every 12-300 sec. also continuously checks the performance of the detector.

Simple operation
Adjustable system of three sensitivity levels. Uses a special SmartDetect algorithm to avoid animal false alarms. Thanks to the unique FresnelTech optical component made of POLY IR4 materials and the Excelitas PIR sensor, which avoids false alarms. The device uses energy very sparingly, so one battery will last up to 5 years.

Easy to install and operate
Thanks to the special SmartBracket brackets, you can easily attach the detector to surfaces. You can connect the motion and glass break detector "Ajax SmartDetect" to the Ajax security system with just one push of a button. Can be used with uartBridge and ocBridgePlus modules.

Technical data

• Connection type: wireless
• Place of use: interior
• Motion recognition distance: up to 12 years
• Sensitivity: 3 levels (low, medium, high)
• Detection angle: 88.5° horizontal / 80° vertical
• Recommended installation height: 2.4 m
• Ignoring animals: weight up to 20 kg, height up to 50 cm.
• Stroke recognition distance: up to 9 m
• Detection elements: pyroelectric sensor (for movement), electret microphone (for impact)
• Anti-hacking: Yes
• Signal power: 20 mW
• Communication protocol: Jeweler (868.0-868.6 MHz)
• The maximum distance between the detector and the control panel: 1200 m (in open area)
• Battery type: CR123A
• Supply voltage: 3 V
• Battery life: 5 years.
• Works at temperatures: from 0°C to + 50°C
• Moisture resistance: up to 90%
• Dimensions: 110x65x50 mm
