The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

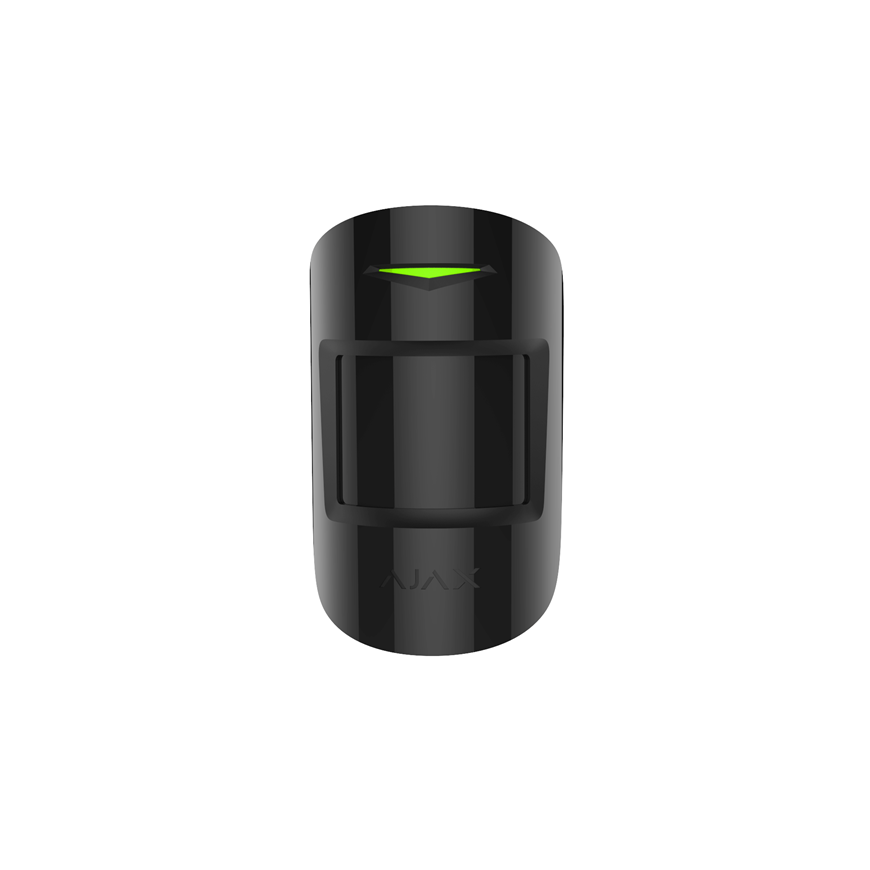

Ajax MotionProtect Plus motion detector (black)
2906850 000001150
9990000000135, 4823114015281
Shipping 1-2 days
All about the product
Ajax MotionProtect Plus motion detector (black)
The compact and wireless Ajax MotionProtect motion detector recognizes only human movement and records movements at a distance of up to 12 meters. With a radio frequency scanning filter that does not respond to extraneous sounds such as thermal radiation, strong solar radiation, wind gusts, etc.
Long distance is not an obstacle
Thanks to Jeweler's unique communication technology, the Ajax MotionProtect motion sensor can be attached up to 1,200 meters away from the Ajax Hub. Detects movement at a distance of 12 meters.
100% protection
Ajax MotionProtect has special protection against the methods used by criminals to suppress security systems - communication signals are prevented by a unique system that encrypts the signal. By sending signals every 12-300 seconds, the intelligent control unit also constantly checks the operation of the detectors.
Convenient and smart system
Thanks to the SmartDetect technology, the Ajax MotionProtect motion detector detects human movements as soon as they enter the viewing area of the device and instantly transmits an alarm signal. The motion detector recognizes human movement from a distance of 12 meters, but the sensor does not detect the movement of pets or drafts.
Easy to use
You connect the Ajax MotionProtect motion detector to the Ajax security system by scanning the QR code on the package with your smart device and following a few steps in the Ajax Security System app. In addition, thanks to the special SmartBracket holders, you can easily attach the detector to vertical surfaces. uartBridge and ocBridgePlus modules are available.
Technical data
- Connection type: wireless
- Detection elements: PIR sensor and microwave sensor (24GHz)
- Place of use: interior
- Motion detection distance: up to 12 m
- Sensitivity: 3 levels (low, medium, high)
- Detection angle: 88.5° horizontal / 80° vertical
- Recommended installation height: 2.4 m
- Ignoring animals: weight up to 20 kg, height up to 50 cm.
- Additional protection: microwave sensor to filter false movements
- Anti-hacking: Yes
- Signal power: 20 mW
- Communication protocol: Jeweler (868.0-868.6 MHz)
- The maximum distance between the detector and the control panel: 1200 m (in an open place)
- Battery type: CR123A
- Supply voltage: 3 V
- Battery life: 7 years.
- Works at temperatures: from 0°C to + 50°C
- Moisture resistance: up to 80%
- Dimensions: 110x65x50 mm
Complete set
- Motion detector
- CR123A battery
- Installation kit
- Instruction
Features
| Product colour | Black |
| International Protection (IP) code | IP50 |
| Weight | 96 g |
| Width | 65 mm |
| Depth | 50 mm |
| Height | 110 mm |
| Connectivity technology | Wireless |
| Battery type | CR123A |
| Manual | Yes |
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 0 - 75% |
| LED indicators | Yes |
| Battery voltage | 3 V |
| Mounting type | Wall |
| Power source type | Battery |
| Placement | Indoor |
| Interface | RF |
| Security algorithms | AES |
| Sensor type | Passive infrared (PIR) sensor/Microwave sensor |
| Detection distance | 12 m |
| Transmission distance | 1200 m |
| Installation height (max) | 2.4 m |
| Battery life | 5 year(s) |
| False alarm protection | Yes |
| Pet immunity (max) | 20 kg |
| Detection angle | 88.5° |
| Tamper protection | Yes |
