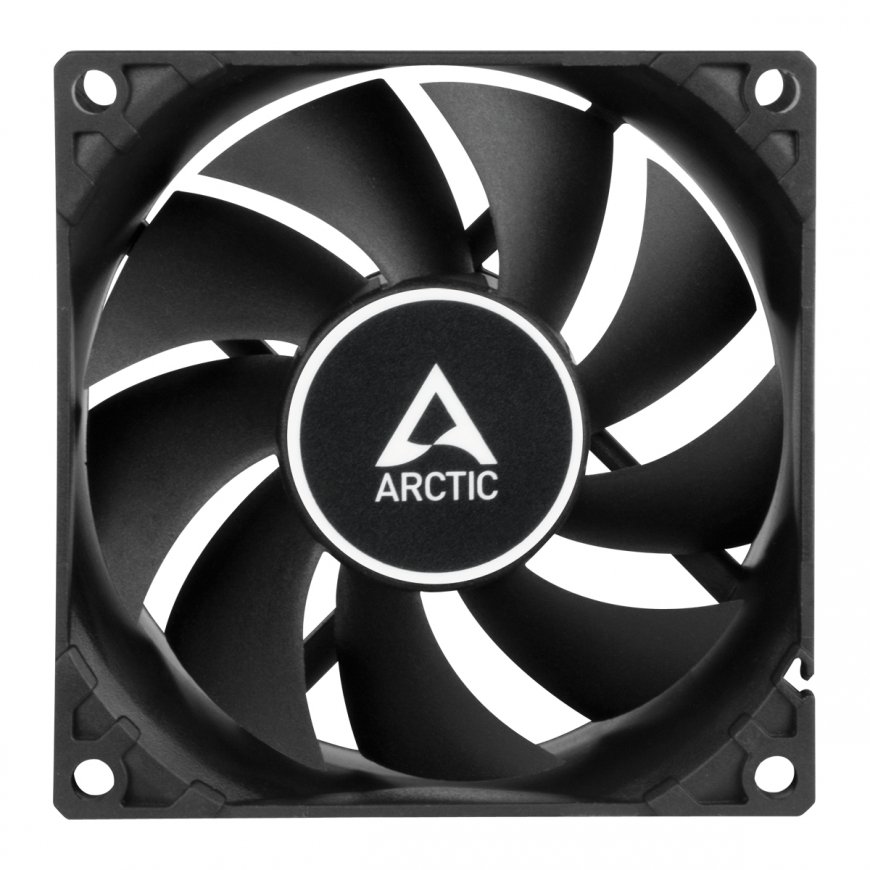

ARCTIC F8 PWM PST 80 mm PWM PST Case Fan
2874655 ACFAN00261A
4895213703574, 0840033401388
Shipping 12-13 b.d.
All about the product

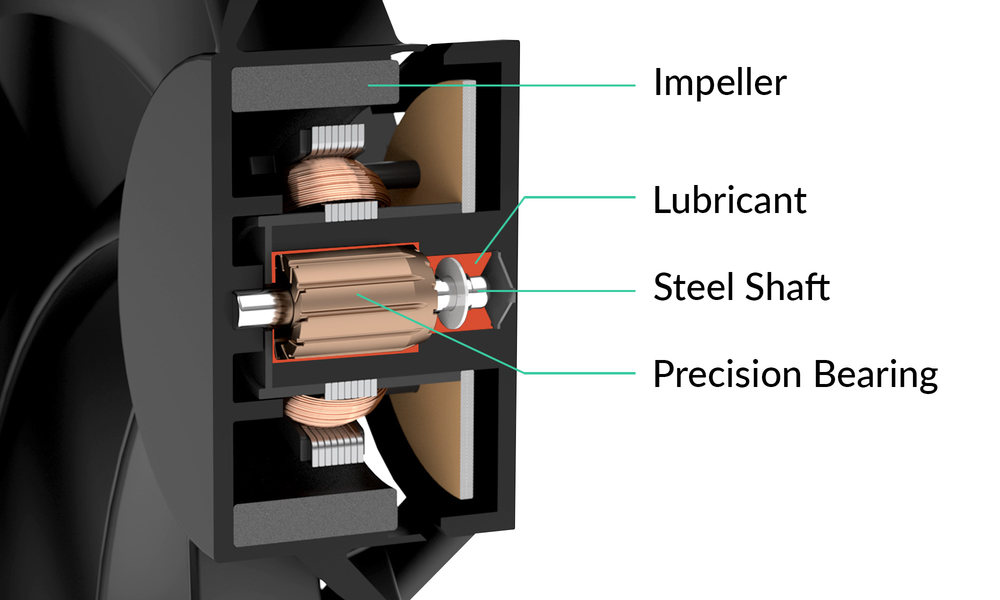

Long Service Life
The Fluid Dynamic Bearing comes with an oil capsule that avoids lubricant leakage. Thus this bearing is as quiet as a sleeve bearing but comes with a significantly higher service life
Perfect Case Fan Regulation with PWM
The PWM function allows the motherboard to run the fan precisely at its necessary speed. This guarantees the required cooling and minimizes the noise level.

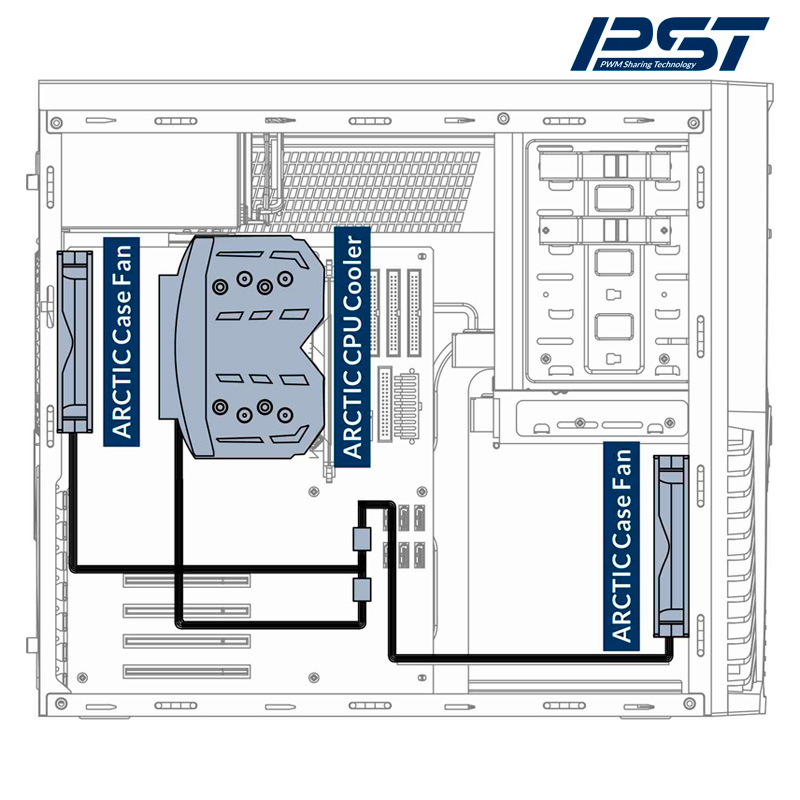

PWM Sharing Technology (PST) Lowers Noise
If you want to improve the cooling efficiency of your computer you get several case fans working in parallel (since it takes 10 fans to double the noise level). But what does it help if they don't work together? The PST assures that all of your fans listen to one control signal. E.g. you share the CPU Cooler's PWM signal and assure that your case fans stand down at low load and spin up whenever necessary.

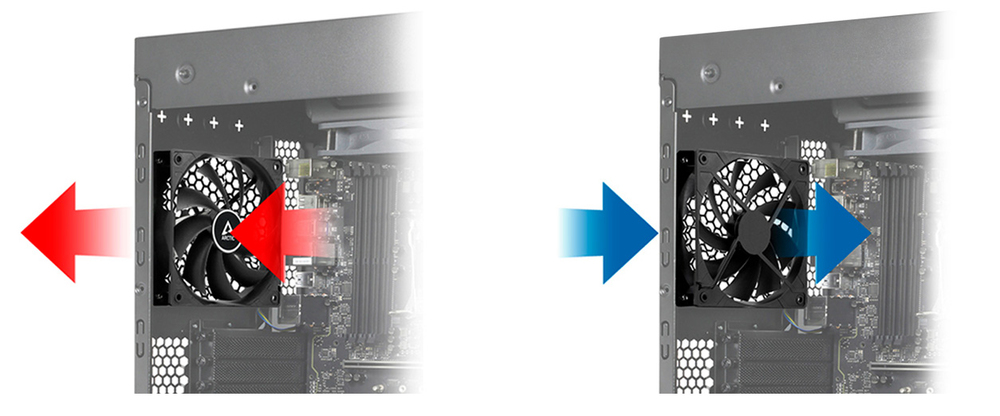

Two Way installation
Blow warm air out of the case
Draw cool air into your case
Two Way installation
Blow warm air out of the case
Draw cool air into your case
Performance | |
| Operating temperature (T-T) | 0 - 40 °C |
| Supported processor sockets | Not supported |
| Type | Fan |
| Fan diameter | N |
| Airflow | 52.7 m³/h |
| Maximum airflow | 31 cfm |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 300 RPM |
| Rotational speed (max) | 2000 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Noise level | 0.3 sone |
| Quantity per pack | 5 pc(s) |
| Fan static pressure | 1 mmH2O |
| Suitable location | Computer case |
Design | |
| Product colour | Black |
| Material | Plastic |
| Number of fans | 5 fan(s) |
| Fan connector | 4-pin + 4-pin |
Power | |
| Voltage | 12 V |
| Starting voltage | 5.5 V |
| Fan voltage | 12 V |
| Fan current | 0.14 A |
Weight & dimensions | |
| Weight | 72 g |
| Package weight | 426 g |
| Height | 25 mm |
| Width | 80 mm |
| Depth | 80 mm |
| Cable length | 0.4 m |
| Package height | 86 mm |
| Package width | 91 mm |
| Package depth | 128 mm |
Packaging content | |
| Screws included | Yes |
| Number of screws | 20 |
| Package type | Box |
| Mounting kit | Yes |
