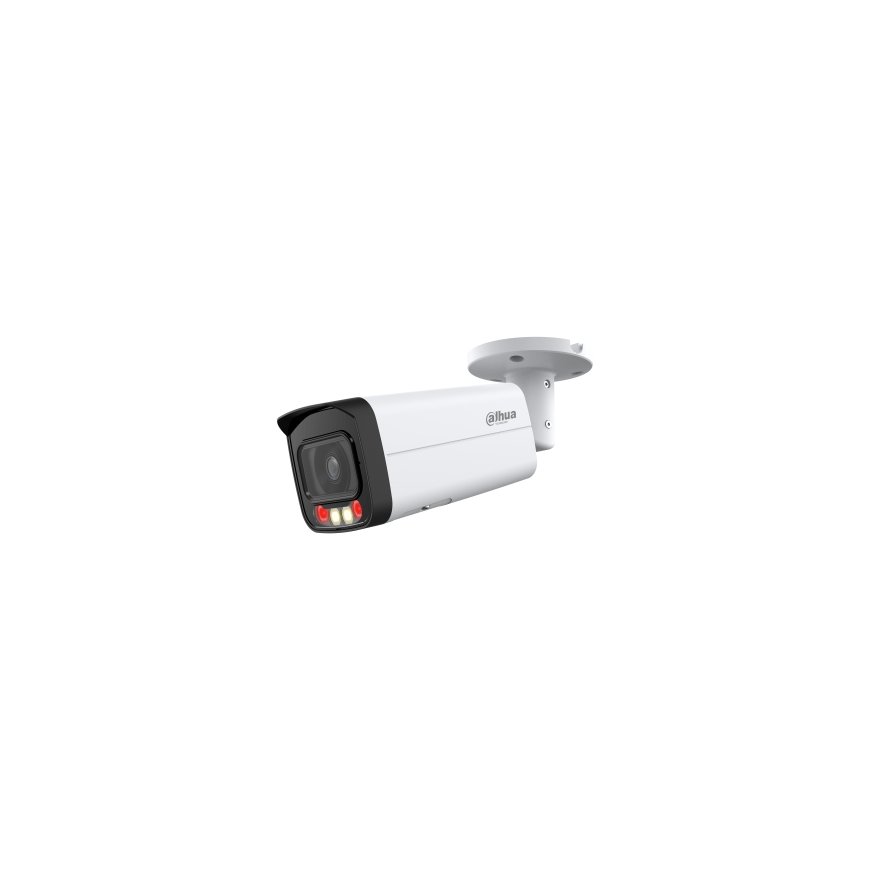

Dahua Technology IPC-HFW2849T-AS-IL-0360B security camera
195,00 €
Monthly payment from 5.92 €
2816492 IPC-HFW2849T-AS-IL-0360B
6923172590084
Shipping 2-4 days
You are interested in this product?
Intelligent: Powered by AI chip and deep learning algorithm, WizSense provides various features that realizes accurate alarms for human and vehicle, and quick target search, maximizing resources to increase overall efficiency.
Simple: WizSense offers simple configuration, especially for SMD and AI Coding enabled by default. It eases your customer's daily job and also empowers them to make better business decisions.
Inclusive: Inclusivity of WizSense is the idea that everyone gets the opportunities and benefits from AI. With affordable prices and easy configuration of Dahua WizSense, AI is no longer confined to an ivory tower, but applied to real scenarios instead.
Performance | |
| Certification | CE-EMC: Electromagnetic Compatibility Directive, CE-LVD: EN62368-1;, FCC: 47 CFR FCC Part 15, Subpart B;, UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14, 2014/30/EU; |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Dynamic range | 120 dB |
| Built-in light | Yes |
Design | |
| Housing material | Metal |
| Mounting type | Ceiling/wall |
| International Protection (IP) code | IP67 |
| Protection features | Corrosion resistant, Weatherproof |
| Product colour | Black, White |
| Form factor | Bullet |
| IK code | IK10 |
Camera | |
| Minimum illumination | 0 lx |
| Camera shutter speed | 1/3 - 1/100000 s |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| Angle of rotation | 360° |
| White balance | Auto, Manual, Outdoor, Natural, Street lamp |
| Camera shutter type | Electronic |
| Adjustment shutter speed | Auto/Manual |
| Lens viewing angle, horizontal | 55° |
| Lens viewing angle, vertical | 31° |
| Lens viewing angle, diagonal | 62° |
| Number of Privacy masking areas | 4 |
Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
| Number of sensors | 1 |
Lens system | |
| Fixed focal length | 3.6 mm |
| Maximum aperture number | 1.6 |
| Closest focusing distance | 3.5 m |
| Detect distance | 154.7 m |
| Observe distance | 61.9 m |
| Recognize distance | 30.9 m |
| Identify distance | 15.5 m |
| Number of lenses | 1 |
Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Frame rate | 30 fps |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160, 640 x 480 (VGA), 352 x 240, 352 x 288, 704 x 480, 704 x 576, 2304 x 1296, 3072 x 1728, 2048 x 1536 (QXGA), 3072 x 2048, 2688 x 1512, 2880 x 1620 |
| Video compression formats | H.264, H.265, H.264+, H.265+, H.264B |
| Noise reduction | Yes |
| Video streaming | Yes |
| Privacy masking | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Bit rate | 12 Kbps - 8192 Kbps |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Gain control type | Auto/Manual |
| Noise reduction technology | 3D noise reduction |
| Total megapixels | 8 MP |
Audio | |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Voice codecs | G.726, G.711Mu, G.711a, PCM |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
Network | |
| Wi-Fi | No |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Number of users | 20 user(s) |
| Client interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
| Bluetooth | No |
Storage | |
| Compatible memory cards | MicroSD (TransFlash) |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Maximum memory card size | 256 GB |
| ROM capacity | 128 MB |
| RAM capacity | 256 MB |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
Security | |
| Video motion detection | Yes |
| Privacy protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Intrusion, Tripwire |
| Mirror | Yes |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Network access storage (NAS) | Yes |
Power | |
| Power consumption (typical) | 2.6 W |
| DC output voltage | 12 |
| Power consumption (max) | 7 W |
| Power consumption (Power over Ethernet (PoE)) | 8.3 W |
| Power source type | DC, PoE |
Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions | |
| Weight | 720 g |
| Width | 90.7 mm |
| Height | 90.7 mm |
| Length | 238.5 mm |
Packaging content | |
| Number of cameras | 1 |
Night vision | |
| Number of illumination LEDs | 4 |
| Night vision | Yes |
| LED type | IR/White |
| Night vision distance | 50 m |
| B/W night vision distance | 60 m |
Technical details | |
| Lens mount interface | M12 |
| Number of video streams | 2 |
Management features | |
| Web browser | Yes |
| Management software | Smart PSS, DSS, DMSS |
System requirements | |
| Mobile operating systems supported | Android, iOS |
Other features | |
| Browser supported | IE: IE8, IE9, IE11 Chrome Firefox, Safari |
Packaging data | |
| Package weight | 970 g |
