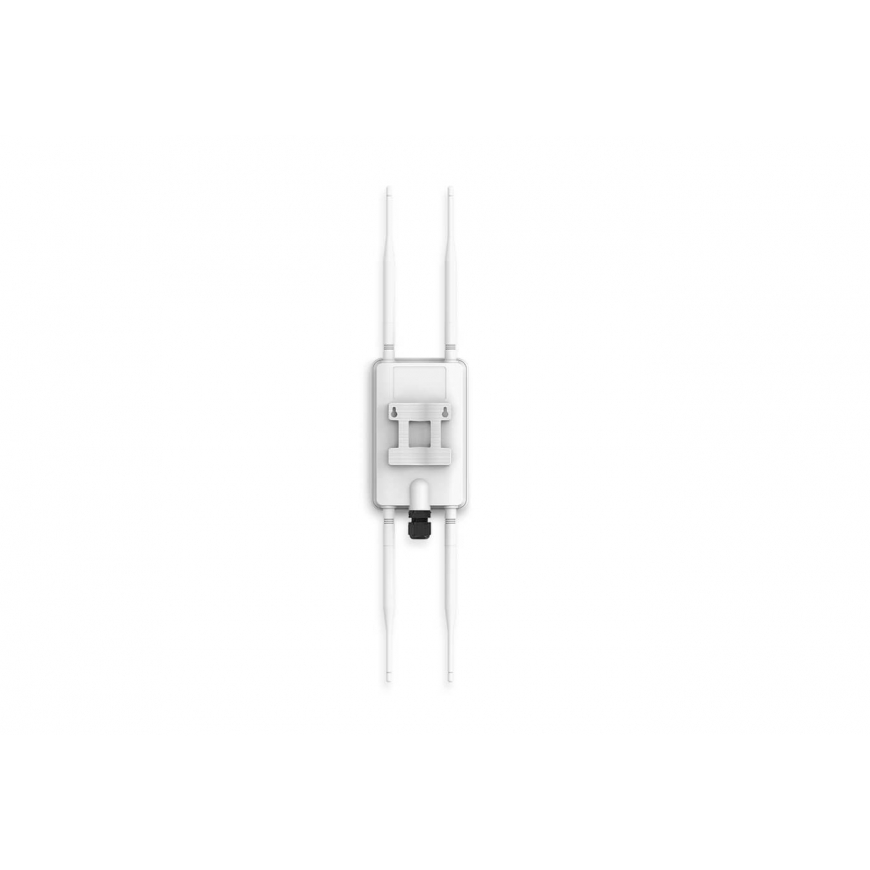

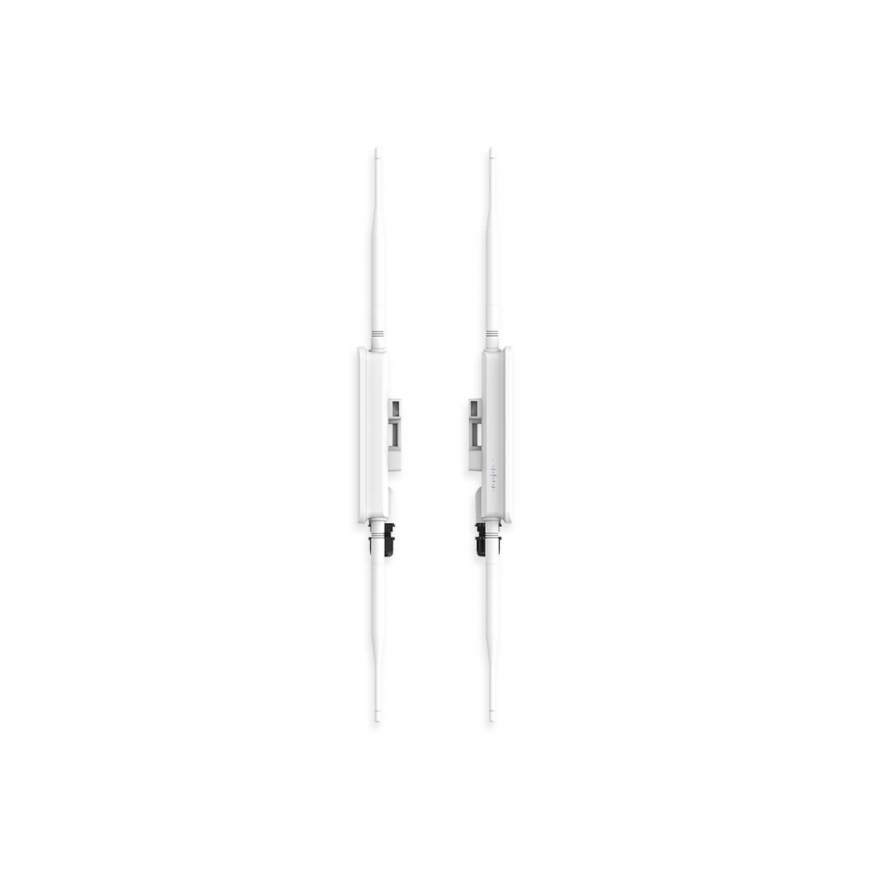

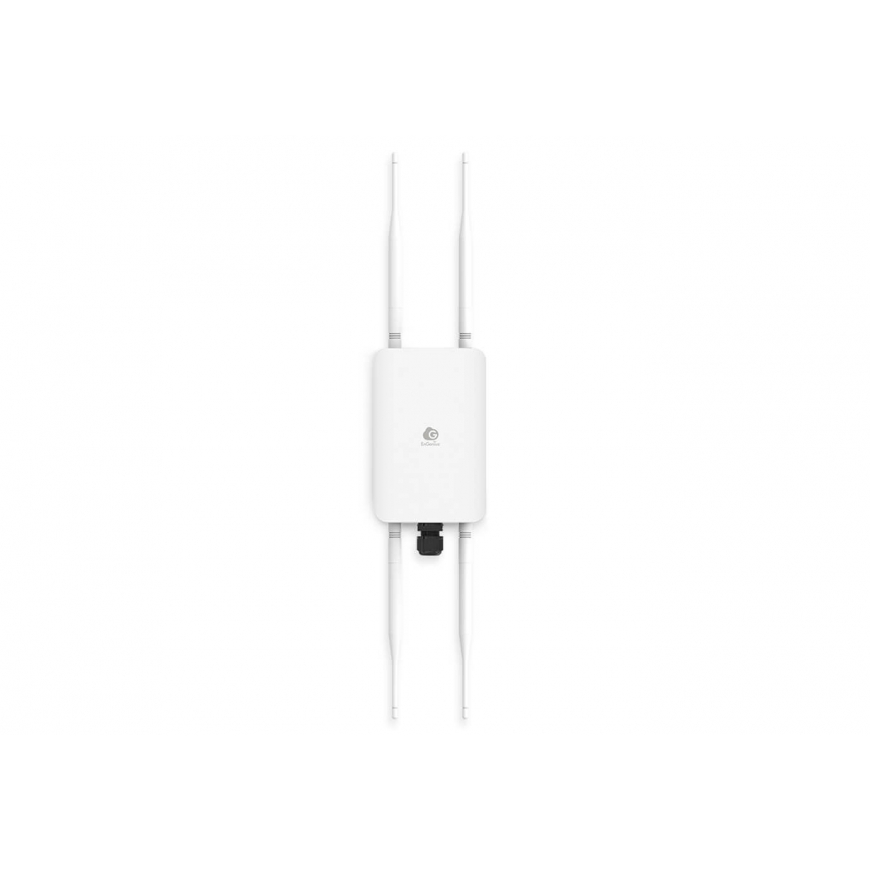

EnGenius Cloud Managed Outdoor AP DBC 11ac Wave2 400+867Mbps 2T2R 4x5dBi RP-SMA GbE PoE.af IP67
169,67 €
169.00 €
Monthly payment from 5,25 €
2736483 ECW160
4713361934964, 0655216009639
Shipping 11-16 b.d.
You are interested in this product?
All about the product
EnGenius Cloud Managed 11ac Wave 2 2×2 Outdoor Wireless Access Point ECW160 supports MU-MIMO wireless connection, providing up to 867 Mbps in the 5 GHz band and 400 Mbps in the 2.4 GHz band. Its IP67-rated weatherproof and dustproof housing withstands harsh environments, and its Mesh Wireless Support simplifies setup and self-heals. The EnGenius Cloud App allows remote management of an unlimited number of APs.Wireless LAN features | |
| Modulation | 16-QAM, 64-QAM, CCK, BPSK, QPSK, 256-QAM |
Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3af, IEEE 802.1D, IEEE 802.1Q, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11e |
| Ethernet LAN data rates | 10, 100, 1000 |
Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Management features | |
| Quality of Service (QoS) support | Yes |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| MIMO | Yes |
Security | |
| Security algorithms | WPA2-PSK, SSH, WPA2-Enterprise, WPA2-AES |
| MAC address filtering | Yes |
Protocols | |
| Management protocols | SNMP |
Design | |
| LED indicators | Yes |
| Product colour | White |
Antenna | |

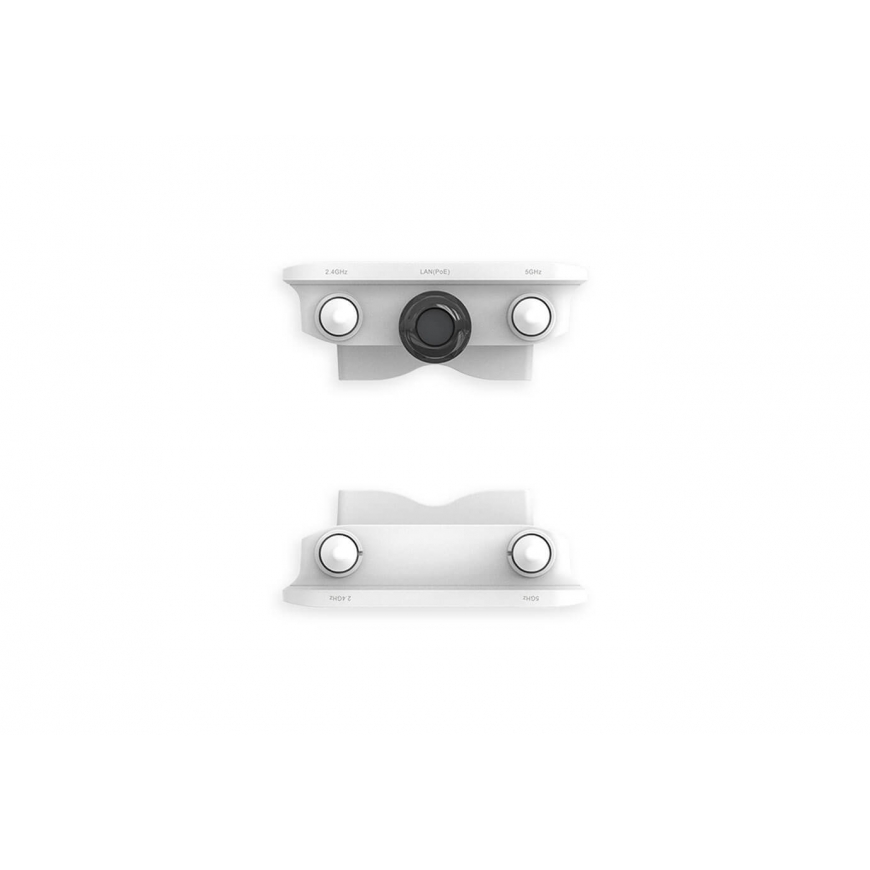

| Antenna connector type | SMA |
| Antenna gain level (max) | 5 dBi |
| Antennas quantity | 4 |
| Antenna direction type | Omni-directional |
| Antenna type | External |
Power | |
| Power over Ethernet (PoE) | Yes |
Operational conditions | |
| Operating temperature (T-T) | -20 - 60 °C |
| Storage temperature (T-T) | -40 - 80 °C |
Weight & dimensions | |
| Width | 111.2 mm |
| Depth | 173.6 mm |
| Height | 30.3 mm |
| Weight | 829.5 g |
Packaging data | |
| Package width | 247 mm |
| Package depth | 79 mm |
| Package height | 150 mm |
| Package weight | 580 g |
Other features | |
| Frequency band | 2.4 - 2.482, 5.15 - 5.25, 5.25 - 5.35, 5.47 - 5.725, 5.725 - 5.85 GHz |
| Maximum data transfer rate | 867 Mbit/s |
Certificates | |
| Certification | FCC, CE, IC |
Logistics data | |
| Master (outer) case width | 330 mm |
| Master (outer) case length | 510 mm |
| Master (outer) case height | 290 mm |
| Master (outer) case gross weight | 7.9 kg |
| Products per master (outer) case | 12 pc(s) |
| Harmonized System (HS) code | 85176990 |
Packaging content | |
| Quick start guide | Yes |
| Mounting kit | Yes |
