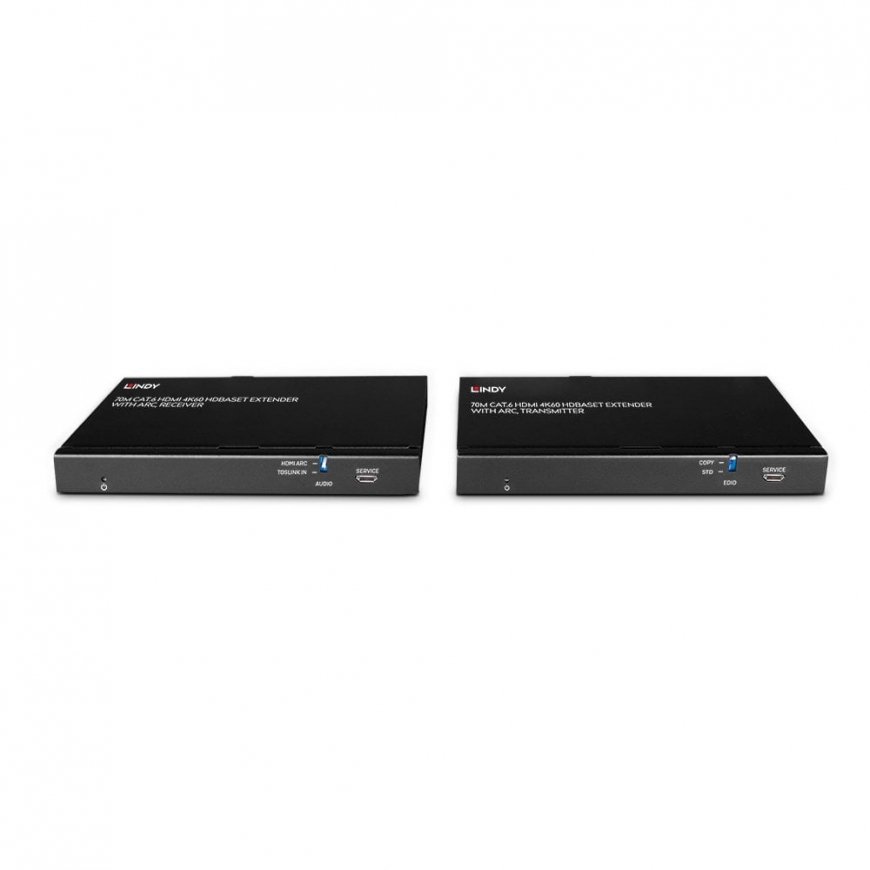

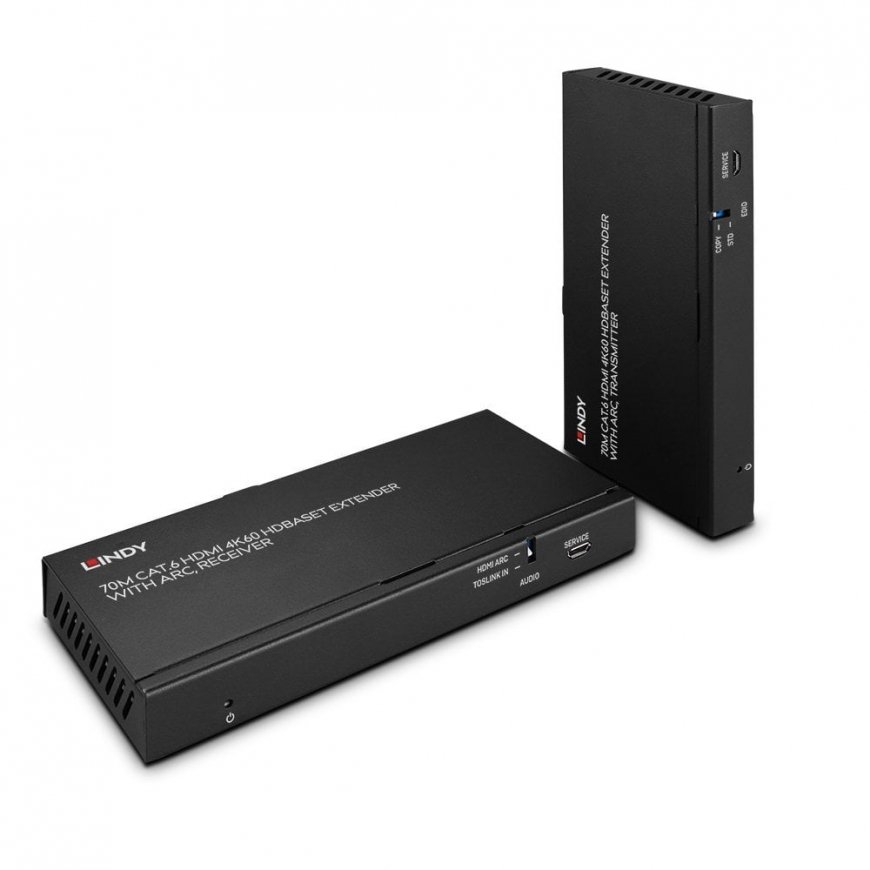

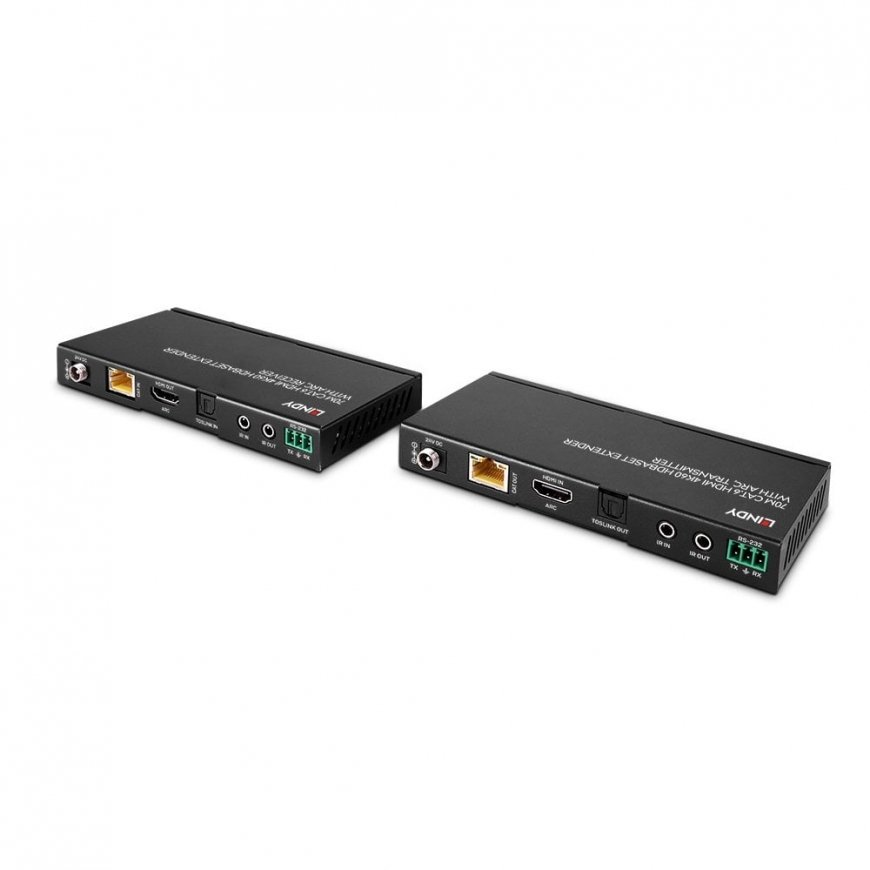

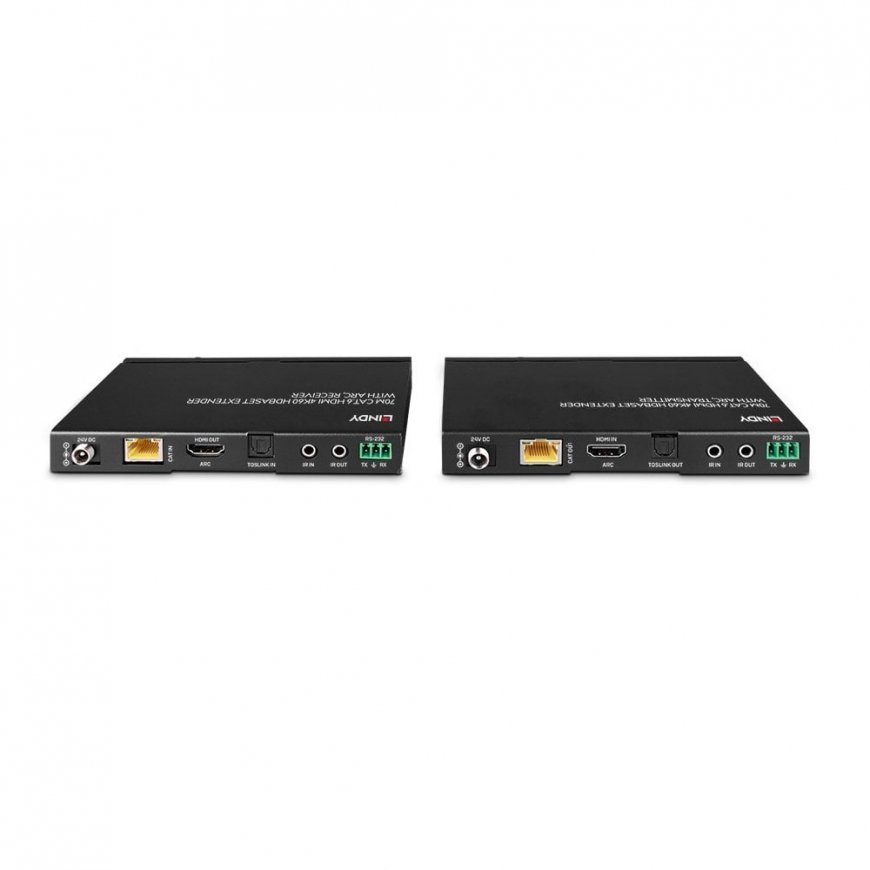

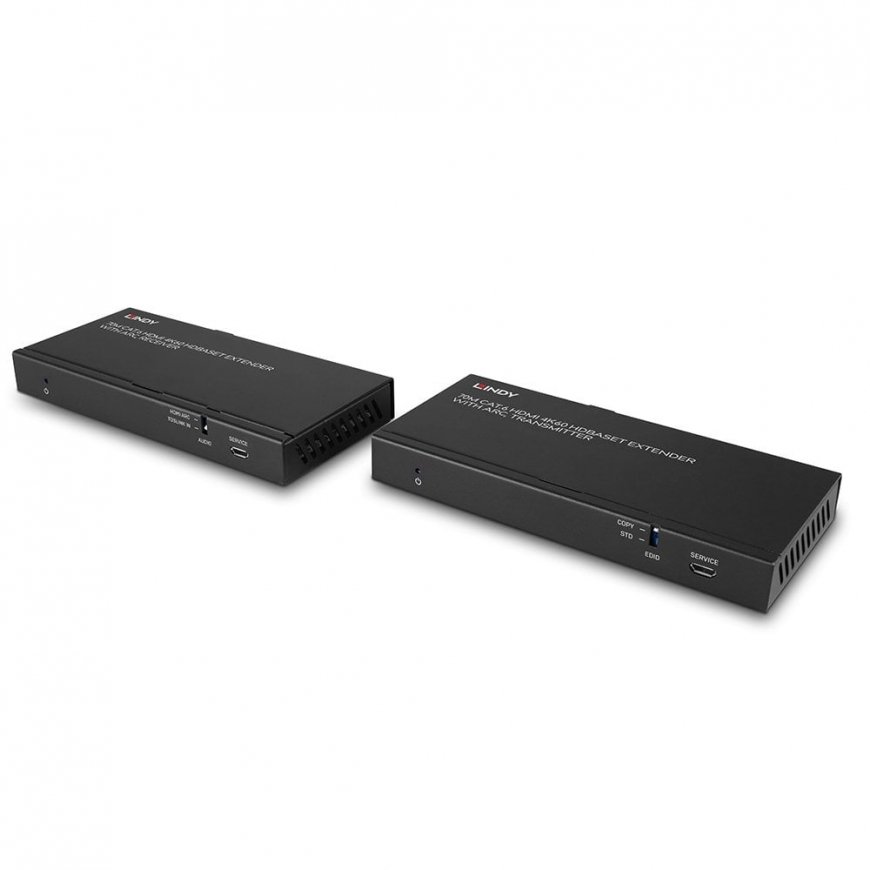

Lindy 70m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Extender with ARC
371.40 €
Monthly payment from 10,46 €
2591037 38349
4002888383493
Shipping 17-19 b.d.
You are interested in this product?
All about the product
The Lindy 70m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Extender is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:70m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit
Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.
ARC support over HDMI allows for audio content to be returned from the display to a connected amplifier or soundbar, while local audio extraction allows for the connection of audio outputs for immersive multi-channel audio. Digital audio embedding at the receiver side can also be used for source audio, which can easily be switching via the dip-switch on the receiver unit.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit. Ideal for example when power outlets are limited at the receiver end of the installation.
Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. This extension system allows for complete and simple control for the user providing also RS-232 port via terminal block.
In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.
HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.
HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.
Please Note: the quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 or above cable. Using a different cable type, introducing couplers, wall plates or patch panels may result in a reduction of possible distances.
Features
| Product colour | Black |
| Maximum refresh rate | 60 Hz |
| Weight | 760 g |
| Width | 140 mm |
| Depth | 65 mm |
| Height | 18 mm |
| Quantity per pack | 1 pc(s) |
| Type | AV transmitter & receiver |
| Material | Metal |
| Package type | Box |
| Package width | 245 mm |
| Package depth | 75 mm |
| Package height | 185 mm |
| Maximum resolution | 3840 x 2160 pixels |
| Package weight | 940 g |
| Connectivity technology | Wired |
| Manual | Yes |
| Chipset | VS010-A0 |
| Certification | California Proposition 65 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| DC-in jack | Yes |
| HDMI version | 2.0 |
| HDCP | Yes |
| Packaging content | HDBaseT HDMI Extender, Transmitter; HDBaseT HDMI Extender, Receiver; IR Emitter Cable, 1.5m; IR Receiver Cable, 1.5m; 4 x Mounting Ears & 8 x Screws; 2 x 3-Pin Terminal Block; Multi-country Power Supply (UK, EU, US & AUS); Lindy Manual |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDCP version | 2.2 |
| Bandwidth | 18 Gbit/s |
| Special features | PoC, ARC |
| Cable types supported | Cat6 |
| Maximum transfer distance | 70 m |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| Power requirements | 24VDC 1A |
| Sustainability compliance | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Bidirectional | Yes |
| Infrared (IR) frequency range | 20 - 60 kHz |
| Digital audio optical input type | TOSLINK |
| Digital audio optical output type | TOSLINK |
| Warranty period | 2 year(s) |
| RS-232 pass-through | Yes |
| Compliance certificates | CE; RoHS; REACH; Federal Communications Commission (FCC); UKCA |
