The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

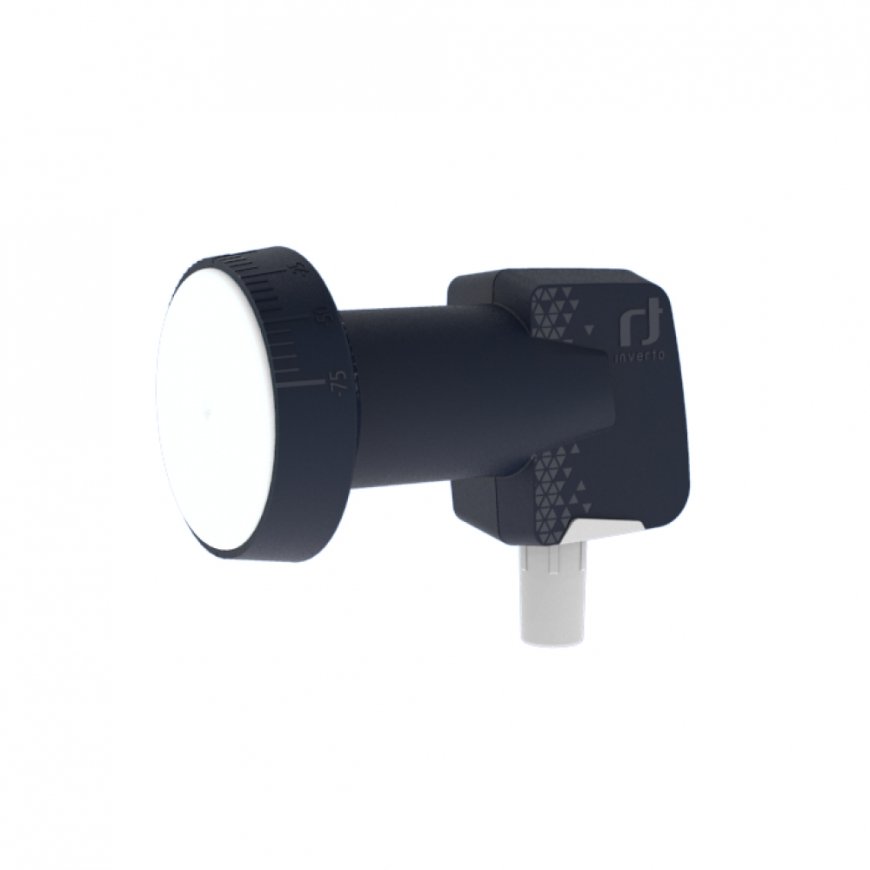

Inverto IDLP-SNL410-PREMU-OPN Low Noise Block downconverter (LNB) 10.7 - 12.75 GHz Black, White
18,48 €
17.50 €
2583122 5445
5453002613306
Shipping 8-11 b.d.
You are interested in this product?
All about the product
Specifically designed and selcted to address the demand of the global DTH market for a competitive and 4G/LTE protected solution, this LNB provides optimized reception capabilities using the latest chipset technology and waveguide design for satellite signal reception. It enables the reception of satellite TV and radio from a single satellite and its distribution to a single tuner Set-top box. The LNB supports HD and UHD transmissions, delivers one-of-a-kind RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE transmissions. Manufactured to the highest industry quality standards and engineered to meet strict specifications, this LNB is an ideal solution for the demanding customer of DTH operators and satellite broadcast reception across the world.Features
| Product colour | Black; White |
| Weight | 136 g |
| Package width | 131 mm |
| Package depth | 81 mm |
| Package height | 76 mm |
| Package weight | 182 g |
| Operating temperature (T-T) | -35 - 60 °C |
| Quantity | 1 |
| Power consumption | 80 mA |
| Voltage Standing Wave Ratio (VSWR) | 2.5 : 1 |
| Output impedance | 75 Ω |
| Input frequency range | 10.7 - 12.75 GHz |
| Conversion gain | 56 dB |
| Noise figure | 0.2 dB |
| Output frequency range | 950 - 2150 MHz |
| Low band LO frequency | 9.75 GHz |
| High band LO frequency | 10.6 GHz |
| Image rejection | 40 dBmW |
| Temperature drift (±) | 1 MHz |
| Gain ripple (±) | 0.6 dB |
| Cross-polarization isolation | 22 dB |
