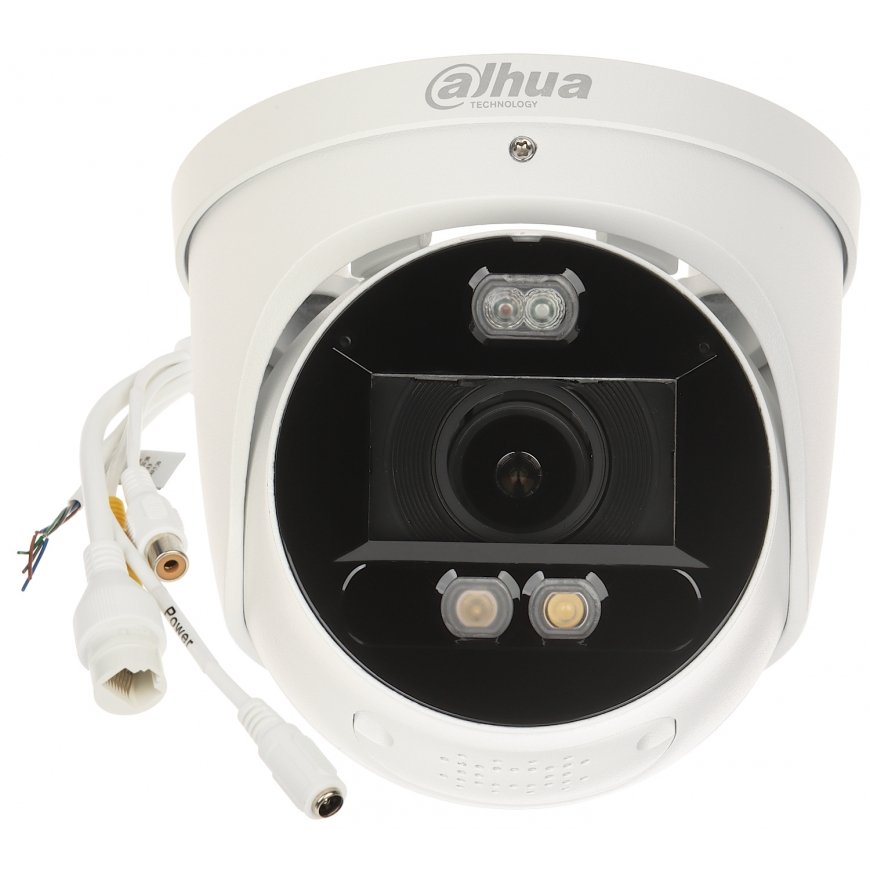

TIOC 2.0 IP CAMERA DAHUA IPC-HDW3849H-ZAS-PV-27135
2570134 IPC-HDW3849H-ZAS-PV-27135
6923172595164
Shipping 13-15 b.d.
All about the product

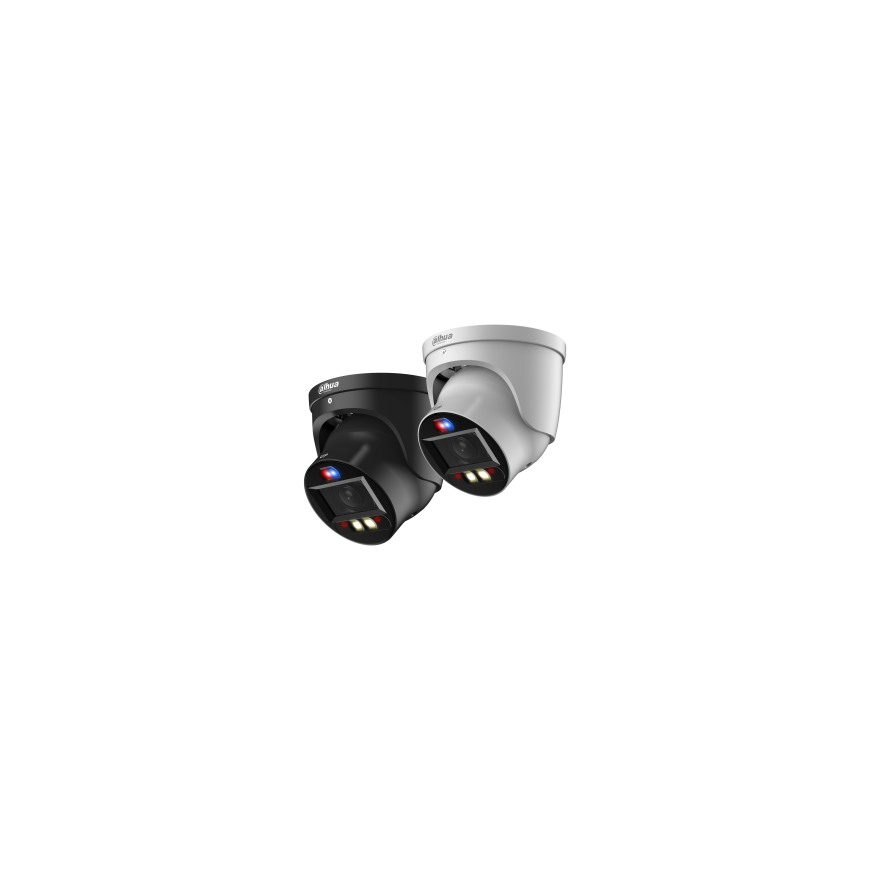

The DAHUA TiOC camera series features innovative IP cameras that combine 3 groundbreaking technologies: Dahua Full-Color - color image 24/7, Wiz-Sense - artificial intelligence features AI, and active audio-visual deterrence.
Additionally, the camera has a function that actively deters intruders with flashing red and blue lights and siren sounds.
Thanks to PoE power options according to the 802.3af standard, the device is even more versatile and easier to install.
| Standard : | TCP/IP |
| Sensor : | 1/28 " Progressive Scan CMOS |
| Sensor size : | 8.3 Mpx |
| Resolution : | 3840 x 2160 - 8.3 Mpx 4K UHD , 3072 x 2048 - 6 Mpx , 3072 x 1728 - 5 Mpx , 2592 x 1944 - 5 Mpx , 2688 x 1520 - 4 Mpx , 2048 x 1536 - 3 Mpx , 2304 x 1296 - 3 Mpx , 1920 x 1080 - 1080p , 1280 x 960 - 1.3 Mpx , 1280 x 720 - 720p |
| Lens : | 2.7 ... 13.5 mm - Motozoom |
| Field of view : | 108 ° ... 34 ° (manufacturer's data) 106 ° ... 36 ° (our tests) |
| IR illuminator coverage : | 50 m |
| White LED illuminator coverage : | 40 m |
| Sensitivity : | 0.003 Lux / F1.0 (color) 0.0003 Lux / F1.0 (B/W) |
| Signal-to-noise ratio (S/N) : | > 56 dB |
| RS-485 interface : | - |
| Memory card slot : | Support for Micro SD cards up to 256GB (local recording possible) |
| Video compression method : | AI H.265 / H.265+ / H.265 / AI H.264 / H.264+ / H.264 / MJPEG |
| Alarm inputs/outputs : | 1 / 1 |
| Audio : | Integrated microphone - 2 pcs., Input for external microphone, Integrated speaker, Audio output Two-way audio stream support Sound detection Complies with AAC standard |
| Main stream transmission speed : | 25 kps @ 8.3 Mpx |
| Network interface : | 10/100 Base-T (RJ-45) |
| WEB Server : | Integrated |
| Max. number of online users : | 20 |
| ONVIF : | 22.06 |
| Access from mobile phone : | Port: 37777 or access via cloud Android: Free app iOS (iPhone): Free app |
| Default IP address : | 192.168.1.108 |
| Default username / administrator password : | admin / - The administrator password must be entered the first time the device is powered on |
| Access port via www : | 80, 37777 |
| Access port via PC application : | 37777 |
| Access port via mobile application : | 37777 |
| ONVIF port : | 80 |
| RTSP URL : | rtsp://admin:[email protected]:554/cam/realmonitor?channel=1&subtype=0 - Main stream rtsp://admin:[email protected]:554/cam/realmonitor?channel=1&subtype=1 - Sub stream |
| Selected features : | Active deterrence function, Alternating flashing LEDs: red and blue - frequency configuration, Siren sounds - 3 volume levels WDR - 120 dB - Wide dynamic range 3D-DNR - Digital noise reduction in the image ROI – improvement of the quality of selected fragments of the image F-DNR (Defog) - Reduction of noise related to atmospheric precipitation SMD 4.0 - searches for objects classified as: human, motor vehicle - increased detection distance and resistance to false alarm signals Quick Pick - technology allows the recording device to quickly identify objects of interest (people/vehicles) based on artificial intelligence algorithms. This allows distinguishing and comparing colors of clothing and vehicles AI SSA - eng. AI Smart Scene Adaptive - automatic scene adaptation using deep learning algorithms to determine environmental conditions such as rain, fog, lighting, low light, and flicker to determine optimal video parameters BLC/HLC - backlight/strong light compensation Day/night mode Full Color - color night mode Automatic white balance AGC - Automatic video gain control Motion detection - max. 4 zones Privacy zones - max. 8 Mirror - mirrored image Light and sound alarm Built-in white light illuminator (LED): 2 diodes IVS analysis : Intelligent motion detection (with separation of people and vehicles), line crossing , intrusion - classification of people and vehicles, scene change , video sabotage, Sound detection |
| Power supply : | PoE (802.3af) , 12 V DC / 710 mA |
| Power consumption : | ≤ 11.6 W @ PoE ≤ 8.5 W @ 12 V |
| Housing : | Dome - Metal |
| Color : | White |
| Ingress protection class : | IP67 |
| Vandal-proof : | - |
| Operating temperature : | -30 °C ... 60 °C |
| Weight : | 0.89 kg |
| Dimensions : | Ø 122 x 128 mm |
| Supported languages : | Polish, English, Czech, French, Spanish, Dutch, German, Russian, Portuguese, Romanian, Turkish, Ukrainian, Hungarian, Italian |
| Manufacturer / Brand : | DAHUA |
| Warranty : | 3 years |
Image from the camera under artificial lighting (about 30 Lux)
Image from the camera at night, with the integrated LED illuminator on
Image from the camera at night, with the integrated IR illuminator on
Image from the camera, with strong light directed straight at it
