-2%
The product's shade and actual color may differ from what is shown in the picture, as the images are for illustrative purposes. The product description is general and may not include all the product's features.

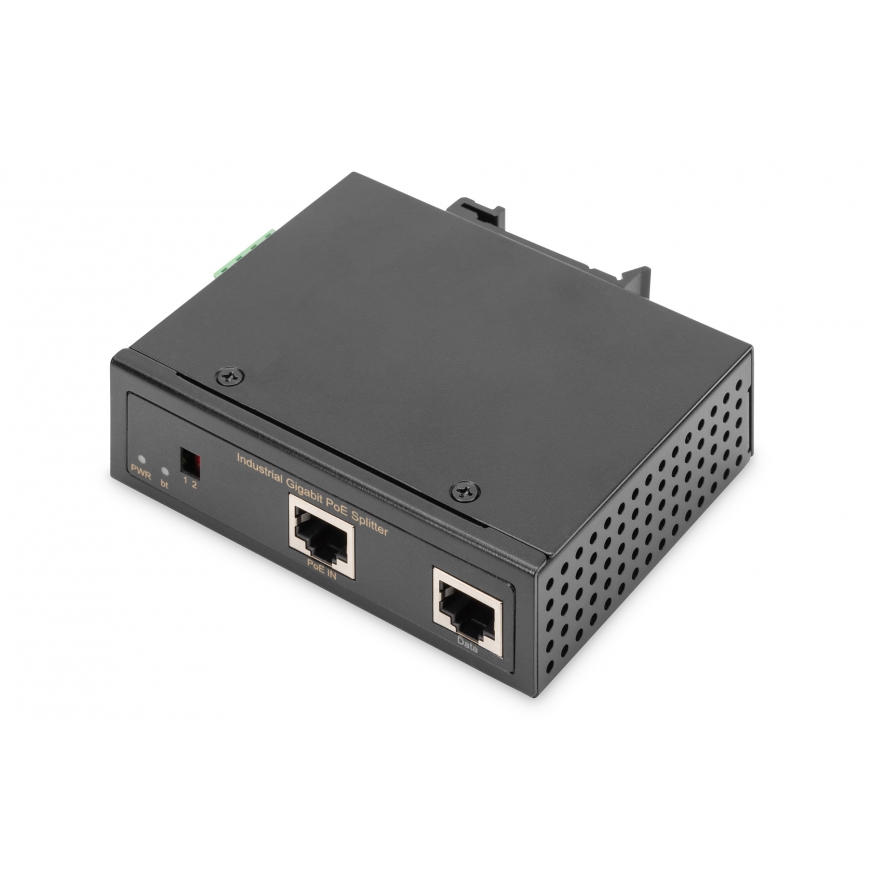

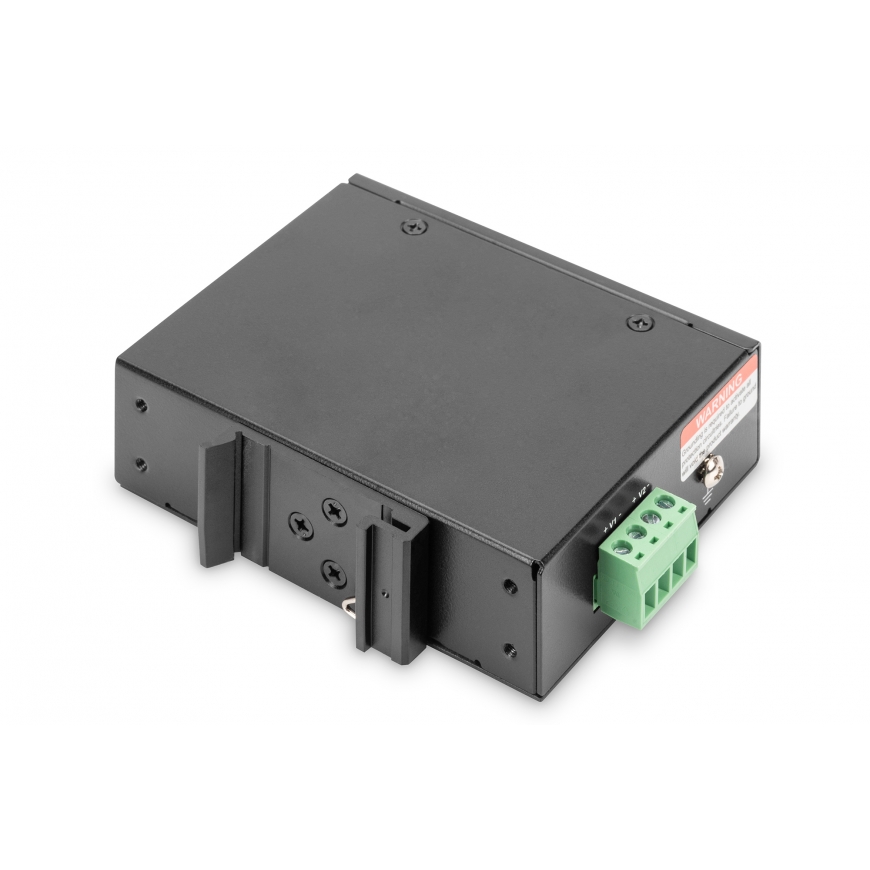

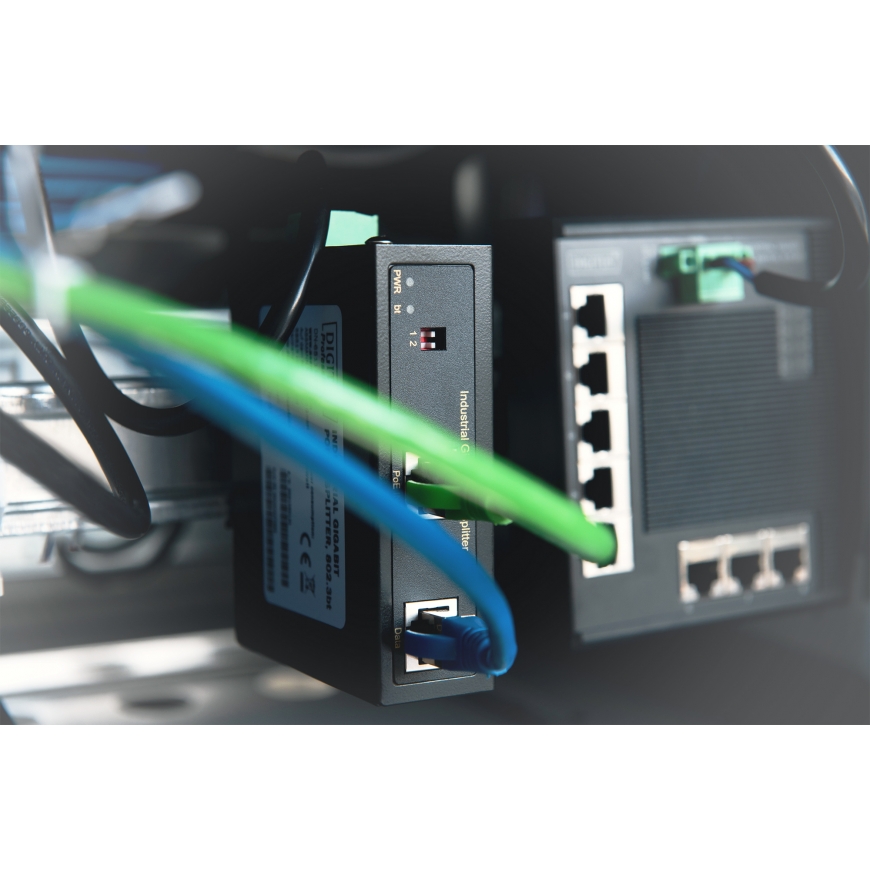

Digitus Industrial Gigabit PoE++ Splitter, 802.3bt
138,81 €
135.81 €
Monthly payment from 4,40 €
2555576 DN-651111
4016032441182
Shipping 17-18 b.d.
You are interested in this product?
All about the product
- Gigabit Splitter with up to 95W PoE feed- Flexibly adjustable output voltage: 12VDC, 16VDC, 24VDC, 48VDC
- Gigabit data output for network connection
The DIGITUS® Industrial Gigabit PoE Splitter is designed for harsh environments, in which it is exposed to moisture, temperature variations and vibrations. With a temperature range of -40°C to 75°C, the Industrial Gigabit PoE Splitter can be used under the most adverse conditions. It ensures a constant availability in highly sensitive areas such as transport, production, traffic and safety monitoring. The simple plug-and-play system allows a fast integration of the Industrial Gigabit PoE Splitter into the respective environment. The DIGITUS® DN-651111 is an unmanaged Plug & Play Industrial Gigabit PoE Splitter in a rugged IP30 protected aluminum housing. The Gigabit connectivity, as well as the selectable voltage that can be provided for non-PoE compatible devices, make the Industrial Gigabit PoE Splitter a flexible, cost-effective solution for the industrial environment. The supply voltage can be selected in the range of 12VDC, 16VDC, 24VDC or 48VDC. The IEEE802.3bt standard allows PoE feed of up to 95W. Two parallel current outputs are provided for terminal devices.
Network | |
| Networking standards | IEEE 802.3bt |
| Auto MDI/MDI-X | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
Design | |
| LED indicators | Yes |
| Product colour | Black |
| Housing material | Metal |
| International Protection (IP) code | IP30 |
Features | |
| Plug and Play | Yes |
Power | |
| Output voltage | 12 - 48 V |
| Power over Ethernet (PoE) | No |
Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
Weight & dimensions | |
| Width | 103.5 mm |
| Depth | 81.5 mm |
| Height | 32 mm |
| Weight | 150 g |
Packaging data | |
| Package width | 65 mm |
| Package depth | 215 mm |
| Package height | 65 mm |
| Package weight | 437.5 g |
| Package volume | 2305.88 cm³ |
Logistics data | |
| Country of origin | Taiwan |
| Master (outer) case width | 560 mm |
| Master (outer) case length | 350 mm |
| Master (outer) case height | 240 mm |
| Master (outer) case gross weight | 7 kg |
| Master (outer) case volume | 47040 cm³ |
| Products per master (outer) case | 16 pc(s) |
| UK Trade Tariff code | 85176200 |
Packaging content | |
| Quick installation guide | Yes |
