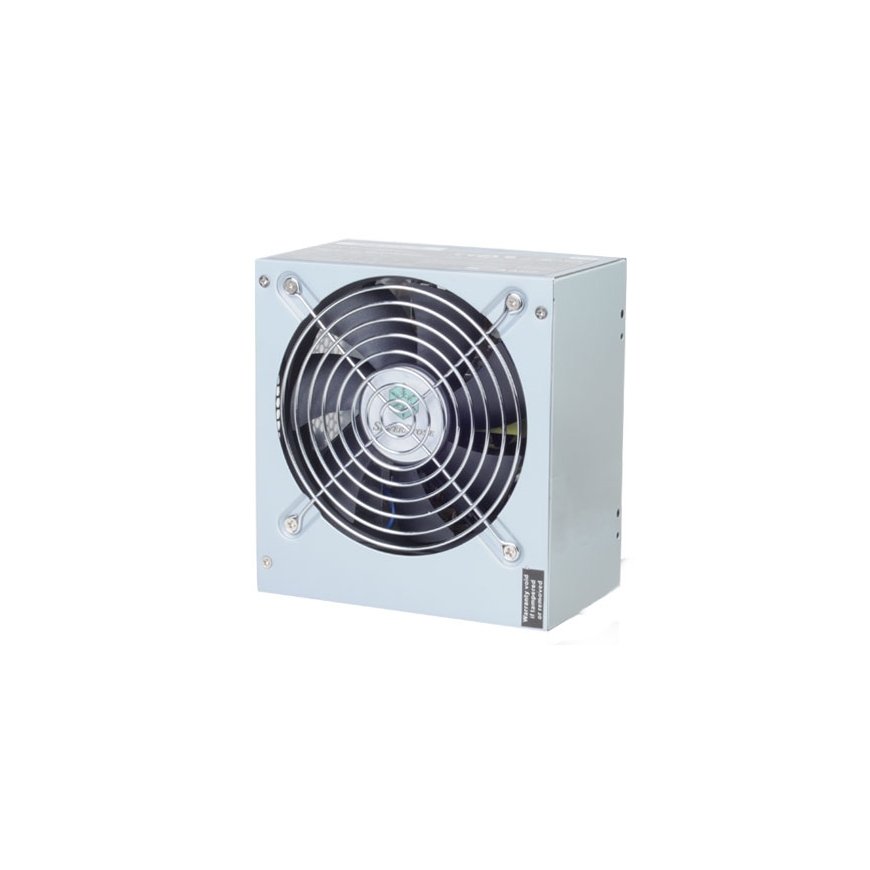

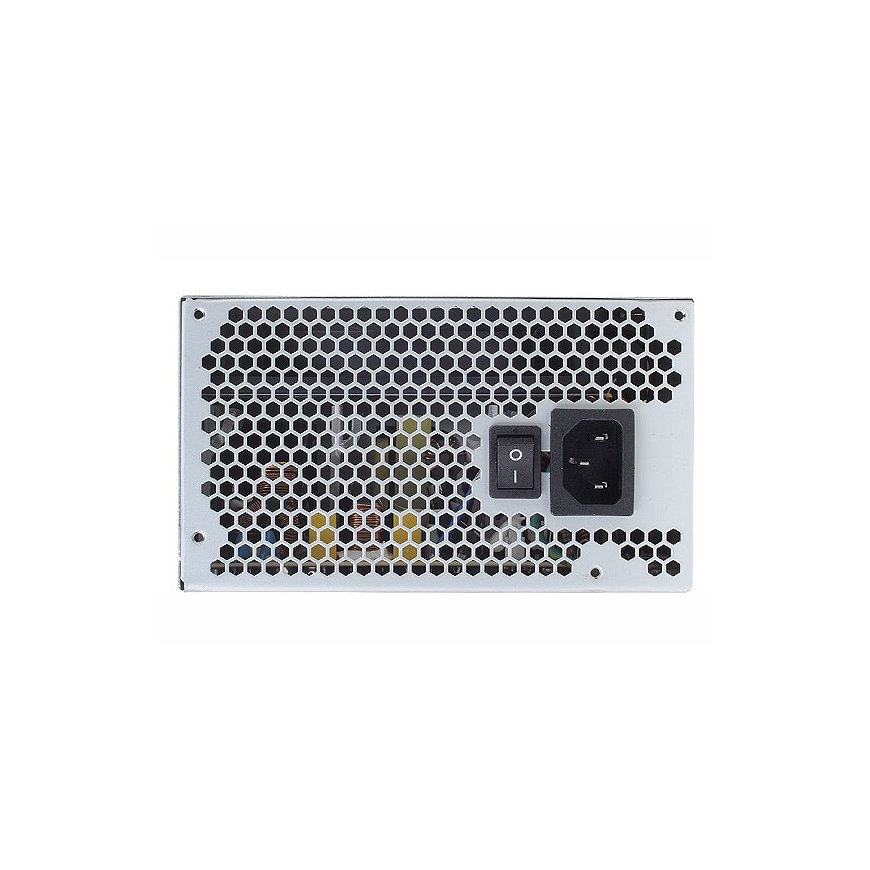

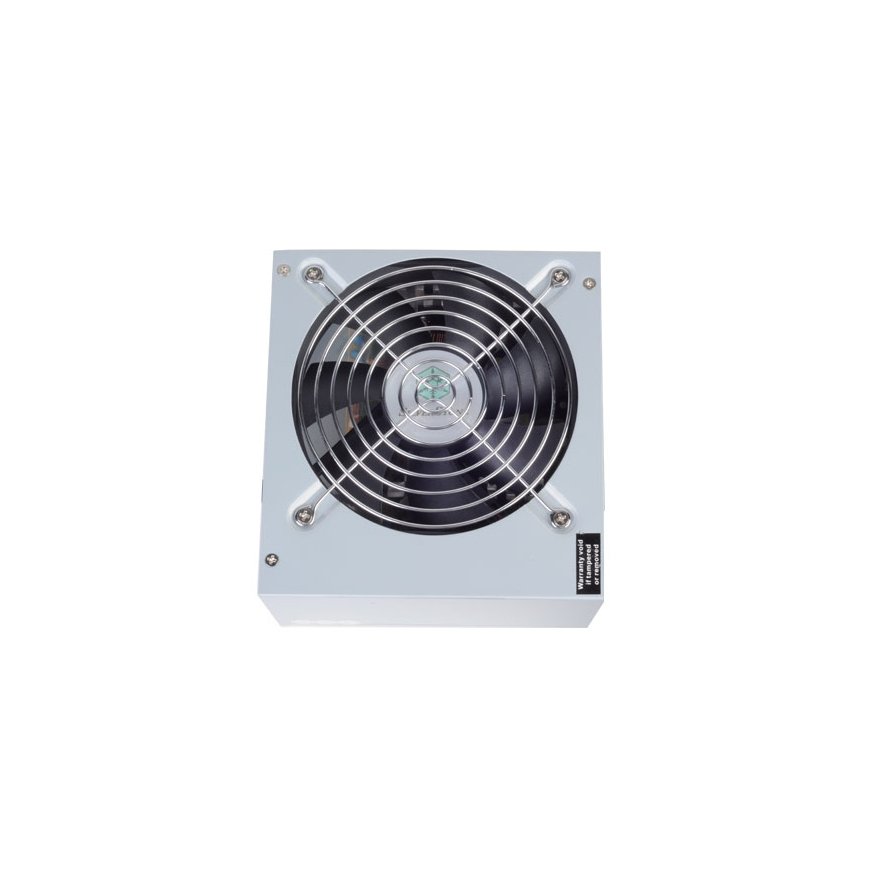

Silverstone ST50F-ES230 power supply unit 500 W 24-pin ATX Aluminium
49,27 €
48.27 €
Monthly payment from 2,14 €
2468559 SST-ST50F-ES230
4710007220221
Shipping 13-14 b.d.
You are interested in this product?
All about the product
The Strider Essential series model is a line of power supplies designed with high affordability and great performance. The ST50F-ES230 has at 80% efficiency or greater between 20%~100% load with a maximum efficiency up to 85% under 230V. A powerful single +12V rail and its quiet running fan ensures stable performance with minimum noise while its solid design and components support up to 40 degrees for 24/7 operation. The ST50F-ES230 can also fully support multi-GPU systems with 8pin/6pin PCI-E connectors. From a value and performance standpoint, the Strider Essential series is an outstanding choice.- High efficiency greater than 80% (Max. up to 85%)
- 500W 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail with 34A
- Active PFC Circuitry
- Multiple protection circuitry
- PCI-E 8pin and PCI-E 6pin connector support
- Silent running 120mm fan with 18dBA
Power | |
| Efficiency | 85% |
| Input current | 34 A |
| Power protection features | Over current, Overload, Over voltage, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Maximum input current (@110V) | +12V1,+3.3V,+5V,+5Vsb,-12V |
| Max output current (+3.3V) | 24 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 207 - 253 V |
| AC input frequency | 47 - 63 Hz |
| Max output current (+12V1) | 34 A |
| Total power | 500 W |
Performance | |
| Noise level | 18 dB |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
Design | |
| Product colour | Aluminium |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| Fan location | Top |
| Cooling type | Active |
| On/off switch | Yes |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 6 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| CPU P4 connector (4-pin) | 1 |
| PCI Express power connectors (6+2 pin) | 2 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Non-Modular |
| PCI Express connector | Yes |
| Floppy disk drive connector | Yes |
Weight & dimensions | |
| Weight | 1.7 kg |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
