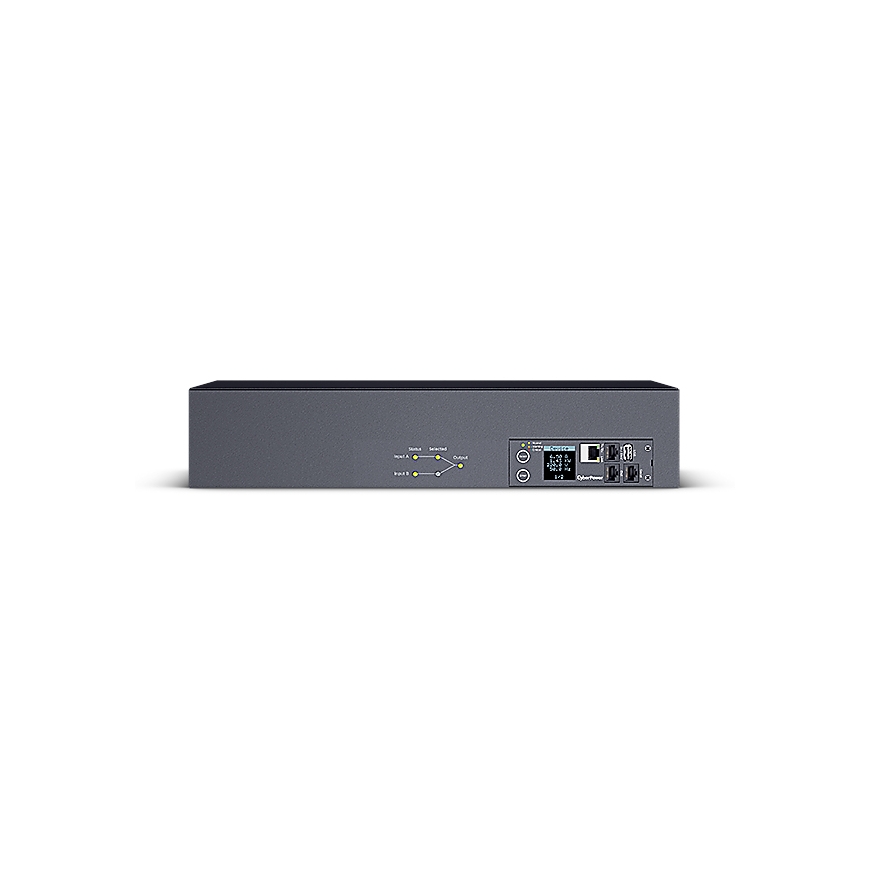

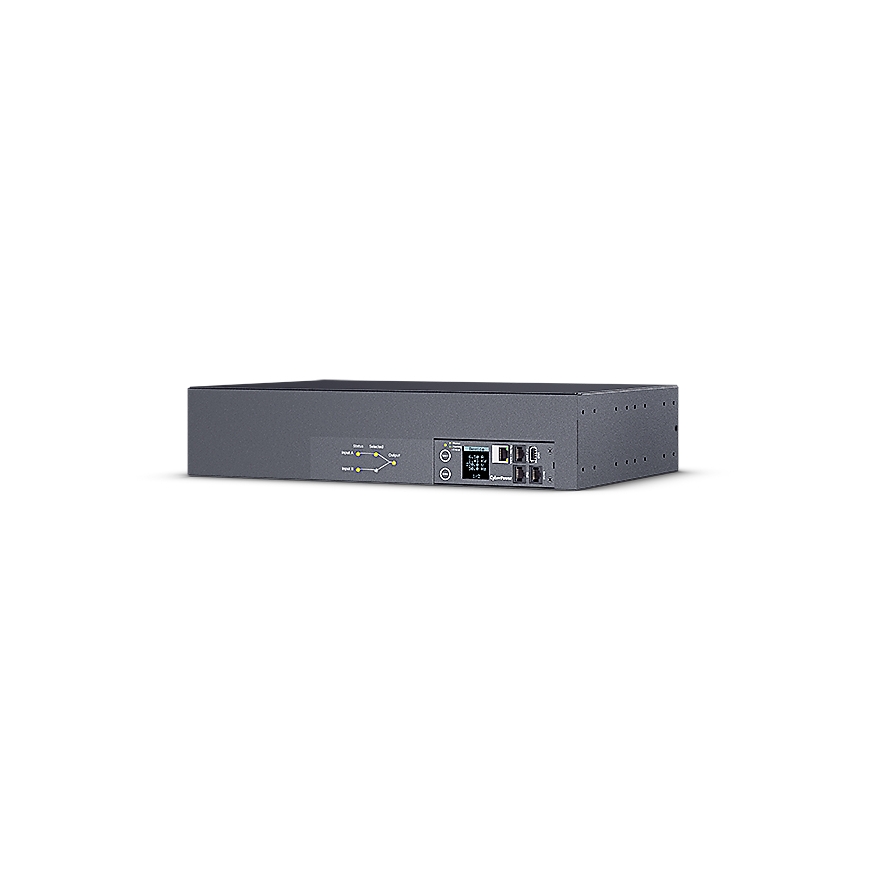

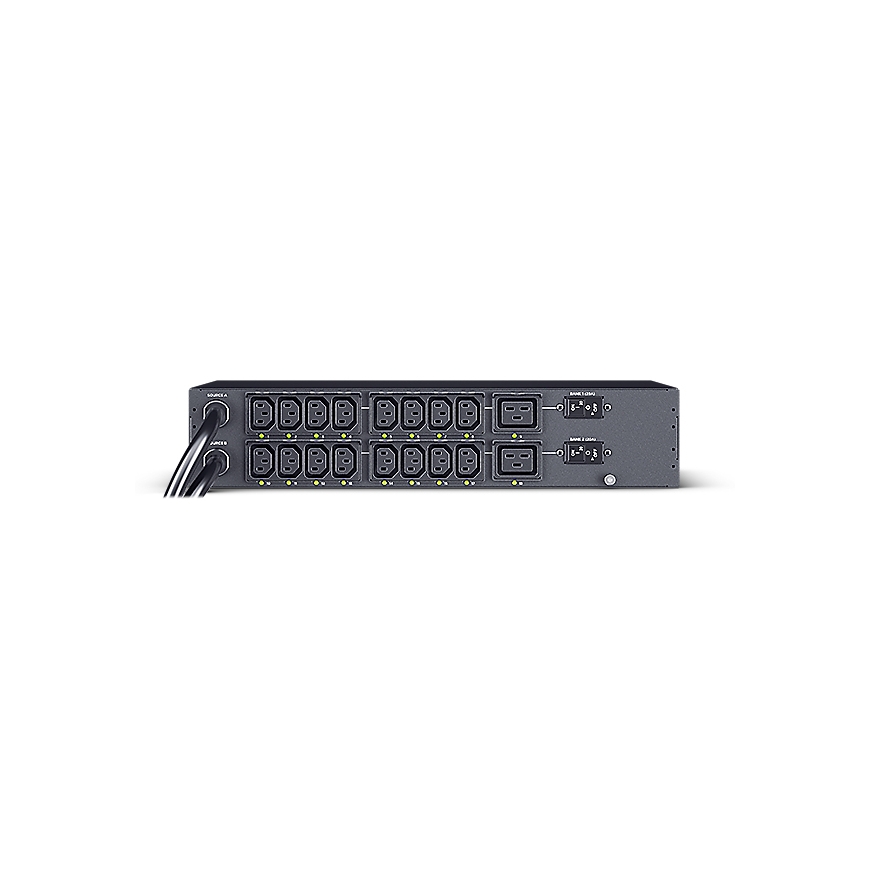

CyberPower PDU44302 power distribution unit (PDU) 18 AC outlet(s) 2U Black
837.41 €
Monthly payment from 22,46 €
2445970 PDU44302
4711027799650
Shipping 8-13 b.d.
You are interested in this product?
All about the product
CyberPower PDU44302 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source to ensure continuous operation. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location.The product is built-in with hot-swappable Ethernet module, which can work with PowerPanel® Power Management Software and power management web interface for real-time remote monitoring and configuration. The digital LCD display is also color configurable, allowing users to easily maintain and monitor the ATS PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. Event logging via a web browser or network connection allows users to review the history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The USB port also supports easy firmware upgrade. Moreover, the featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
- Real-time Local/Remote Monitoring and Switching
- Dual Inputs
- Digital Real-time Load Display
- Hot-swappable LCD Design
- Firmware Upgrade via USB
- User-upgradeable Firmware
- Adjustable Mounting Brackets
- IEC Receptacle Locking
- Controllable Receptacles with Power Sequencing
- Industrial-grade Metal Housing
- User Configurable Color LCD
- LED Status Indicator
- Support ENVIROSENSOR
- PowerPanel® Management Software
- Cord Retention Tray
Features
| Product colour | Black |
| Weight | 7.8 kg |
| Width | 433 mm |
| Depth | 215 mm |
| Height | 88 mm |
| Cables included | Serial |
| Cable length | 3.05 m |
| Type | Single-phase |
| Package width | 550 mm |
| Package depth | 398 mm |
| Package height | 185 mm |
| Package weight | 10.8 kg |
| Manual | Yes |
| Country of origin | China |
| Certification | CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368 |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -15 - 55 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Ethernet LAN (RJ-45) ports | 4 |
| LED indicators | Yes |
| Housing material | Steel |
| On/off switch | Yes |
| AC input frequency | 50 - 60 Hz |
| USB ports quantity | 1 |
| Display | LCD |
| Firmware upgradeable | Yes |
| Firmware upgradeable via | USB |
| Storage relative humidity (H-H) | 0 - 95% |
| AC outlets quantity | 18 AC outlet(s) |
| Maximum current | 32 A |
| Operating altitude | 0 - 4000 m |
| Supported network protocols | IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog |
| Rack capacity | 2U |
| Mounting | Horizontal |
| Non-operating altitude | 0 - 15000 m |
| Daisy chain | Yes |
| Sustainability compliance | Yes |
| AC outlet types | C19 coupler; C13 coupler |
| Power plug | IEC 60309 |
| PDU types | Switched; Managed |
| Nominal input voltage | 200 - 240 V |
| Rack mount kit | Yes |
| Monitoring | Current; Power |
| Compliance certificates | CE; RoHS |
