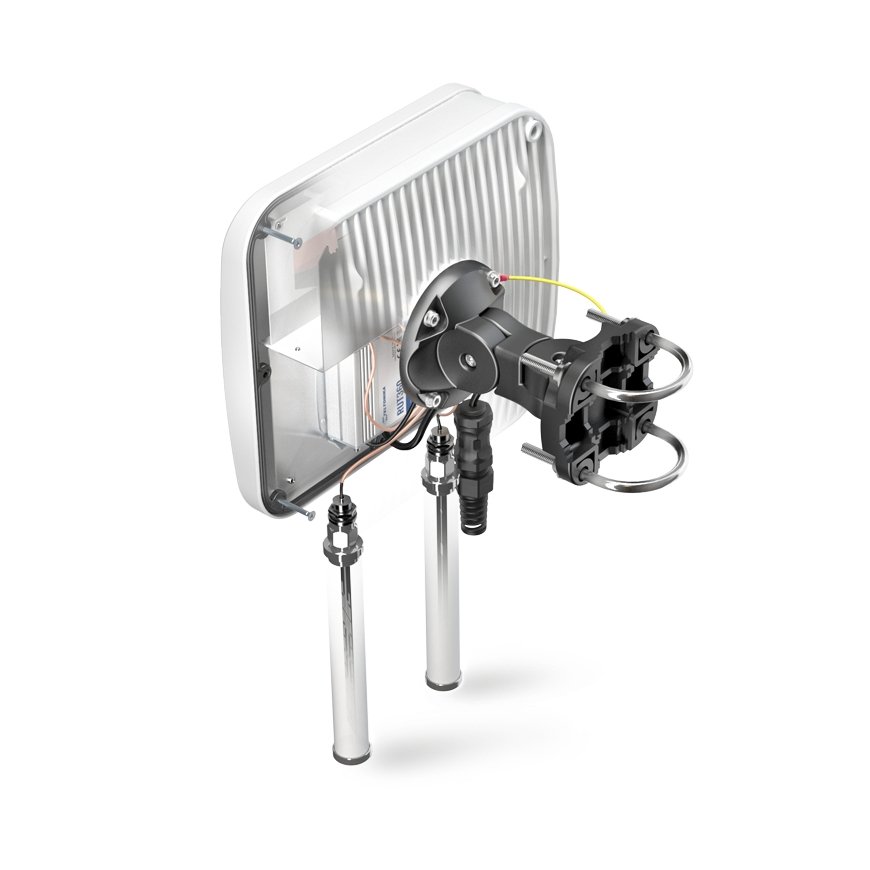

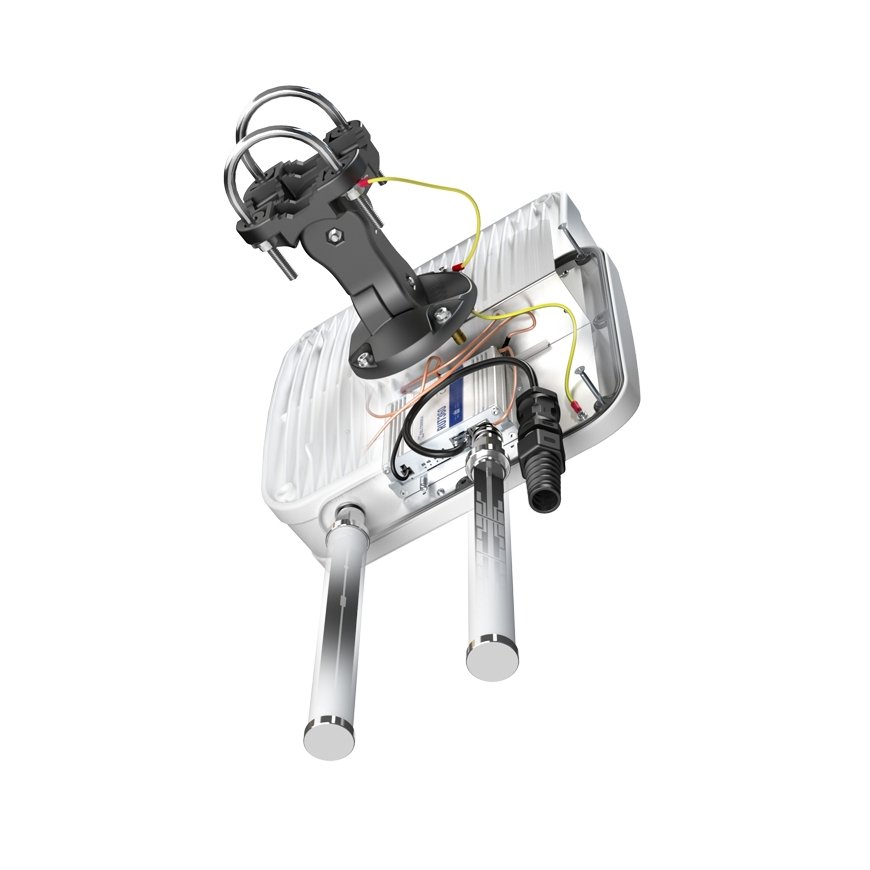

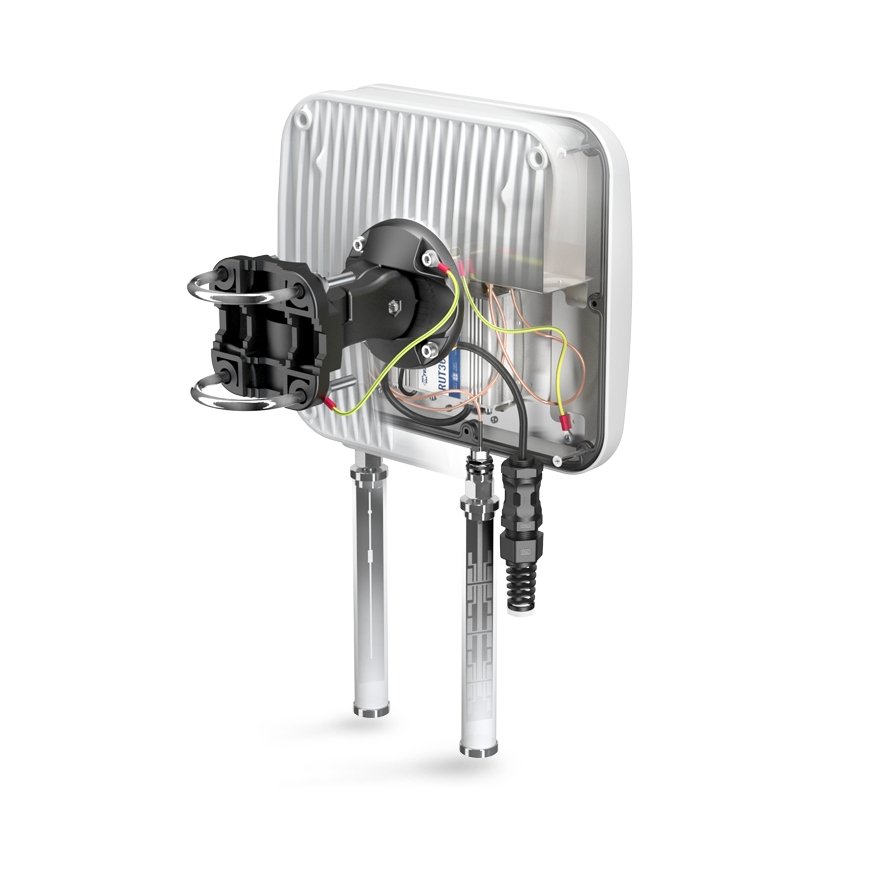

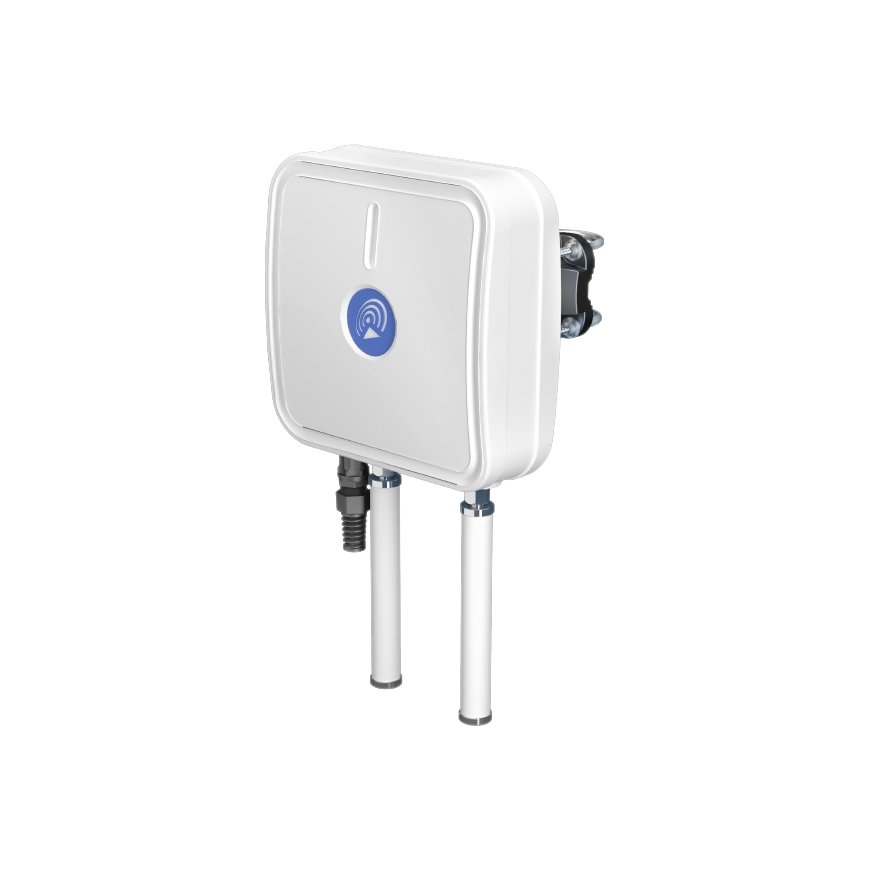

QuWireless QuMax network antenna Directional antenna PoE/LAN 6 dBi
597,87 €
594.87 €
Monthly payment from 16,22 €
2393065 A360M
5907772035641
Shipping 4-5 b.d.
You are interested in this product?
All about the product
Integrated outdoor multi band high power LTE directional antenna + outdoor Wi-Fi omni antenna + place to install Teltonika RUT360 (All-in-one)QuMAX offers the most powerful directional LTE antenna of all QuWireless antennas. It is dedicated to connections with long distance to base station. It is designed to have Teltonika RUT360 router installed inside IP67 enclosure. It is the first choice for fixed installations in industrial environment. It has embedded also outdoor Wi-Fi omni antennas.
Features
| Product colour | White |
| International Protection (IP) code | IP67 |
| Weight | 1.8 kg |
| Width | 272 mm |
| Depth | 96 mm |
| Height | 276 mm |
| Cables included | LAN (RJ-45) |
| Cable length | 0.38 m |
| Quantity per pack | 1 pc(s) |
| Cable type | RJ-45 |
| Country of origin | Poland |
| Purpose | Indoor & outdoor |
| Operating temperature (T-T) | -40 - 75 °C |
| Housing material | Aluminium; Akrüülnitriil butadieen stüreen (ABS); Glass fibre; Polytetrafluoroethylene (PTFE) |
| Quick installation guide | Yes |
| Protection features | Weather resistant |
| Impedance | 50 Ω |
| Frequency band | 0.694-0.96/1.7-2.2/2.2-2.7; 2.4-2.5 GHz |
| Waterproof | Yes |
| Antenna type | Directional antenna |
| Mounting kit | Yes |
| Compatible products | RUT360 |
| Mounting | Wall/Pole |
| Antenna gain level (max) | 6 dBi |
| Antenna connector type | PoE/LAN |
| Gain | 4 / 6 dBi |
| Antenna gain (2.4 GHz) | 6 dBi |
| Horizontal beam width | 90° |
| Vertical beam width | 90° |
| Voltage Standing Wave Ratio (VSWR) | 1.80 - 2 |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 25° |
| Polarization | Vertical polarization |
| Front to back ratio | 8 dB |
