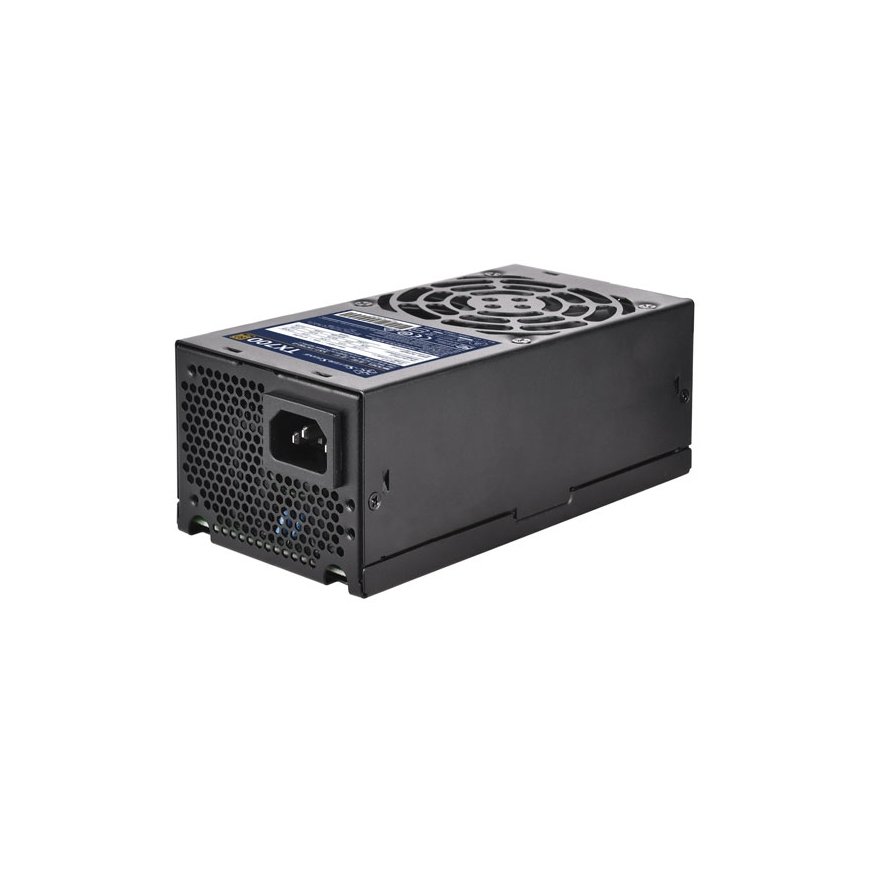

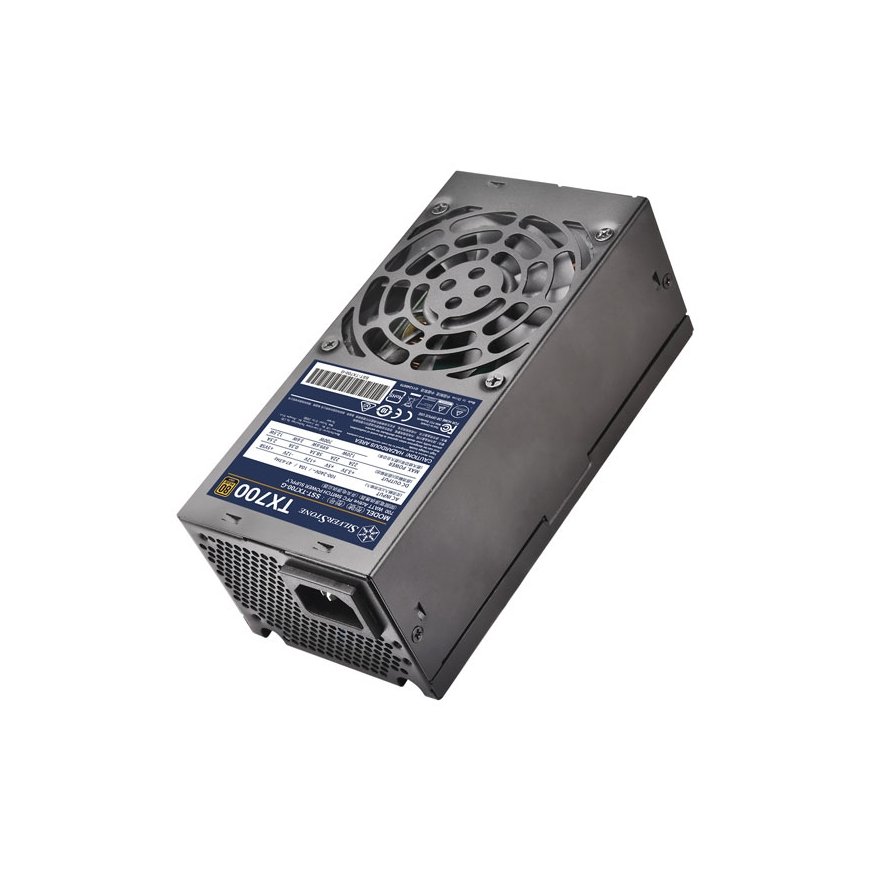

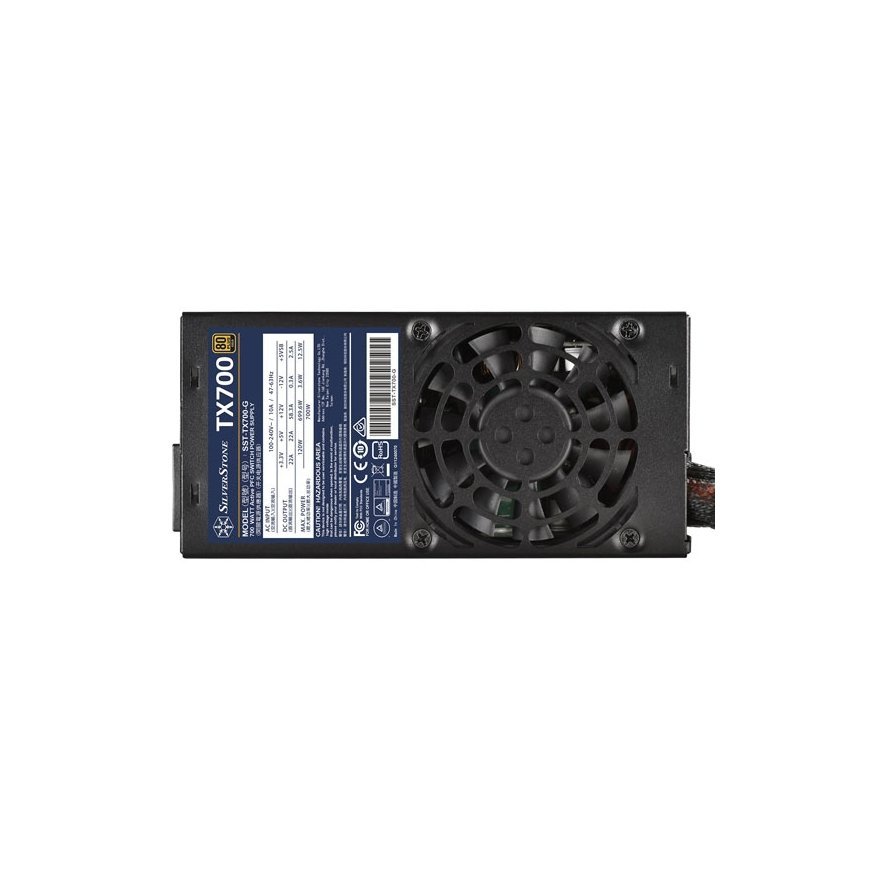

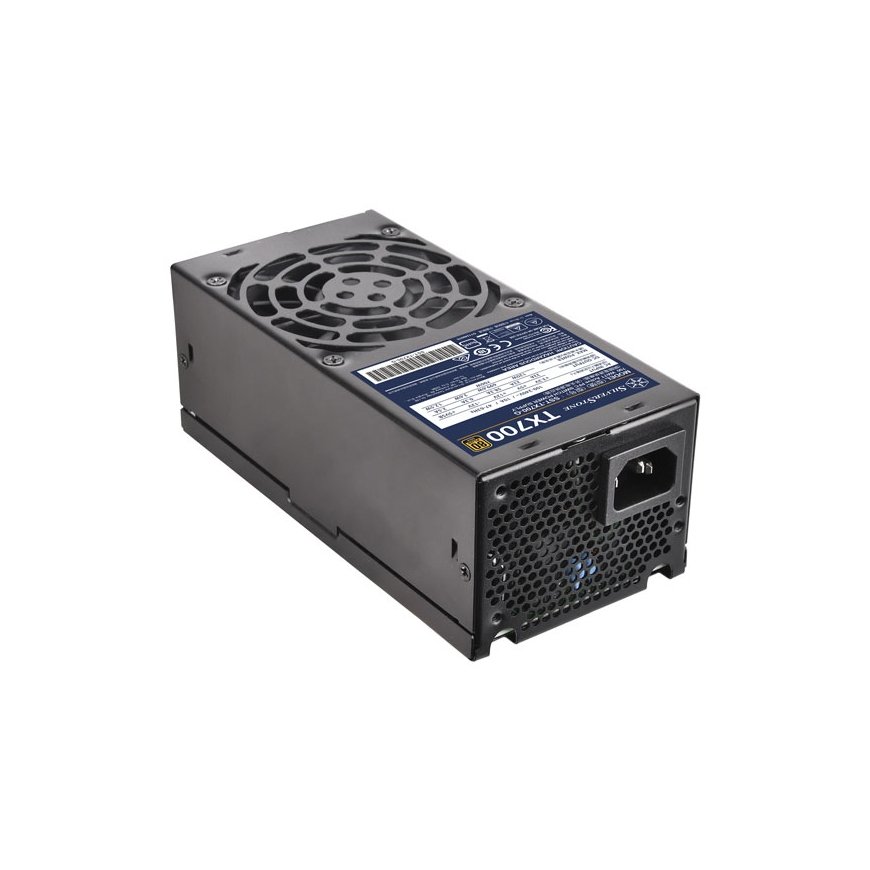

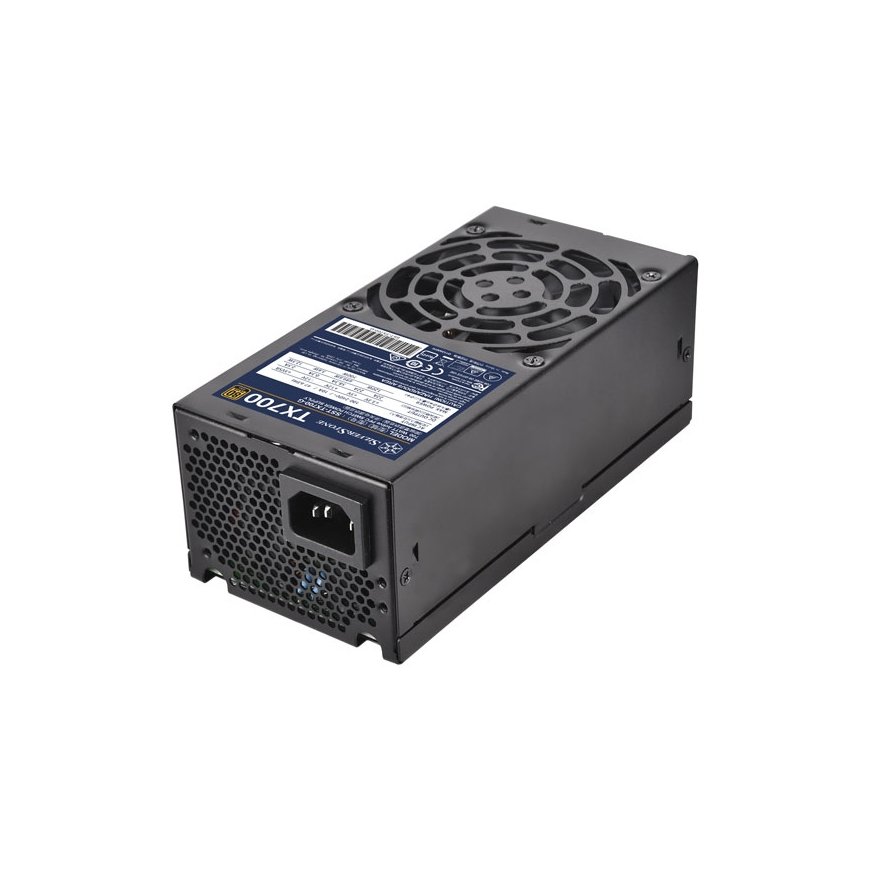

Silverstone TX700 Gold power supply unit 700 W 20+4 pin ATX TFX Black
170.31 €
Monthly payment from 5,29 €
2391614 SST-TX700-G
4710679810461
Shipping 14-15 b.d.
You are interested in this product?
All about the product
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricityPowerful single +12V rail design, perfect for future high-end component upgrades or overclocking
Advanced protections for safety and security
Power | |
| Efficiency | 90% |
| Power protection features | Over current, Overload, Over voltage, Overheating, Under voltage |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 699.6 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 58.3 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 90 - 264 V |
| AC input frequency | 43 - 63 Hz |
| Total power | 700 W |
Performance | |
| Noise level | 18 dB |
| Mean time between failures (MTBF) | 100000 h |
| ATX version | 2.4 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | FDB |
| Silent mode | Yes |
| Power supply unit (PSU) form factor | TFX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 8 cm |
| Illumination | No |
| Cooling type | Active |
| Built-in display | No |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Non-Modular |
| PCI Express connector | Yes |
| Floppy disk drive connector | Yes |
| Motherboard power cable length | 35 cm |
| SATA power cable length | 150, 350 |
| EPS power connector (4+4 pin) | Yes |
Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions | |
| Weight | 1.49 kg |
| Width | 85 mm |
| Depth | 175 mm |
| Height | 65 mm |
Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE |
