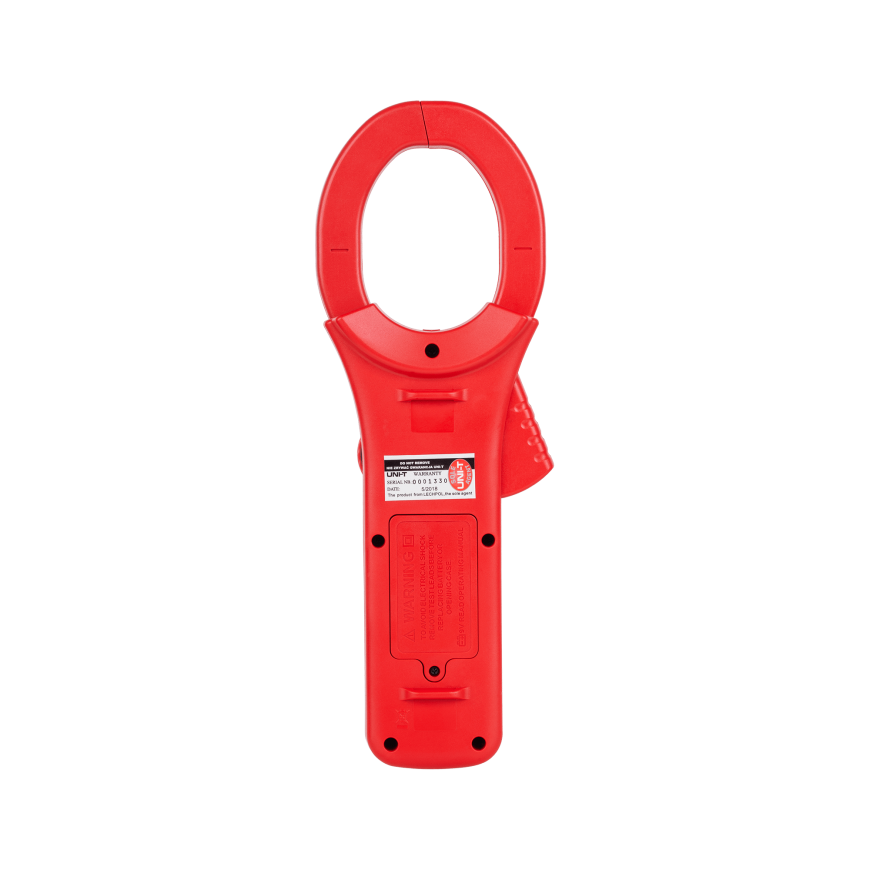

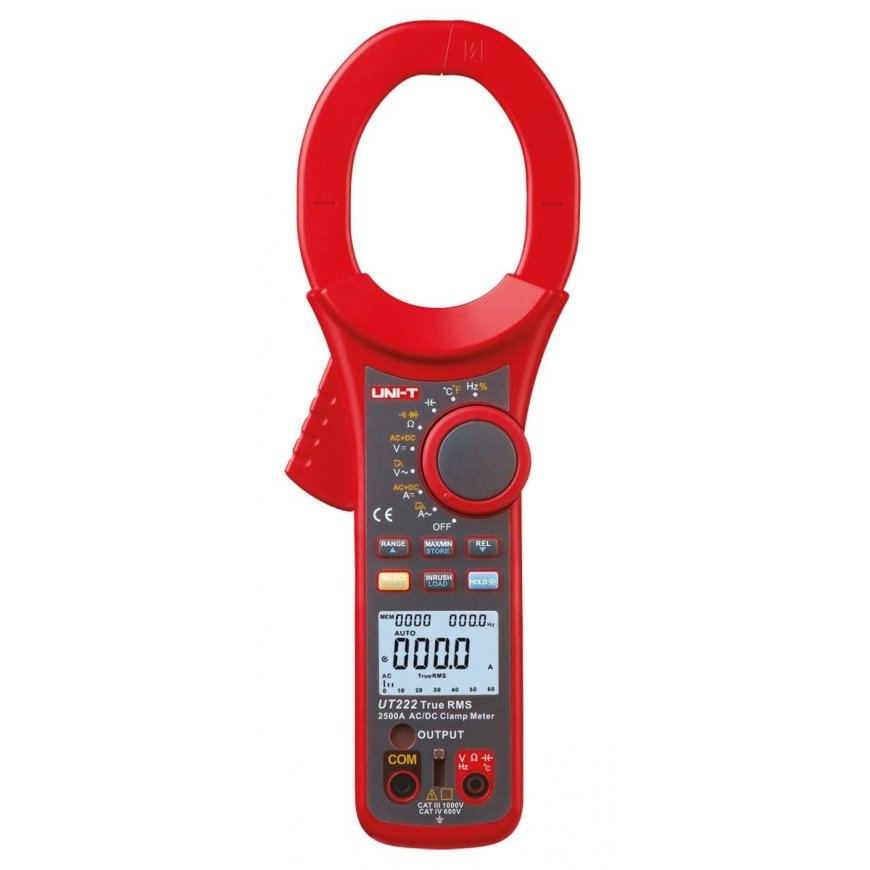

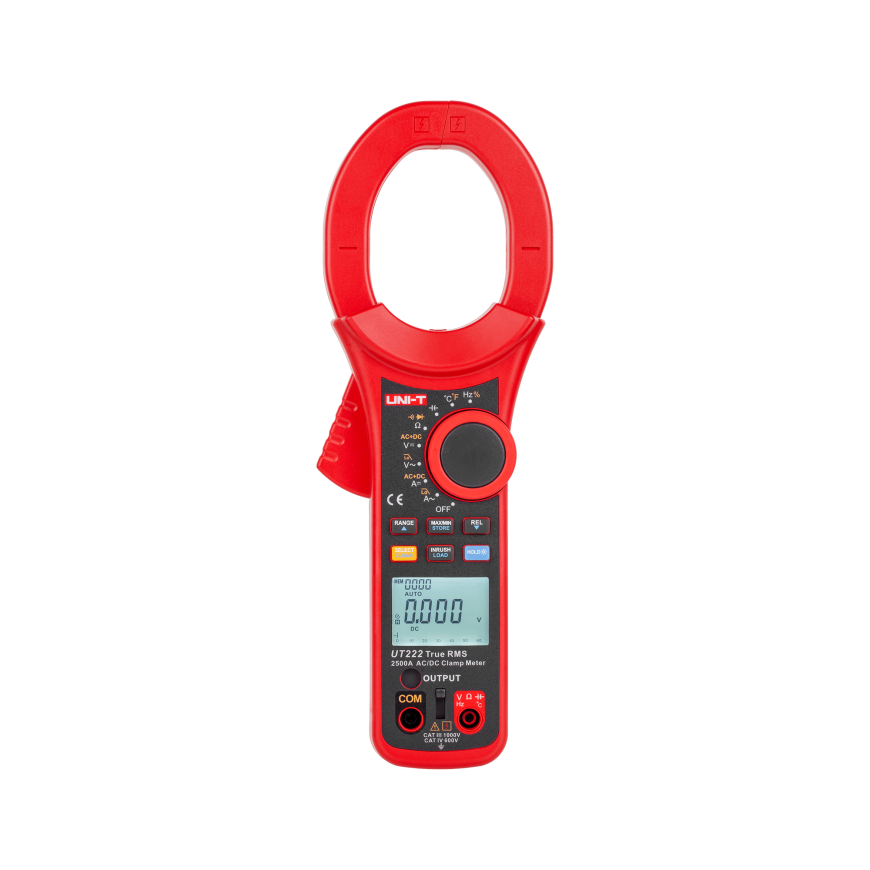

Current measuring clamps Uni-t UT222

All about the product

Current measuring pliers Uni-t UT222 which will be useful not only for electricians, but also for electrical contractors who perform electrical tests frequently and quickly every day. The device will allow AC and DC voltage, resistance measurements and will help test circuit or diode continuity. The use of UT222 guarantees users safe and stable operation and reliability.

Technical data:

• Constant voltage: 6V / 60V / 600V / 1000V; ± (0.5% + 2)
• AC voltage: 6V / 60V / 600V / 1000V; ± (1% + 3)
• Direct current: 600 A / 2500 A; ± (1.5% + 5)
• Alternating current: 600 A / 2500 A; ± (1.5% + 5)
• Resistance: 600 ohms / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm; ± (1% + 2)
• Capacitance: 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6000 µF / 60 mF; ± (3% + 5)
• Frequency: 60 Hz / 600 Hz / 6 kHz / 60 kHz / 600 kHz / 6 MHz / 60 MHz; ± (0.1% + 3)
• Temperature: -40°C-1000°C; ± (1% + 10), -40°F-1832°F; ± (1% + 18)
• Duty cycle: 10% ~ 90% ± (1.2% + 30)
• Diode test
• Continuity check
• Automatic/manual change of measurement ranges
• True RMS
• AC + DC measurement
• Low pass filter
• Intake current measurement (AC only)
• Relative measurement mode
• The last measurement is recorded

• Recording of MAX / MIN measurements

• Record of measurements: 1000
• Illuminated LCD screen
• Automatic shutdown
• Low battery indicator
• Maximum reading: 6000
• Input Impedance: > = 10 MOhm
• Power supply: 9V battery (6LF22)
• Jaw opening: 63 mm
• Screen size: 43 x 30 mm
• Product dimensions: 298 x 100 x 48 mm
• Product weight: 725 g

In the set:

• Battery

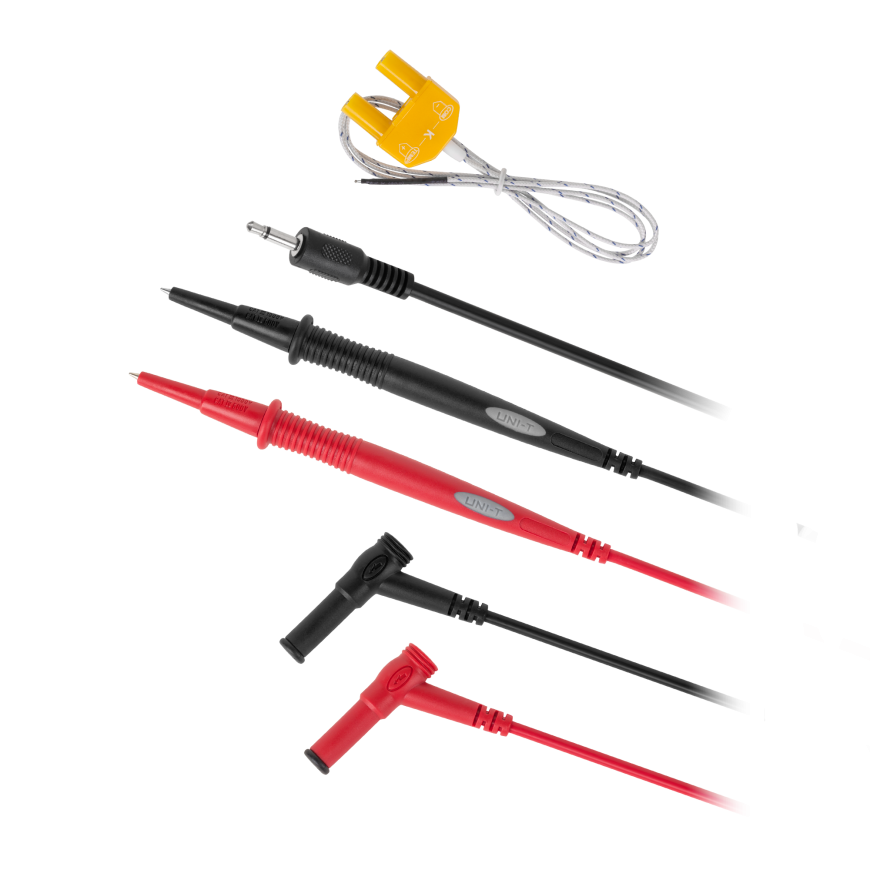

• Test leads
• Special test cable
• Temperature probe

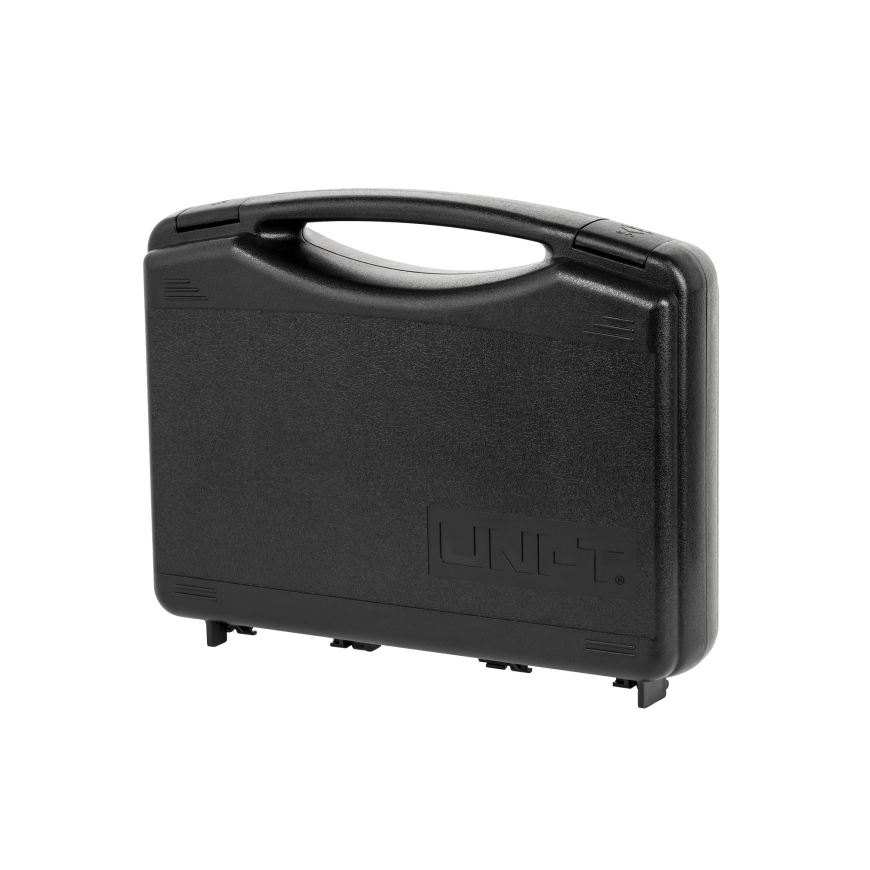

• Case
