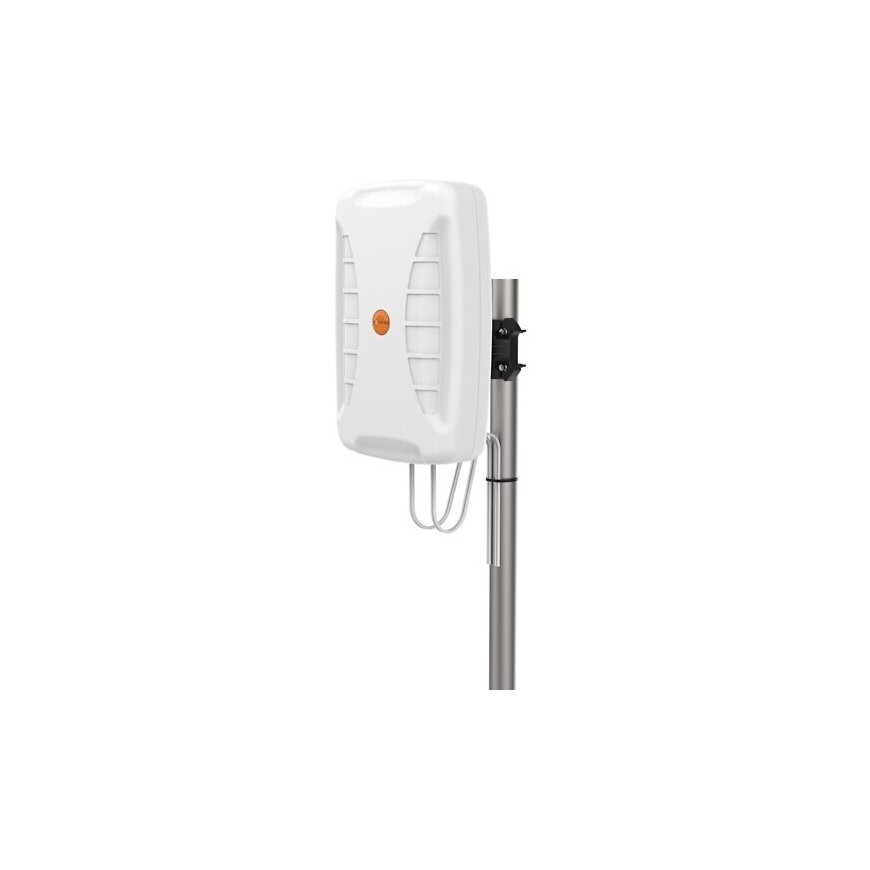

Poynting XPOL-24-V1-01 4 x 4 MiMo 4G/5G Panel Antenna
2236132 A-XPOL-0024-V1-01
6009710924693
This product is no longer in stock
All about the product
In metamaterial technology, the magnetic properties of different materials are utilized. This gives better amplification in the entire frequency range. The antenna is slightly larger (29x44x11 cm). But not too big. This antenna can be used to amplify a moderate or weak external signal.
The recommended distance from the base station is 2-4 km. On a case-by-case basis, the signal is received a little further.
The antenna is directly compatible with the one equipped with a 4×4 MIMO antenna solution.
Features:
- Amplification up to 11 dBi
- Cable length: 5 m
- Cable type: HDF 195
- Cable type
- Antenna technology: 4x4 MIMO
- Connector: 4 x SMA male
- Frequency range: 690-960 / 1710-2700 / 3400-3800 MHz
- Gain: 8.5 dBi at 617-960 MHz, 8.5 dBi at 1710-2700 MHz and 11 dBi at 3400-4200 MHz
- IP65 rating
- Dimensions: 290mm x 444mm x 110mm
- Weight: 2.65 kg
NOTE To get the full benefit of the antenna. Make sure from your operator the correct direction to the base station, because an incorrectly oriented antenna lowers the signal level and the antenna does not work properly.. (The closest base station is not always the right and best)
