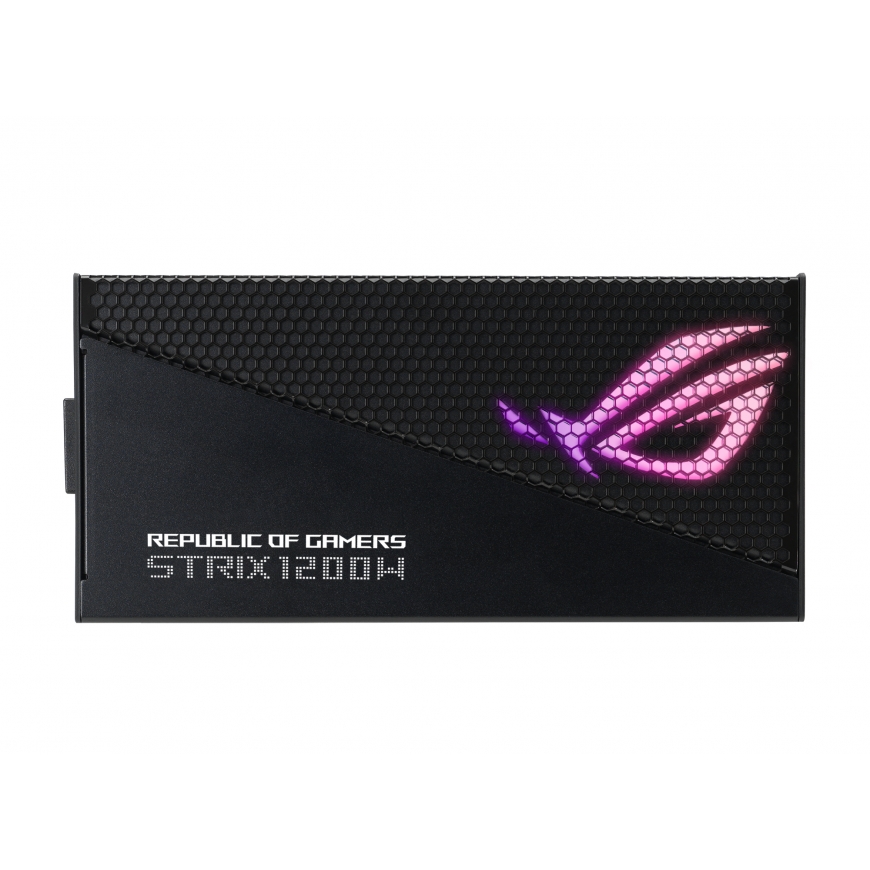

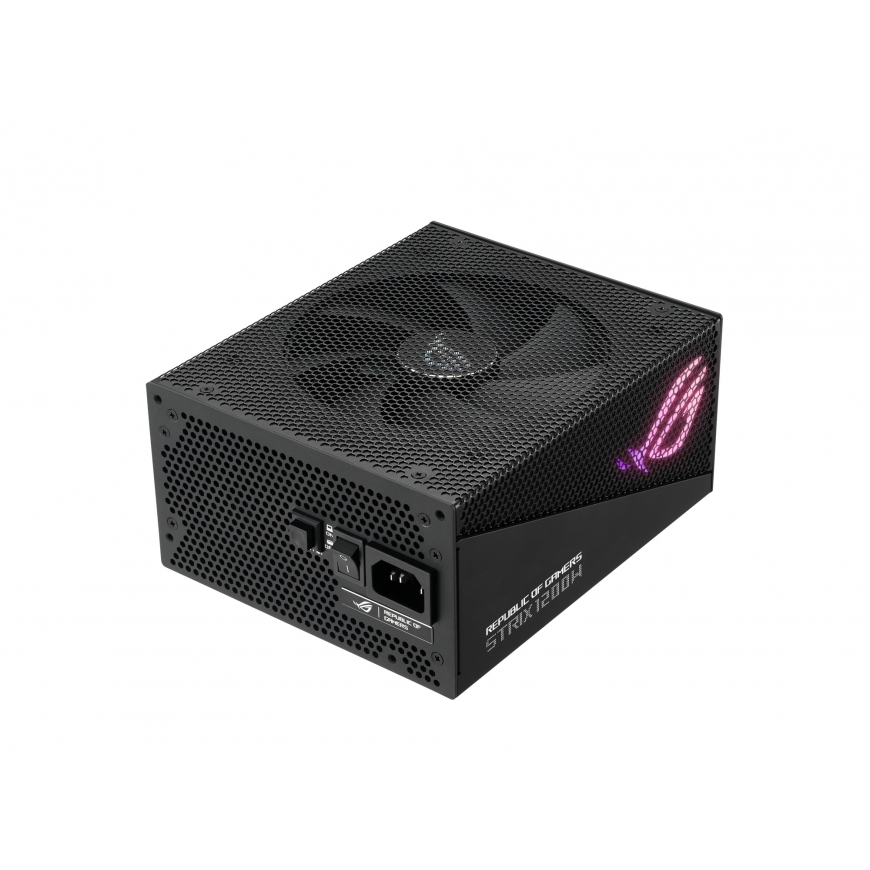

ASUS ROG STRIX 1200W Gold Aura Edition power supply unit 20+4 pin ATX ATX Black
229,00 €
Monthly payment from 6.80 €
2228170 90YE00P0-B0NA00
4711081721475
This product is no longer in stock
You are interested in this product?
COOLING
Aluminum Case
Built to run cool
The ROG Strix 1200W Gold Aura Edition is encased in a strong, sleek aluminum chassis that also acts as a heatsink for the internal power transformer, further helping to reduce temperatures and minimize noise.
ROG Heatsinks
Cool under pressure
ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.
Axial-tech Fan Design
Better, faster, stronger
Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Strix Aura Edition PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.
Dual Ball Fan Bearings
2x longer lifespan
The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

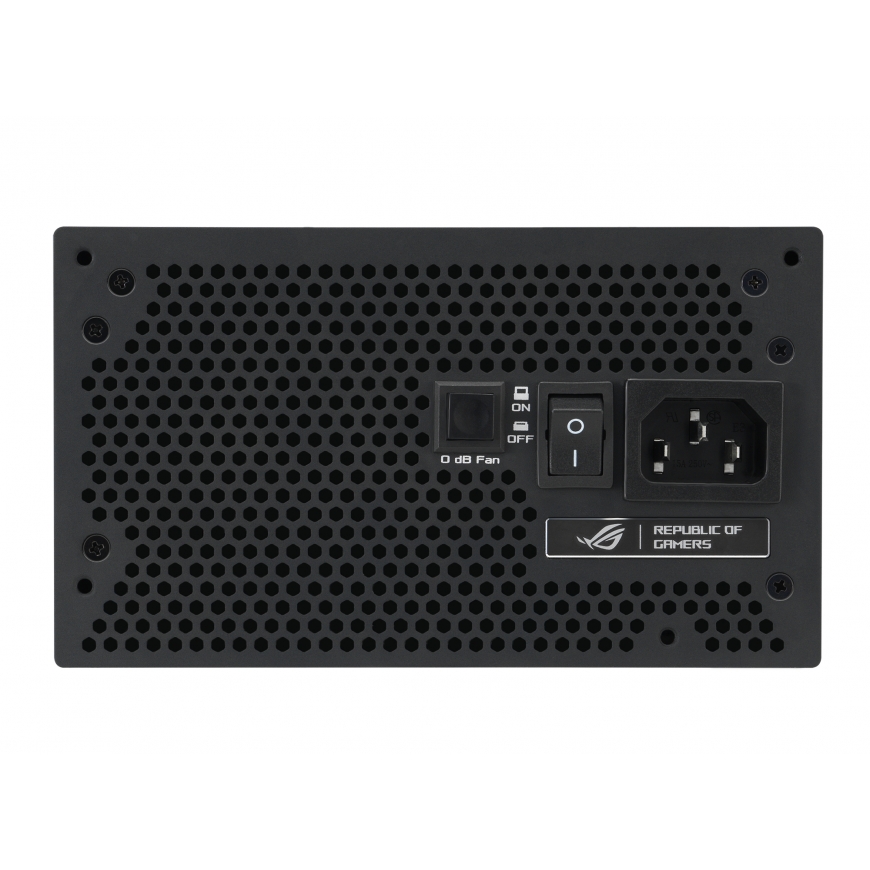

0dB Technology
Quiet intelligence
To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 50% or below.
ENGINEERING
80 Plus Gold Certification
Heart of gold
Top-end Japanese capacitors ensure efficient operation and have helped the ROG Strix Aura Edition PSUs earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.
ATX 3.0 Compatible
Step into the future
The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Strix Aura Edition steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, readying your build for the next-gen.
EXPERIENCE

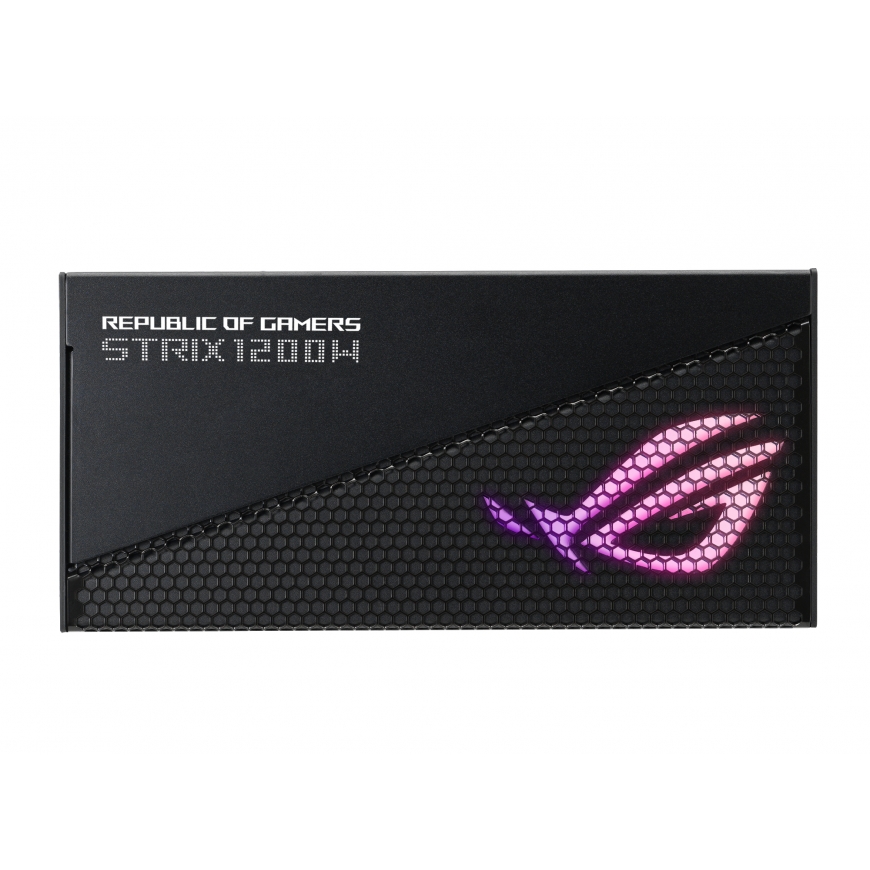

Aura Sync
Outshine the competition
Addressable RGB lighting is built right in to the ROG Strix 1200W Gold Aura Edition, so it’s all set to integrate with the Aura Sync illumination ecosystem – adding aesthetic style to raw power.
10-year Warranty
A decade of power
We're so confident about the reliability of the ROG Strix 1200W Gold Aura Edition that we back it with a 10-year warranty.
Power | |
| Efficiency | 80% |
| Power protection features | Overload, Over voltage, Overheating, Short circuit, Under voltage, Overcharge |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 22 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| Total power | 1200 W |
Performance | |
| ATX version | 3.0 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | Ball bearing |
| Silent mode | Yes |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Illumination | Yes |
| Cooling type | Active |
| On/off switch | Yes |

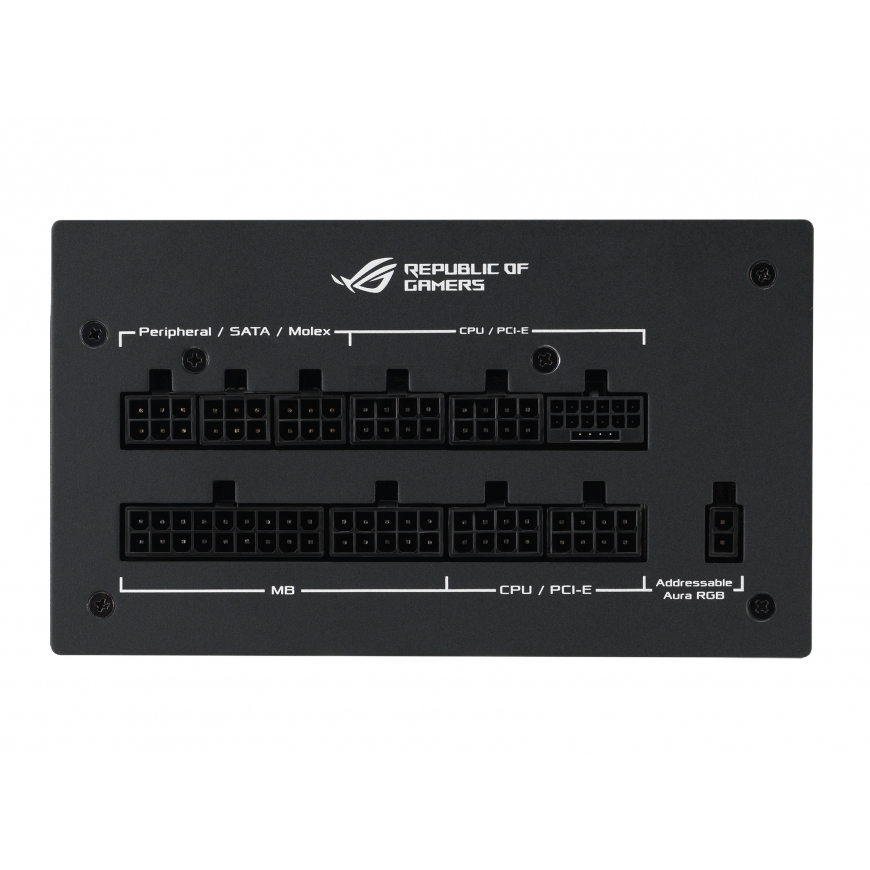

Ports & interfaces | |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| ATX power connector (20+4 pin) | Yes |
| PCI Express power connectors (8-pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power connector | 20+4 pin ATX |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 400, 520, 640 |
| Peripheral (Molex) power cable length | 400, 550, 150, 300 |
| PCI Express power cable length | 70 cm |
| CPU power cable length | 65 cm |
| PCI Express power connectors (16-pin) | 1 |
Weight & dimensions | |
| Weight | 3.23 kg |
| Width | 180 mm |
| Depth | 150 mm |
| Height | 86 mm |
Packaging data | |
| Package weight | 3.73 kg |
| Manual | Yes |
| Package type | Box |
| Package height | 129 mm |
| Package width | 386 mm |
| Package depth | 242 mm |
Packaging content | |
| Cables included | AC, SATA, CPU, PCIe, Peripheral (Molex) |
