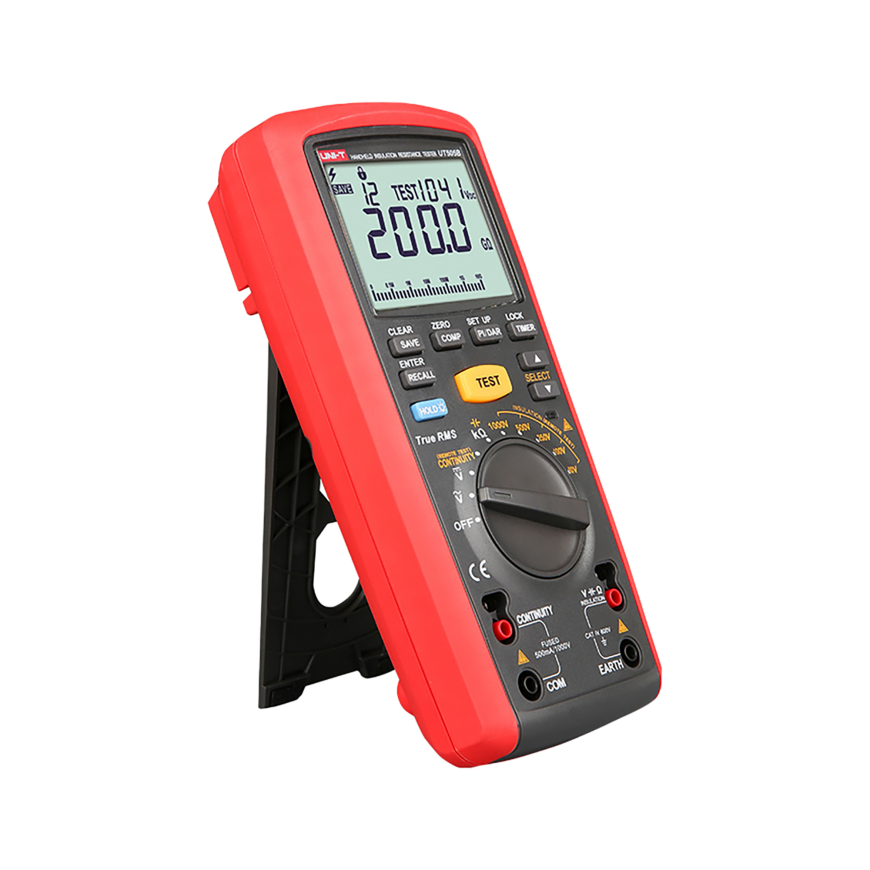

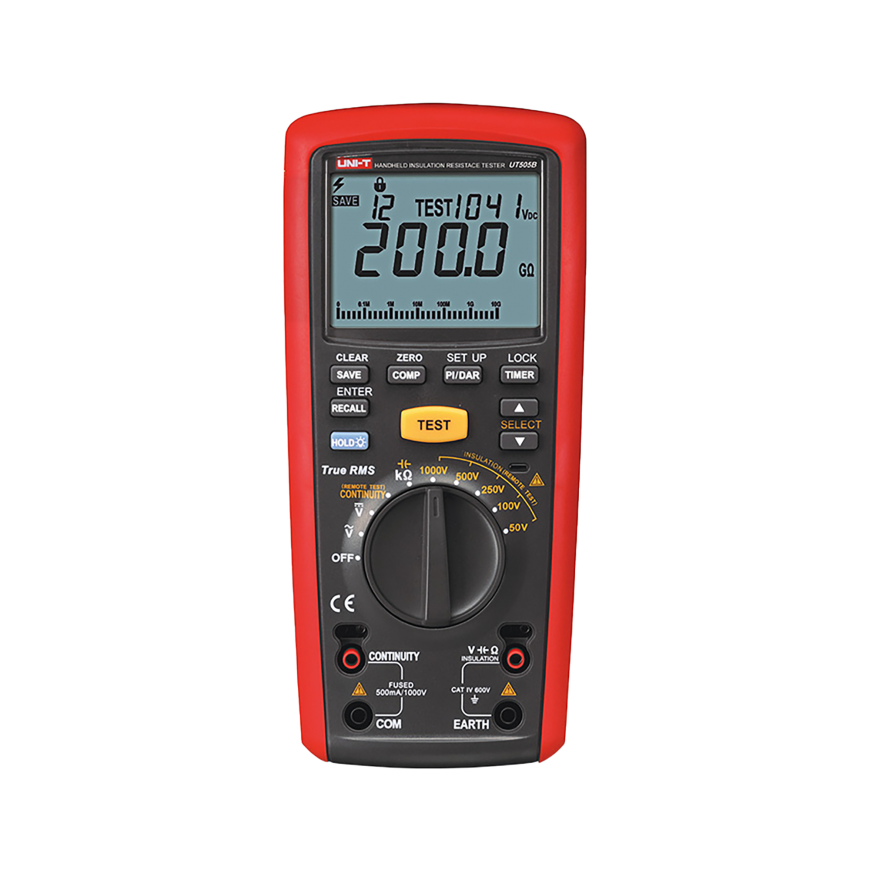

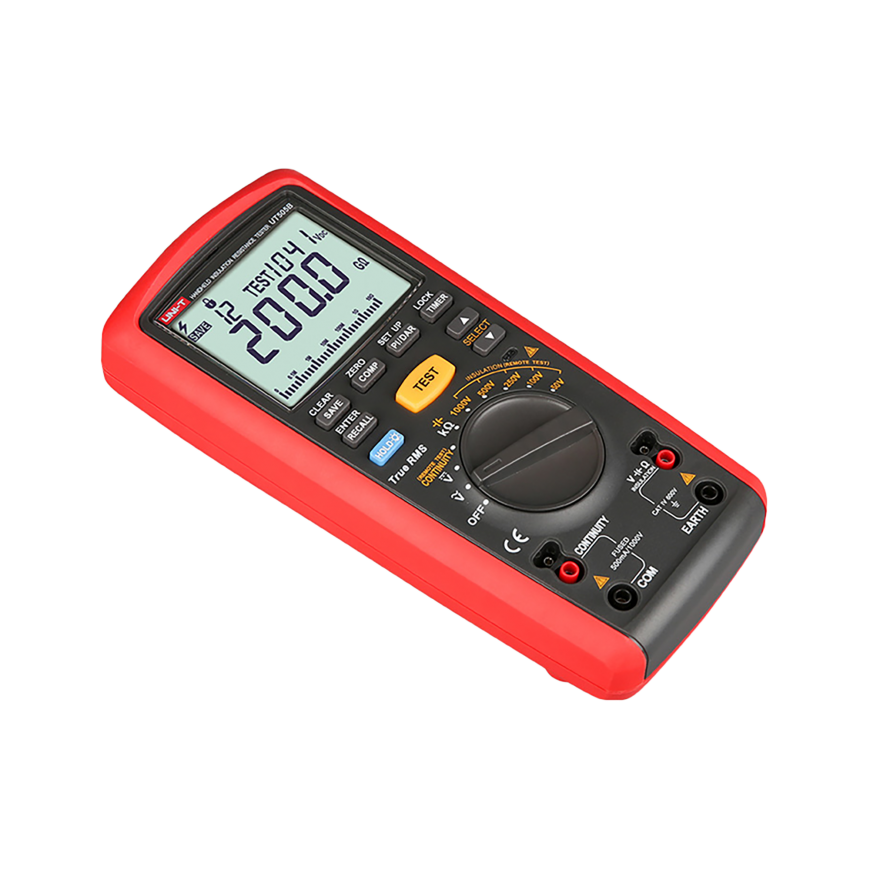

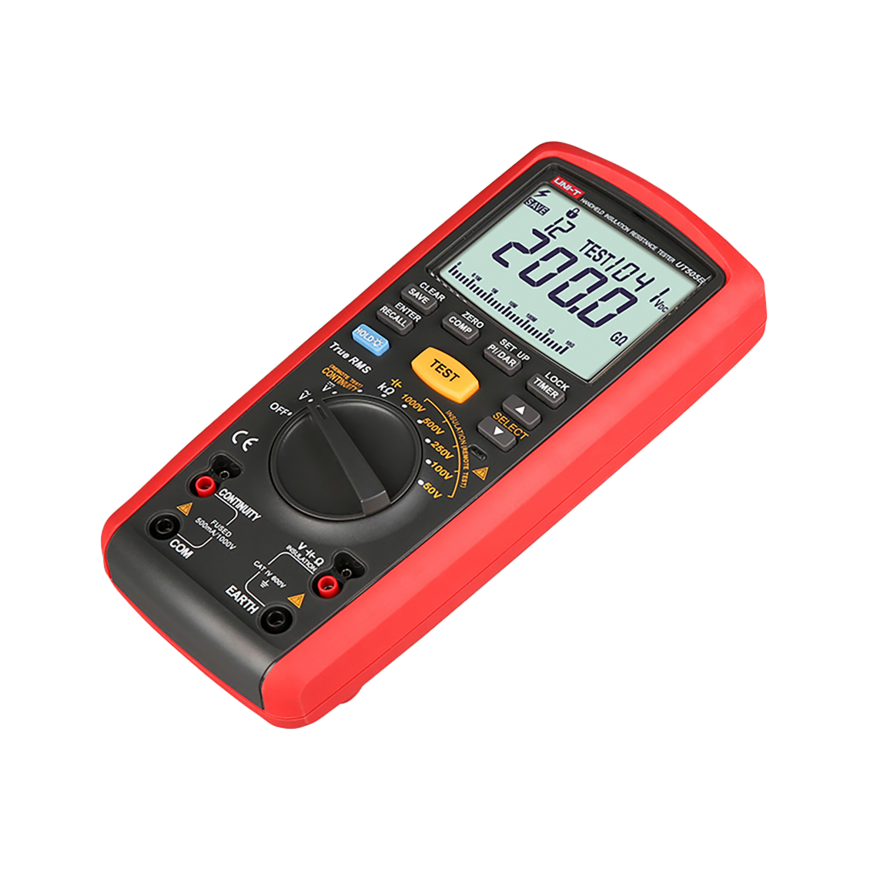

Uni-T UT505B meter
249.00 €
Monthly payment from 7,31 €
2226145 LEC-MIE0490
5901890096195
Shipping 6-10 b.d.
You are interested in this product?
All about the product
------------MEASUREMENT RANGES
------------
Insulation resistance
50V (50V / 100V / 250V / 500V / 1000V: 0% ~ 20%)
0.01MOhm ~ 50MOhm: ±(3%+3)
50MOhm ~ 1GOhm: ±(3%+3)
100V
1GOhm ~ 10GOhm: ±(10%+3)
0.01MOhm ~ 100MOhm: ±(3%+3)
100 MOhm ~ 1GOhm: ± (3%+3)
250V
1GOhm ~ 20GOhm: ±(10%+3)
0.01MOhm ~ 200MOhm: ±(1.5%+5)
200 MOhm ~ 1GOhm: ± (1.5%+5)
500V
1GOhm ~ 50GOhm: ±(10%+3)
0.01MOhm ~ 500MOhm: ±(1.5%+5)
500 MOhm ~ 1GOhm: ± (1.5%+5)
1000V
1GOhm ~ 100GOhm: ±(10%+3)
0.1MOhm ~ 2000MOhm: ±(1.5%+5)
2GOhm ~ 9.9GOhm: ±(5%+3)
10GOhm ~ 20GOhm: ±(7%+3)
20GOhm ~ 200GOhm: ±(20%+3)
load current
50 V (R = 50 kOhm) 1 mA: 0% ~ 10%
100 V (R = 100 kOhm) 1 mA: 0% + 10%
250 V (R = 250 kOhm) 1 mA: 0% + 10%
500 V (R = 500 kOhm) 1 mA: 0% + 10%
1000 V (R = 1 MOhm) 1 mA: 0% + 10%
Short circuit current: <2 mA
Leakage Current: 10~2000uA ±(10%+3)
Low resistance: 0.01 Ohm ~ 100 Ohm (selectable about 5V /> 200mA / 20mA) ± (1.5%+3)
Total resistance: 0.01kOhm ~ 10MOhm ±(3%+3)
Constant voltage: 0V ~ 600V ±(2%+3)
AC voltage: 0V ~ 600V ±(1.5%+5)
Frequency: 45 ~ 1 kHz ± (0.1%+3)
Capacitance: 100pF ~ 500uF ±(5%+5)
------------
GENERAL CHARACTERISTICS
------------
Maximum reading: 6000
auto range
TrueRMS
Step voltage measurement
DAR measurement
PI measurement
Automatic unloading
Automatic fuse check
Analog bargraph
Continuity indicator
Comparative measurement
Low battery indicator
Power supply: 6 x 1.5V LR6 batteries
Screen dimensions: 78 x 59 mm
Weight: 630g
Dimensions: 103x225x59mm
