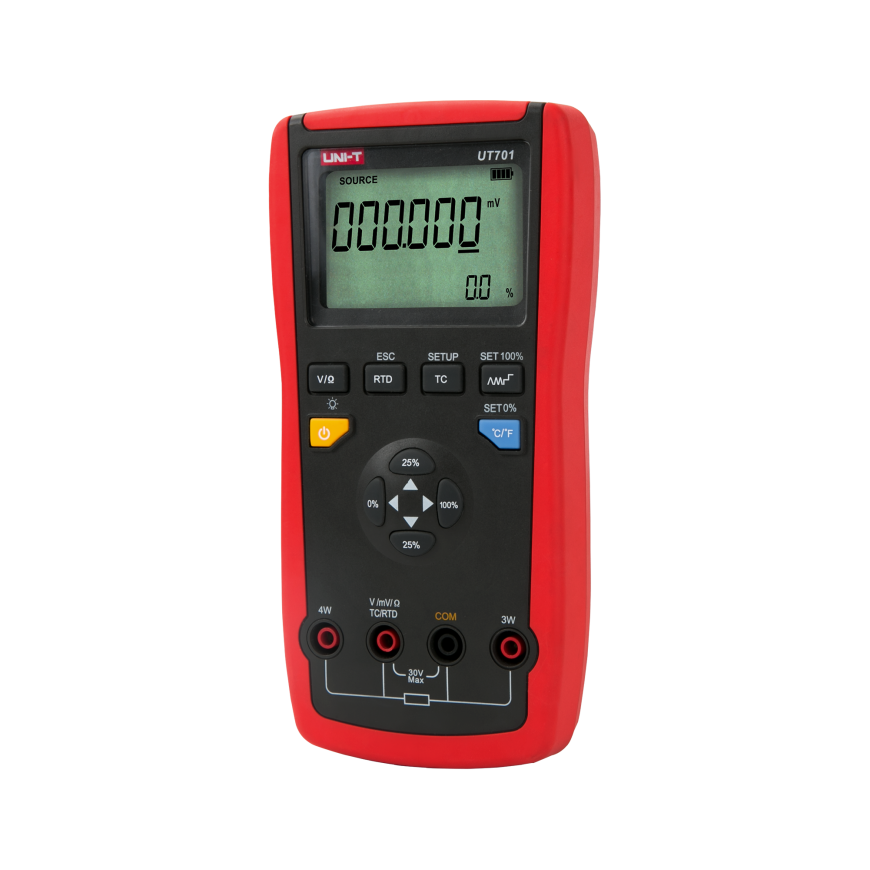

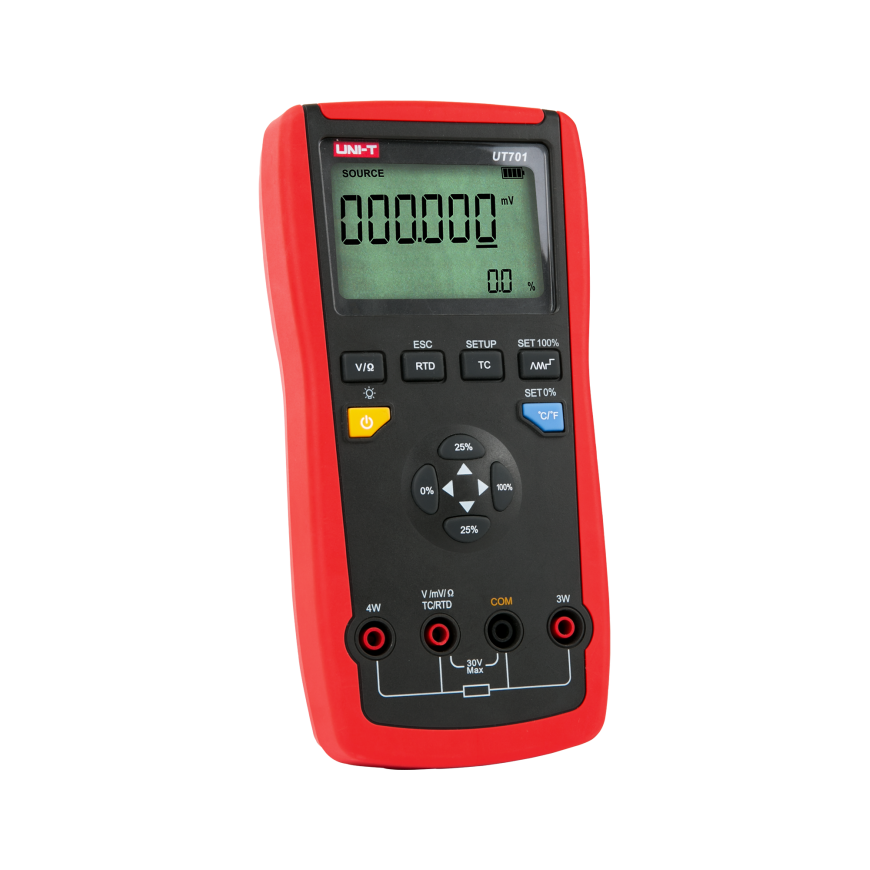

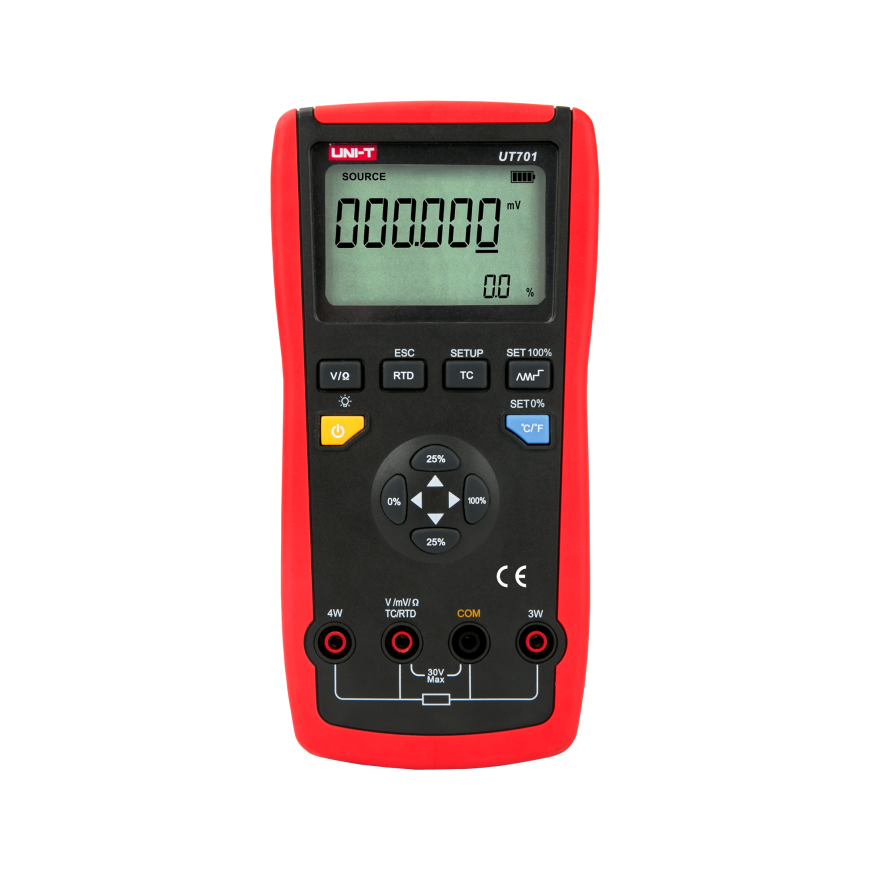

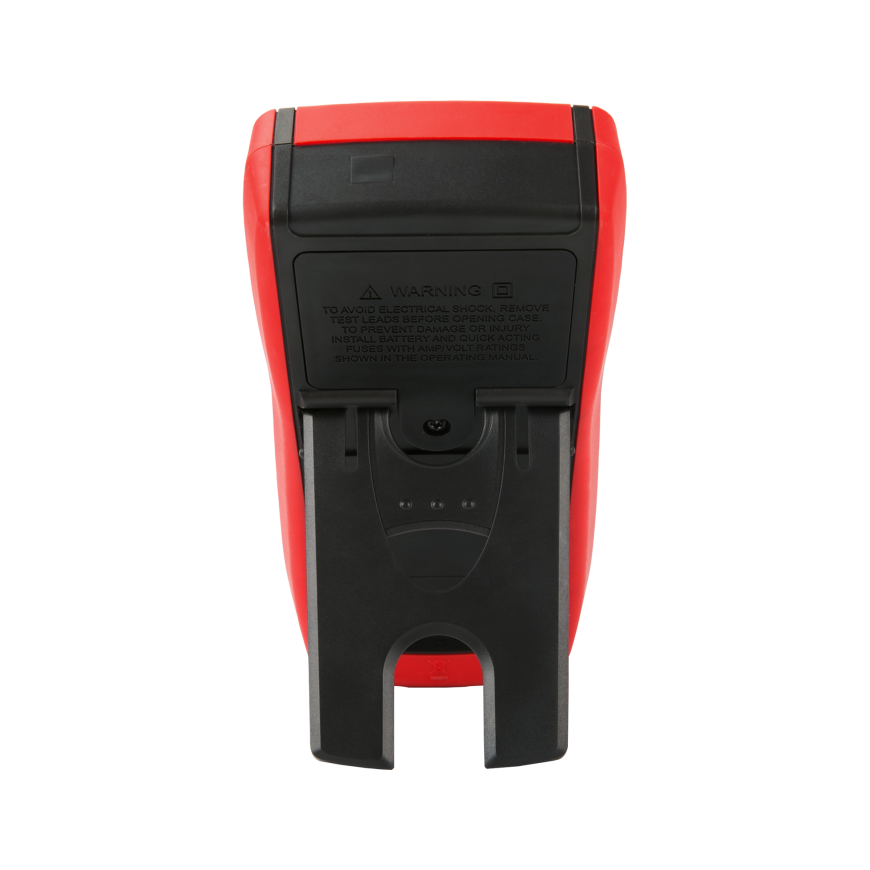

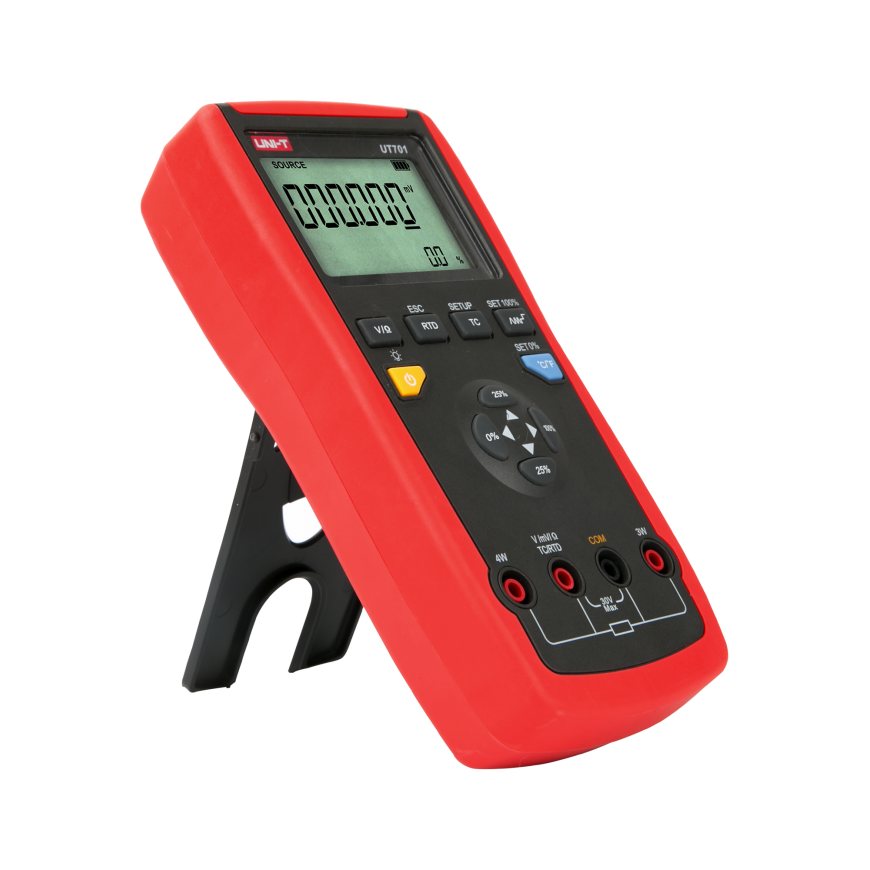

Temperature calibrator Uni-T UT701
249,00 €
248.92 €
Monthly payment from 7,31 €
2224038 MIE0373
5901890044998
Shipping 6-10 b.d.
You are interested in this product?
All about the product
Temperature calibrator Uni-T UT701 is a professional and user-friendly device for calibrating and repairing various temperature meters. Easy-to-use keys allow operations to be performed efficiently and accurately. Built-in LCD screen with lighting.
Technical data:
- DC voltage measurement:
- • 100,000 mV ± (0.05% + 20)
- • 1000.0 mV ± (0.05% + 3)
- Resistance:
- • 500.0 ohms ± (0.05% + 2)
- • 5000 ohms ± (0.05% + 2)
- Types of thermocouples:
- • J: -200 ~ 1200? (-328 ~ 2192?) ± 0.7?
- • P: 200 ~ 1370? (-328 ~ 2498?) ± 1?
- • T: -200 ~ 400? (-328 ~ 752?) ± 0.8?
- • E: -200 ~ 950? (-328 ~ 1742?) ± 0.7?
- • R: -20 ~ 1750? (-4 ~ 3182?) ± 1.4?
- • S: -20 ~ 1750? (-4 ~ 3182?) ± 1.5?
- • B: 600~1800? (1112 ~ 3272?) ± 1.4?
- • N: -200 ~ 1300? (-328 ~ 2372?) ± 0.9?
- • Wre325: 0~2000? (32 ~ 3632?) ± 1.8?
- • Wre526: 0 ~ 2300? (32 ~ 4172?) ± 1.8?
- Resistance Temperature Detectors (RTDs):
- • Pt10: -200 ~ 850? (-328 ~ 1562?) ± (0.5% + 6?)
- • Pt100: -200 ~ 850? (-328 ~ 1562?) ± (0.05% + 0.6?)
- • Cu50: -50 ~ 150? (-58 ~ 302?) ± (0.05% + 0.6?)
- • Cu100: -50 ~ 150? (-58 ~ 302?) ± (0.05% + 0.6?)
- Automatic linear rise/fall function of the generated output signal
- Two measurement scales: oC, oF
- Power supply: 9V battery (6F22)
- Screen: 63 x 40 mm
- Dimensions: 96 x 193 x 47 mm
- Weight: 410 g
In the set:
- Battery
- Test leads
- Crocodile clips
