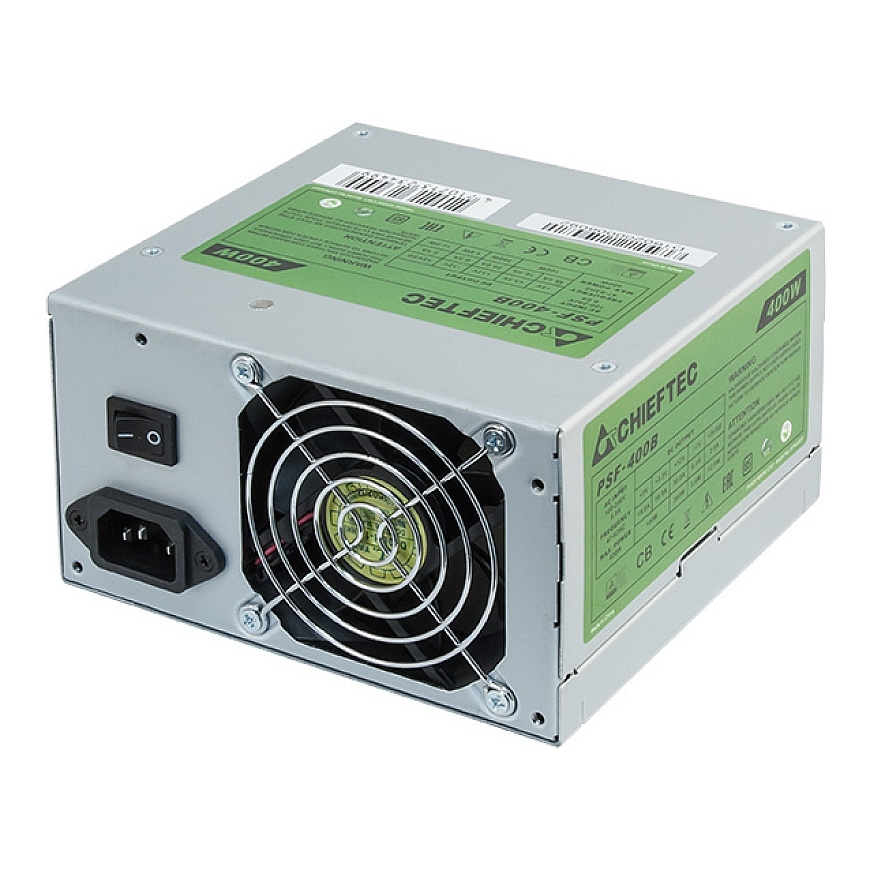

Chieftec PSF-400B power supply unit 400 W 24-pin ATX ATX Metallic
53,43 €
52.65 €
Monthly payment from 2,26 €
2223513 PSF-400B
4710713234499
2026-10-27
You are interested in this product?
All about the product
The PSF-400B from its layout may remind on “fore gone” ATX standards but, compatible with all current standards and certified by TÜV amongst many others and with a fixed voltage of 230V being the European standard, the PSF-400B is a reliable and efficient companion for modern IT structures which thereby also fulfills all ENERGY STAR 5.0 requirements as stipulated by the EU.Dedicated majorly to the 19” IPC / UNC solutions ranging between 2U ~ 4U where the PSU position is delicate and/or tricky and the cooling fan MUST blow out the rear owing to highly limited height issues of the related chassis.
Power | |
| Efficiency | 87% |
| Power protection features | Overload, Short circuit |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 360 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+5V) | 15 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Max output current (+12V1) | 30 A |
| Total power | 400 W |
Performance | |
| ATX version | 2.3 |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Bronze |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Metallic |
| Number of fans | 1 fan(s) |
| Fan diameter | 8 cm |
| Fan location | Side |
| Cooling type | Active |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 4 |
| PCI Express power connectors (6-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Non-Modular |
| Motherboard power cable length | 45 cm |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 87 mm |
Technical details | |
| Sustainability certificates | ENERGY STAR |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
Certificates | |
| Compliance certificates | RoHS |
