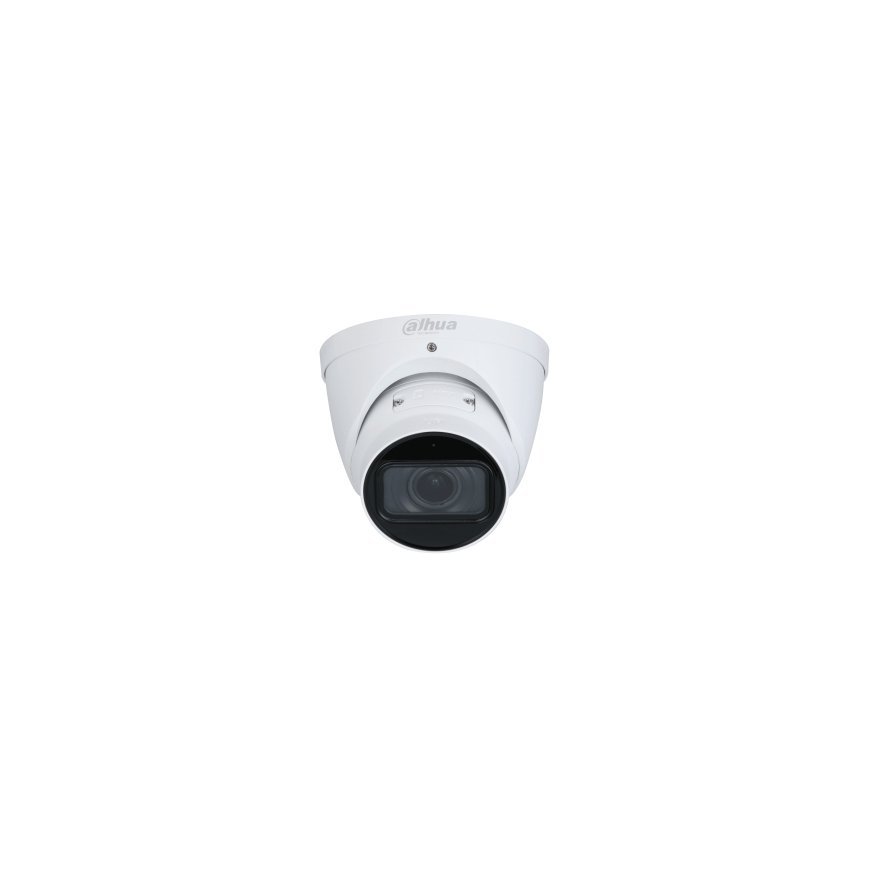

Dahua Technology WizMind IPC-HDW5442T-ZE security camera
272,12 €
Monthly payment from 7.91 €
2113875 IPC-HDW5442T-ZE
6923172586261
Shipping 2-4 days
You are interested in this product?
Series Overview
With starlight solution and deep learning algorithm, Dahua WizMind 5 Series network camera has various intelligent functions, including face capture, perimeter protection and people counting, which greatly im-prove the accuracy of video analysis. The series camera supports dust-proof function, waterproof function and vandal-proof function, com-plying with the standards of IP67 and IK10 (Supported by some select models).
Face Attributes
With deep learning algorithm, the network camera can recognize face attributes, such as gender, age, expression, glasses, mouth mask, and beard.
Face Detection
Dahua Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot
Perimeter Protection
With deep learning algorithm, Dahua Perimeter Protection technology can recognize human and vehicle accurately. In restricted area (such as pedestrian area and vehicle area), the false alarms of intelligent detection based on target type (such as tripwire, intrusion, fast moving, parking detection, loitering detection and gathering detection) are largely reduced.
People Counting
With deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of enter No., leave No., and In Area No. Working with management platform, it outputs yearly/monthly/weekly/daily reports to meet your requirements
ePoE
Dahua ePoE technology provides a new way to accomplish long distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring cost.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage
Performance | |
| Certification | FCC: 47 CFR FCC Part 15, Subpart B, UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU, CE-LVD: EN62368-1 |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| People counting function | Yes |
Design | |
| Mounting type | Ceiling/Wall/Pole |
| International Protection (IP) code | IP67 |
| Protection features | Dust resistant, Weatherproof |
| Product colour | White |
| Fog proof | Yes |
Camera | |
| Minimum illumination | 0.003 lx |
| Camera shutter speed | 1/3 - 1/100000 s |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
| Angle of rotation | 360° |
| White balance | Auto, Manual, Outdoor, Custom modes, Natural, Lamp |
| Adjustment shutter speed | Auto/Manual |
Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Progressive scan | Yes |
Lens system | |
| Focal length range | 2.7 - 12 mm |
| Maximum aperture number | 1.8 |
| Detect distance (wide) | 58 m |
| Detect distance (tele) | 131 m |
| Observe distance (wide) | 23 m |
| Observe distance (tele) | 52 m |
| Recognize distance (wide) | 12 m |
| Recognize distance (tele) | 26 m |
| Identify distance (wide) | 6 m |
| Identify distance (tele) | 13 m |
| Closest focusing distance | 1.2 m |
Video | |
| Maximum resolution | 2688 x 1520 pixels |
| Frame rate | 60 fps |
| Video formats supported | H.264, M-JPEG, H.265, H.264+, H.265+ |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440, 640 x 480 (VGA), 352 x 288, 704 x 480, 704 x 576, 1280 x 960, 2688 x 1520 |
| Supported video modes | 720p, 1080p |
| Video compression formats | H.264, H.265, M-JPEG, H.264+, H.265+ |
| Noise reduction | Yes |
| Video streaming | Yes |
| Privacy masking | Yes |
| Image stabilizer | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
| Gain control type | Auto/Manual |
| Noise reduction technology | 3D noise reduction |
| Total megapixels | 4 MP |
Audio | |
| Audio formats supported | AAC, G.726 |
| Built-in microphone | Yes |
| Audio detection | Yes |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Voice codecs | G.723, G.726, G.711Mu, G.711a, AAC |
Network | |
| Supported network protocols | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Number of users | 20 user(s) |
| Streaming method | Multicast |
| User access level | User |
Storage | |
| Internal memory | 1024 MB |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Maximum memory card size | 256 GB |
| ROM capacity | 128 MB |
Security | |
| Video motion detection | Yes |
| Active tampering alarm | Yes |
| Security algorithms | HTTPS, SNMP |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Face detection, Intrusion, Missing object, Tripwire, People counting, Heat map |
| Mirror | Yes |
| Digital watermark | Yes |
| Human and vehicle targets classification | Yes |
Power | |
| Power consumption (typical) | 7.5 W |
| DC output voltage | 12 |
| Power source type | DC, PoE |
Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions | |
| Weight | 740 g |
| Height | 108.3 mm |
| Diameter | 12.2 cm |
Packaging content | |
| Number of cameras | 1 |
Night vision | |
| Night vision | Yes |
| LED type | IR |
| Night vision distance | 40 m |
Management features | |
| Behavior analysis | Intrusion detection |
Packaging data | |
| Package weight | 910 g |
