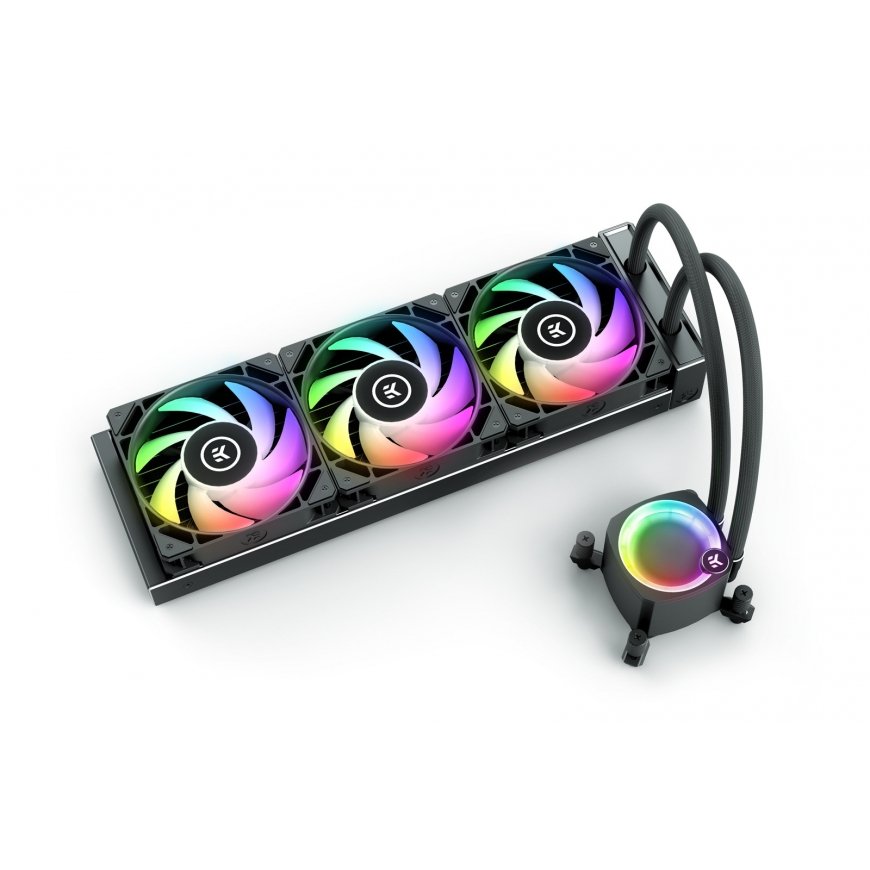

EK Water Blocks Nucleus AIO CR360 Lux D-RGB Processor All-in-one liquid cooler 12 cm Black 1 pc(s)
182.18 €
Monthly payment from 5,59 €
2049667 3831109851685
3831109851685
Shipping 4-7 b.d.
You are interested in this product?
All about the product
The EK-Nucleus AIO CR360 Lux D-RGB is an all-in-one liquid cooling solution offering a stylish fan-like gradient lighting effect on the pump unit to suit your needs for contemporary addressable RGB aesthetics. It is designed to fit most popular cases on the market today and features a triple fan setup with a slim 360mm radiator. Compatible with most modern processors, it is also ready for the next-gen Intel socket.Addressable RGB Lighting
Customize your all-in-one system to match your setup with its fully addressable RGB lighting effects. This closed-loop liquid CPU cooler offers a plug-and-play solution with a fan-like D-RGB lighting effect around the pump top for all who search for that perfect RGB AIO aesthetics.
This product is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the addressable RGB (D-RGB) header.

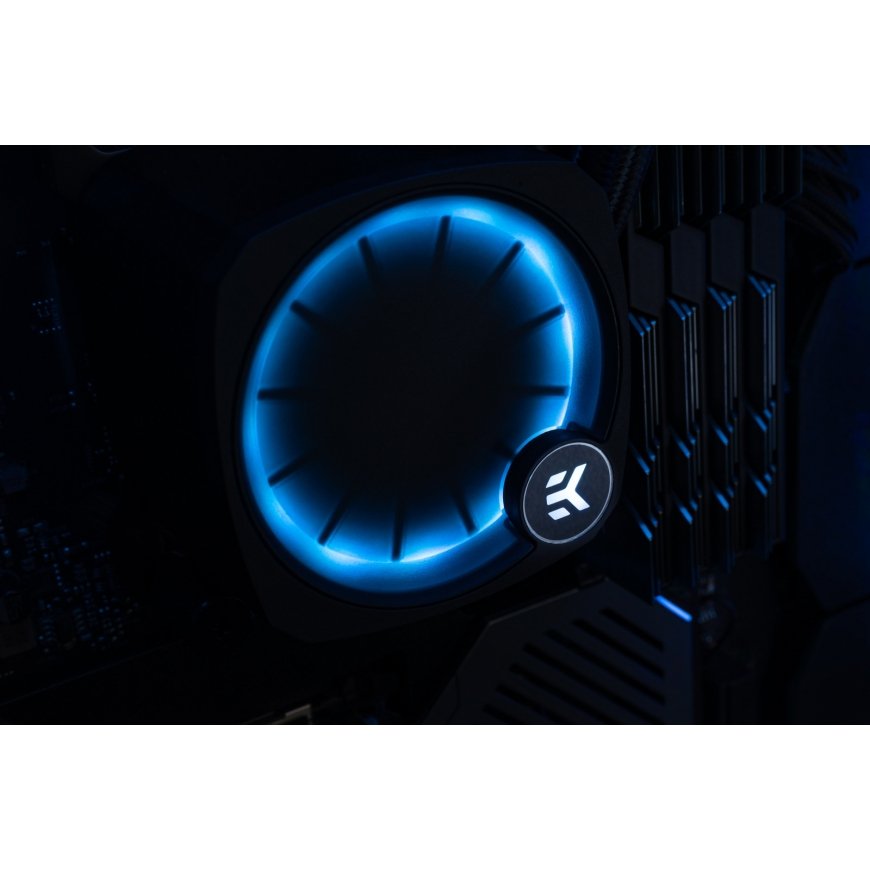

Rotatable Pump Top
The top allows you to re-orient the D-RGB EK badge no matter in which direction the cooler is installed. The orientation can be changed in 90° increments, so if the cooler is installed upside down, rotate it 180 degrees to display the logo right side up. Regardless of the angle needed to install the AIO, it will always offer clean and aligned aesthetics.
New Positioning of Rotary Fittings
The AIO CR360 Lux comes pre-installed with reinforced and sleeved rubber tubing, now featuring finer threads. The fittings are covered with an aesthetic black radiator cover at the connection of the tubing and the radiator to ensure a sleek design and flushed line with the added fans. The improved position of rotary fittings on the other side, which are now placed next to each other, allows the EK-Nucleus AIO to be installed in even the tightest spaces.
Universally Compatible and Easy to Install
All EK-Nucleus AIOs come with a universally compatible CPU water block, fitting all the latest Intel and AMD CPU sockets. The installation process is very straightforward, thanks to the included manual and mounting mechanism. This product requires enough space to mount a single slim 360mm radiator, making it compatible with almost all modern cases.
Performance | |
| Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), Socket AM4, LGA 2011-v3 (Socket R), LGA 2066, LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 1700, Socket AM5 |
| Type | All-in-one liquid cooler |
| Fan diameter | 12 cm |
| Airflow | 122.33 m³/h |
| Maximum airflow | 72 cfm |
| Noise level (high speed) | 36 dB |
| Pulse-width modulation (PWM) support | Yes |
| Rotational speed (min) | 550 RPM |
| Rotational speed (max) | 2300 RPM |
| Pump connector | 4-pin |
| Quantity per pack | 1 pc(s) |
| Pump motor speed (max) | 3100 RPM |
| Suitable location | Processor |
Design | |
| Product colour | Black |
| Illumination colour | Multi |
| Number of fans | 3 fan(s) |
| Illumination LED | Yes |
| Radiator material | Aluminum |
| LED connector type | 3-pin |
Power | |
| Pump voltage | 5 V |
| Fan voltage | 5 V |
Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Radiator width | 12.4 cm |
| Radiator depth | 40 cm |
| Radiator height | 2.7 cm |
| Tube length | 40 cm |
| Pump width | 6.92 cm |
| Pump depth | 8.23 cm |
| Pump height | 6.16 cm |
Packaging content | |
| Mounting kit | Yes |
| Installation instruction | Yes |
