ICY BOX IB-M2HSF-705 Solid-state drive Heatsink/Radiator 3 cm Silver 1 pc(s)
39,00 €
Monthly payment from 1.90 €
2047372 60878
4250078172123
Shipping 1-2 b.d.
You are interested in this product?

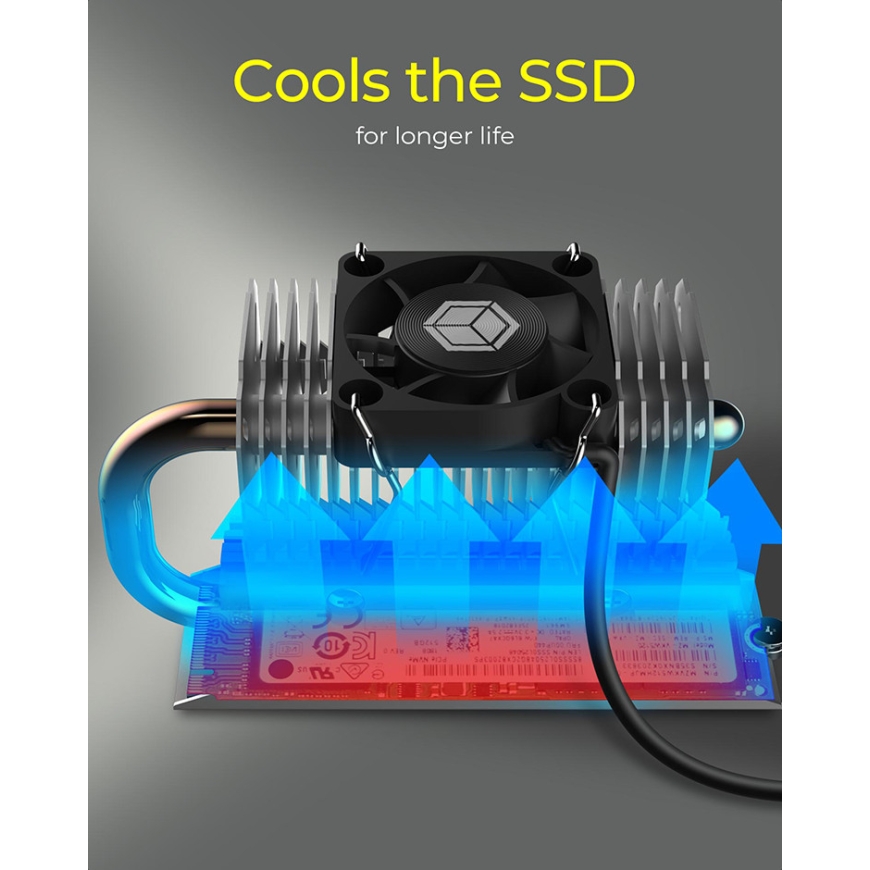

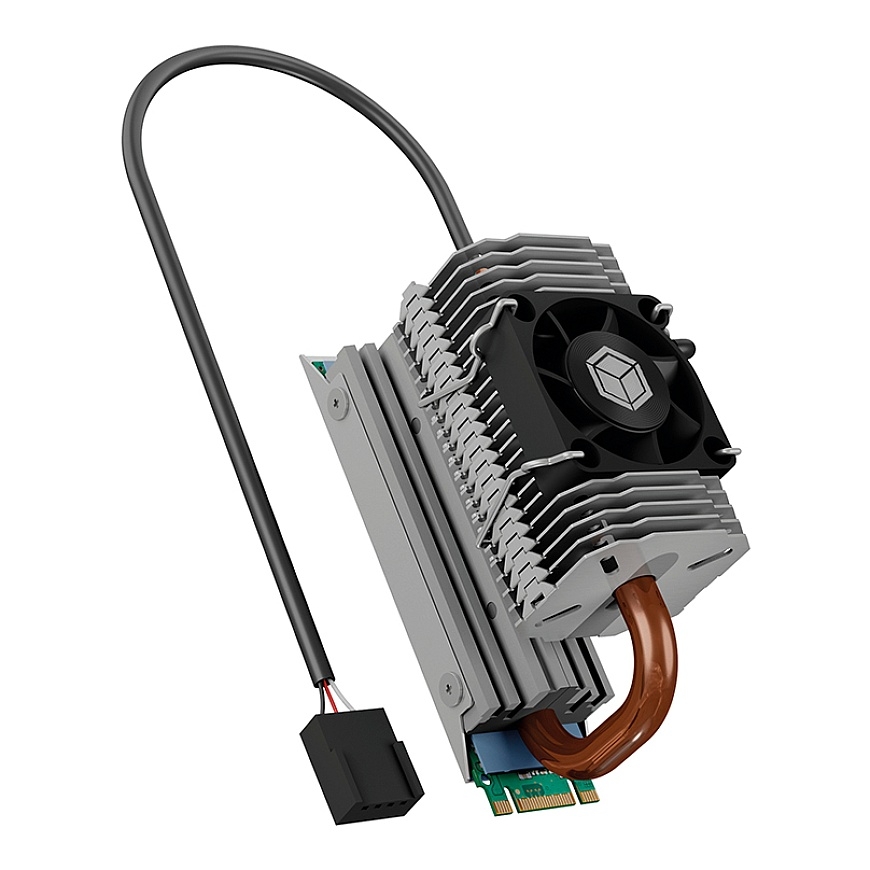

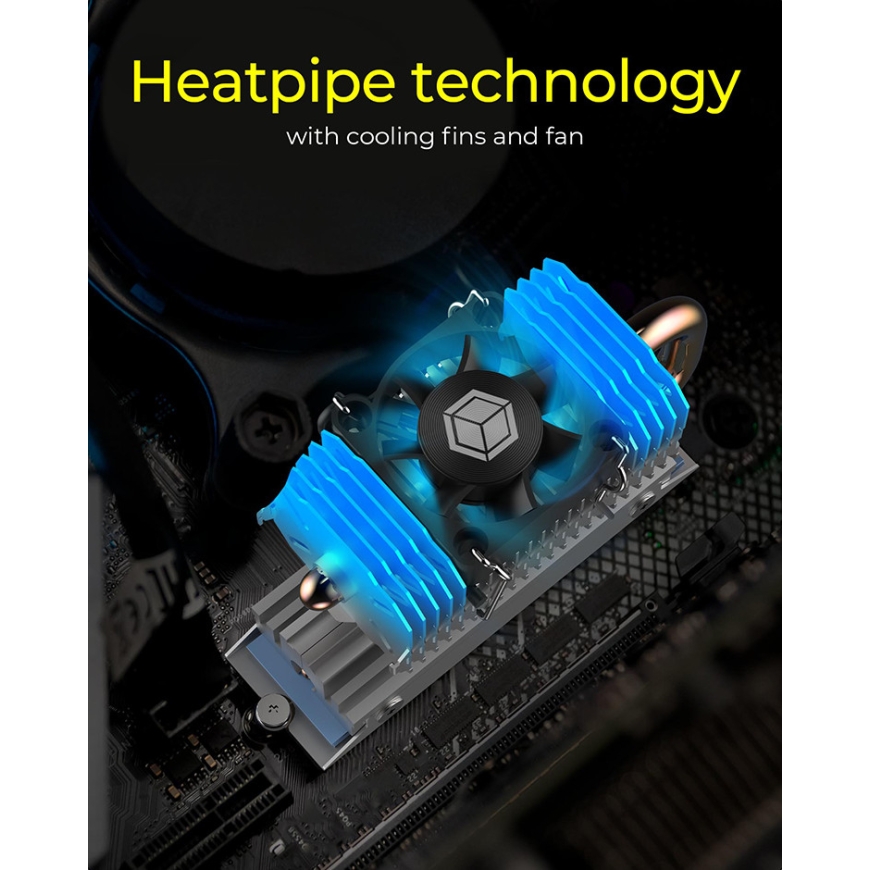

The swivelling ICY BOX® heatpipe cooler reduces the temperature of your M.2 SSD (form factor 2280) by up to 40%. Due to the excellent interaction of cooling fins and fan, a cooling capacity of 23 W TDP is achieved. Depending on SSD manufacturer, model and version, as well as load of the SSD.

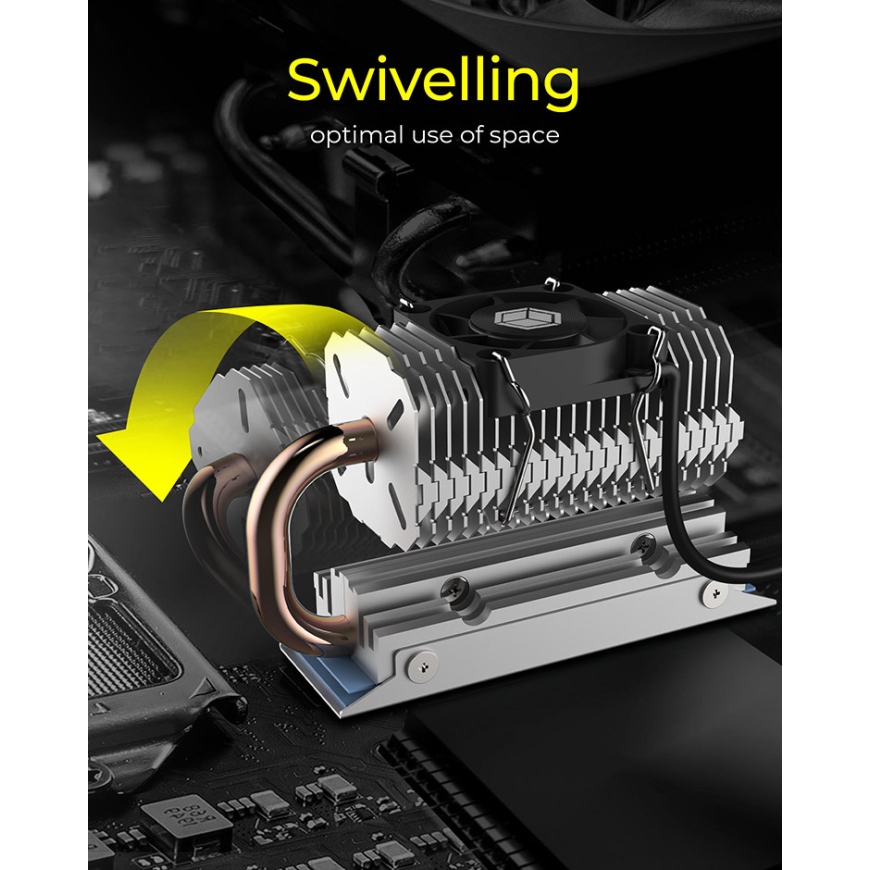

Perfectly positioned
The possibility to swivel the ICY BOX® heatpipe cooler allows the airflow in the enclosure to be optimally directed. It can also be positioned flexibly, which creates additional space for graphics cards or PCIe expansion cards. This allows you to fit even more performance into small enclosures.
Silent fan

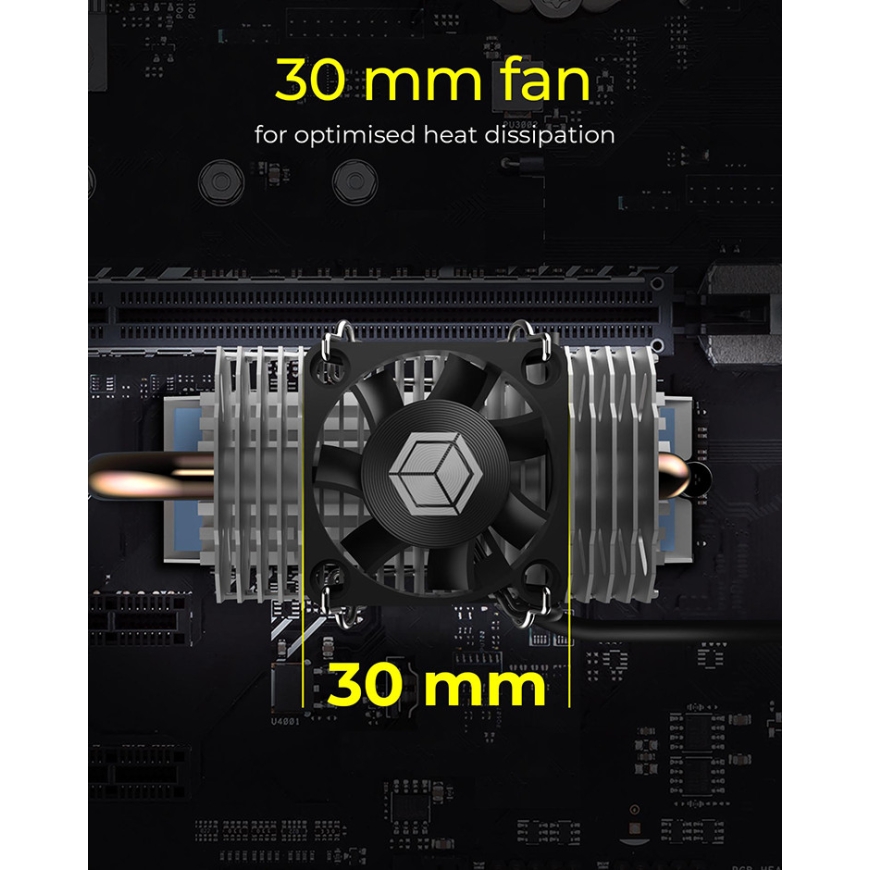

The 30 mm PVM fan has an output of 8500 rpm and a volume flow of approx. 4.9 m³/h. You can further optimise the fan settings for yourself via the BIOS. This makes it possible to achieve cooling that is perfectly matched to the system. The fan is pleasantly quiet even under high demands.
Performance | |
| Operating temperature (T-T) | -20 - 180 °C |
| Type | Heatsink/Radiator |
| Fan diameter | 3 cm |
| Number of speeds | 1 |
| Airflow | 4.87 m³/h |
| Maximum airflow | 2.87 cfm |
| Rotational speed (max) | 8500 RPM |
| Quantity per pack | 1 pc(s) |
| Thermal conductivity | 1.5 W/m·K |
| Suitable location | Solid-state drive |
Design | |
| Product colour | Silver |
| Material | Aluminium, Copper |
| Number of fans | 1 fan(s) |
| Number of heat pipes | 1 |
| Fan connector | 4-pin |
| Number of fins | 22 |
Power | |
| Rated current | 0.09 A |
| Voltage | 12 V |
| Thermal Design Power (TDP) | 23 W |
Weight & dimensions | |
| Weight | 86 g |
| Package weight | 190 g |
| Height | 50 mm |
| Width | 30 mm |
| Depth | 75 mm |
| Cable length | 0.5 m |
| Heat pipes diameter | 6 mm |
| Package height | 40 mm |
| Package width | 100 mm |
| Package depth | 200 mm |
| Fan dimensions (W x D x H) | 30 x 30 x 7 mm |
| Fins thickness | 0.5 mm |
Packaging content | |
| Screws included | Yes |
| Thermal pad included | Yes |
Other features | |
| Country of origin | China |
Logistics data | |
| Products per master (outer) case | 40 pc(s) |
| Master (outer) case gross weight | 7.6 kg |
| Master (outer) case width | 225 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 425 mm |
| Harmonized System (HS) code | 84145915 |
