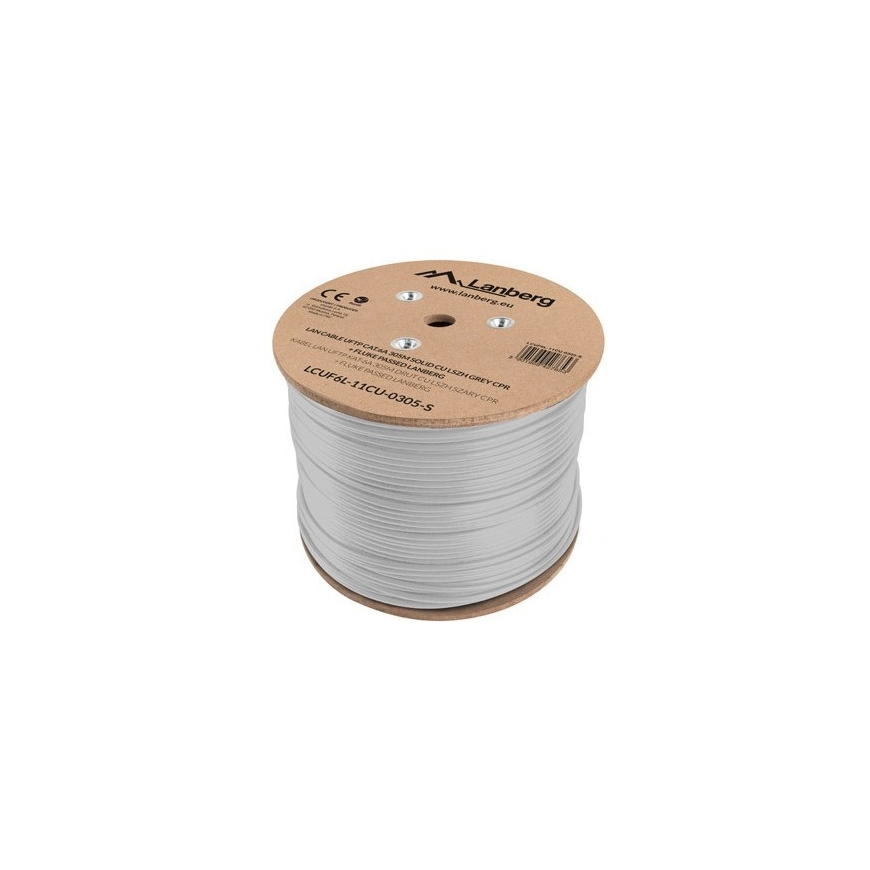

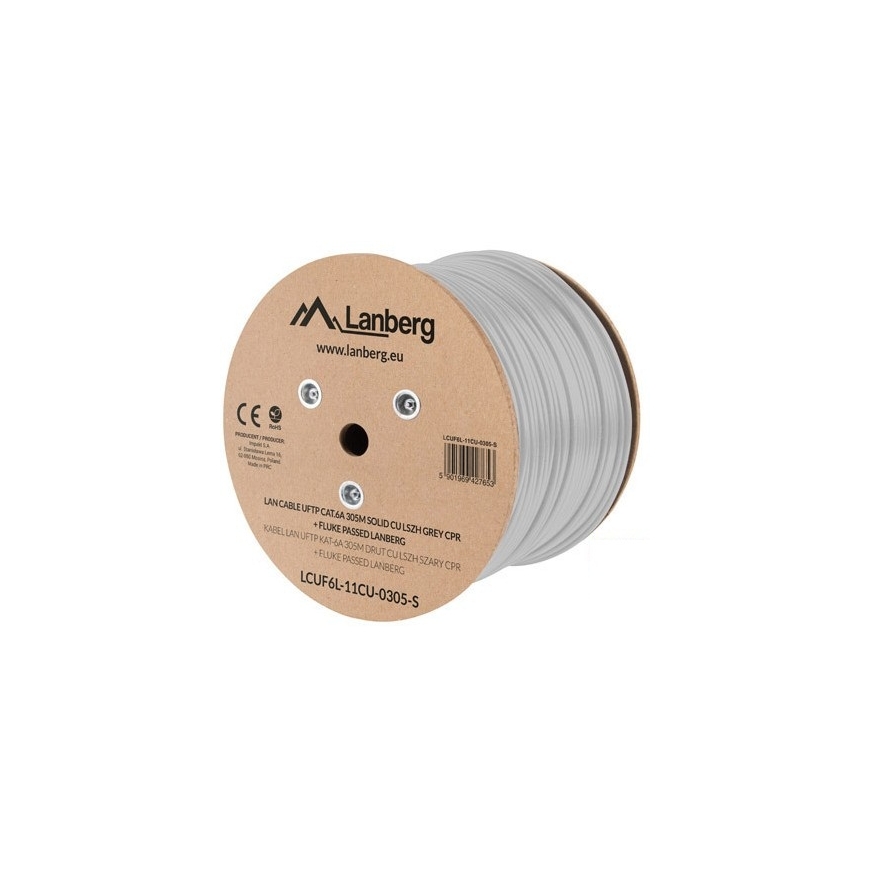

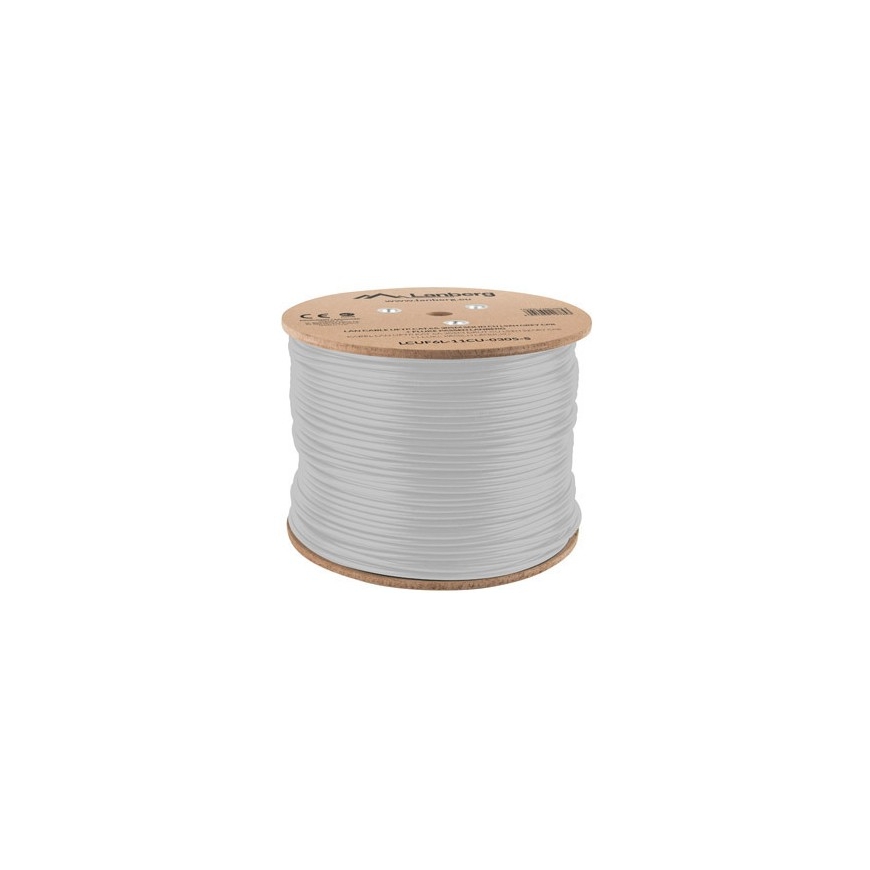

Lanberg LCUF6L-11CU-0305-S networking cable Grey 305 m Cat6a U/FTP (STP)
224.08 €
Monthly payment from 6,67 €
2006030 LCUF6L-11CU-0305-S
5901969427653
Shipping 5-8 b.d.
You are interested in this product?
All about the product
Specification:- LAN cable category 6A U/FTP (shielded).
- Length 305m.
- The wires are made of pure copper (CU 100% copper).
- AWG 23 (4*2*0.55mm).
- Conductor stranding: single wire.
- Color: PANTONE COOL GRAY 5C.
- Printed length counter at every meter of cable.
- External PVC insulation: 7.6mm.
- HDPE conductor insulation: 1.32mm.
- Operation up to 500Mhz.
- Recommended connector / guide diameter for braided cables: 1.45 mm.
- Package: Wooden Drum.
- Packaging dimensions (W x D x H): 50x50x52 cm.
Electrical characteristics (20 degrees):
- direct-current resistance: ?9.5?/100m
- Pair-to-Ground capacitance: ?160PF / 100m.
- Characteristic impedance: 100?±15 (4~250MHz) 100?±22(250~500MHz).
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 75 degrees.
- Working distance: 100m.
Features | |
| Cable type | Cable on reel |
| Cable length | 305 m |
| Cabling technology | 10GBase-T |
| Connector 1 | No |
| Connector 2 | No |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Cable standard | Cat6a |
| Cable shielding | U/FTP (STP) |
| Conductor type | Solid |
| AWG wire size | 23 |
| Frequency | 500 MHz |
| Conductor material | Copper |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet |
| Product colour | Grey |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
Packaging data | |
| Package height | 52 mm |
| Package width | 50 mm |
| Package depth | 50 mm |
| Quantity per pack | 1 pc(s) |
Weight & dimensions | |
| Outer diameter | 7.6 mm |
Certificates | |
| Compliance certificates | RoHS |
