Neomounts NM-D775DXSILVER Monitor arm 10-32" - gas spring - Topfix - 180°-stop
309.00 €
Monthly payment from 8,86 €
1999772 NM-D775DXSILVER
8717371446871
Shipping 3-7 b.d.
You are interested in this product?
All about the product

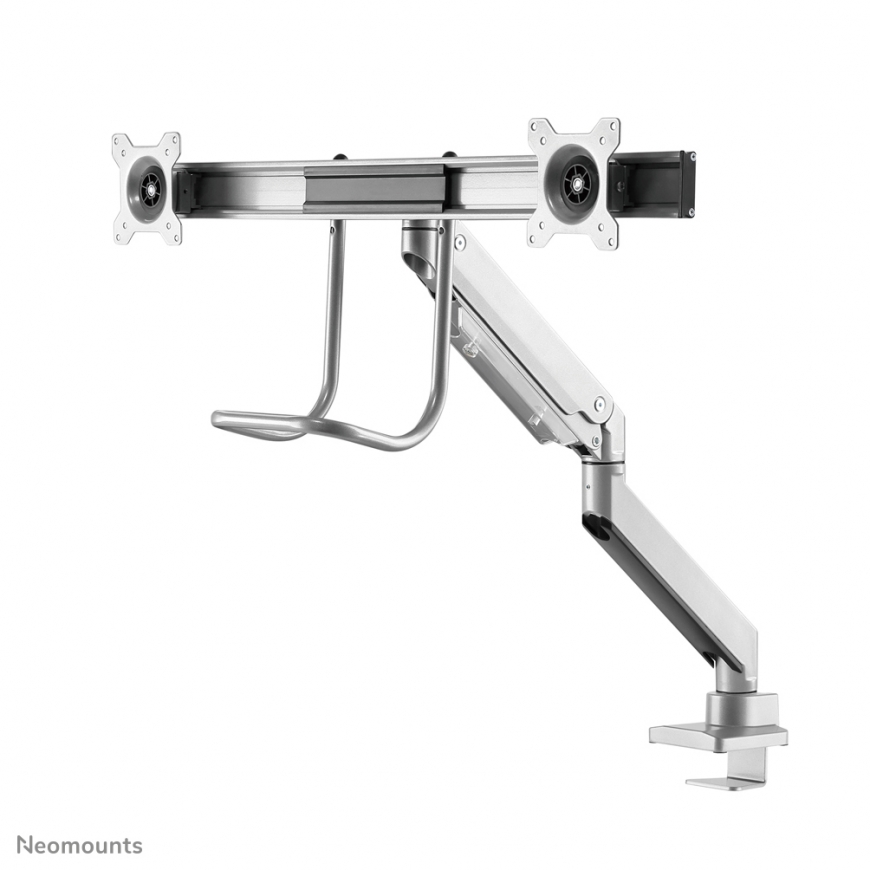

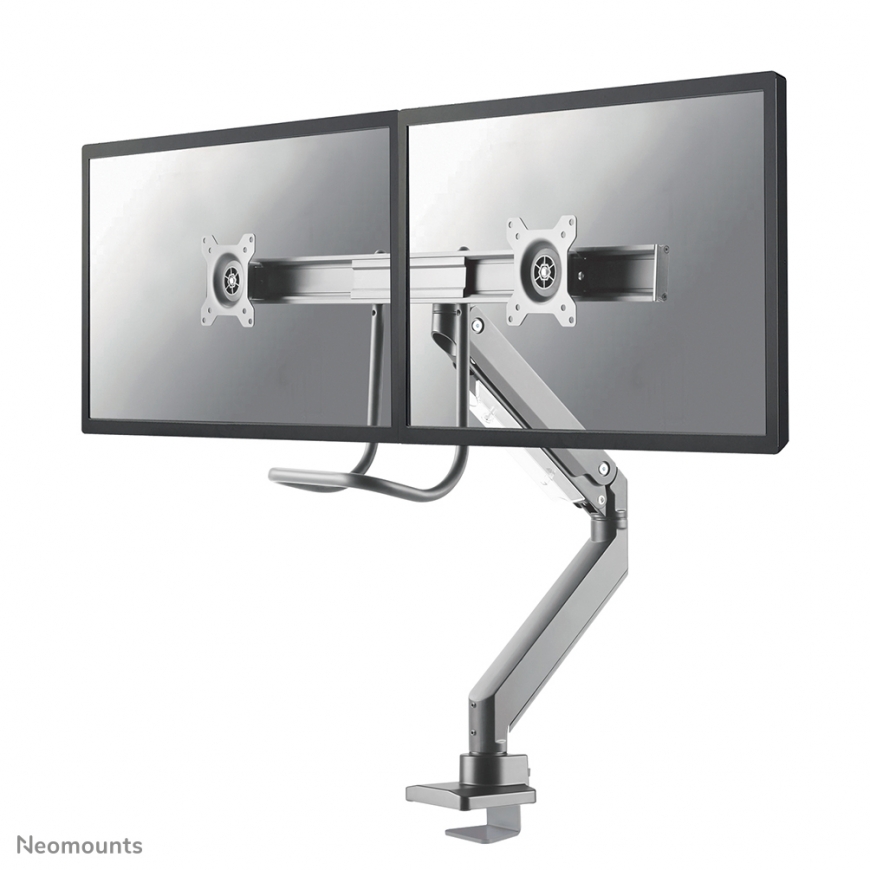

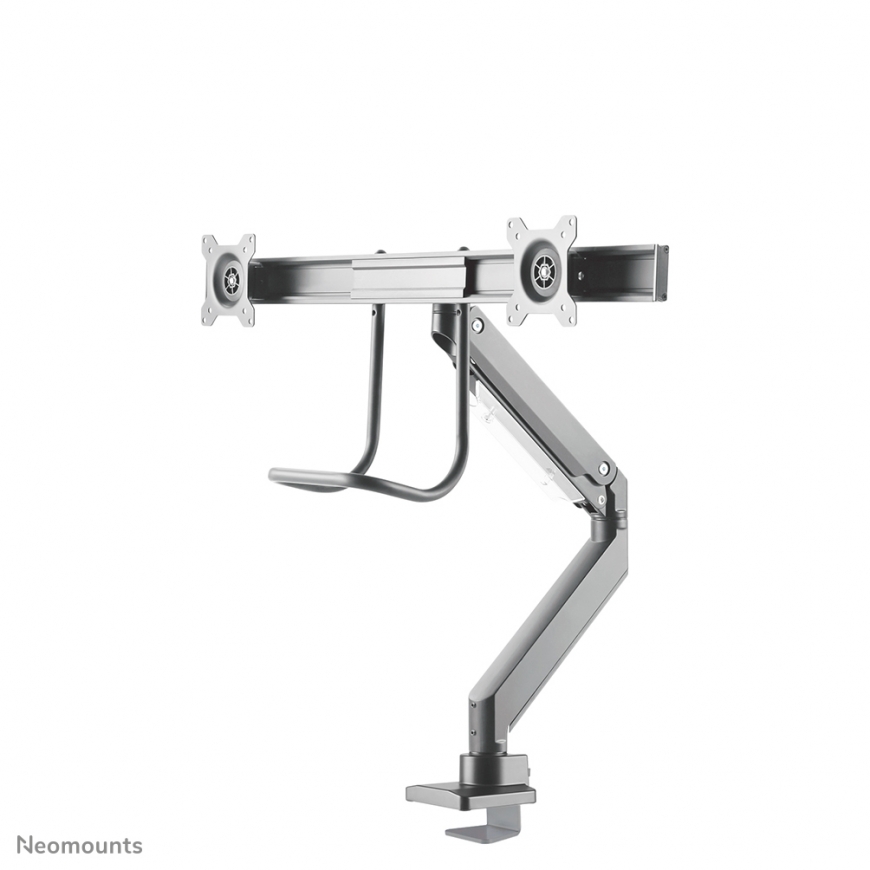

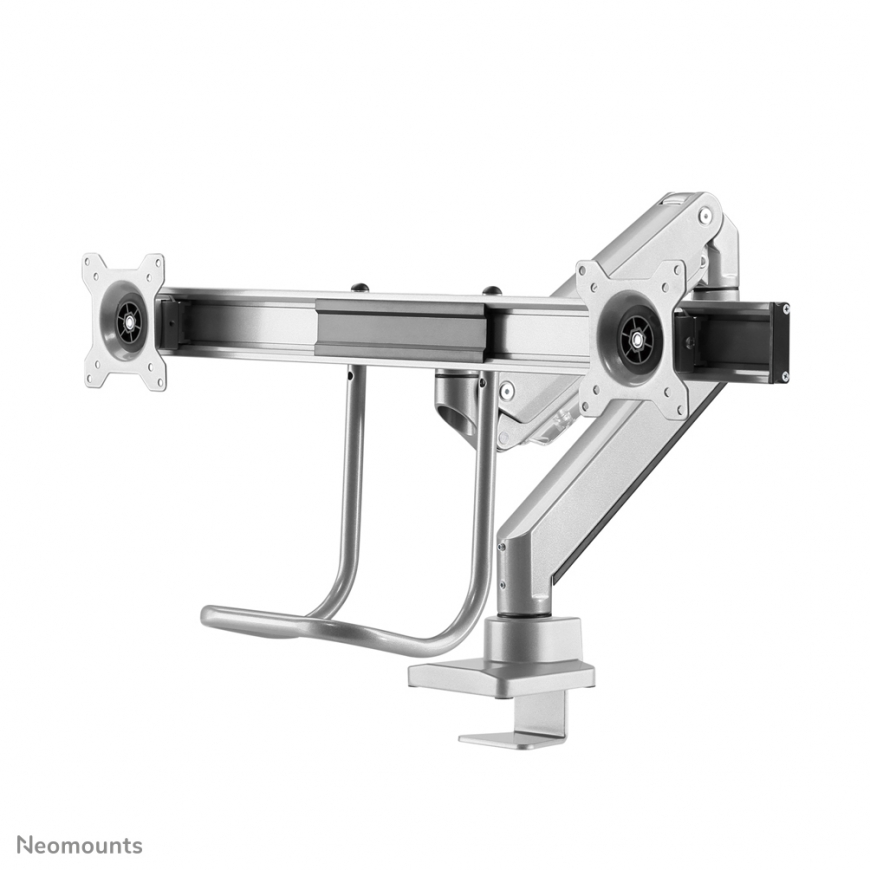

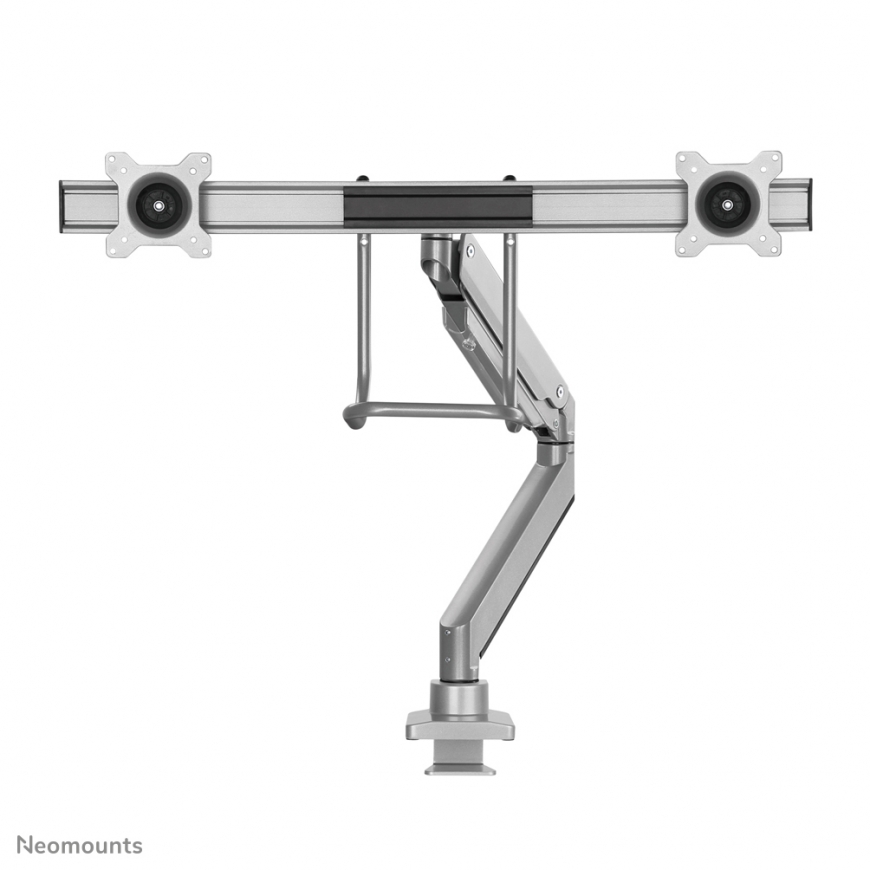

The Neomounts NM-D775DXSILVER is a tilt-, swivel and rotatable desk mount with crossbar and handle for 2 flat screens up to 32". This mount is a great choice for space saving placement on desks using a desk clamp or grommet mount.Neomounts' unique tilt (20°), rotate (360°) and swivel (180°/360°) technology allows the mount to change to any viewing angle to fully benefit from the capabilities of the flat screen. The mount is easily individually height adjustable to 60 centimetres using a gas spring. Depth adjustable from 0 to 63 centimetres. A unique cable management conceals and routes cables from mount to flat screen. Hide your cables to keep the workplace nice and tidy. The mount is equipped with a 180° stop mechanism.
Neomounts NM-D775DXSILVER with handle has three pivot points and is suitable for screens up to 32" (81 cm). The weight capacity of this product is 1 to 16 kg (max. 8 kg each screen). The desk mount is suitable for screens that meet VESA hole pattern 75x75 or 100x100mm. Different hole patterns can be covered using Neomounts VESA adapter plates.
By using an ergonomic mount neck- and back complaints can be avoided. Ideal for use in offices and on counters or in a reception area.
All installation material is included with the product.
Features | |
| Maximum weight capacity | 8 kg |
| Panel mounting interface | 75 x 75, 100 x 100 |
| Minimum screen size | 25.4 cm (10") |
| Maximum screen size | 81.3 cm (32") |
| Number of displays supported | 2 |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Mounting type | Desk |
| Height adjustment | Yes |
| Tilt angle range | -10 - 10° |
| Swivel angle range | -90 - 90° |
| Swivel angle | 360° |
| Height adjustment range | 270 - 600 mm |
| Cable management | Yes |
| Angle of rotation | 360° |
| Rotating | Yes |
| Tilt adjustment | Yes |
| Swivelling | Yes |
| Product colour | Silver |
| Housing material | Steel |
| Depth adjustment range | 0 - 630 mm |
Mounting | |
| Maximum weight capacity (per display) | 8 kg |
Ergonomics | |
| Pivot angle | -180 - 180° |
| Height adjustment type | Gas spring |
Packaging data | |
| Package weight | 9 kg |
| Package depth | 150 mm |
| Package height | 895 mm |
| Package width | 225 mm |
Weight & dimensions | |
| Weight | 5.92 kg |
| Height | 600 mm |
| Minimum weight | 1 kg |
Technical details | |
| Country of origin | China |
| Package net weight | 8.95 kg |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 4.5 cm |
Logistics data | |
| Master (outer) case width | 910 mm |
| Master (outer) case length | 470 mm |
| Master (outer) case height | 170 mm |
| Master (outer) case gross weight | 9 kg |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case net weight | 9 kg |
| Harmonized System (HS) code | 7326909890 |
| Products per pallet (EU) | 22 pc(s) |
Other features | |
| Mounting | Clamp/Grommet |
