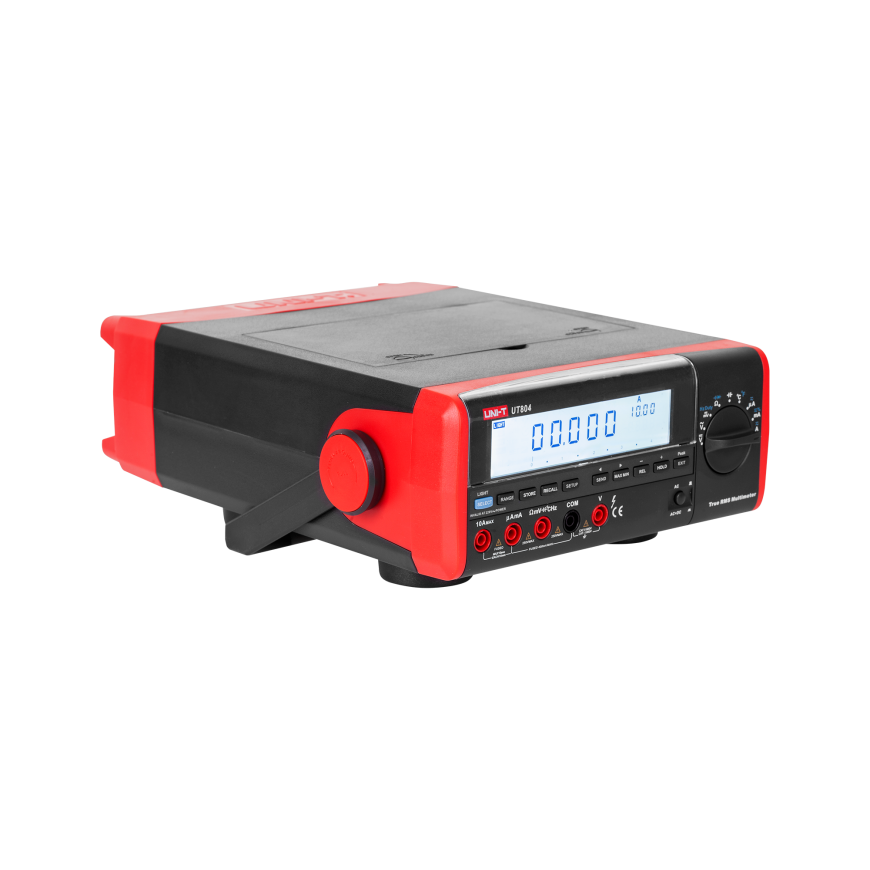

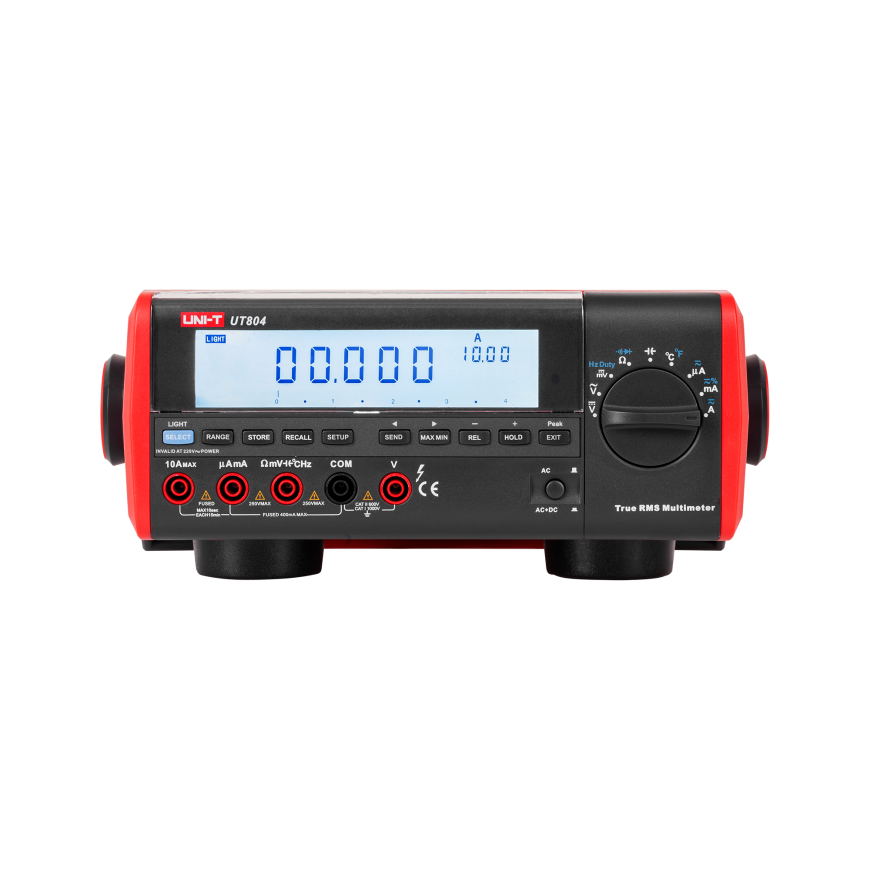

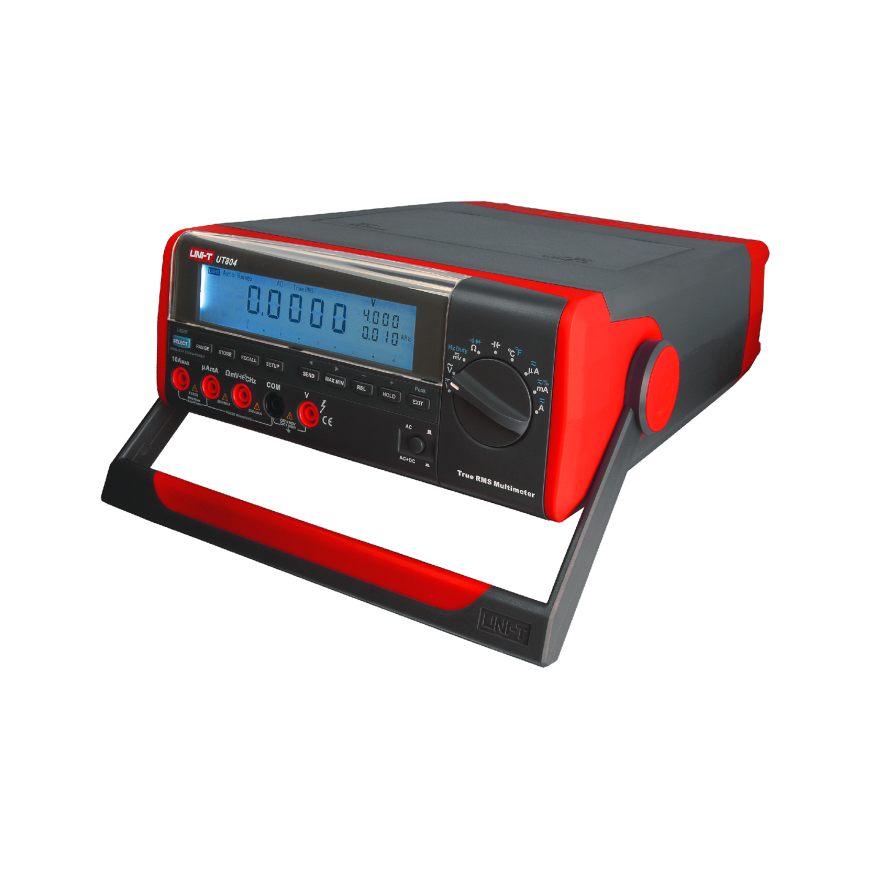

Laboratory multimeter Uni-T UT804

All about the product

Laboratory multimeter Uni-T UT804 allows for accurate measurements and has many advanced measurement functions.
Technical data:

• Constant voltage: 400mV / 4V / 40V / 400V / 1000V ± (0.025% + 5)

• AC voltage: 4V / 40V / 400V / 1000V ± (0.4% + 30)

• Continuous current: 400 µA / 4000 µA / 40 mA / 400 mA / 10 A ± (0.1% + 15)

• Alternating current: 400 µA / 4000 µA / 40 mA / 400 mA / 10 A ± (0.7% + 15)

• Resistance: 400 Ohm / 4 kOhm / 40 kOhm / 400 kOhm / 4 MOhm / 40 MOhm ± (0.3% + 40)

• Capacitance: 40 nF / 400 nF / 4 µF / 40 µF / 400 µF / 4 mF / 40 mF ± (1% + 20)

• Frequency: 40 Hz / 400 Hz / 4 kHz / 40 kHz / 400 kHz / 4 MHz / 40 MHz / 400 MHz ± (0.01% + 8)

• Temperature: -40 ~ 1000 ° C ± (1% + 30); -40 ~ 1832°F ± (1.5% + 50)

• Duty rate: 100% ± (1% + 40)

• Percentage of current in the 4-20 mA circuit: 0-100% ± (1% + 50)

• Diode test

• Checking transistors
• AC + DC measurements

• Analog bar graphics

• True RMS

• Record the maximum values

• Relative measurement function

• MAX/MIN measurements

• The last measurement is recorded

• Reading record: max. 9999 impressions

• Remembering the readings

• Data transfer

• Automatic shutdown

• Low battery indicator

• LCD screen lighting

• Main screen + two auxiliary ones

• Setup function

• Maximum reading: 40,000

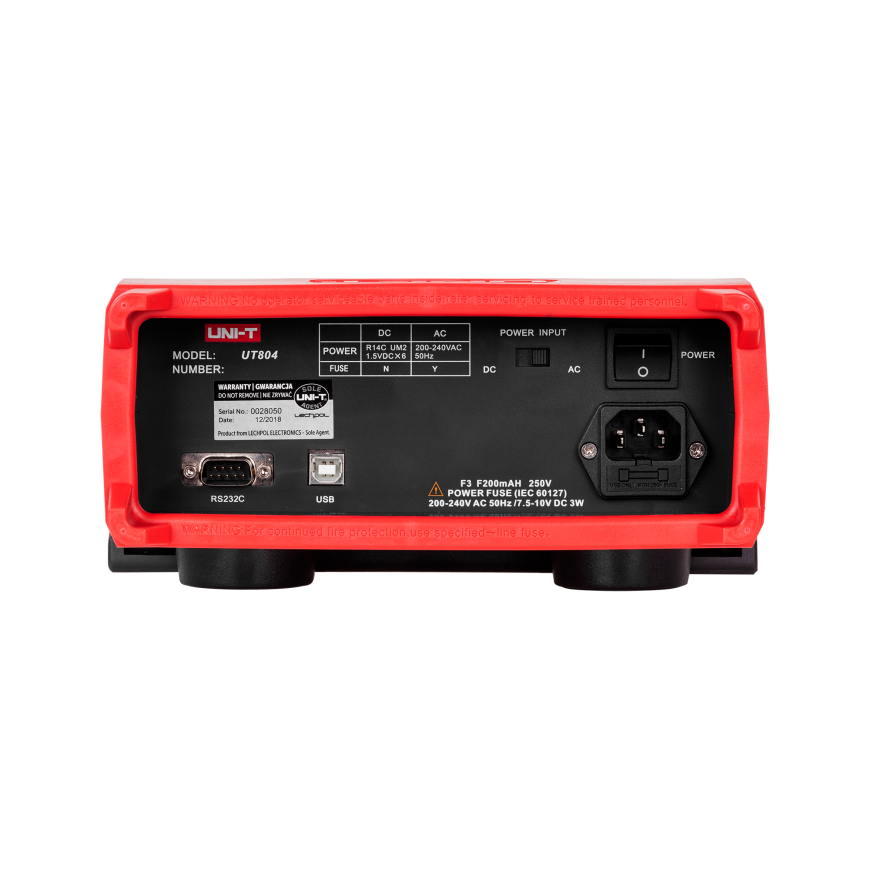

• Ports: USB, RS-232

• Fuse: 10 A

• Power supply: AC 220 V / 50 Hz or 6x 1.5 V battery (R14)

• Screen: 128 x 28 mm

• Weight: 2.2 kg

• Dimensions: 310 x 240 x 105 mm

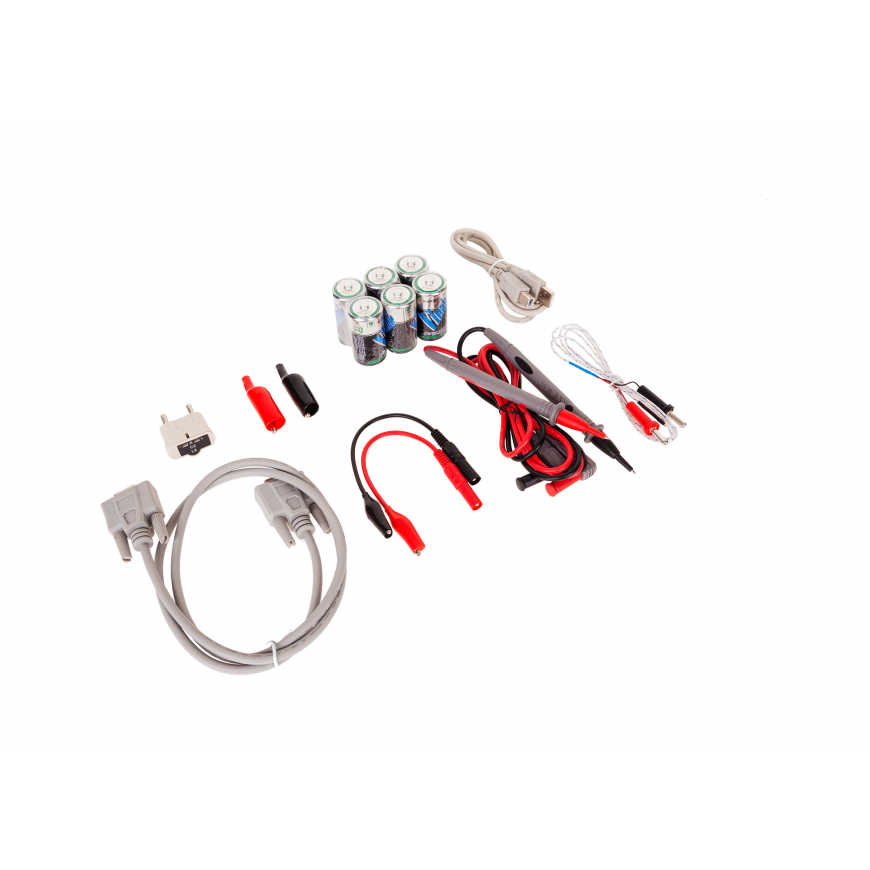

In the set:

• Measuring cables
• temperature probe
• crocodile clips
• test leads
• capacitor test socket
• USB cable
• RS232C cable
• CD
• power cord
