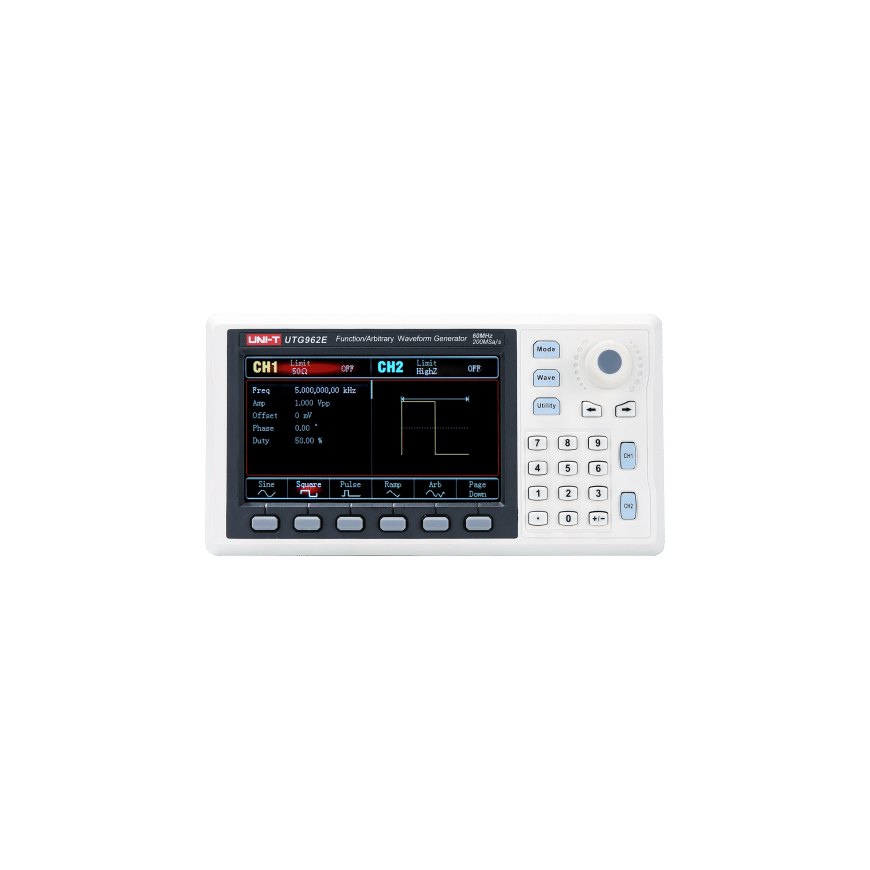

Function generator Uni-T UTG962E
229.00 €
Monthly payment from 6,80 €
1978455 LEC-MIE0450
5901890074858
Shipping 6-10 b.d.
You are interested in this product?
All about the product
Functional generator Uni-T UTG962E, power supply DC 5V / 2A
Specifications:
- Sine wave: 1 µHz ~ 60 MHz
- Square: 1 µHz ~ 20 MHz
- Pulse: 1 µHz ~ 20 MHz
- Ramp: 1 µHz ~ 400 kHz
- DC: ±5V (50 ohms), ±10V (high resistance)
- Arbitrary waveforms: 1 µHz ~ 10 MHz
- Recording depth: 24 waveforms
- Vertical resolution: 14 bits
- Power supply: DC 5V / 2A
- Screen: 4.3 inch TFT LCD (480x272px)
- Dimensions: 172x90x68mm
- Weight: 0.77kg
- In the set: power cable, USB cable, BNC cable
