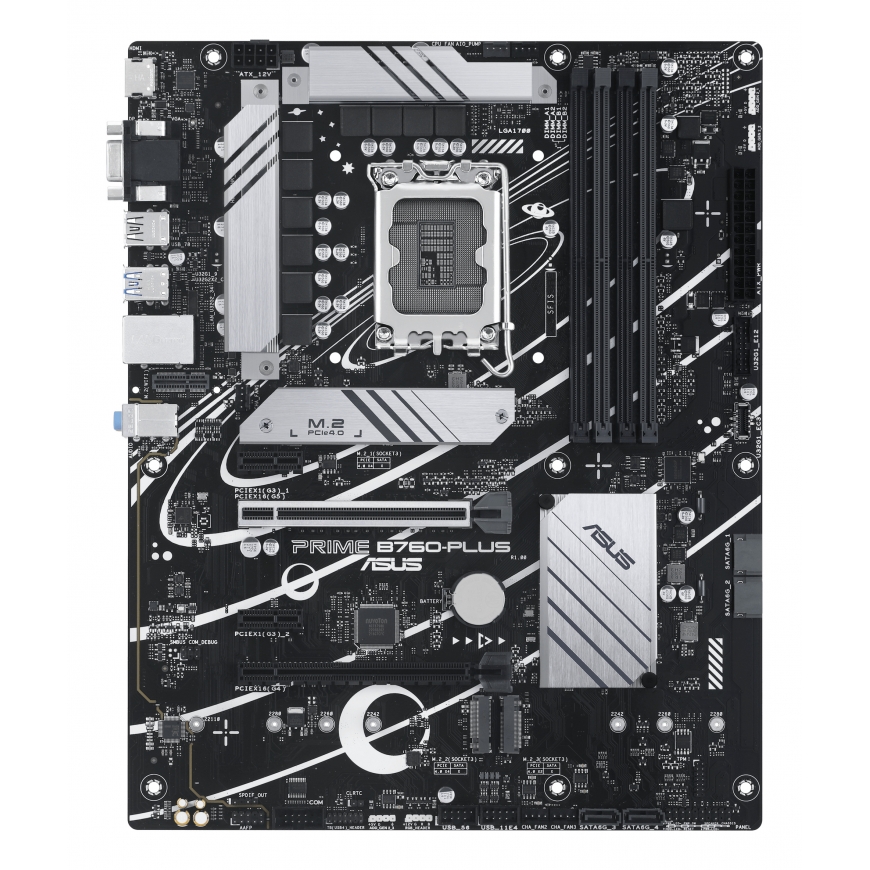

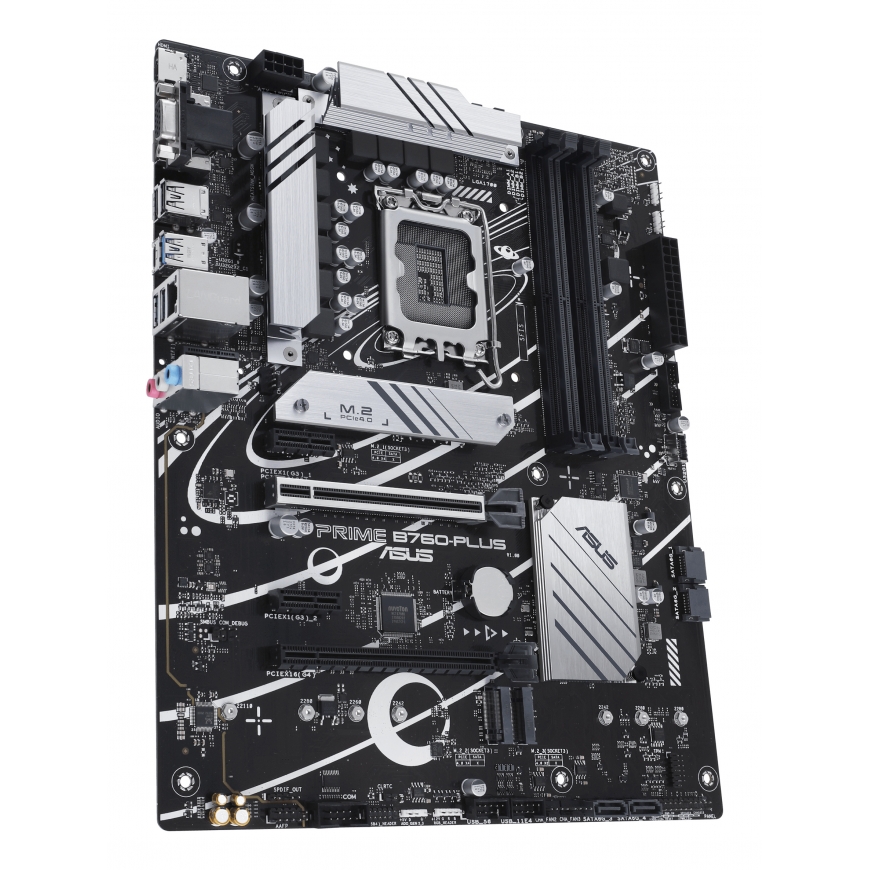

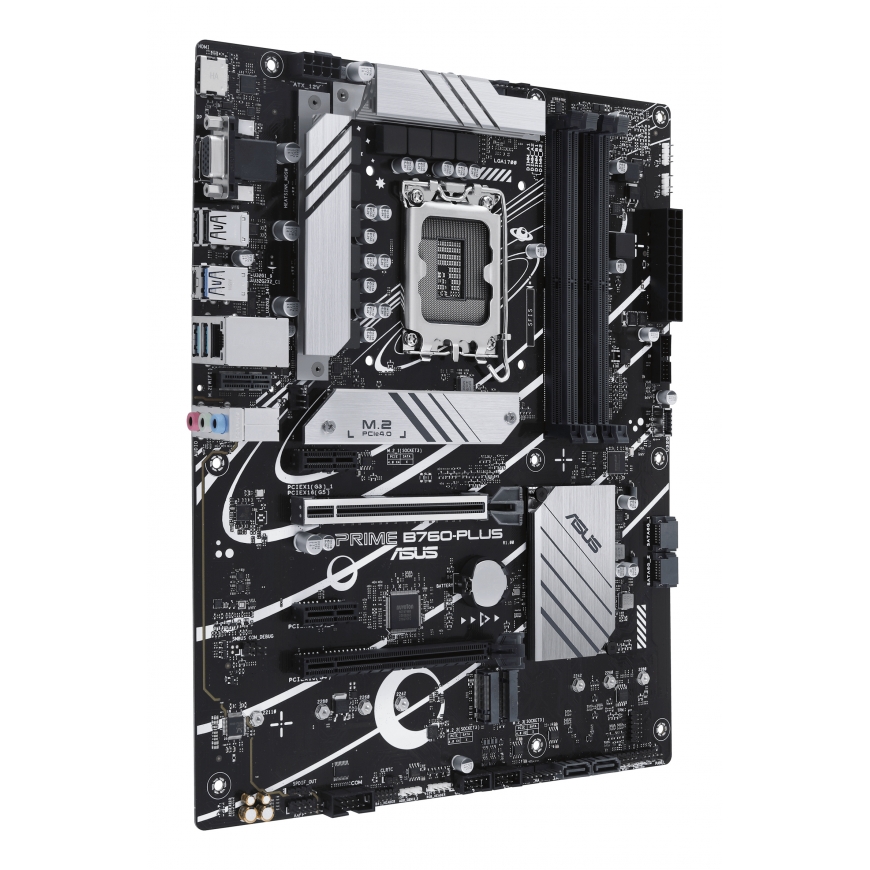

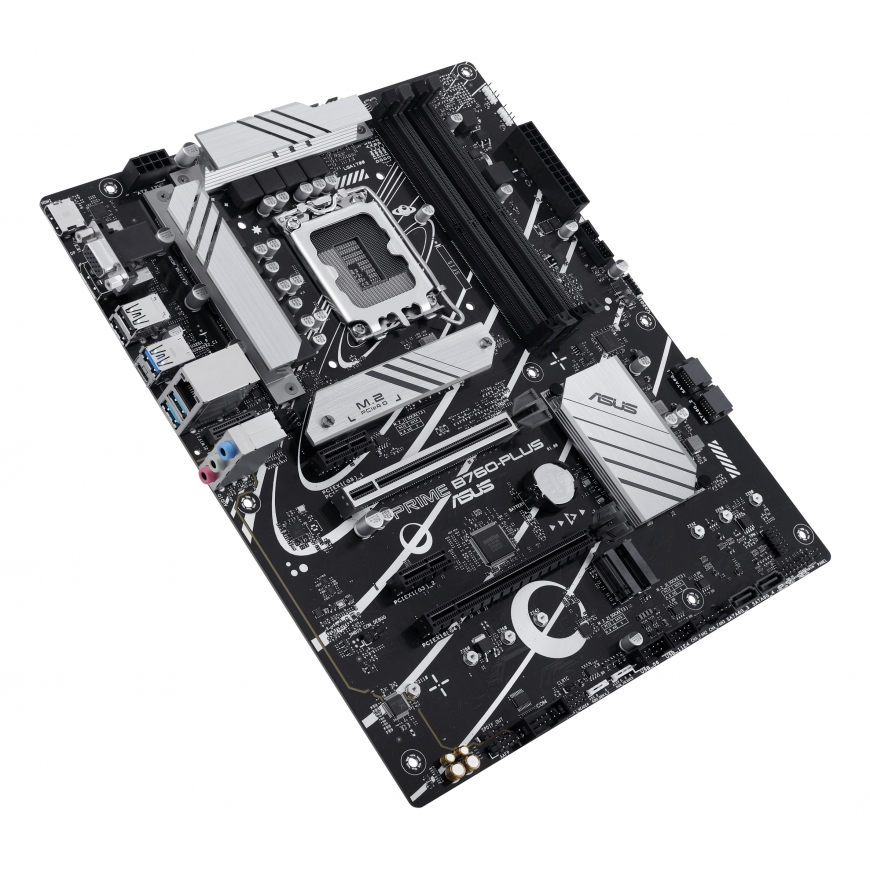

ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX
134,38 €
Monthly payment from 4.36 €
1972726 90MB1EF0-M0EAY0
4711387102985, 0197105102989
Shipping 3-7 b.d.
You are interested in this product?
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse
Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.
Processor | |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Pentium® Gold, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Processor manufacturer | Intel |
Memory | |
| Maximum internal memory | 192 GB |
| Supported memory clock speeds | 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800, 7000, 7200 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Unbuffered memory | Yes |
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 7 |
| RAID support | Yes |
Graphics | |
| Parallel processing technology support | Not supported |
Internal I/O | |
| USB 2.0 connectors | 2 |
| S/PDIF out connector | Yes |
| CPU fan connector | Yes |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| TPM connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |

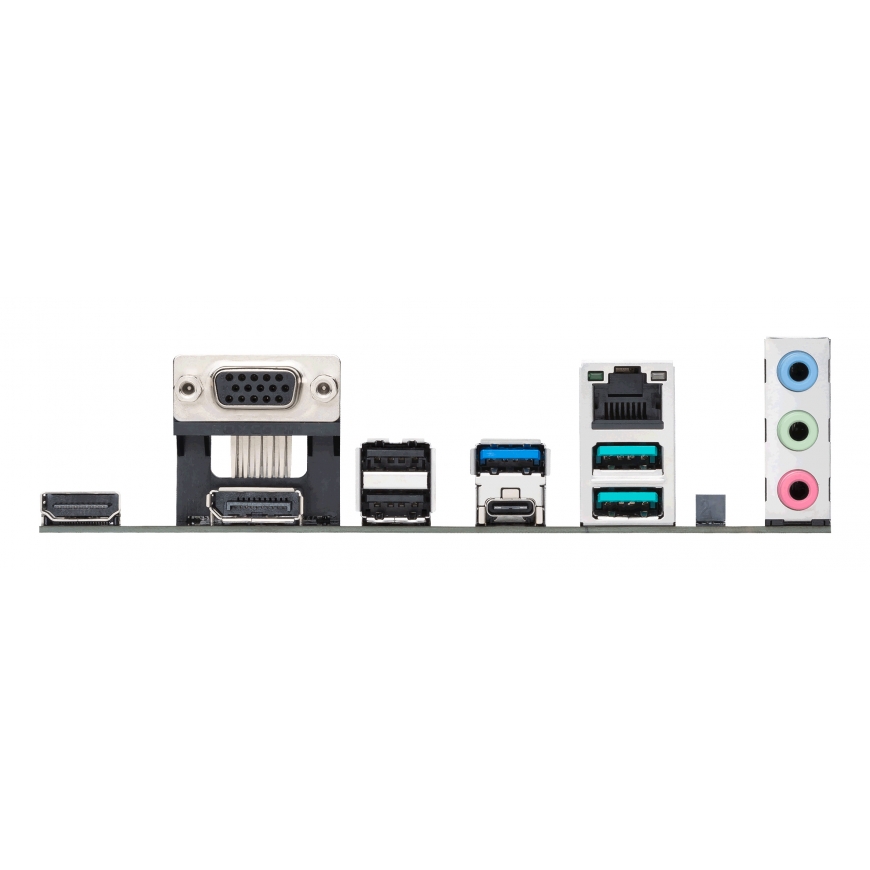

Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
Network | |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet, 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | Intel |
| Cooling type | Passive |
| Component for | PC |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Power source type | ATX |
Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 36 mm |
Other features | |
| Weight | 760 g |
Packaging content | |
| Cables included | SATA |
Packaging data | |
| Package width | 328 mm |
| Package depth | 266 mm |
| Package height | 53 mm |
| Package weight | 1.2 kg |
