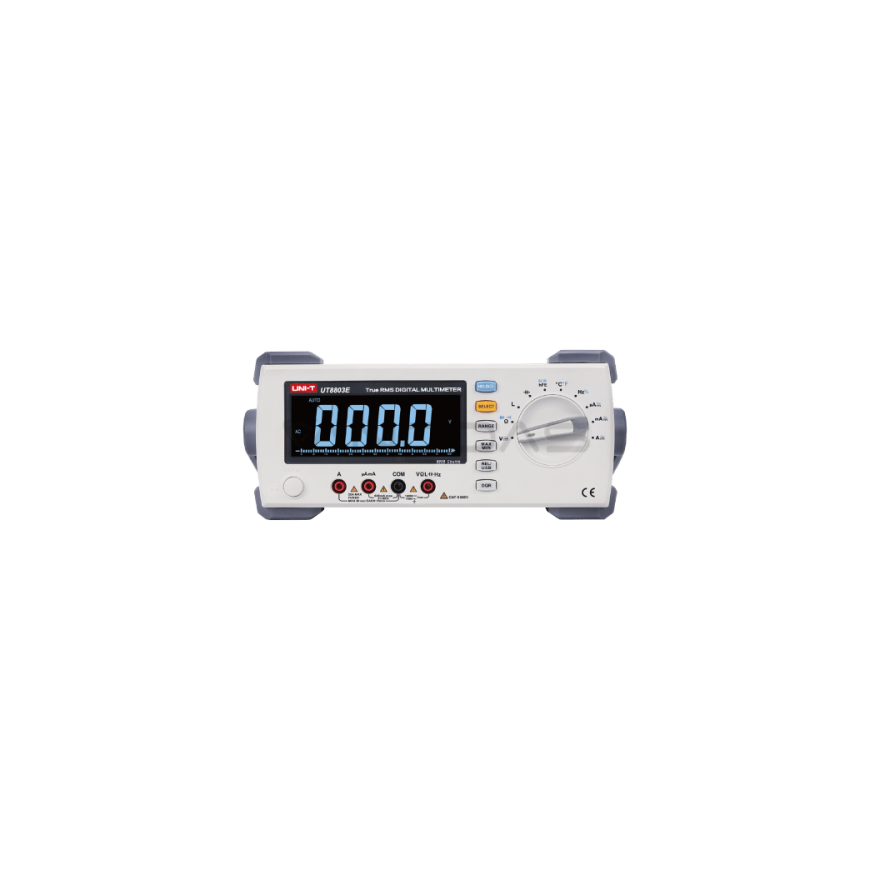

Laboratory multimeter Uni-T UT8803E
209.00 €
Monthly payment from 6,28 €
1943211 MIE0371
5901890044325
Shipping 9-13 b.d.
You are interested in this product?
All about the product
Laboratory multimeter Uni-T UT8803E allows for accurate measurements and has many advanced measurement functions.
MEASUREMENT RANGES:
- Constant voltage: 600mV / 6V / 60V / 600V / 1000V ± (0.3% + 2)
- AC voltage: 600mV / 6V / 60V / 600V / 750V ± (0.6% + 5)
- Continuous current: 600µA / 6mA / 60mA / 600mA / 10A ± (0.8% + 3)
- AC current: 600 µA / 6 mA / 60 mA / 600 mA / 10A ± (1% + 5)
- Resistance: 600 Ohm / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm / 60 MOhm ± (0.8% + 5)
- Capacitance: 6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF ± (1.5% + 5)
- Inductance: 600 µH / 6 mH / 60 mH / 600 mH / 6 H / 60 H / 100 H (2% + 5)
- Frequency: 600 Hz / 6 kHz / 60 kHz / 600 kHz / 6 MHz / 20 MHz ± (0.1% + 10)
- Filling factor: 5% ~ 95%
- Temperature: -40? ~1000? ± (1% + 5); -40? ~ 1832? ± (1% + 9)
- Diode test
- Continuity check
- Testing of HFE transistors
- SCR thyristor test
Additional features:
- Automatic/manual change of measurement ranges
- True RMS
- DQR measurement of inductance
- Freezes the last reading
- Horn
- Record of MAX / MIN values
- Measuring relative value
- Screen illumination (adjustment)
FEATURES:
- USB connection
- Power supply: 100V / 120V / 220V / 240V ± 10%, 47Hz ~ 63Hz
- Screen: EBTN LCD
- Dimensions: 265x110x320mm
- Weight: 3.09kg
- Kit includes: test leads, short test leads with alligator clips, power cable, USB cable, temperature probe, measuring accessory
