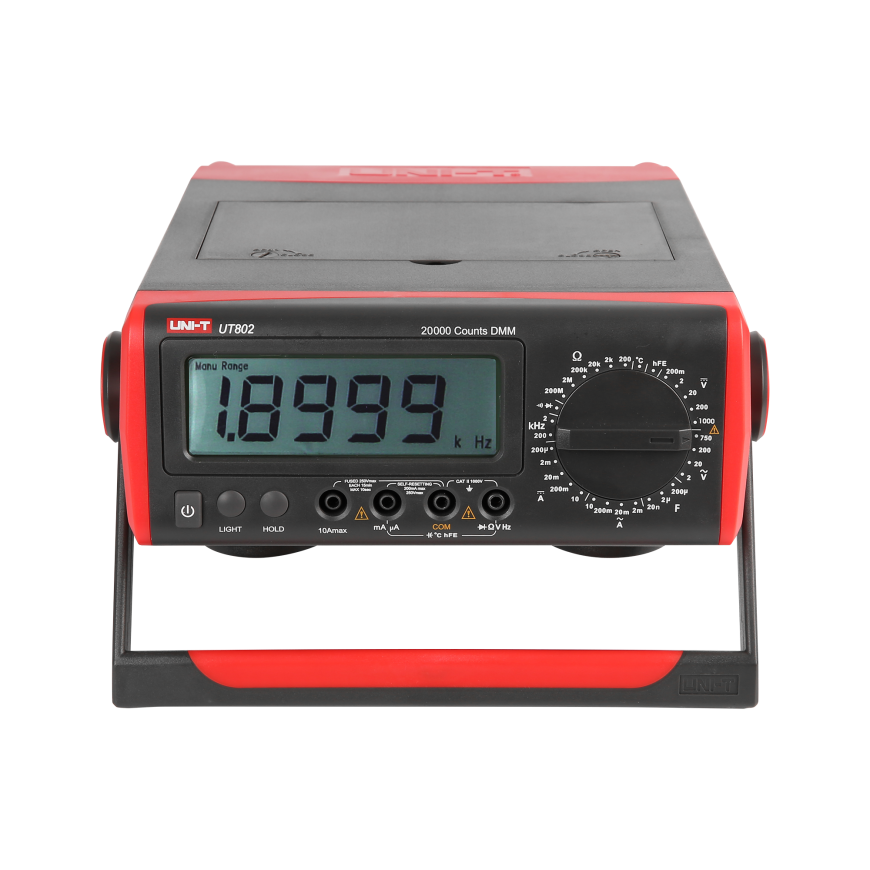

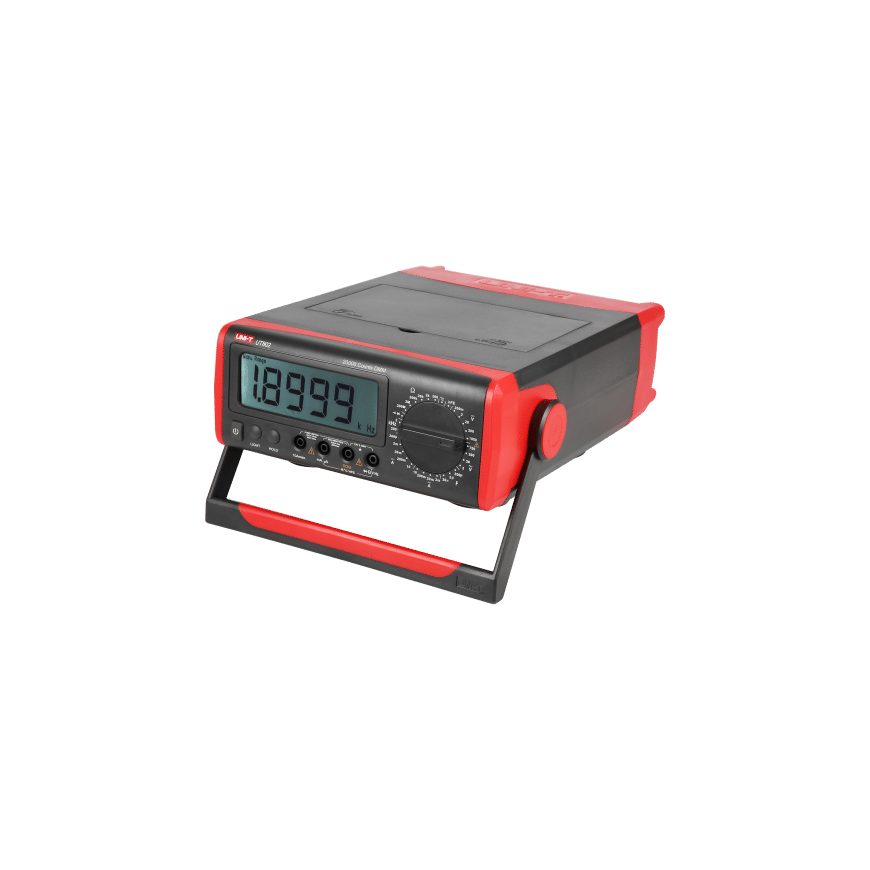

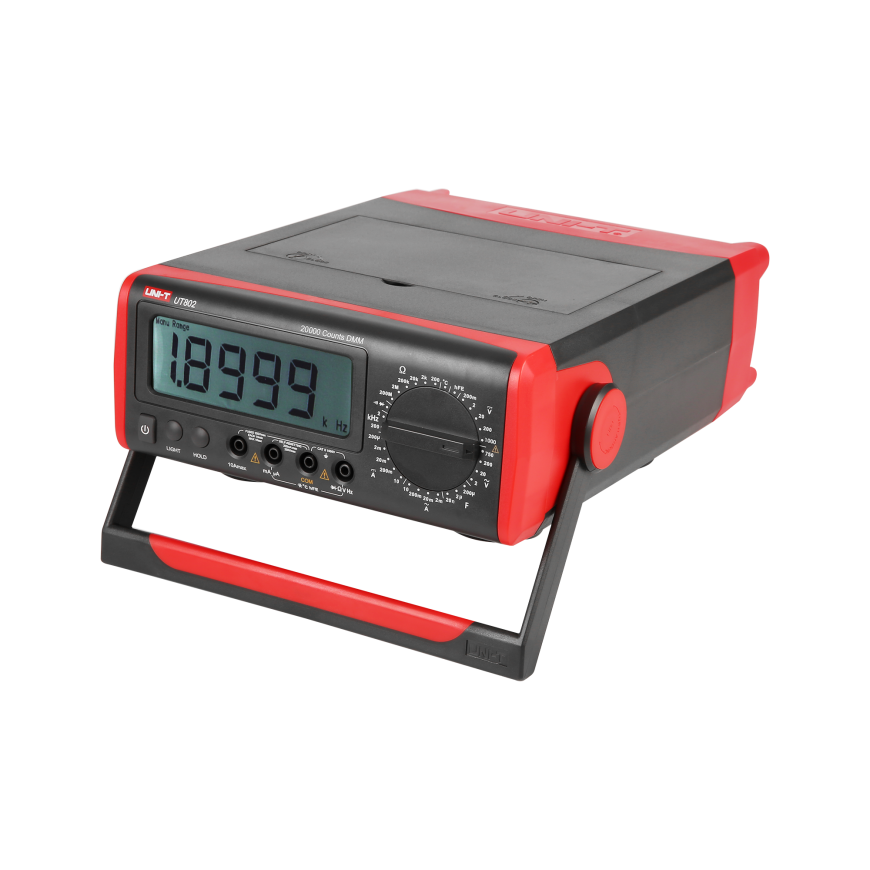

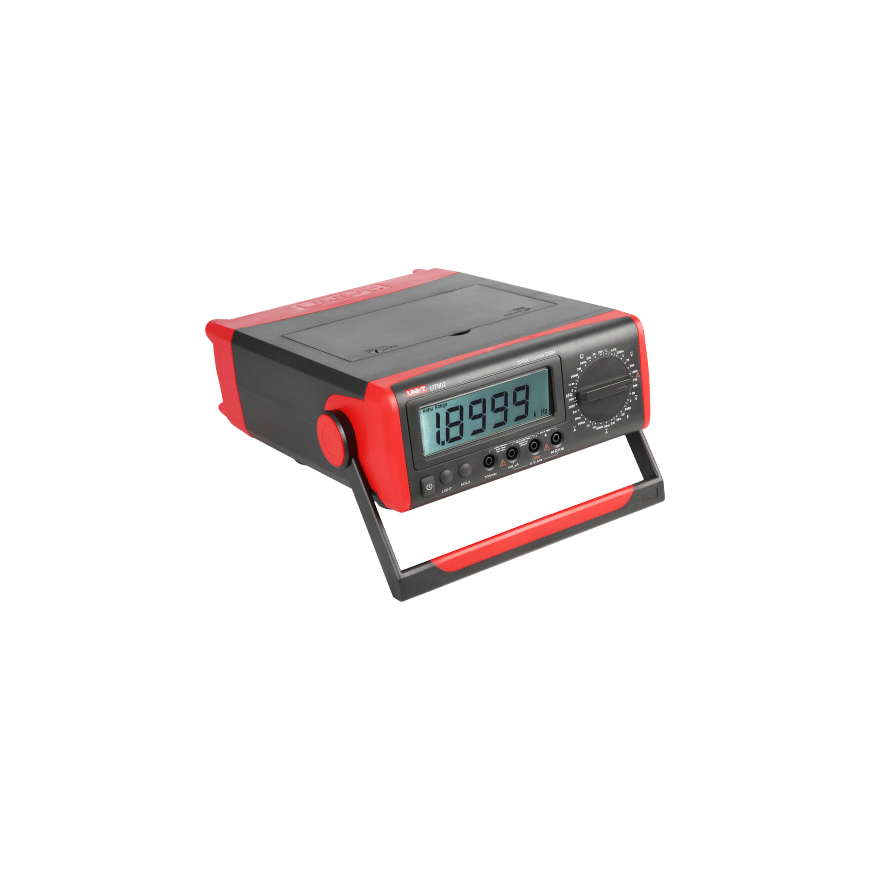

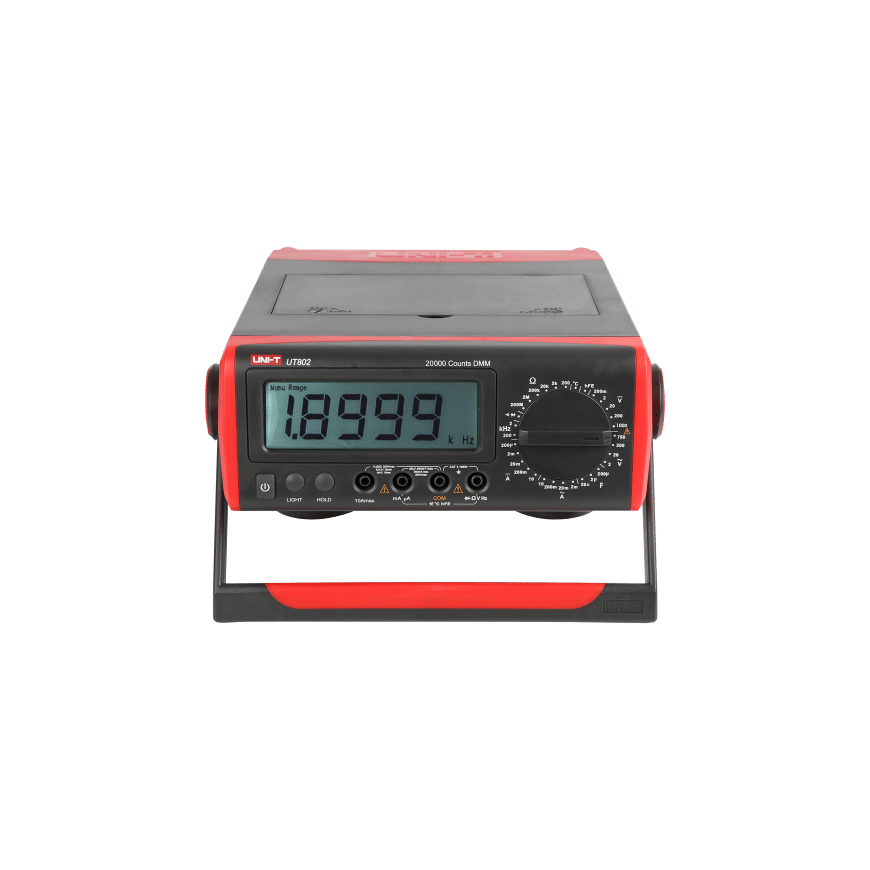

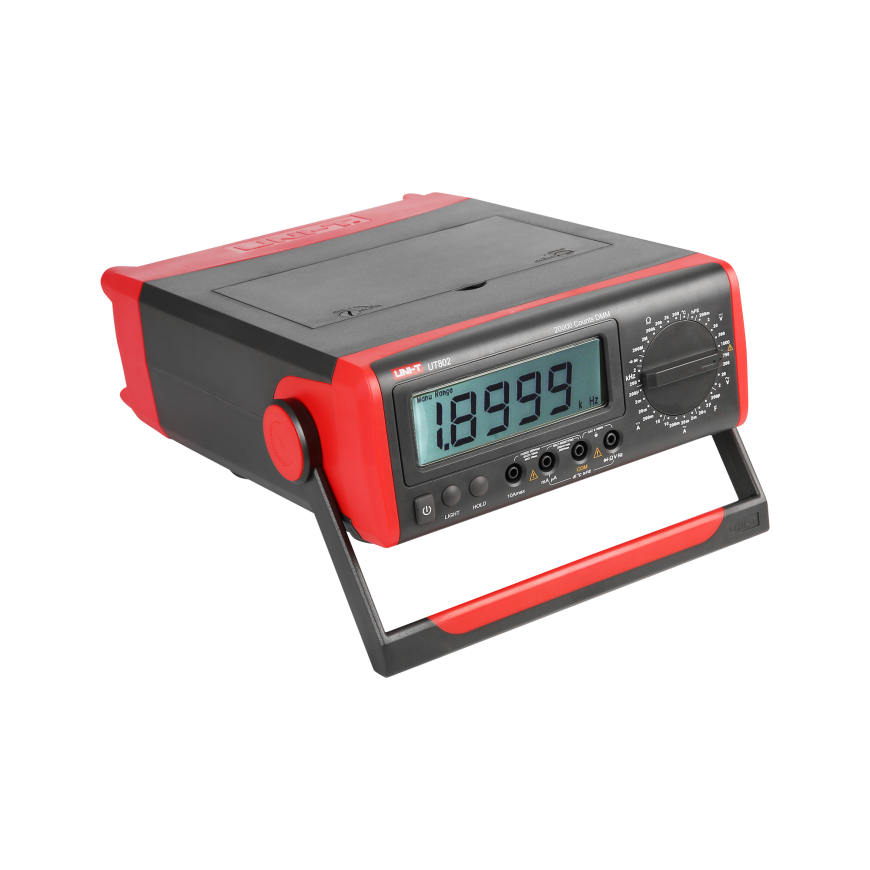

Laboratory multimeter Uni-T UT802
119.00 €
Monthly payment from 3,96 €
1818503 MIE0462
5901890075077
Shipping 9-13 b.d.
You are interested in this product?
All about the product
Laboratory multimeter Uni-T UT802 allows for accurate measurements and has many advanced measurement functions.
MEASUREMENT RANGES:
- Constant voltage: 200mV / 2V / 20V / 200V / 1000V ± (0.1% + 3)
- AC voltage: 2V / 20V / 200V / 1000V ± (0.5% + 20)
- Continuous current: 200 µA / 2 mA / 20 mA / 200 mA / 10A ± (0.5% + 20)
- AC current: 2 mA / 20 mA / 200 mA / 10A ± (0.8% + 40)
- Resistance: 200 ohms / 2 kOhm / 20 kOhm / 200 kOhm / 2 MOhm / 20 MOhm / 200 MOhm ± (0.5% + 10)
- Capacitance: 20nF / 2uF / 200uF ± (4% + 10)
- Frequency: 2kHz / 200kHz ± (1.2% + 10)
- Temperature: -40 °C ~ 1000 °C ± (1% + 5)
- Diode test
- Continuity check
- Testing of HFE transistors
Additional features:
- Automatic/manual change of measurement ranges
- True RMS
- DQR measurement of inductance
- Freezes the last reading
- Horn
- Record of MAX / MIN values
- Measuring relative value
- Screen lighting
FEATURES:
- USB connection
- RS232C port

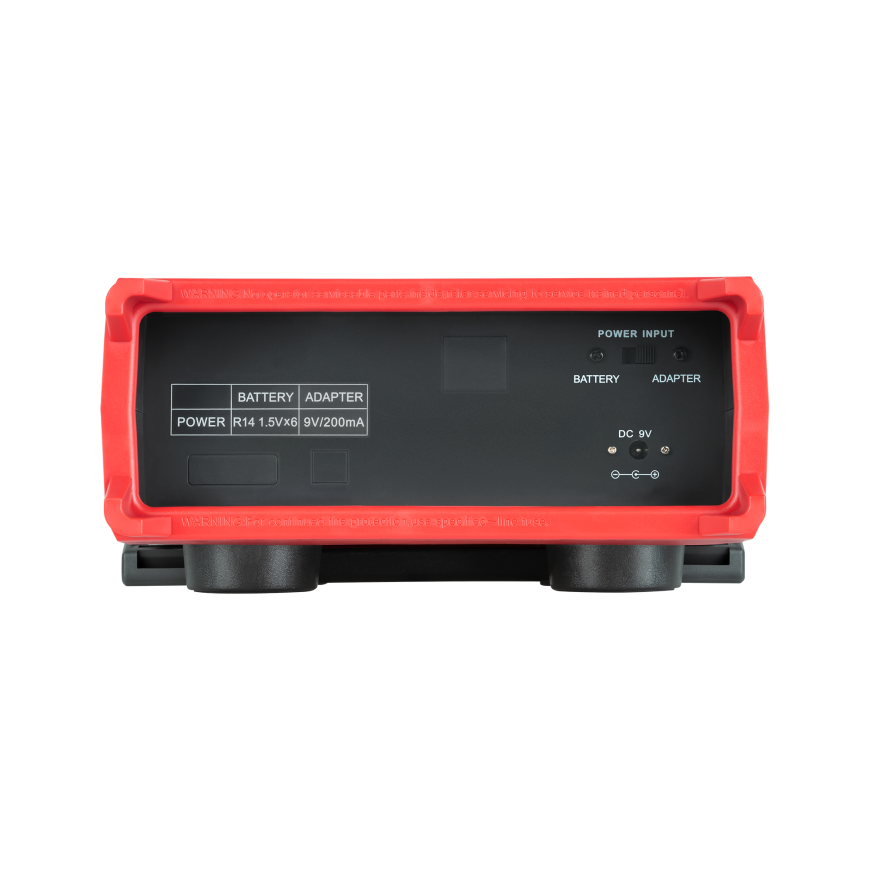

- Power supply: 220V AC / 2x R14 1.5V DC
- Screen: LCD
- Dimensions: 300x245x10mm
- Weight: 1.5 kg

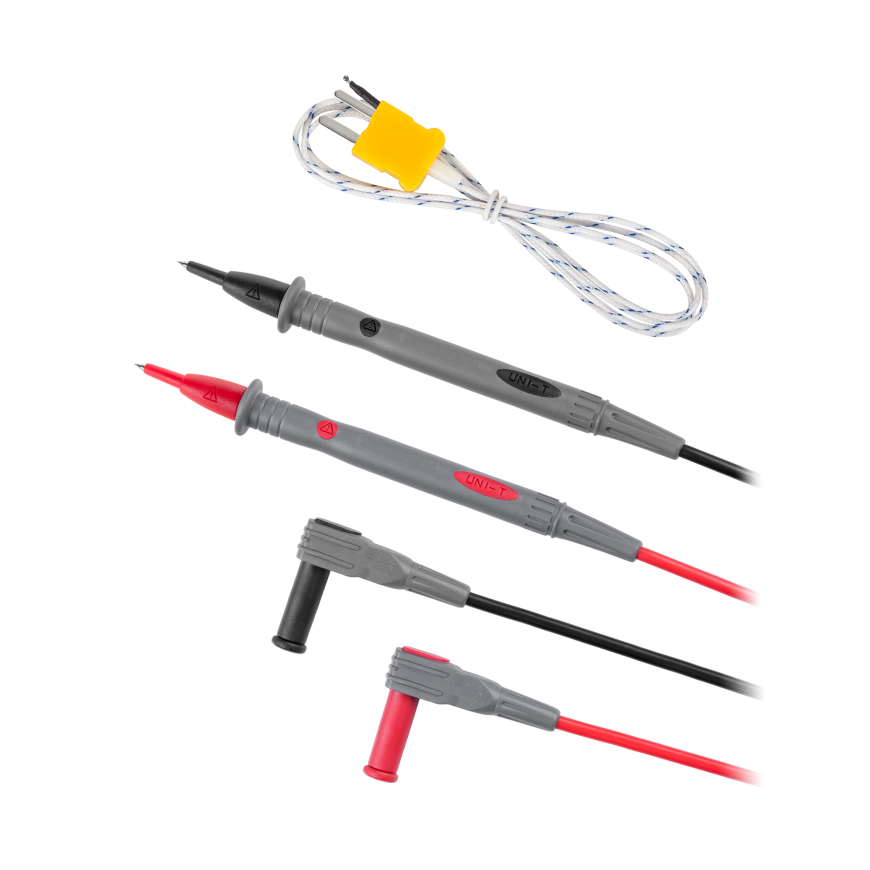

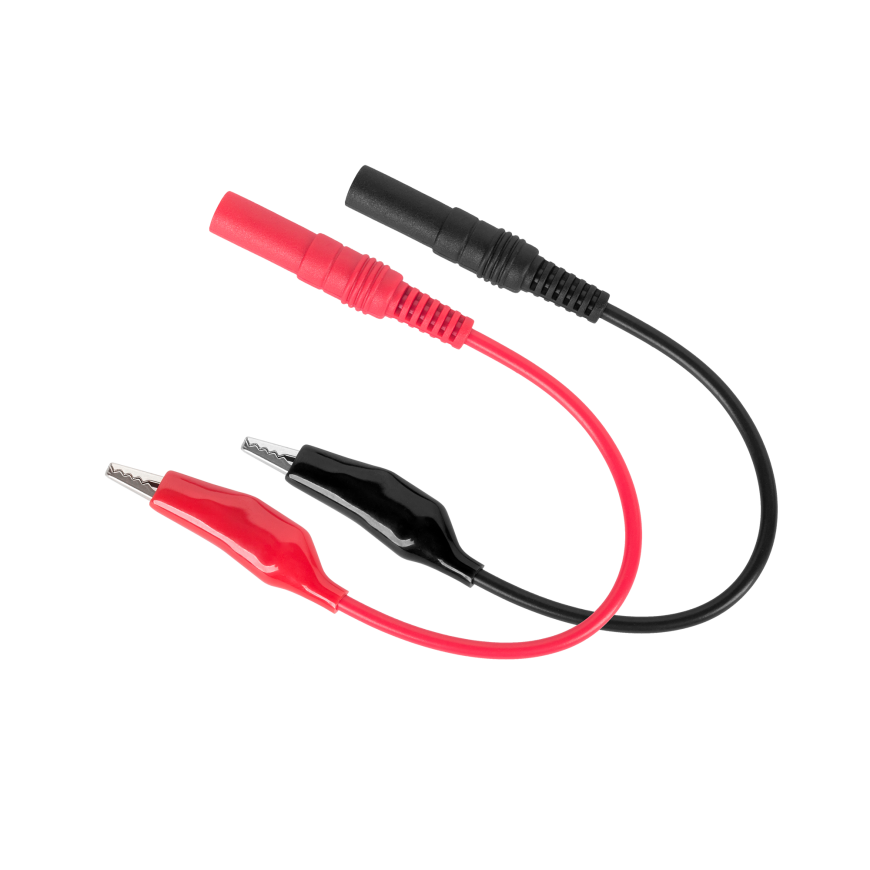

- Kit includes: test leads, short test leads with alligator clips, power cord, temperature probe, measuring accessory
