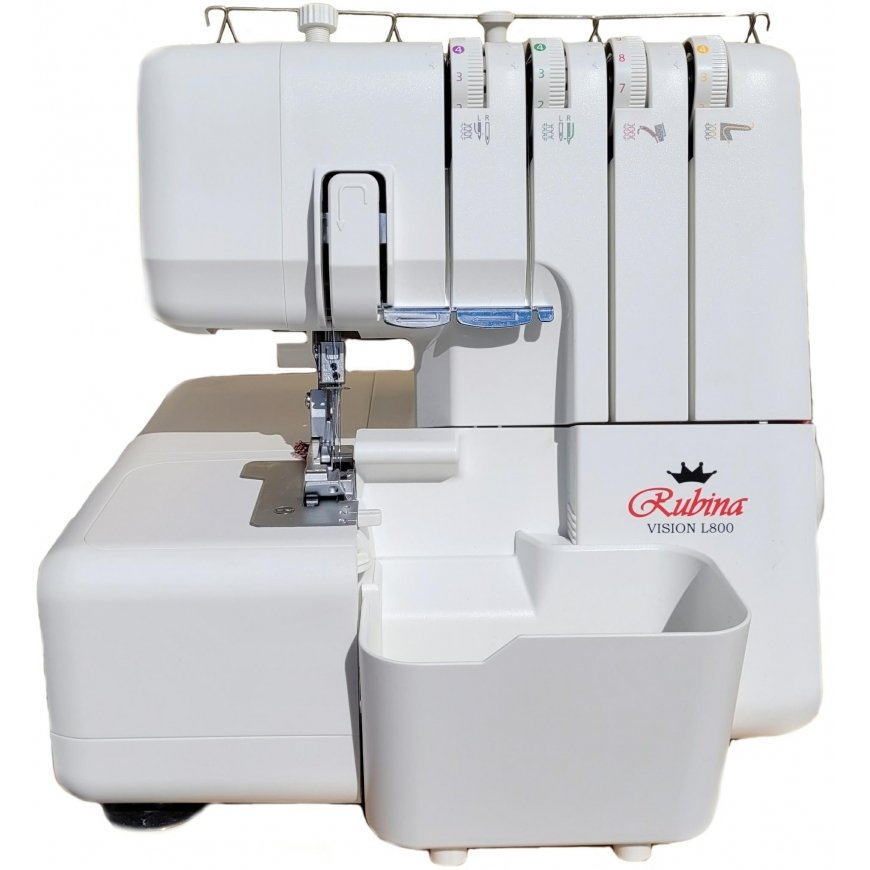

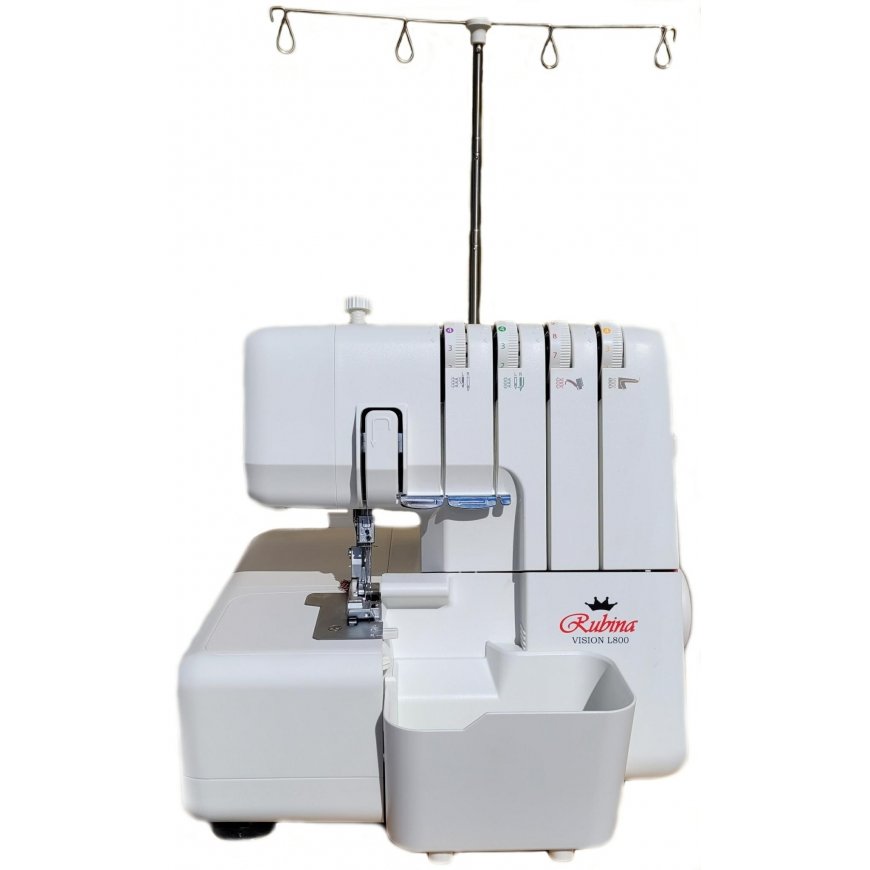

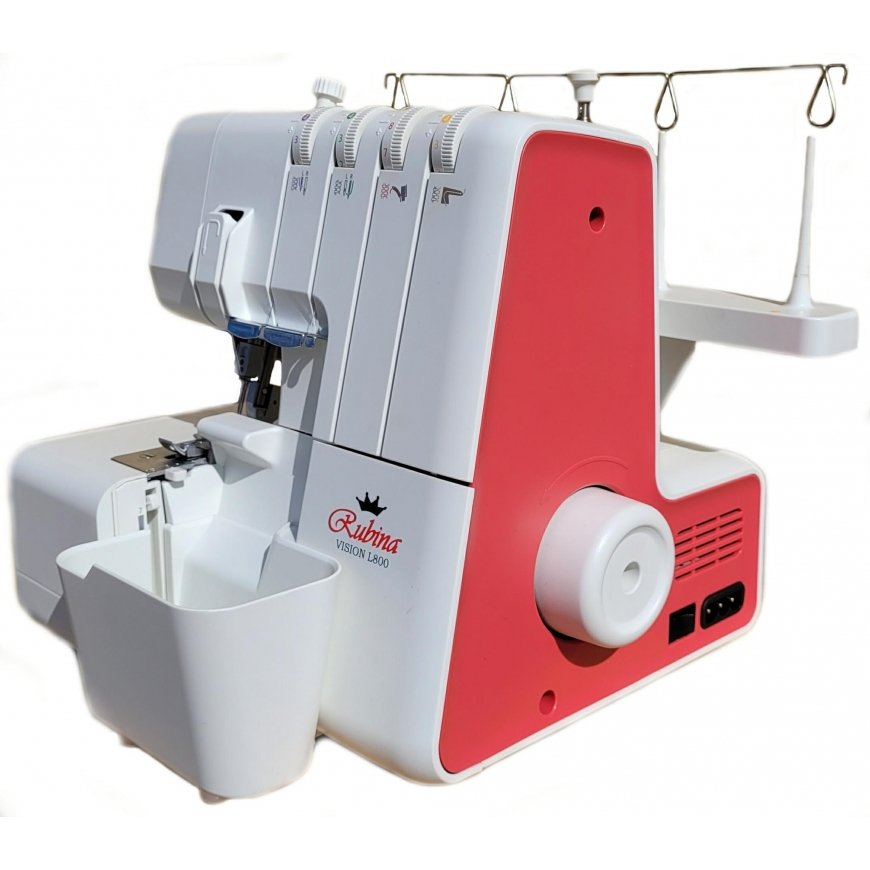

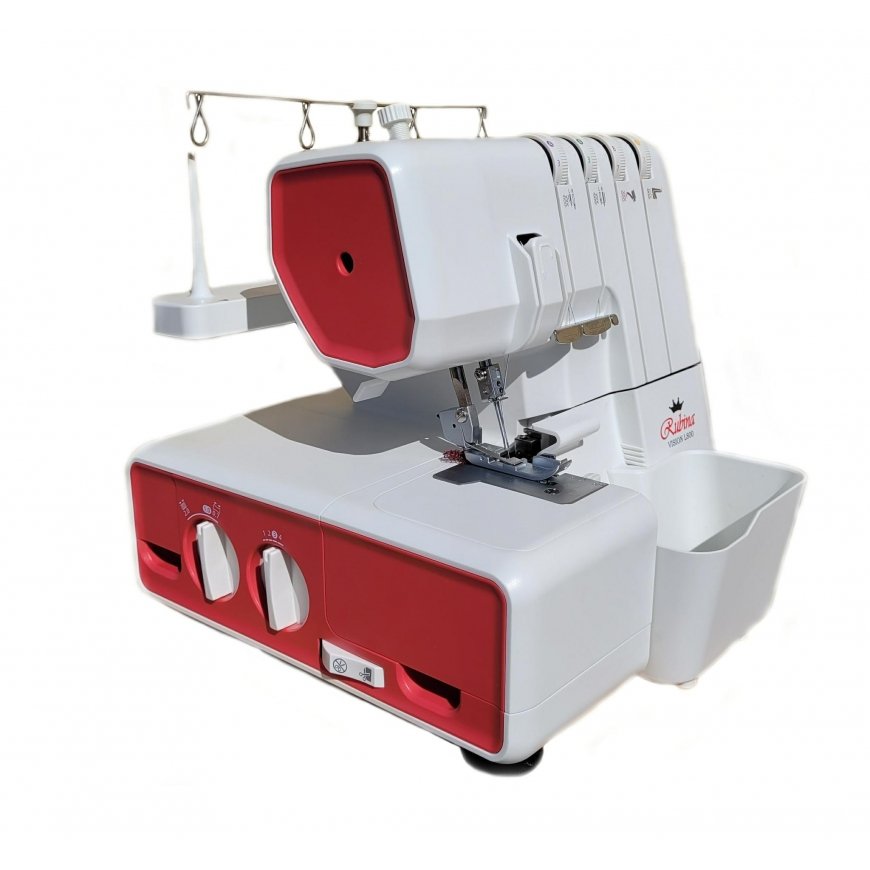

Sewing machine Edge overlock machine (overlock) Rubina Vision L800
1790824 VisionL800
4800800800802
Shipping 8-12 b.d.
All about the product
Edge banding machine (overlock) Rubina Vision L800
Rubina Vision L800 has many functions that ensure the comfort of your work: 15 operations, color-coded threading system, very simple operation, good LED lighting of the work area, quiet and professional sewing.
| Hand platform The table is easy to remove and allows you to use a comfortable, narrow handheld platform. | Maximum comfort Bright LED light. A convenient box for scraps will keep the overlock in perfect order. A drawer to store frequently used tools. |
 |  |
| Differential material feed Easily and qualitatively drapes and cuts various fabrics. The material can be stretched or shrunk with the help of a gentle differential conveyor. | Easy threading The colored threading scheme and convenient access to the loops will help you to thread the machine easily. |
 |  |
Examples:
 |  |
 |  |
 |  |
OUTCOMING OPERATIONS
| 4-thread cast-on |  |
| 3-thread cast very for elastic material |  |
| 3-thread cast-on (left needle) |  |
| 3-yarn yarn over (right needle) |  |
| 3-thread connecting stitch flatlock (left needle) |  |
| 3-thread connecting stitch flatlock (right needle) |  |
| 3-thread narrow stitch |  |
| 3-thread round seam (babylock) |  |
| 2-yarn yarn over (wrapped left needle) |  |
| 2-yarn yarn over (right needle wrapped) |  |
| 2-thread connecting stitch flatlock (left needle) |  |
| 2-thread connecting stitch flatlock (right needle) |  |
| 2-thread round seam (babylock) |  |
| 2-yarn yarn over (left needle) |  |
| 2-yarn yarn over (right needle) |  |
| 3-thread lace stitch (picot) |  |
Stitches are made | |
| 4-thread overlock stitch (stitched and overcast) | There is |
| 3-thread overlock stitch wide (overcast) | There is |
| 3-thread overlock seam narrow (overlocked) | There is |
| 3-thread flat seam narrow and wide (imitation) | There is |
| 3-thread round babylock stitch | There is |
| 3-thread babylock seam | There is |
| 2-thread overlock stitch (overcast) | There is |
| 2-thread flat seam narrow and wide (imitation) | There is |
| 2-thread round bend stitch | There is |
| 2-thread hem | There is |
Distinctive features | |
| 2, 3, 4 thread overlock | There is |
| Improved threading system (color coding) | There is |
| Manual platform | There is |
| Automatic lower loop threading | There is |
| Increased presser foot lift | There is |
| Pedal pressure adjustment | There is |
| LED lighting 5W | There is |
| Chip picker included | There is |
| Narrow tilt seam switch lever | There is |
Technical characteristics | |
| Stitch length | 1~4mm |
| Differential material feed adjustment for puckering or stretching the fabric | There is |
| Seam width | 3~5mm (3-thread overlock stitch) |
| Edge trimming width adjustment | There is |
| Foot lift | up to 4.5 mm |
| Sewing speed | 1300 stitches/min |
| Engine power | 100W |
| Net/gross weight, kg | 6.7/ 8.2 |
| Needle system | 130/705 Н |
Standard accessories | |
| Tweezers | There is |
| A brush | There is |
| Nets for coils (4 pcs.) | There is |
| Needle set | There is |
Screwdriver | There is |
| Soft case | There is |
| A threading device is offered | There is |
| 2-wire convector | There is |
| Scrap collector | There is |
| Holder for large reels - 4 pcs | There is |
Instruction: in Lithuanian, Russian, English
