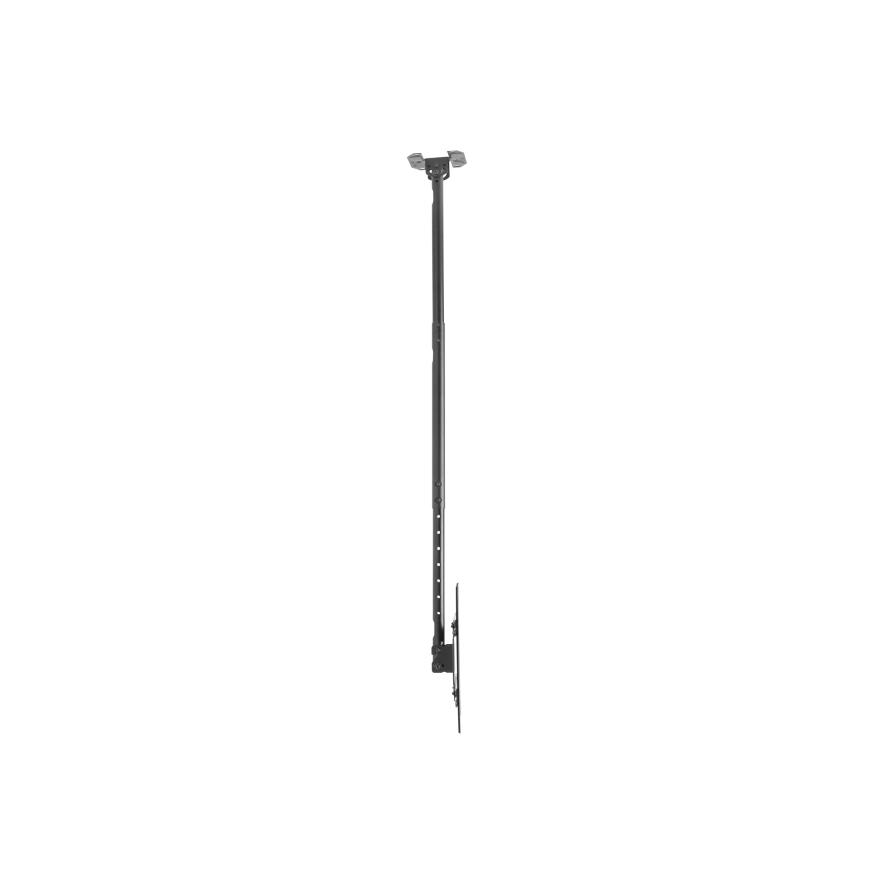

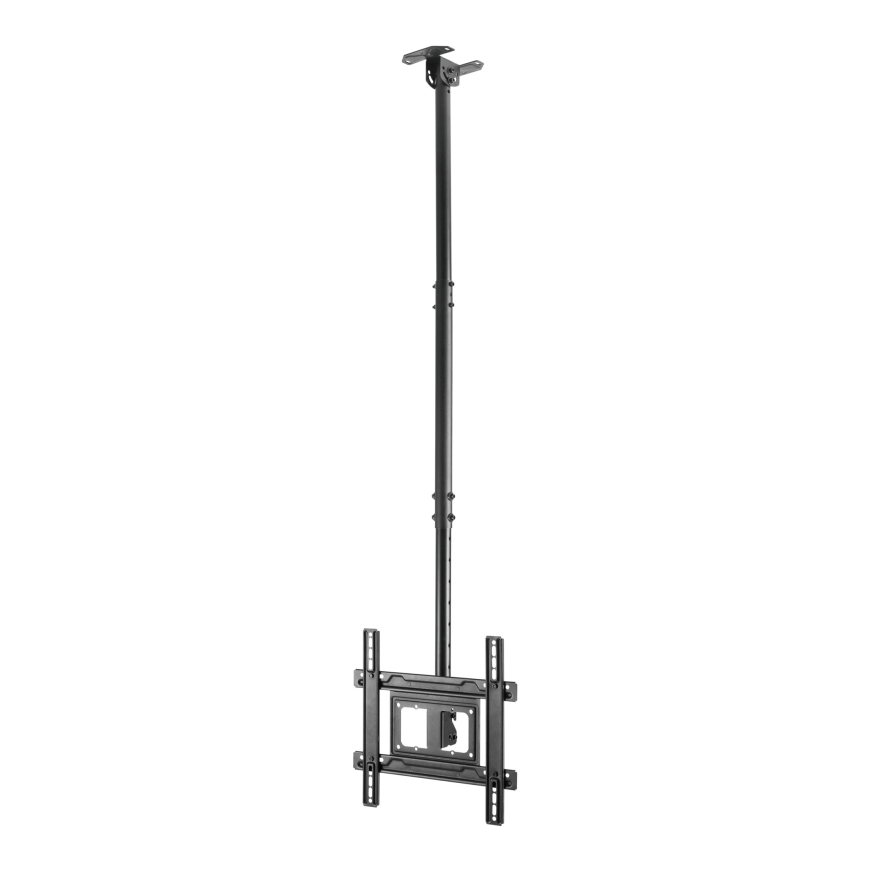

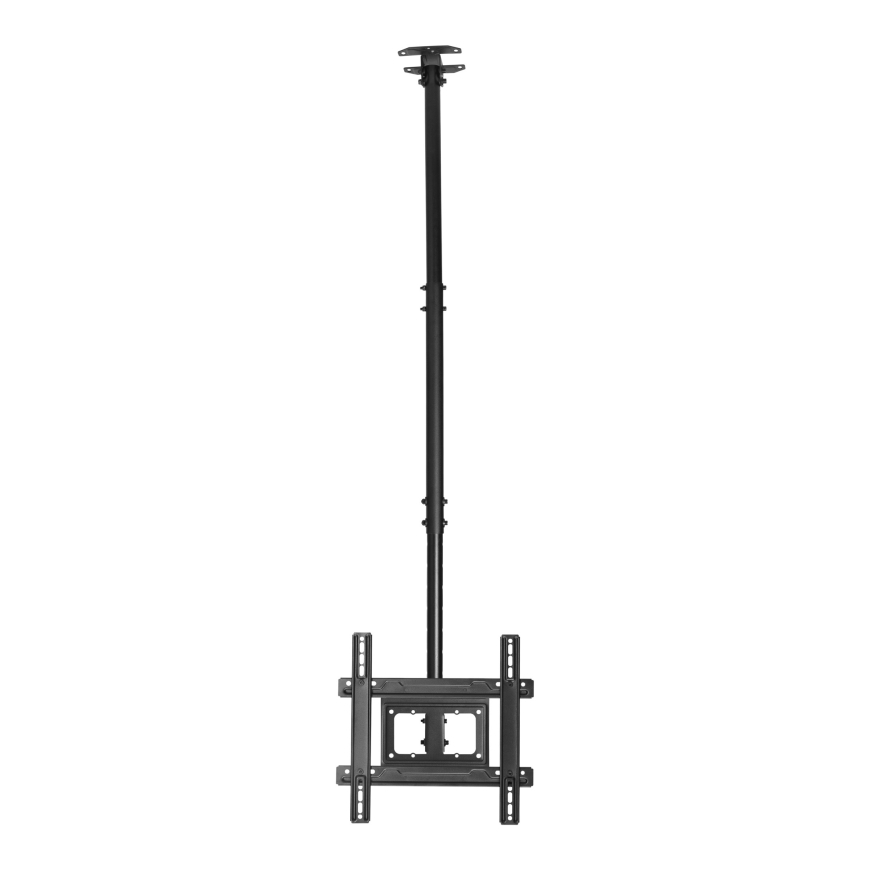

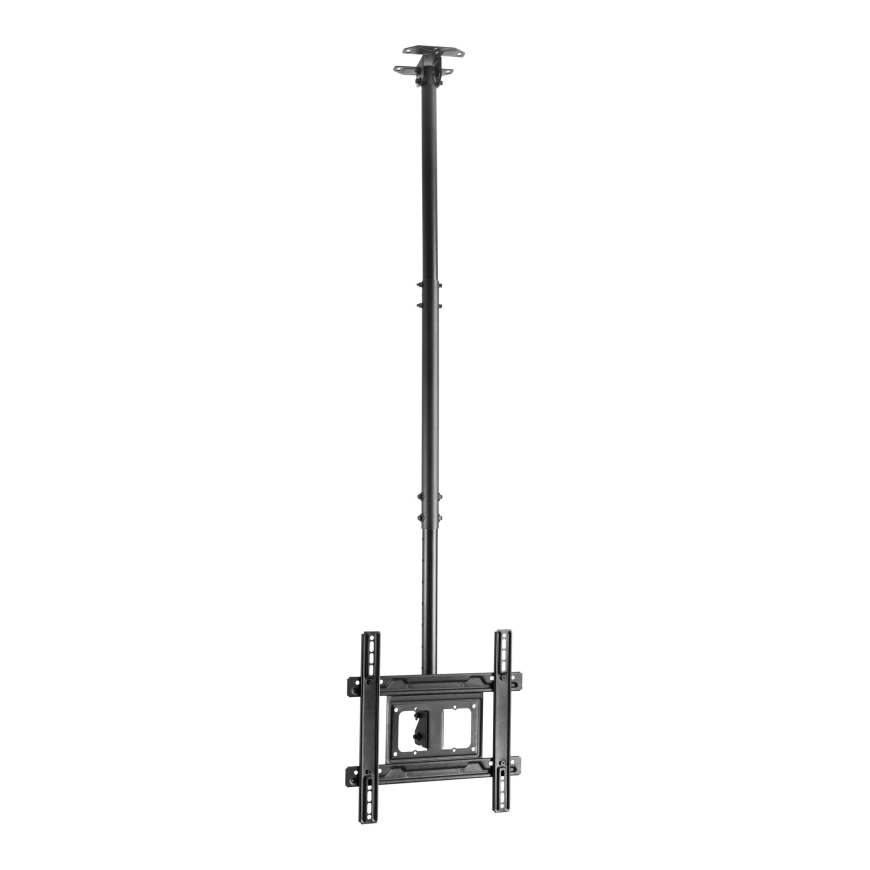

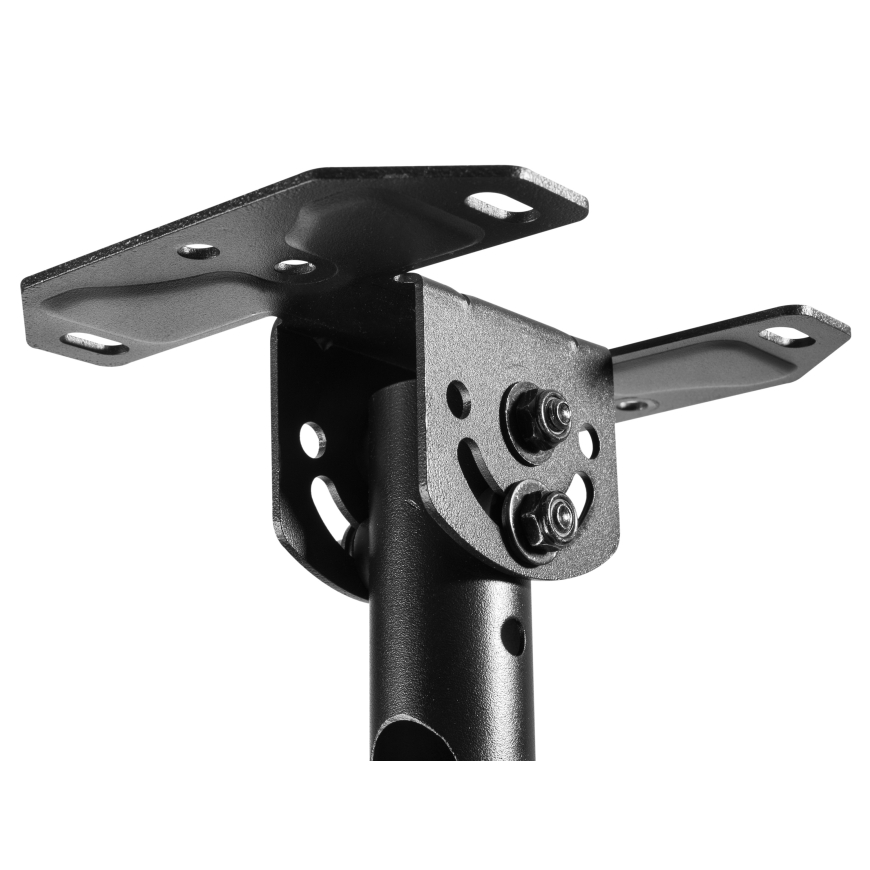

Equip 32"-70" Ceiling Mount TV Bracket
69.01 €
Monthly payment from 2,68 €
1787334 650321
4015867204979
Shipping 12-13 b.d.
You are interested in this product?
All about the product
The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/Plasma TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screensOther features | |
| Country of origin | China |
Features | |
| Mounting type | Ceiling |
| Tilt angle range | 5 - 25° |
| Product colour | Black |
| Screws included | Yes |
Weight & dimensions | |
| Maximum weight capacity | 50 kg |
| Distance to the wall (max) | 157.7 cm |
| Distance to the wall (min) | 70.7 cm |
| Width | 185 mm |
| Height | 1792 mm |
| Depth | 450 mm |
| Weight | 5.06 kg |
Performance | |
| Swivel angle range | -30 - 30° |
| Cable management | Yes |
| Housing material | Plastic, Steel |
| Maximum VESA mount | 400 x 400 mm |
| Minimum VESA mount | 100 x 100 mm |
| Panel mounting interface | 200 x 200, 300 x 300, 300 x 200, 400 x 200, 400 x 400, 400 x 300, 100 x 100, 200 x 100, 100 x 200 |
Packaging data | |
| Package depth | 642 mm |
| Package height | 77 mm |
| Package width | 265 mm |
| Package weight | 5.58 kg |
| Package dimensions (WxDxH) | 265 x 642 x 77 mm |
Logistics data | |
| Master (outer) case length | 660 mm |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 85299097 |
| Master (outer) case height | 255 mm |
| Master (outer) case width | 280 mm |
| Master (outer) case gross weight | 17.2 kg |
Certificates | |
| Certification | CE, RoHS |
Technical details | |
| Maximum screen size | 177.8 cm (70") |
| Minimum screen size | 81.3 cm (32") |
