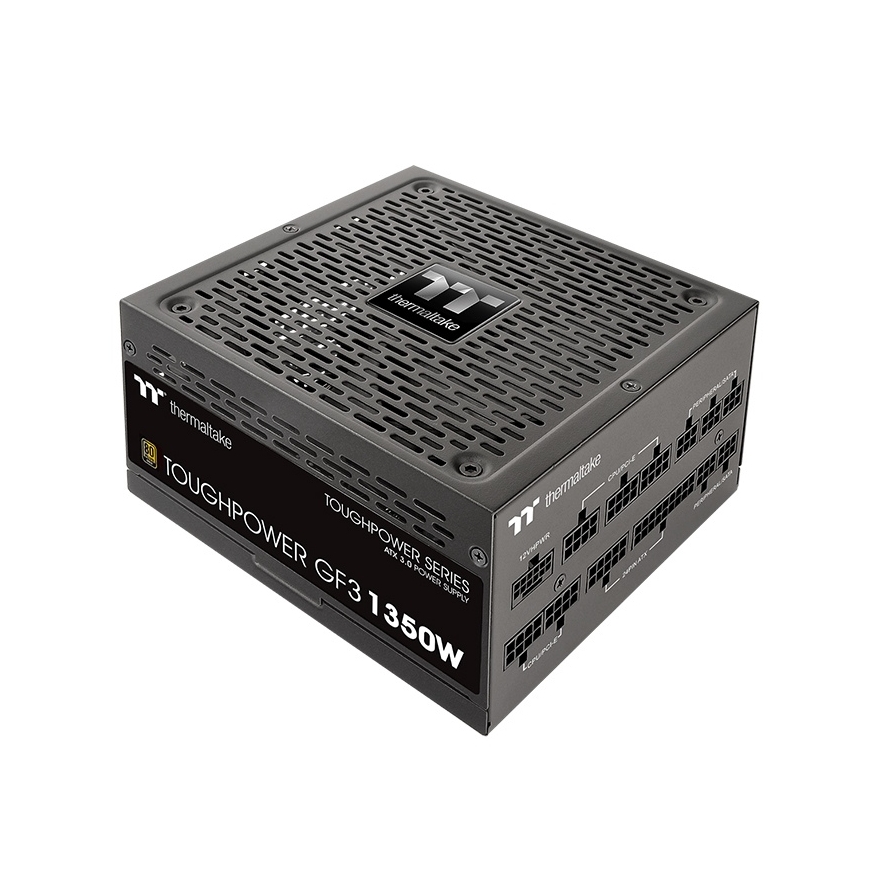

Thermaltake Toughpower GF3 power supply unit 1350 W 24-pin ATX Black
263.88 €
Monthly payment from 7,70 €
1672356 PS-TPD-1350FNFAGE-4
4713227534352
Shipping 4-6 b.d.
You are interested in this product?
All about the product
Thermaltake Toughpower GF3. Total power: 1350 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500,650,800 mm. Purpose: PC, 80 PLUS certification: 80 PLUS Gold, Bearing technology: HDB. Product colour: Black, Fan diameter: 14 cm, Number of fans: 1 fan(s). Width: 150 mm, Depth: 160 mm, Height: 86 mmPower | |
| Hold time | 17 ms |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1350 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 112.5 A |
| Max output current (+5V) | 24 A |
| Max output current (+5Vsb) | 3 A |
| Max output current (-12V) | 0.5 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 1350 W |
Performance | |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | HDB |
| Silent mode | Yes |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 14 cm |
| On/off switch | Yes |
Ports & interfaces | |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 500, 650, 800 |
| Peripheral (Molex) power cable length | 500, 650, 800, 950 |
| PCI Express power cable length | 50 cm |
| PCI Express power connectors (16-pin) | 1 |
Operational conditions | |
| Operating relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 95% |
Weight & dimensions | |
| Weight | 1.83 kg |
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
Packaging data | |
| Package type | Box |
Packaging content | |
| Cable tie(s) included | Yes |
Certificates | |
| Certification | CE/UKCA/cTUVus/TÜV/FCC/IC/BSMI/EAC/CB/S-Mark/BIS/KCC |
