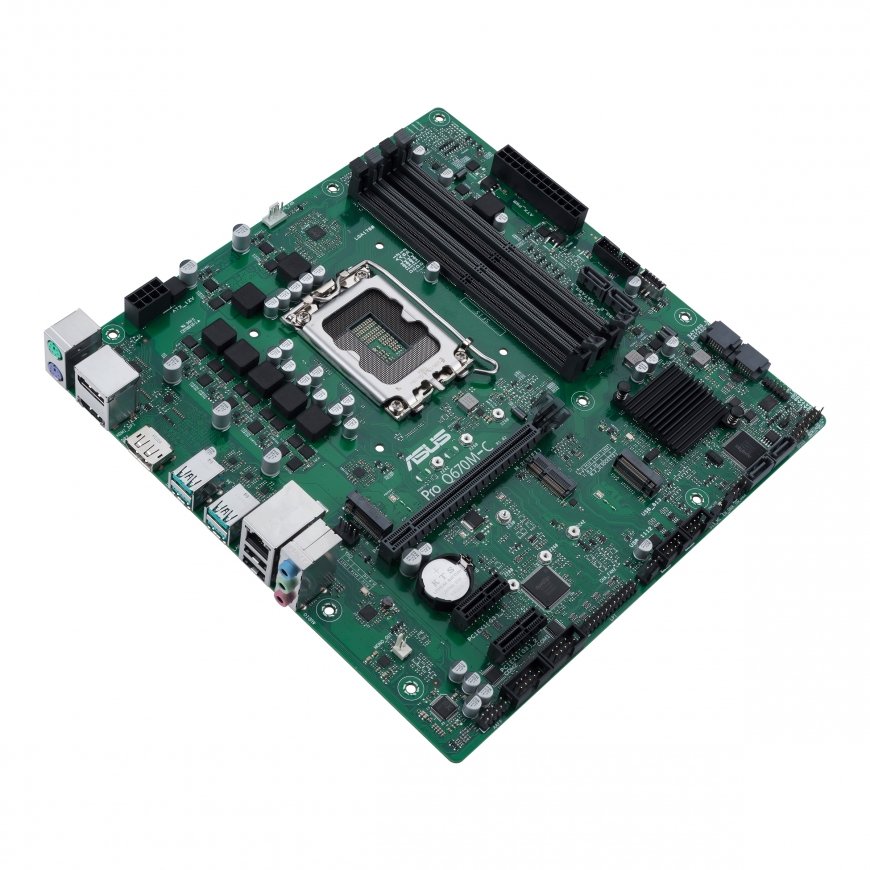

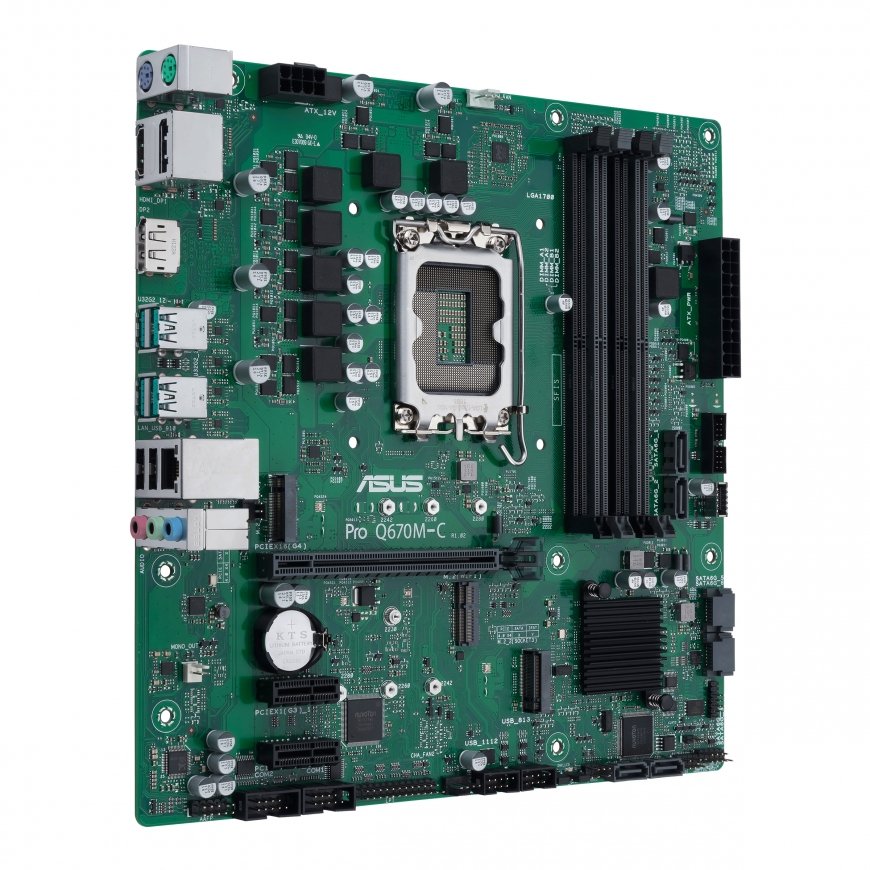

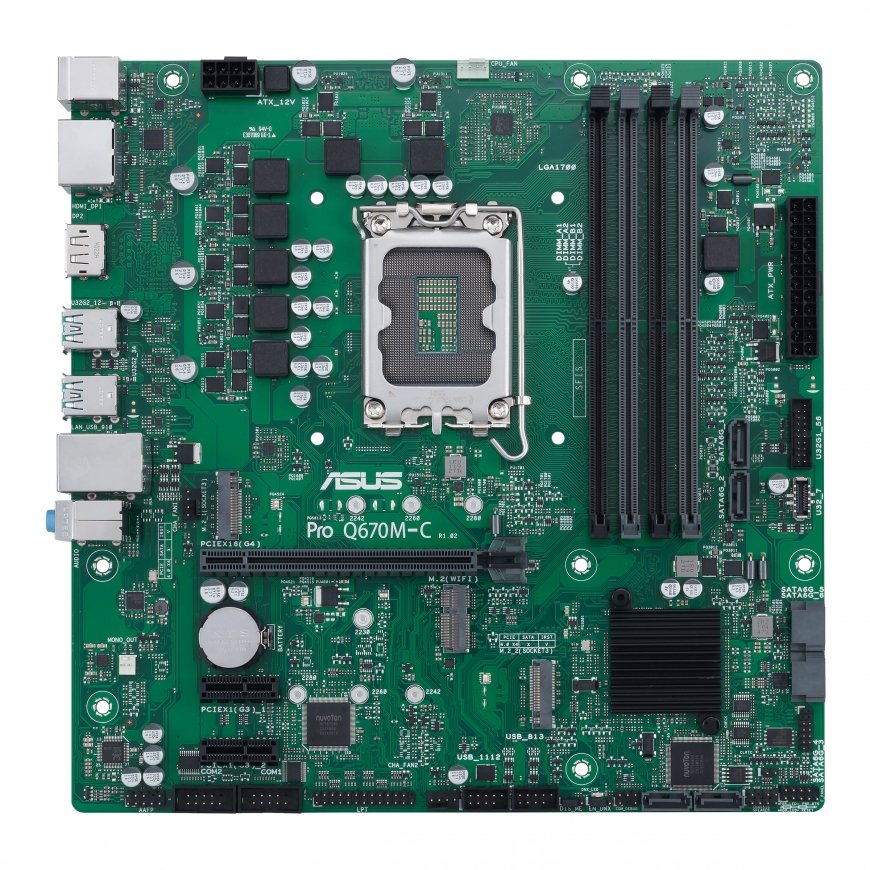

ASUS PRO Q670M-C-CSM Intel Q670 LGA 1700 micro ATX
1671366 90MB19E0-M0EAYC
4711081518389, 0195553518383
2026-09-02
Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely
Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility
Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
Processor | |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel Pentium G, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| Maximum internal memory supported by processor | 128 GB |
| Processor manufacturer | Intel |
Memory | |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 4800 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| ECC сompatibility | Non-ECC |
Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 6 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 8 |
| RAID support | Yes |
Internal I/O | |
| USB 2.0 connectors | 2 |
| CPU fan connector | Yes |
| Number of COM connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 6 |
| EPS power connector (8-pin) | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Audio connector | Yes |

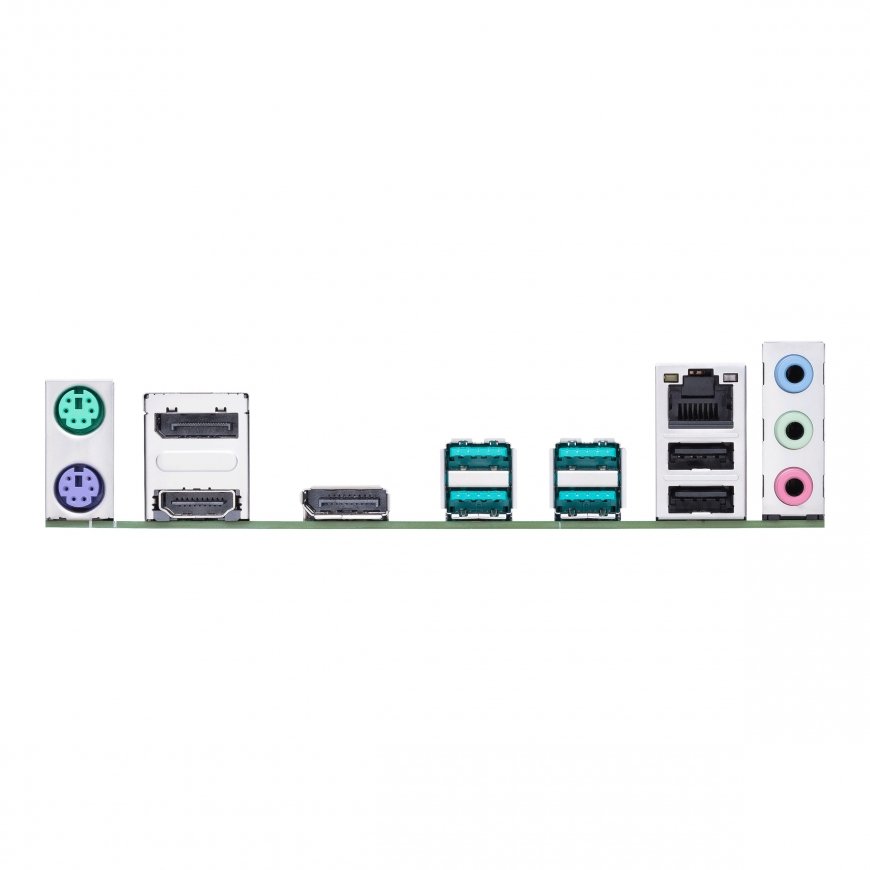

Rear panel I/O ports | |
| PS/2 ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 2 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
Features | |
| Motherboard form factor | micro ATX |
| Motherboard chipset | Intel Q670 |
| Compatible operating systems | Windows® 11 64-bit, Windows® 10 64-bit |
| Audio output channels | 7.1 channels |
| Motherboard chipset family | Intel |
| Cooling type | Active |
| Component for | PC |
| Windows operating systems supported | Windows 10, Windows 11 |
| Power source type | ATX |
| Number of mounting holes | 8 |
Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
BIOS | |
| BIOS memory size | 256 Mbit |
Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 51 mm |
Other features | |
| Weight | 634 g |
Packaging content | |
| Cables included | SATA |
| Drivers included | Yes |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
