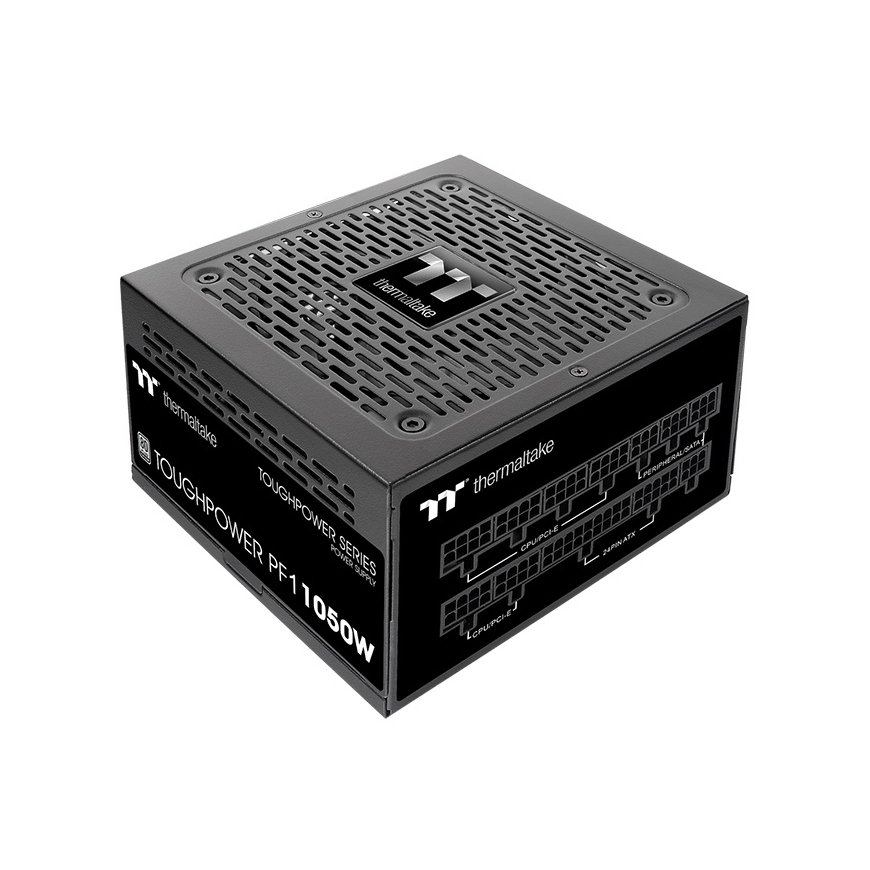

Thermaltake Toughpower PF1 power supply unit 1050 W 24-pin ATX ATX Black
219.00 €
Monthly payment from 6,54 €
1292313 PS-TPD-1050FNFAPE-1
4713227530057
Shipping 12-13 b.d.
You are interested in this product?
All about the product
Toughpower PF1 1050W - TT Premium EditionComing in a higher wattage, the Toughpower PF1 1050W/1200W Platinum - TT Premium Edition delivers 80 PLUS Platinum efficiency and levels up in cooling performance by featuring a 120mm High Static Pressure Fan which can perform at a maximum operating speed of up to 2500 RPM. The second-generation hydraulic bearing, exceptional fan blades, and anti-vibration mounting system of the fan also helps to offer superb cooling performance. With a small footprint of 140mm (D) x 86mm (H) x 150mm (L), the PF1 provides ample space for cable management.
Compact Design with 140mm Depth
The Toughower PF1 Plainum Series is designed to be compact with a size of 140mm (D) x 86mm (H) x 150mm (L) providing ample space for cable management

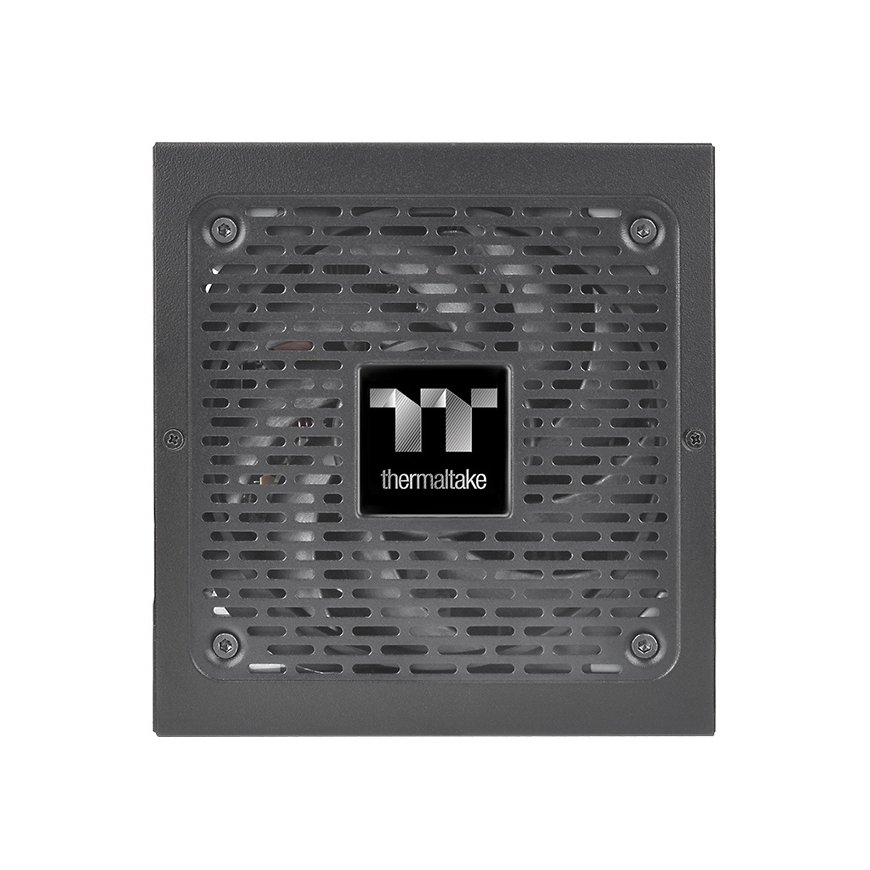

120mm High Static Pressure Fan
Toughpower PF1 1050W/1200W Platinum features a High Static Pressure Fan with a maximum fan speed of up to 2500 RPM, ensuring superb cooling performance. The 2nd Generation Hydraulic Bearing incorporates a new shaft design with inside etches, and an Exceptional Blade Design to guarantee that the fan blades are very tensile in strength, and the Anti-Vibration Mounting System is to provide protection and silent operation.
Smart Zero Fan
Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.
＜30mV Low Ripple Noise
All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keeps your performance-critical components functioning more reliable for longer.
Extremely Strict Voltage Regulation ＜±2%
The voltage regulation is stricter than Intel’s standard of ±5% for major rails and ±10% for -12V, its set to no more than ±2% for major rails to meet the highest performance.

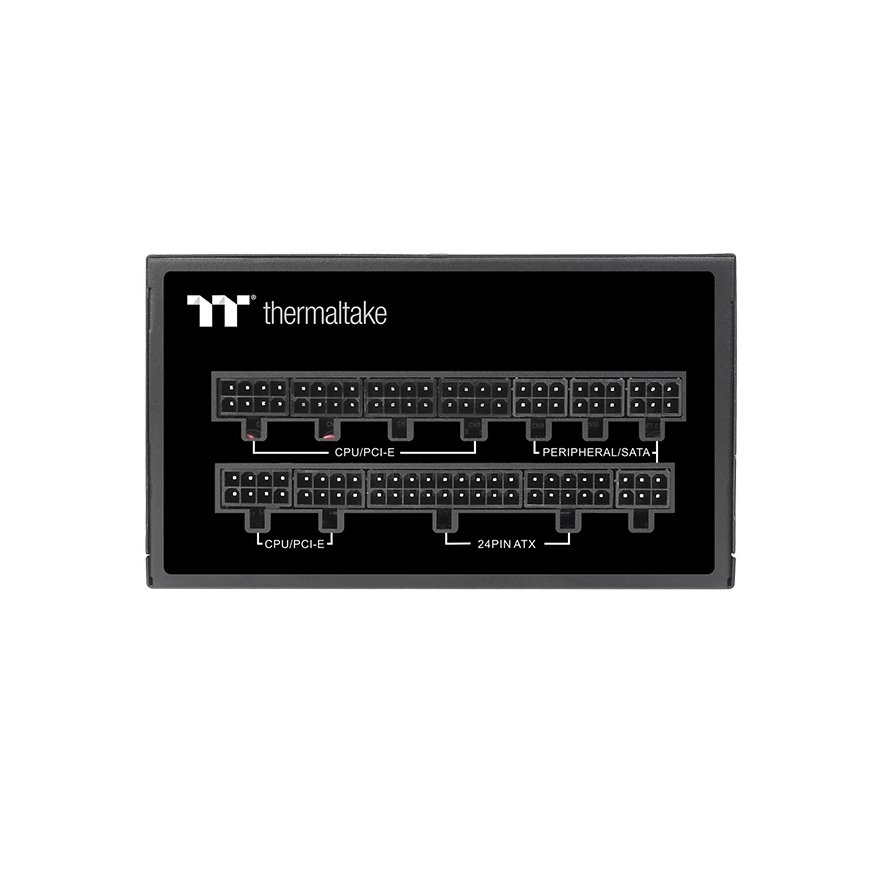

Fully Modular Low-Profile Flat Cable
Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.
Premium Japanese 105°C/221°F Capacitors
Providing great durability as well as offering the highest stability, while remaining reliable.
High Amperage Single +12V Rail
Powerful single +12V rail ensures a stable and reliable supply to other PC components.
80 PLUS Platinum Certified and Intel C6/C7 States Ready
Toughpower PF1 Platinum series saves energy through its high energy efficiency up to 92% and is certified to 80 PLUS® Platinum. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
Power | |
| Hold time | 16 ms |
| Input current | 8 - 16 A |
| Peak power | 1260 W |
| Power protection features | Over current, Overload, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1050 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 87.5 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Max output current (-12V) | 0.3 A |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Total power | 1050 W |
Performance | |
| Mean time between failures (MTBF) | 120000 h |
| Purpose | PC |
| 80 PLUS certification | 80 PLUS Platinum |
| Bearing technology | HDB |
| Silent mode | Yes |
| Power supply unit (PSU) form factor | ATX |
Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 12 cm |
| On/off switch | Yes |
Ports & interfaces | |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 12 |
| EPS power connector (8-pin) | Yes |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 8 |
| Motherboard power connector | 24-pin ATX |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 60 cm |
| SATA power cable length | 500, 650, 800, 950 |
| Peripheral (Molex) power cable length | 500, 650, 800, 950 |
| PCI Express power cable length | 65 cm |
| Floppy disk drive cable length | 15 cm |
| EPS power connector (4+4 pin) | Yes |
Operational conditions | |
| Operating relative humidity (H-H) | 20 - 85% |
| Operating temperature (T-T) | 5 - 50 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Storage relative humidity (H-H) | 10 - 95% |
Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Packaging content | |
| Cable tie(s) included | Yes |
Certificates | |
| Certification | CE/UL/TÜV/FCC/CB |
