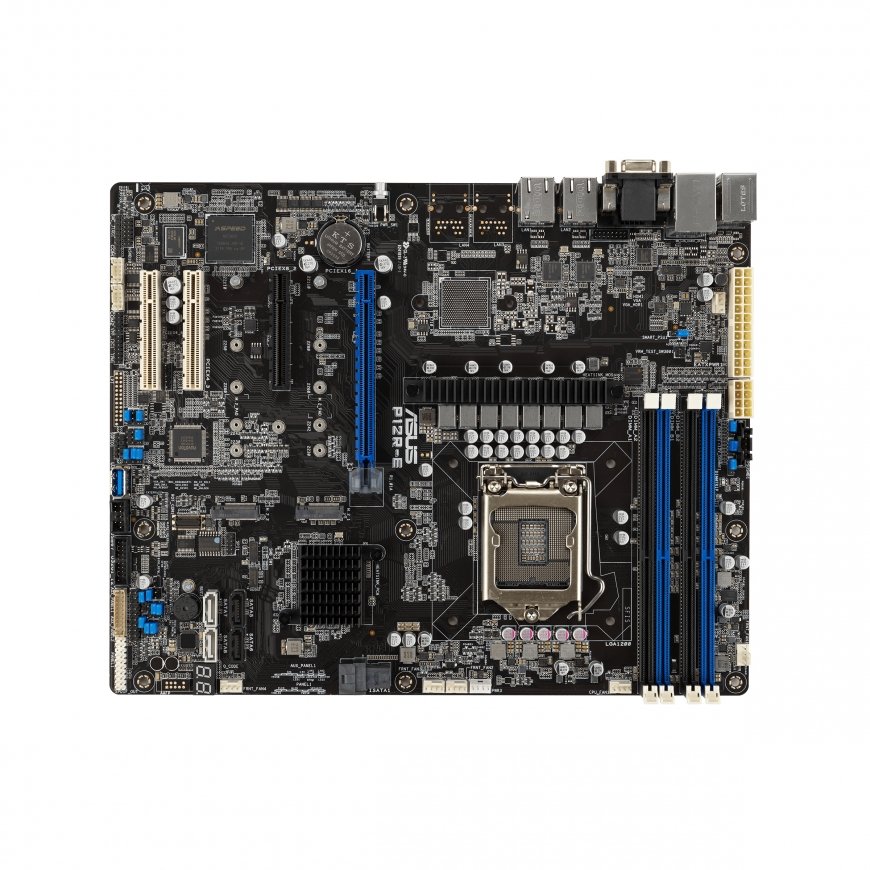

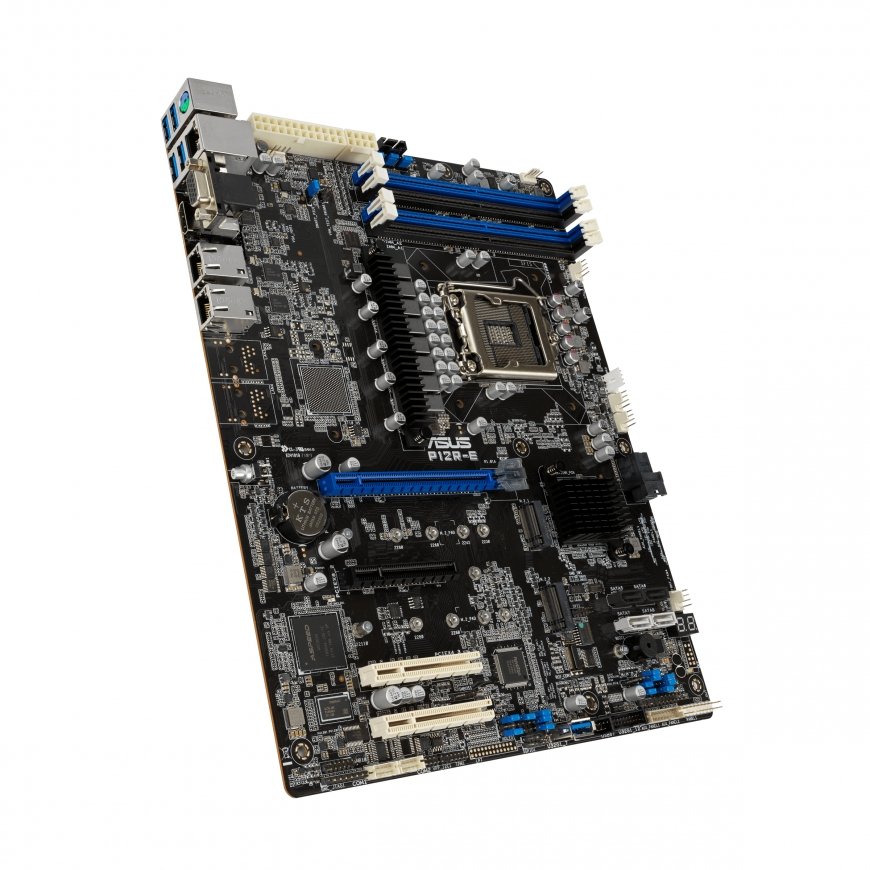

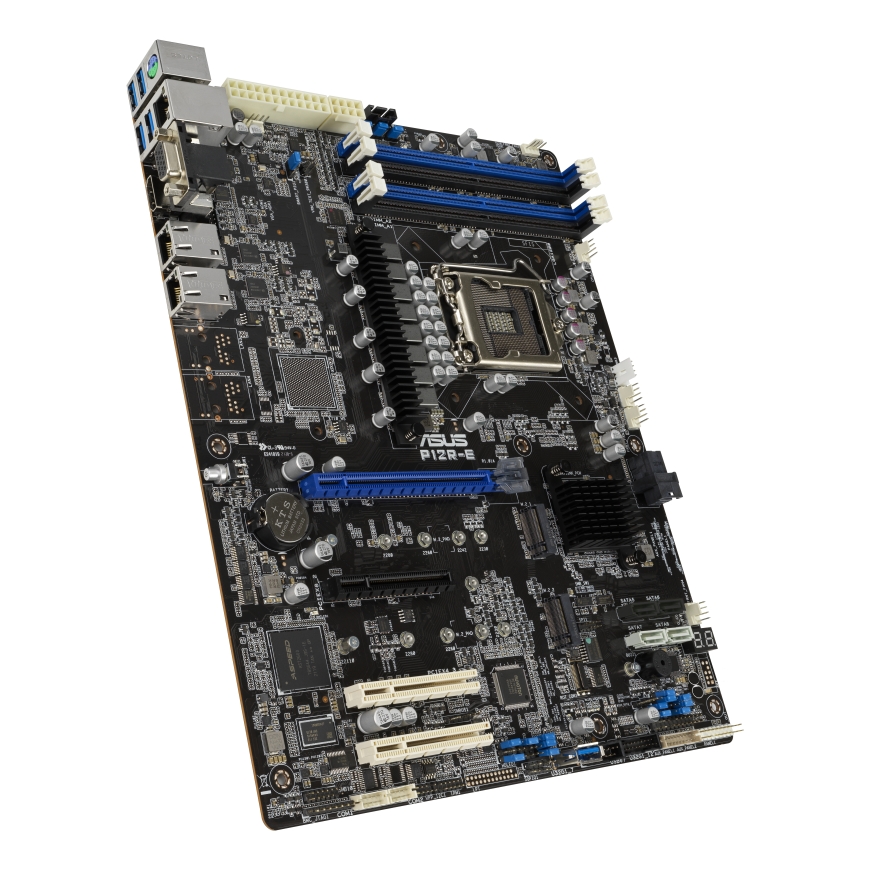

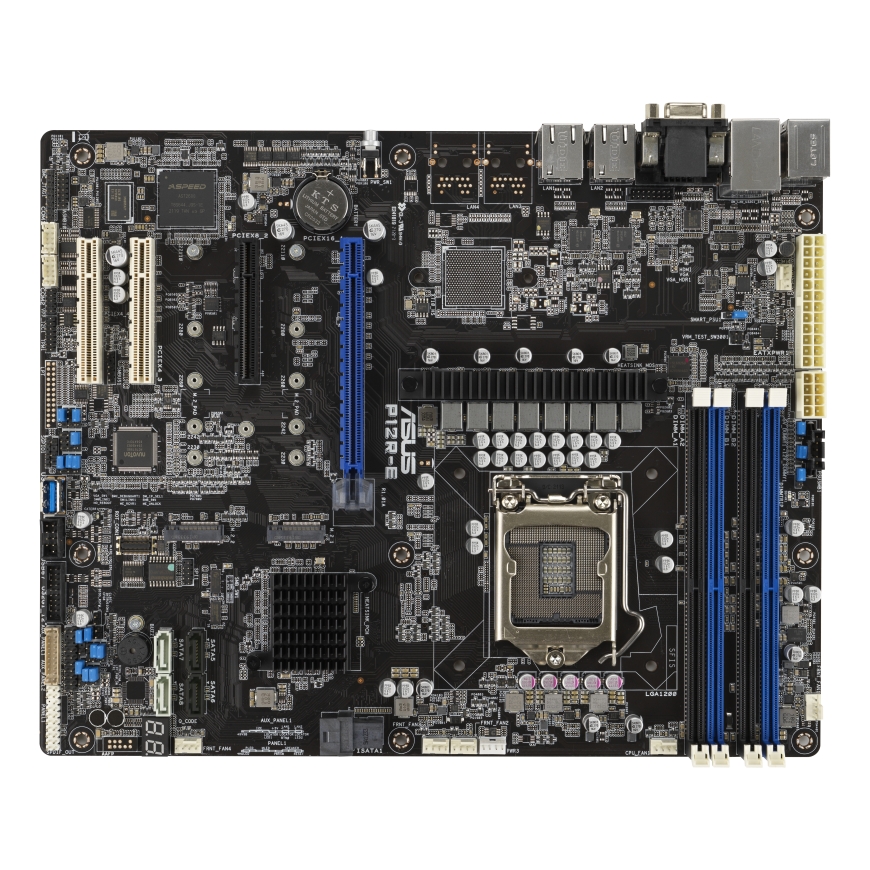

ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX
409.00 €
Monthly payment from 11,43 €
1096717 90SB0A90-M0UAY0
4711081420217
4-6 b.d.
You are interested in this product?
All about the product
PCIe 4.0 ReadyPCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS P12R server motherboards are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
Processor | |
| Compatible processor series | Intel® Pentium®, Intel Xeon E |
| Processor socket | LGA 1200 (Socket H5) |
| Processor manufacturer | Intel |
Memory | |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 2666, 2933, 3200 |
| Supported memory types | DDR4-SDRAM |
| Supported memory module capacities | 8GB, 16GB, 32GB |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 3200 MHz |
Storage controllers | |
| Number of HDDs supported | 8 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 10 |
| RAID support | Yes |
Graphics | |
| Graphics card family | ASPEED |
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 64 MB |
Internal I/O | |
| USB 2.0 connectors | 1 |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Power fan connector | Yes |
| TPM connector | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 8 |

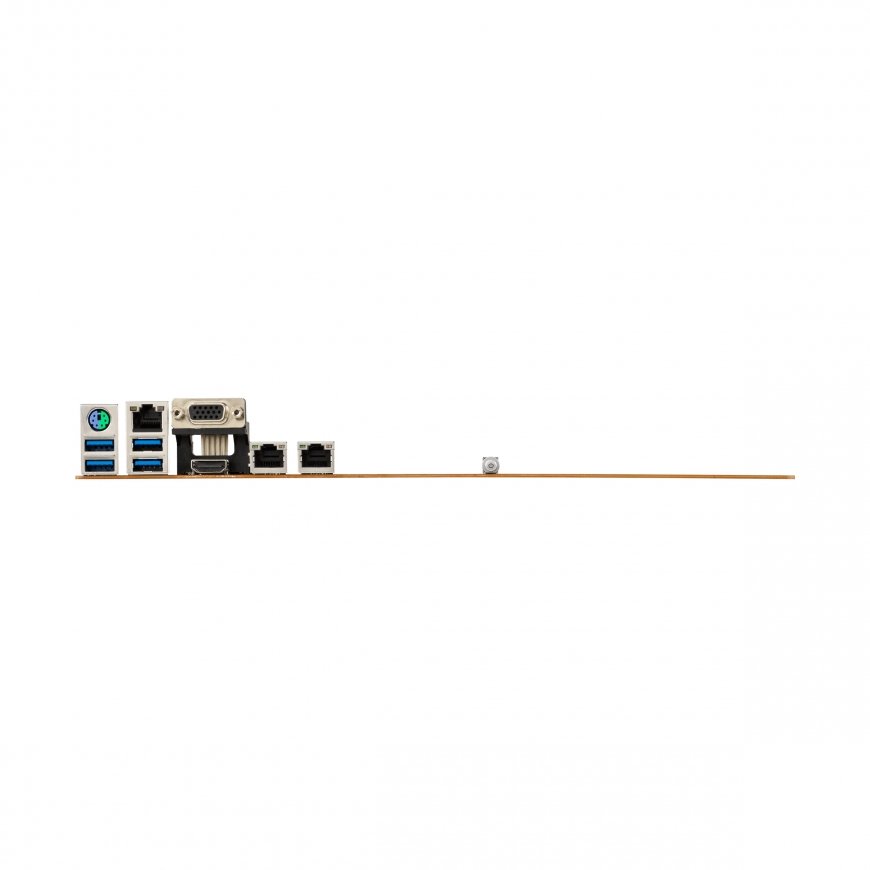

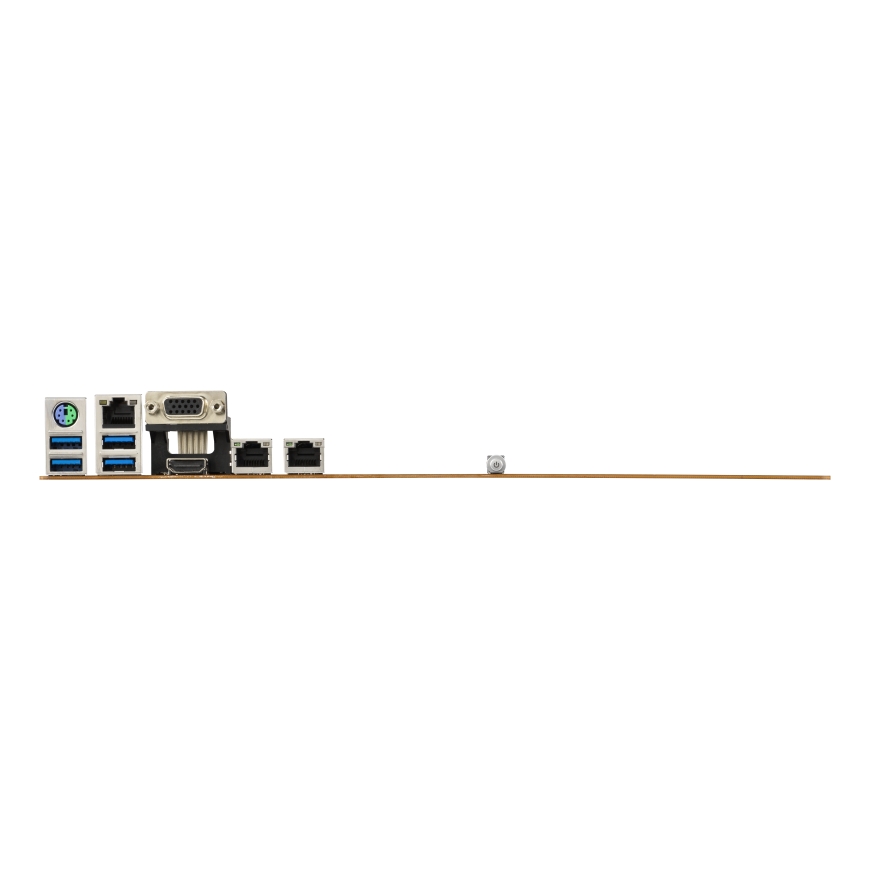

Rear panel I/O ports | |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
Network | |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Top Wi-Fi standard | Not available |
Features | |
| Motherboard form factor | ATX |
| Motherboard chipset | Intel C256 |
| Motherboard chipset family | Intel |
| PC health monitoring | CPU, Fan |
| Component for | Server |
Expansion slots | |
| PCI Express x8 (Gen 3.x) slots | 2 |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x8 (Gen 4.x) slots | 1 |
Operational conditions | |
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 68 mm |
Other features | |
| Weight | 800 g |
Packaging data | |
| Package width | 341 mm |
| Package depth | 281 mm |
| Package height | 78 mm |
| Package weight | 1.5 kg |
Logistics data | |
| Harmonized System (HS) code | 84733020 |
