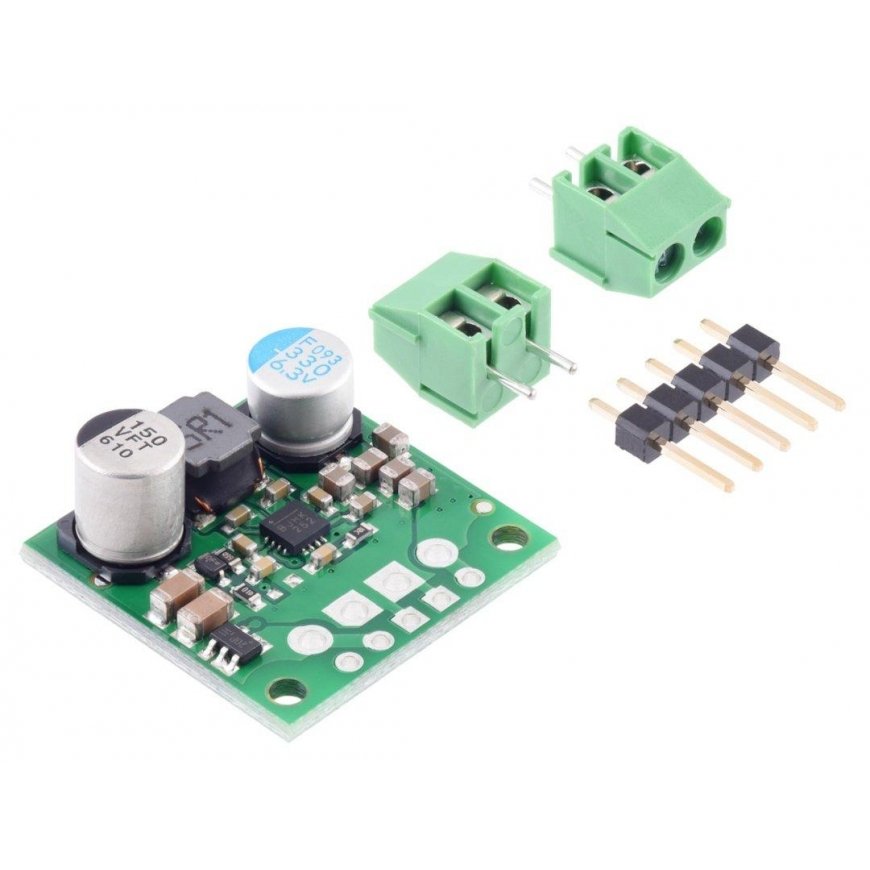

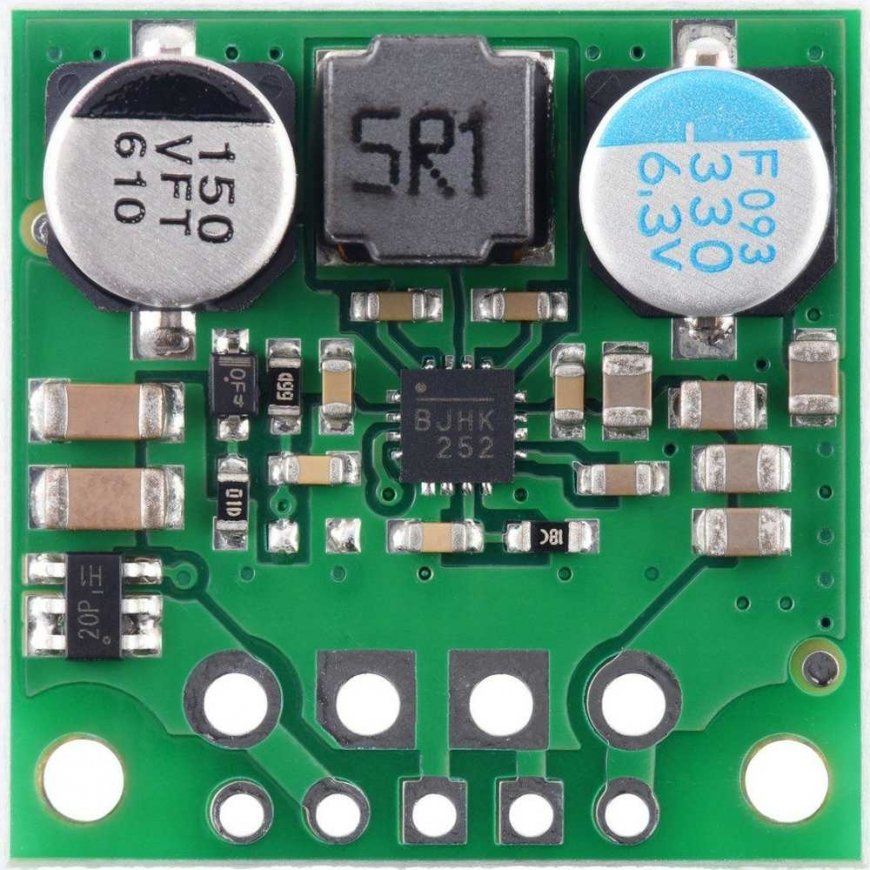

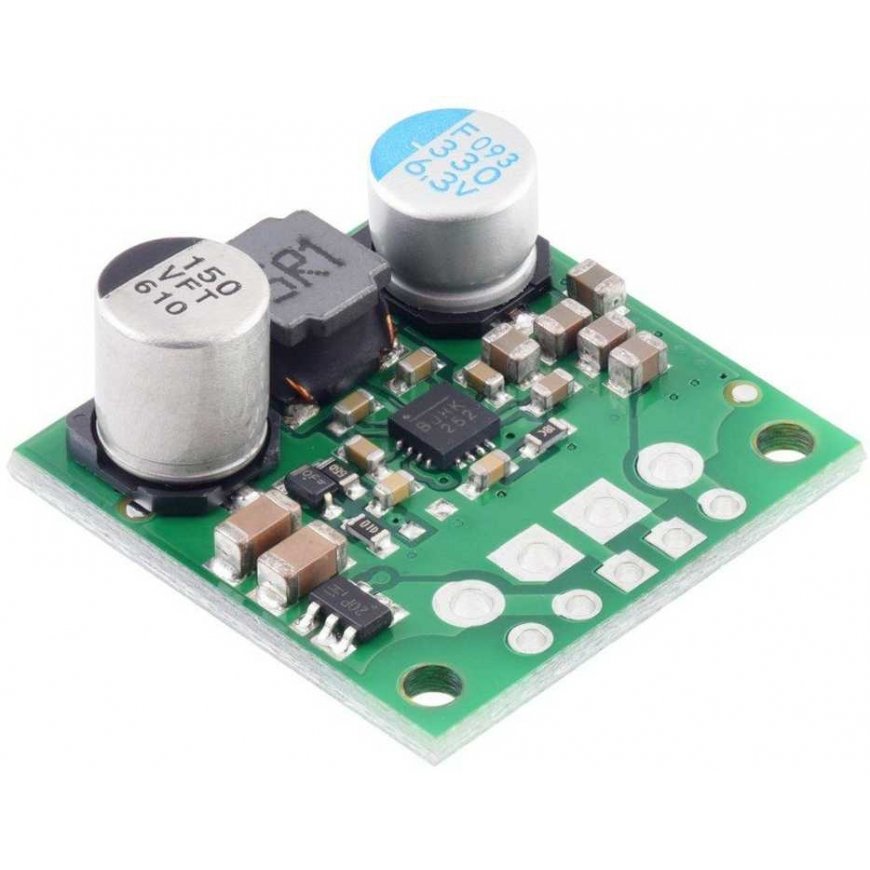

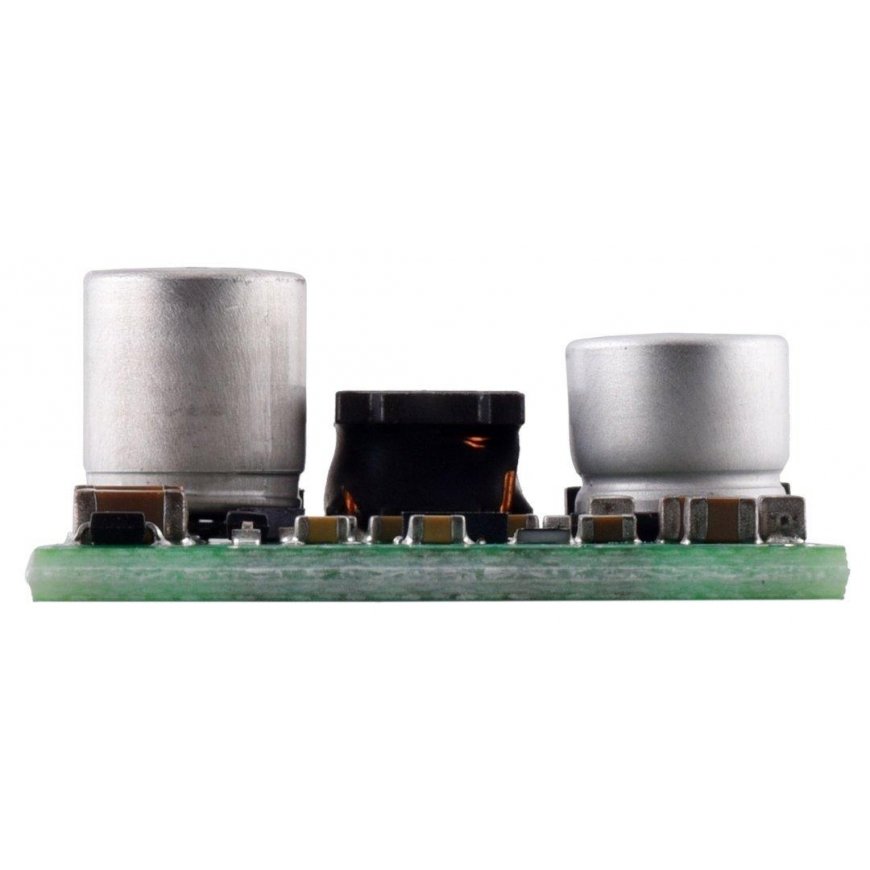

Step-Up/Step-Down voltage regulator S13V30F5, 5V 3A, Pololu 4082
3687538 AN-19768
5904422347529
Tarneaeg 11-18 t.p.
Kõik toote kohta
A small step-up/step-down voltage converter module with a 5 V output voltage and a 3 A current output. Its input voltage range is from 2.8 V to 22 V. Its ability to convert both higher and lower input voltages makes it useful in applications where the supply voltage can vary greatly, such as when using batteries. The board has an efficiency of 85% to 95% and can deliver current from 2 A to 4 A, depending on the input voltage. It features reverse polarity protection up to 20 V, undervoltage lockout, output overvoltage protection, and overcurrent protection. An overtemperature shutdown function also helps prevent overheating damage, while a soft-start function limits the inrush current and gradually increases the output voltage during startup.
Main features:
- Input voltage: 2.8V to 22V
- Output voltage: 5 V with 3% accuracy
- Typical maximum output current: 2 A to 4 A, depending on input voltage
- Typical efficiency: 85% to 95%, depending on input voltage and load
- Typical idle current: 10 mA to 20 mA at no load, can be reduced to 2 µA to 10 µA per volt of VIN when the board is powered off
- Input undervoltage lockout and input overvoltage protection
- Soft start function limits input current and gradually increases output voltage
- Integrated reverse voltage protection up to 20 V, overcurrent protection and thermal shutdown
- Fixed switching frequency: ~500 kHz

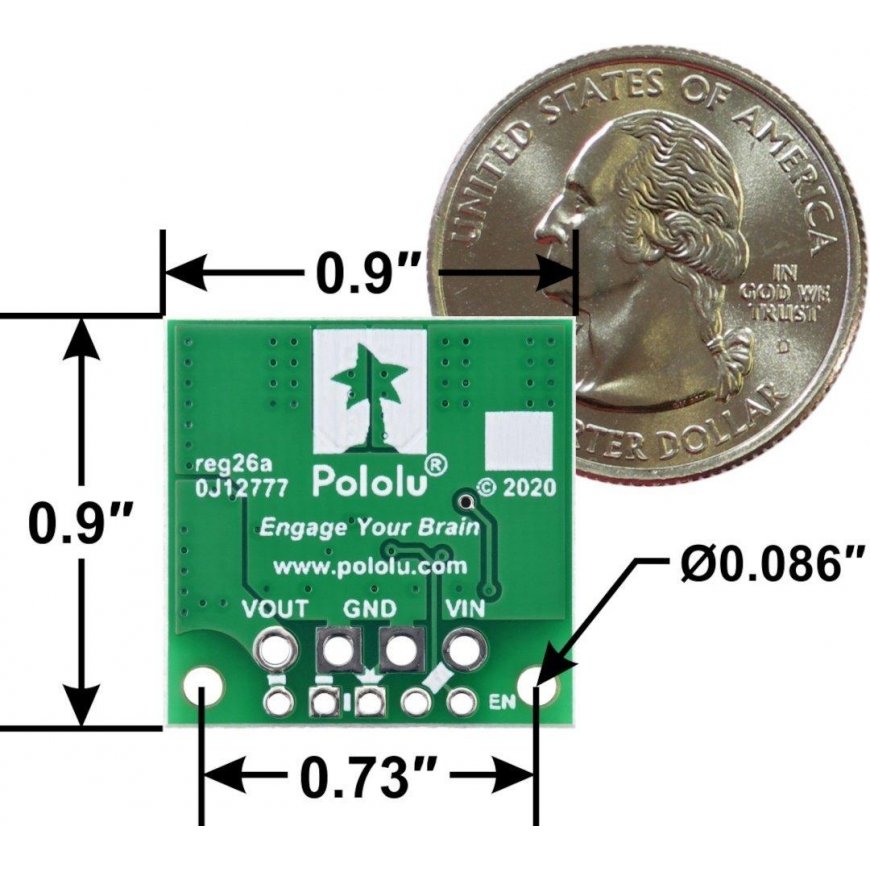

- Compact size: 22.9 x 22.9 x 9.7 mm
- Two mounting holes: for 2.2 mm M2 screws
- Input voltage: 2.8V to 22V
- Output voltage: 5V
- Continuous output current: typical 3 A
- Reverse voltage protection: yes
- Maximum quiescent current: 100 mA
- Dimensions: 22.9 x 22.9 x 9.7 mm
- Weight: 3.5 g
